St. John's Evang. Lutheran Church: Sanctuary; rear gallery
558 South Water Street
Lomira, WI
OHS convention: 1990
Images
2021-03-10 - Great pipework (Photograph by Andrew Schaeffer/Andrew Schaeffer)
2021-03-10 - Casework panel details (Photograph by Andrew Schaeffer/Andrew Schaeffer)
2021-03-10 - Pedalboard and expression shoe (Photograph by Andrew Schaeffer/Andrew Schaeffer)
2021-03-10 - Piston couplers (Photograph by Andrew Schaeffer/Andrew Schaeffer)

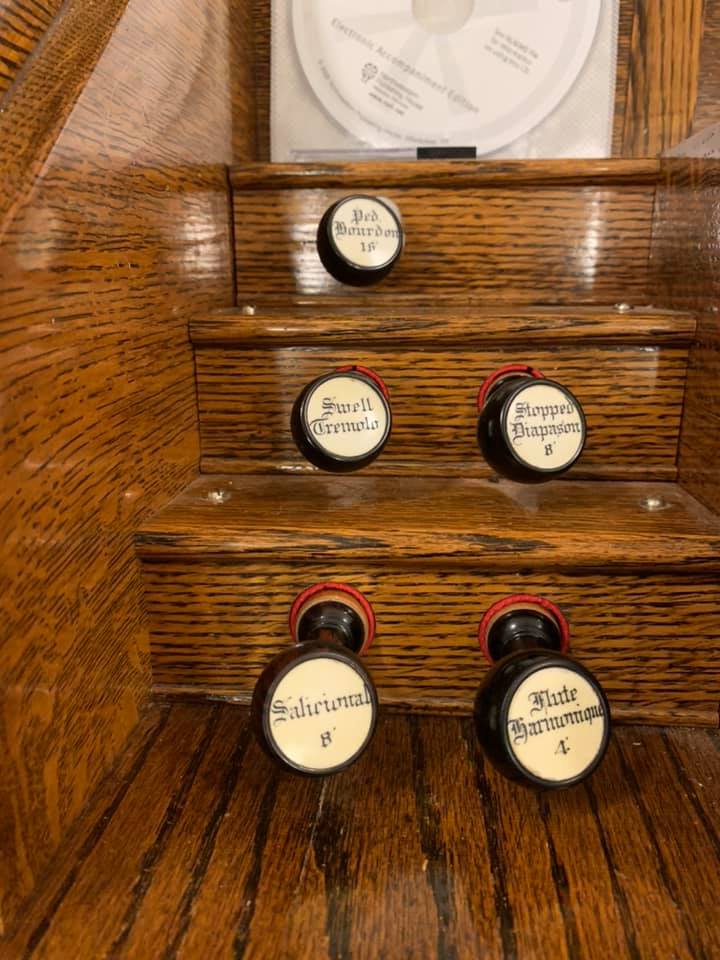

2021-03-10 - Keydesk: left stopjamb (Photograph by Andrew Schaeffer/Andrew Schaeffer)
2021-03-10 - Keydesk: right stopjamb (Photograph by Andrew Schaeffer/Andrew Schaeffer)

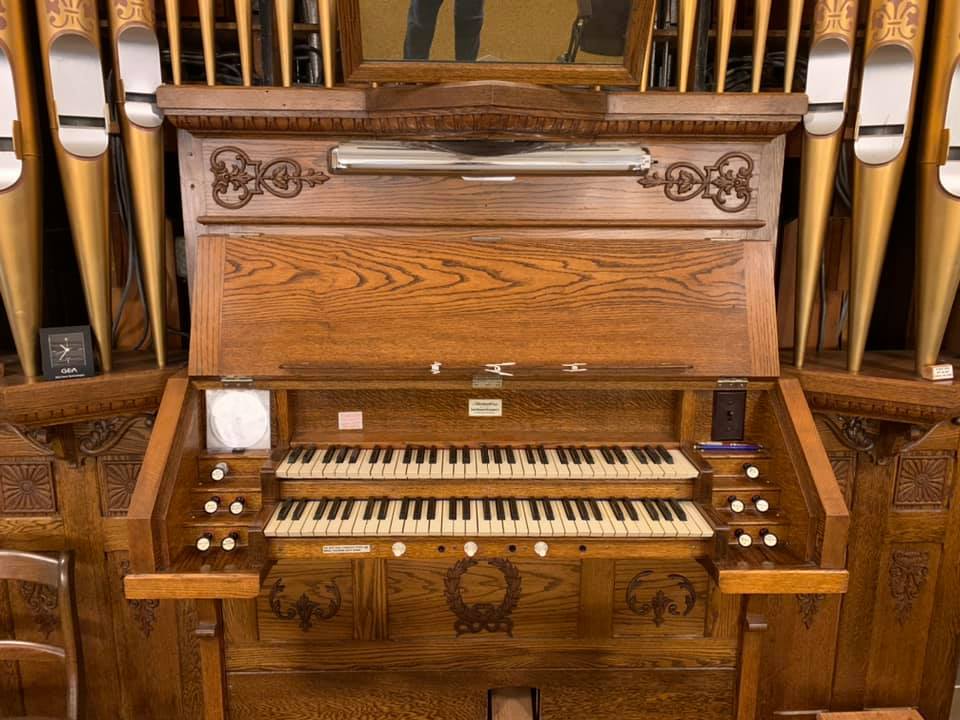

2021-03-10 - Keydesk (Photograph by Andrew Schaeffer/Andrew Schaeffer)
2021-03-10 - Organ in profile (Photograph by Andrew Schaeffer/Andrew Schaeffer)

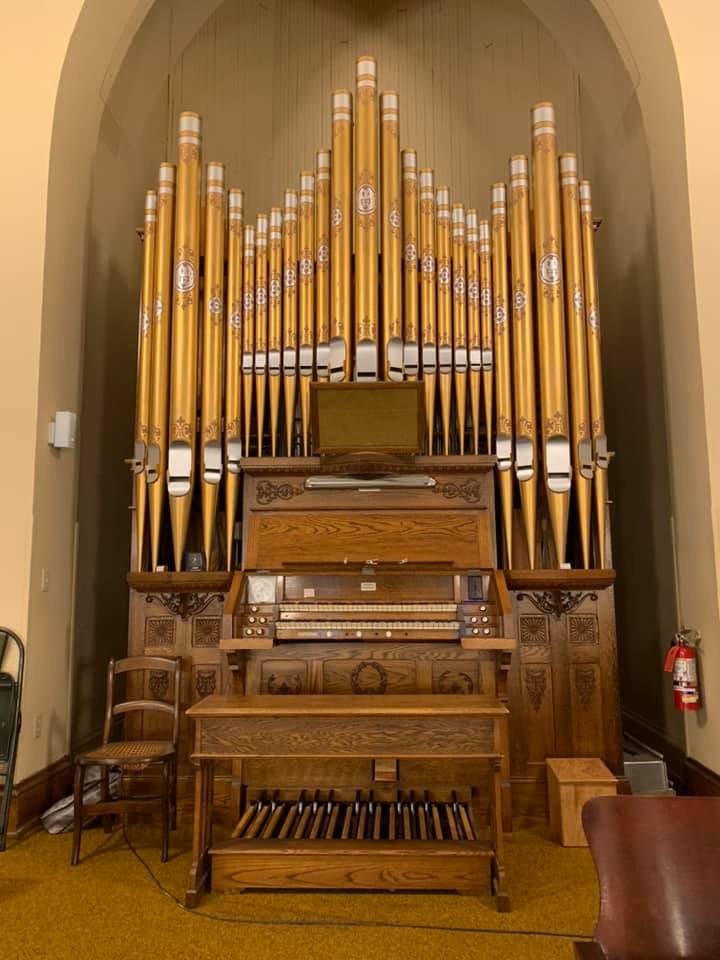

2021-03-10 - Organ case in rear gallery (Photograph by Andrew Schaeffer/Andrew Schaeffer)
2014-08-16 - Builder's Nameplate (Photograph by Ryan Mueller/Database Manager)
Unknown - Organ in rear gallery, July 1972. (Photograph by Rick Erickson/Database Manager)
Unknown - Organ case from right side, July 1972. (Photograph by Rick Erickson/Database Manager)
Unknown - Case and console, July 1972. (Photograph by Rick Erickson/Database Manager)
Consoles
Rear Gallery
- Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
- Console position: Keydesk Attached
- 2 manuals
- 9 stops
- 9 registers
- 3 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Mechanical
- Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
- Manual compass: 61 notes
- Pedal compass: 27 notes
- Pedal Type: Flat Straight
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Combination action: None
Notes
2004-10-30 - Status Note: There 1990 -Database Manager
2004-10-30 - Cost $1056. Electric blower added 1929. Renovated 1974. -Database Manager
2011-01-21 - Updated through on-line information from Rick Erickson. -Database Manager
2016-07-26 - Updated through online information from James R. Stettner. -Database Manager
Stoplist
Source: Stoplist taken from console July 1972
Lomira, Wisconsin
St. John's Ev. Lutheran Church
Hann-Wangerin-Weickhardt, 1904
GREAT
8' Open Diapason
8' Melodia
8' Dulciana
4' Octave
2' Wald Floete
SWELL (Expressive)
8' Stopped Diapason
8' Salicional
4' Flute Harmonique
Swell Tremolo
PEDAL
16' Ped. Bourdon
COUPLERS
Swell to Pedal
Great to Pedal
Swell to Great
The three couplers are controlled by 6 thumb buttons (similar to thumb pistons),
on and off for each coupler
[Received from Rick Erickson 2011-01-21.]
