Mountain Brook Baptist Church: Sanctuary
3631 Montevallo Rd.
Mountain Brook (Birmingham), AL
Images
2022-01-10 - Church interior to floor (Photograph by Jeff Scofield/Jeff Scofield)

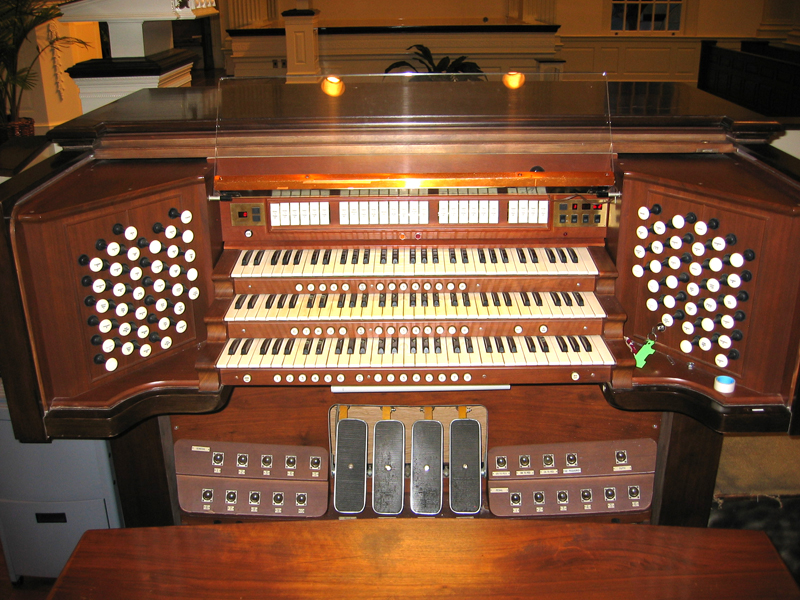

2006-12-21 - Console (Photograph by Jeff Scofield/Database Manager)
2022-01-10 - Church interior from balcony (Photograph by Jeff Scofield/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Console in Fixed Position, Left
- 3 manuals
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Computerized/Digital
- Has sequencer
- Has combination thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2007-05-24 - Identified through on-line information from James R. Stettner. -- Conversion of the console to solid state. MIDI compatible. Tonal additions/changes (?). Number of finger pistons & toe studs was not altered from the original. But the coupler rail has been modified and there are additional drawknobs that were not present during my June 1987 documentation. -Database Manager
2013-04-14 - Updated through online information from Jeff Scofield. -- Work done by Milnar Organ Co. in 2012 included a new 2' Swell IV Mixture in the Swell and the old Swell 1' Mixture IV moved to the Choir, replacing the III Cymbal; the Choir 8' Tromba and the 32' Bombarde octave were sent to the reed voicer for new tongues. -Database Manager
