Casavant Frères Ltée. Opus 2512 (1959)

First Lutheran Church
542 South 31st Street
Omaha, NE

Images

2014-11-14 - Church Exterior (Photograph by Jeff Scofield/Database Manager)

1992-05-27 - Console (Photograph by Jeff Scofield/Database Manager)

1992-05-27 - Chancel and Chamber Grillework (Photograph by Jeff Scofield/Database Manager)

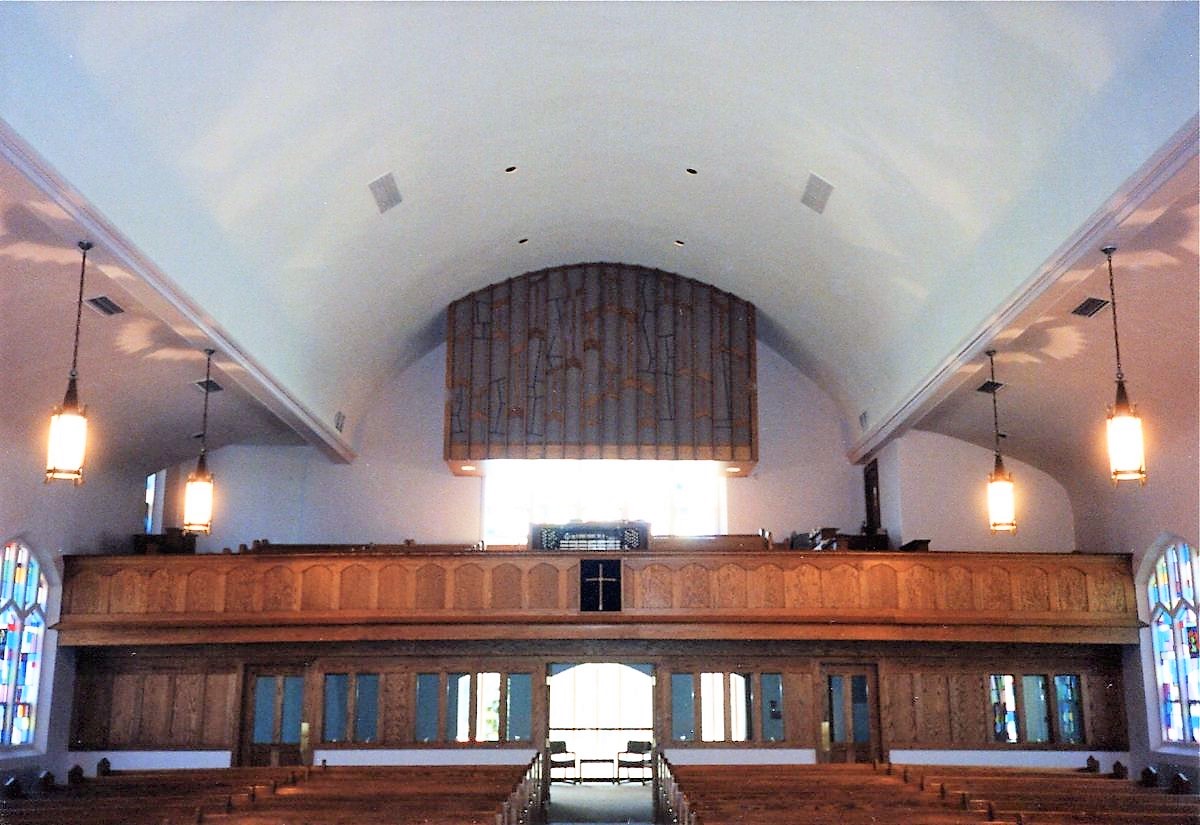

1992-05-27 - Nave, Balcony, and Gallery Grillework (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Left
3 manuals
30 stops
37 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons

Notes

2007-05-28 - Identified through online information from Stanley R. Scheer. -- The Great, Swell and Pedal divisions are located in chambers at the front of the nave. The Gallery division is located in the rear gallery along with a duplicate console bearing Opus Number 2513. In several places in the contract the Gallery division is alternatively referred to as the Choir division, including the following, "The Gallery (or Choir) division to be located in the gallery." The gallery division is in a center chamber in front of the rear gallery window, with no visible pipes. The main organ is located in forward-facing chambers to each side of the altar/pulpit area. The choir and front console are located in the left transept. -Database Manager

Stoplist

Stoplist courtesy of the Casavant FrÃ¨res Archives Source: Source not recorded Date not recorded

     Omaha, Nebraska
     First Lutheran Church

     Casavant   Op. 2512   1959   3/38
     Casavant   Op. 2513   1959   Gallery Console
     _________________________________________________

     Stoplist courtesy of the Casavant Frères Archives,
     St. Hyacinthe, Québec

     GREAT                        GALLERY (CHOIR)

 16' Quintaton       61        8' Cor de Nuit      61
  8' Principal       61        8' Gemshorn         61
  8' Quintaton       12        4' Kleinprinzipal   61
  8' Spitzflöte      61        4' Koppelflöte      61
  4' Octave          61    2 2/3' Nazard           61
  4' Chimney Flute   61        2' Blockflöte       61
  2' Fifteenth       61    1 3/5' Tierce           61
 IV  Fourniture     244      III  Cymbal          183
     Unison Off                8' Hautbois         61
     Super                        Tremulant
     Chimes          GA           Sub
                                  Unison Off
     SWELL                        Super
                                  Chimes           pf
  8' Rohrgedeckt     68
  8' Salicional      68           PEDAL
  8' Voix céleste    61 GG
  4' Geigen Octave   68       16' Violonbass       32
  4' Harmonic Flute  68       16' Quintaton        GT
III  Plein Jeu      183       16' Lieblich Gedeckt 12 SW
 16' Bassoon   L/2   68       16' Gemshorn         12 GA
  8' Trompette       68        8' Spitzprinzipal   32
  4' Rohrschalmei    68        8' Quintaton        GT
     Tremulant                 4' Choralbass       32
     Sub                       4' Quintaton        GT
     Unison Off               II  Cymbal           64
     Super                    16' Posaune          32
                              16' Fagotto          SW

    [Received from Jeff Scofield December 15, 2014]

Stoplist and notes from Stanley Scheer Source: Source not recorded Date not recorded

Unsupported filetype pdf, view here.

Related Pipe Organ Database Entries

#25532 - Casavant Frères Ltée. Opus 2513 (1959)
