Better Pipe Organ Database

Schantz Organ Co. Opus 953 (1970)

Central Baptist Church of Fountain City, Knoxville: Sanctuary
5364 N. Broadway
Knoxville, TN

Images

2008-03-18 - Church exterior (Photograph by Jeff Scofield/Database Manager)

2008-03-18 - Choir loft and organ from rear gallery (Photograph by Jeff Scofield/Database Manager)

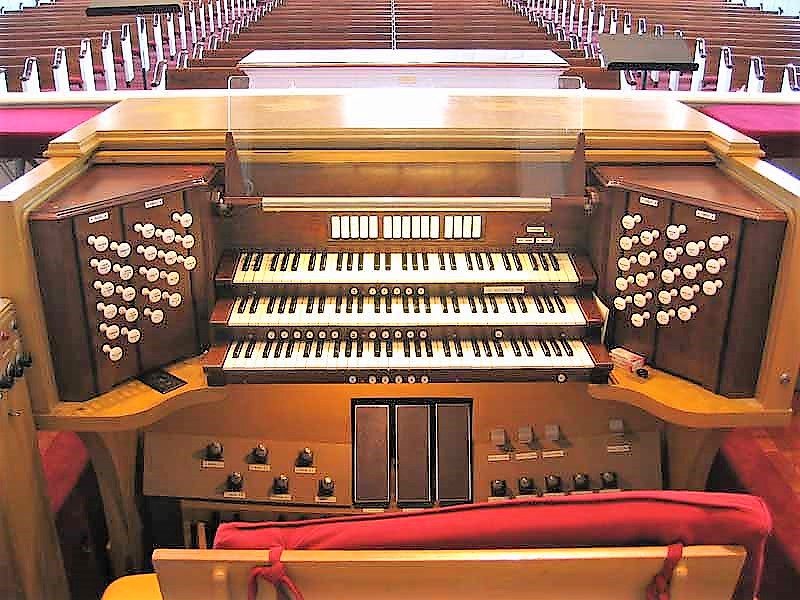

2008-03-18 - Console (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
3 manuals
35 stops
24 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-05-30 - Identified through on-line information from James R. Stettner. -Database Manager

2008-03-21 - Updated through on-line information from Jeff Scofield. -Database Manager

2012-06-22 - Updated through online information from Tim Johnson. -- I helped with the installation of this organ as an interested amateur. The organ is fully functional but is ready for replacement of the foam rubber components and some console work. All pipework is in place and in good condition. Metal pedal division pipes repaired by Schantz several years ago due to drooping languids. Air leaks due to longitudnal seams not being soldered at the time of installation have been resolved. Further work awaits funding. -Database Manager

Stoplist

Stoplist copied from the console March 18, 2008 Source: Source not recorded Date not recorded

     Knoxville, Tennessee
     Central Baptist Church, Fountain City

     Schantz   Op. 953   1969   3/28
     _____________________________________________

     GREAT                     CHOIR
 16' Quintaten              8' Gedackt
  8' Principal              8' Flauto Dolce
  8' Bordun                 8' Flute Celeste
  4' Octave                 4' Koppelflöte
  4' Waldflöte          2 2/3' Nasat
  2' Super Octave           2' Flöte            12
 IV  Mixture            1 3/5' Terz              5
     Unison Off             8' Rohrschalmei
     Super                     Tremulant
     Chimes                    Sub
                               Unison Off
     SWELL                     Super
  8' Flute a Cheminee
  8' Viole de Gambe            PEDAL
  8' Viole Celeste         32' Resultant        --
  4' Prestant              16' Principal
  2' Doublettte            16' Brummbass
III  Plein Jeu             16' Flute a Cheminee 12 SW
  8' Trompette              8' Octave           12
  4' Hautbois               8' Flötenbass       12
     Tremulant              8' Flute a Cheminee SW
     Sub                    4' Super Octave     12
     Unison Off            16' Contre Trompette 12 SW
     Super                  8' Trompette        SW
                            4' Hautbois         SW

    [Received online from Jeff Scofield July 15, 2011]
