Better Pipe Organ Database

Gabriel Kney & Co. (1976)

Cathedral Church of St. Luke and St. Paul, Episcopal
126 Coming Street
Charleston: Radcliffeboro, SC

OHS convention: 1985

Images

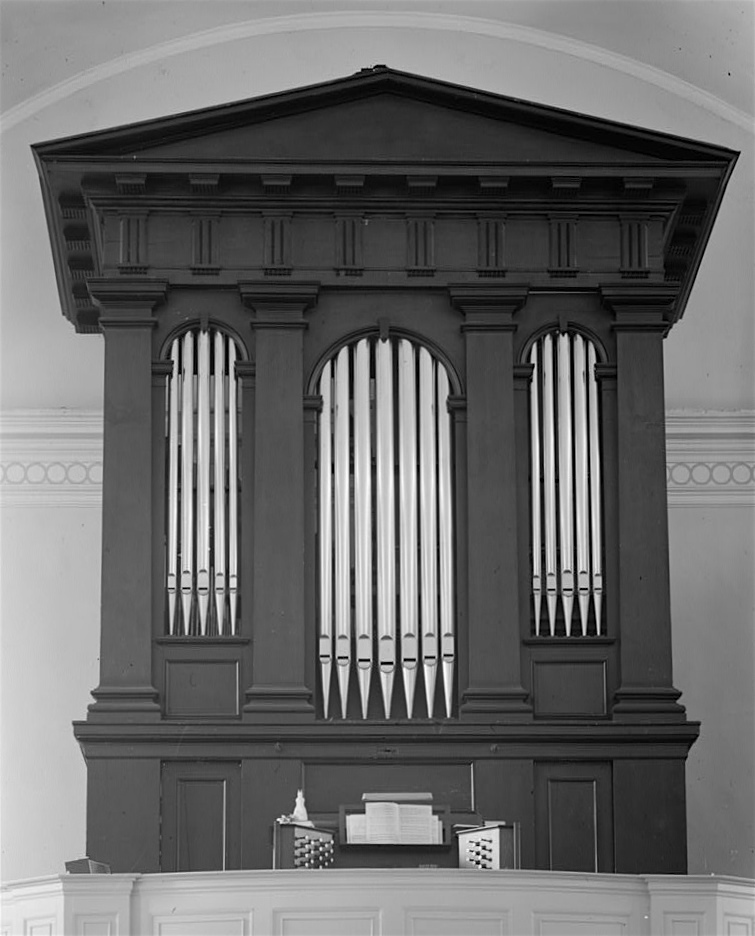

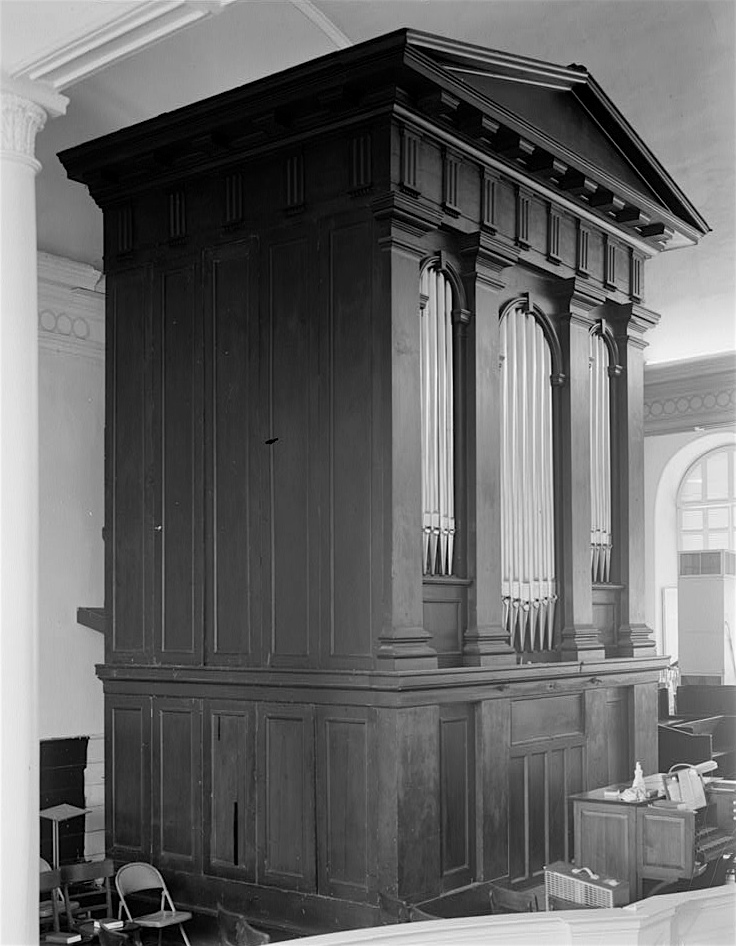

1978-08-01 - Organ Case (Photograph by Charles N. Bayless; image courtesy of the Library of Congress/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Detached Keydesk (Mechanical Action)
2 manuals
27 stops
3 divisions
Key action Type: Mechanical (Balanced Tracker)
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has combination toe pistons
Has tutti toe pistons

Notes

2004-10-30 - Status Note: There 1977 -Database Manager

2004-10-30 - Casework by Theodore Charles Bates (London, England, ca.1853) built for St. Paul's Episcopal Church, Charleston, S.C. -Database Manager

2009-02-08 - Updated through online information from Allan Ontko. -Database Manager

Stoplist

Stoplist and information from a recital insert via Christopher Dunivan Source: Source not recorded Date not recorded

Charleston, South Carolina
Cathedral Church of St. Luke and St. Paul, Episcopal

Gabriel Kney & Co.   1976                  2 manuals, 27 stops, 36 ranks
________________________________________________________________________

         GREAT ORGAN                         SWELL ORGAN
      8' Principal          56            8' Gedeckt            56
      8' Rohrflöte          56            8' Gamba              56
      4' Octave             56            8' Celeste (TC)       44
      4' Spitzflöte         56            4' Principal          56
  2 2/3' Nasat              56            4' Flute              56
      2' Blockflöte         56            2' Octave             56
  1 3/5' Terz               56        1 1/3' Quinte             56
      2' Mixture V         280            1' Scharff III       168
     16' Trumpet            56           16' Dulcian            56
      8' Trumpet            56            8' Schalmei           56
         Tremulant                           Tremulant
         Swell to Great
                                             Zimbelstern (5 bells)
         PEDAL ORGAN
     16' Subbass            32               COMBINATIONS (8 levels)
      8' Principal          32               General  8
      8' Gedeckt            32               Setter
      4' Choralbass         32               General Cancel
  2 2/3' Mixture IV        128               Tutti (adjustable)
     16' Posaune            32
      8' Trumpet            32               PEDAL MOVEMENTS
         Great to Pedal                      Balanced Swell Pedal
         Swell to Pedal                      Great to Pedal Reversible

         Mechanical key action
         Electric stop action


[Received from Steven E. Lawson  2015-03-25]
