Better Pipe Organ Database

Frans W. M. Bosman Opus 7 (1990)

St. Paul's Lutheran
802 First St.
Castle Rock, WA

Images

2019-02-21 - Facade (Photograph by James R. Stettner/Database Manager)

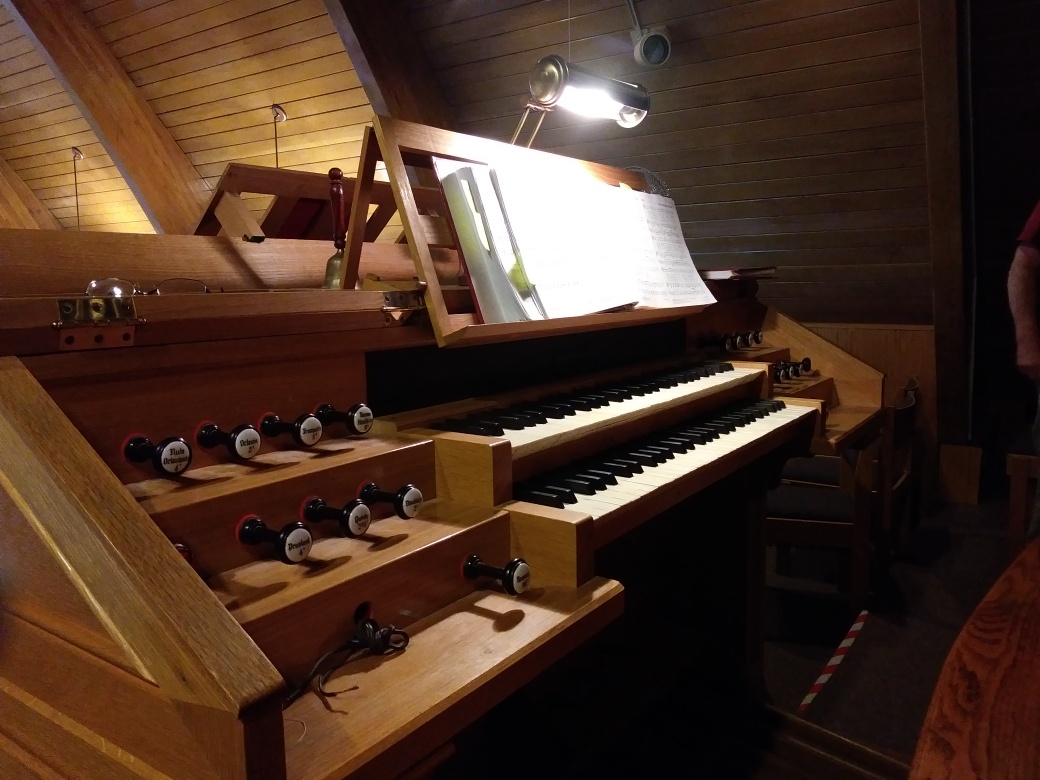

2019-02-21 - Console (Photograph by James R. Stettner/Database Manager)

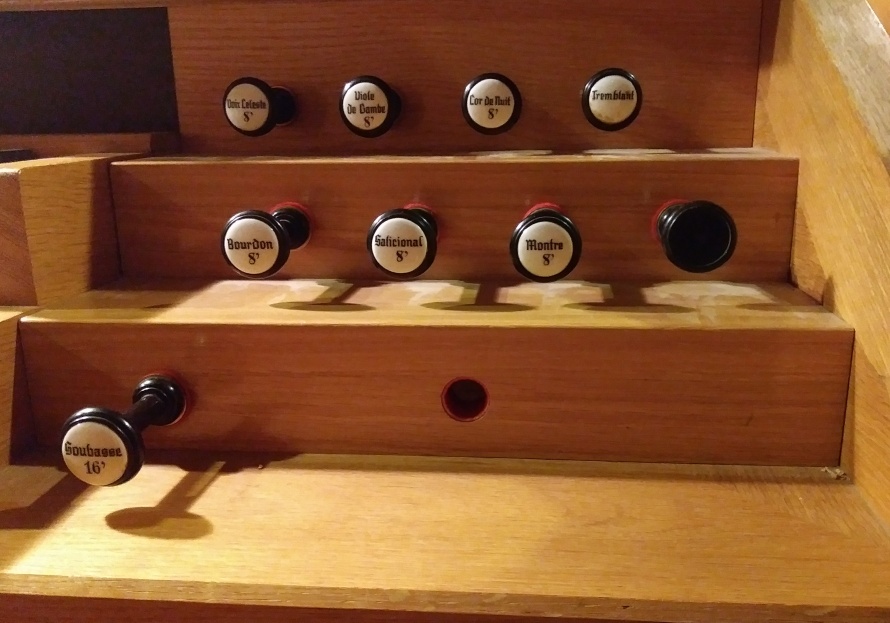

2019-02-21 - Console: left stopjamb (Photograph by James R. Stettner/Database Manager)

2019-02-21 - Console: right stopjamb (Photograph by James R. Stettner/Database Manager)

2019-02-21 - Console: Recit expression and hitch-down couplers (Photograph by James R. Stettner/Database Manager)

2019-02-21 - Builder's Nameplate (Photograph by James R. Stettner/Database Manager)

2019-02-22 - Drawing of the original case design, ca. 1984 (Photograph by James R. Stettner/Database Manager)

1990-04-28 - Organ in rear gallery (Photograph by James R. Stettner/Database Manager)

1990-04-28 - Facade from sanctuary floor (Photograph by James R. Stettner/Database Manager)

Unknown - Organ case and console, 1990. (Promotional photo by the builder, courtesy of James R. Stettner/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Detached, Reversed Keydesk (Mechanical Action)
2 manuals
15 stops
15 registers
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: None
Has hitchdown couplers

Notes

2004-10-30 - Status Note: There 1998 -Database Manager

2004-10-30 - 2 pedal stops prepared for. -Database Manager

2006-01-06 - Updated through on-line information from James R. Stettner. -- As originally conceived, one manual division was to have been in a case in Ruckpositiv position on the gallery rail, but this was changed in favor of housing the entire organ in one main case, with the expressive Recit behind the Grand Orgue. Also, the second Pedale stop was originally an 8' Violoncelle, but it proved to be less-than-ideal, and was subsequently replaced by the builder with a 16' Basson. -Database Manager

Stoplist

Stoplist copied from the console April 28, 1990 Source: Source not recorded Date not recorded

Castle Rock, Washington
St. Paul Evangelical Lutheran Church

FRANS W.M. BOSMAN, Opus 7, 1985 - Original Specifications


GRAND ORGUE                                  COUPLERS
   8     Montre                     61          Récit to Pedale                 [8]
   8     Bourdon                    61          G.O. To Pedale                  [8]
   8     Salicional                 61
   4     Prestant                   61          Récit to G.O.                   [8]
   2-2/3 Quinte                     61
   2     Doublette                  61
                                             FOOT LEVERS (Labeled; l - r)
                                                P + I                  (hitch-down)
RÉCIT (Expressif)                               P + II                 (hitch-down)
   8     Cor de Nuit                61
   8     Viole de Gambe             61          I + II                 (hitch-down)
   8     Voix Celeste         (tc)  49
   4     Flute Octaviante           61
   2     Octavin                    61       PEDAL MOVEMENTS
   8     Trompette                  61          Récit Expression             (bal.)
   8     Hautbois                   61
         Tremblant
                                             ACTION: Mechanical Key & Stop

PEDALE                                       VOICES: 15         STOPS: 15
   16    Bourdon                    32
   16    Bassoon                    32       RANKS: 15          PIPES: 845



NOTES
The organ is free-standing and encased in the rear gallery with a detached, reversed
console. As originally conceived and drawn, the organ was to have a Rück-positiv divison,
but that was later changed to have the entire organ housed in a single case.

Also, the original second Pedale stop was an 8' Violoncelle. But it proved to be less-
than-adequate, so the builder replaced it with a 16' Basson.

Sources: Conversation with the builder; JRS; extant organ

 [Received from James R. Stettner 2013-08-28.]
