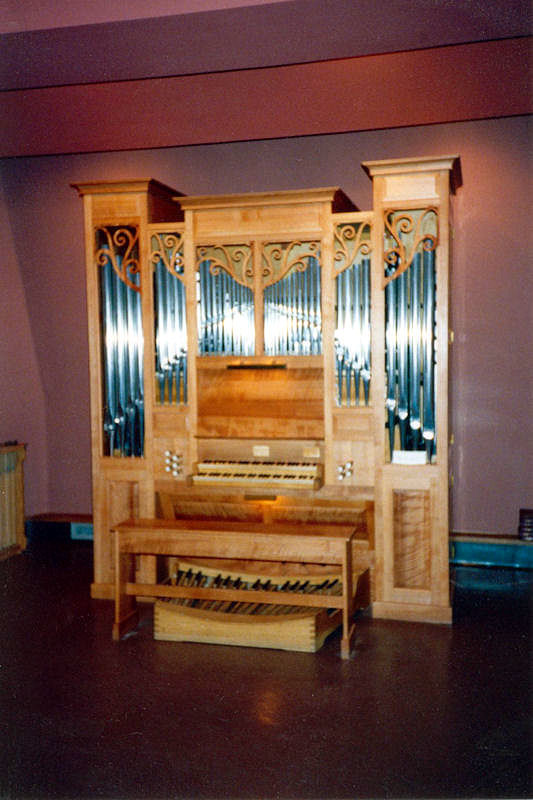

1991-09-13 - Organ case (Photograph by James R. Stettner/Database Manager)
2004-10-30 - Status Note: There 1998. -Database Manager
2007-03-22 - Updated through online information from James R. Stettner. -- The organ is free-standing in a case of Madrona. The 6-sectional facade contains 38 pipes arranged: 4-4-11-11-4-4. This is from the Man. I 4' Principal. The Man. I 2-2/3' Quinte is 1-1/3' pitch for the first octave. The Man. I 1-3/5' Terz starts at tenor G. The Man. II 8' Gedackt shares the bottom octave of the Man. I 8' Rohrflote. The organ has two, inter-changeable pedlaboards: one concave and raditating, the other flat and parallel. The tremulant affects the entire instrument. This is the Leon Mulling - Gilman Plunkett Organ, named after the two major supporters. -Database Manager
2018-11-20 - Updated by Margaret Evans, who has heard or played the organ. <br> <br>This instrument has two pedalboards: one radiating and concave and one straight and flat. -Database Manager
Stoplist copied from the console September 13, 1991 Source: Source not recorded Date not recorded
Ashland, Oregon
Southern Oregon State University - Hinkle Recital Hall
RICHARD L. BOND, Bond Pipe Organs, Inc., Opus 11, 1987 - Original Specifications
MANUAL I COUPLERS (hitch-down)
8 Rohrflöte 56 Manual II / Pedal
4 Principal [façade] 56 Manual I / Pedal
2-2/3 Quinte 56
2 Octav 56 Manual II / Manual I
1-3/5 Terz (tg) 37
FOOT LEVERS (Labeled; l – r)
MANUAL II I / P
8 Gedackt (tc) 44 II / P
4 Rohrflöte 56 II / I
2 Gemshorn 56
Tremulant
PEDAL
16 Sub Bass 30
ACTION: Susp. Mech. Key VOICES: 9 STOPS: 9 RANKS: 9 PIPES: 447
Mech. Stop
NOTES
This is the Leon Mulling-Gilman Plunkett Organ, named after the two major supporters
of this project. The organ is free-standing and encased with an attached projecting
keydesk without cover. Drawknobs are in vertical rows on flat jambs to either side
of the manuals. The facade which contains the first 40 pipes of the Manual I 4'
Principal is 6-sectional arranged: 4 – 4 – 12 – 12 – 4 – 4. The case is made from
Oregon madrone wood. The organ has two, inter-changeable pedalboards: one concave
and radiating, the other flat and straight. The Tremulant affects the entire instru-
ment. The Manual II 8' Gedackt shares notes 1- 12 with the Manual II 8' Rohrflöte.
The Manual I 2-2/3' Quinte is pitched at 1-1/3' for the first octave.
Sources: Bond opus list & files; JRS; extant organ
