St. Luke Evangelical Lutheran Church: Sanctuary
1500 West Belmont Avenue
Chicago, IL
OHS convention: 2012
Images
2023-08-31 - Great Division Pipework (Photograph by Andrew Schaeffer/Andrew Schaeffer)
2023-08-31 - Nave & Console (Photograph by Andrew Schaeffer/Andrew Schaeffer)
2011-05-12 - Organ Case and Trompette en Chamade (Photograph by William T. Van Pelt/Database Manager)
2011-05-12 - Nave, Balcony, Pipe Display, and Organ Case (Photograph by William T. Van Pelt/Database Manager)
2011-05-12 - Nave, Balcony, and Organ Case (Photograph by William T. Van Pelt/Database Manager)

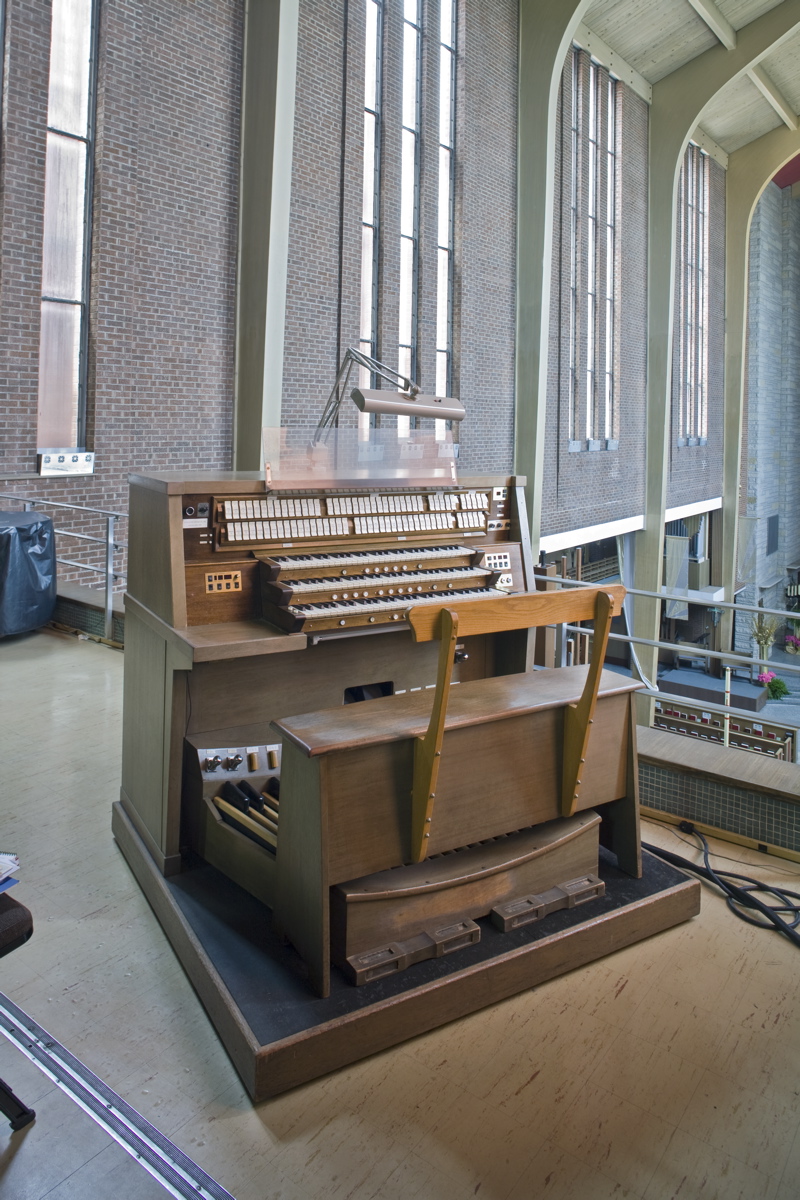

2011-05-12 - Console (Photograph by William T. Van Pelt/Database Manager)
2011-05-12 - Antiphonal Pipe Display and Portative (Photograph by William T. Van Pelt/Database Manager)
2011-05-12 - Builder's Nameplate (Photograph by William T. Van Pelt/Database Manager)
Consoles
Main
- Organ type: Non-Traditional Style, As Consoles by Holtkamp, Schlicker, et al
- Console position: Console in Fixed Position, Right
- 3 manuals
- 42 registers
- 5 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Tilting/Rocking Tablets Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has combination toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2007-07-27 - Identified through online information from Douglas W. Craw. -Database Manager
2015-08-23 - In January 1963, the dedication recital was played by Paul Manz with the Lutheran Choir of Chicago singing.
In 1990-1991, the combination and crescendo actions were replaced with a solid-state system.
In 1994 much of the instrument was releathered, the Positiv manual was moved to its current location on the front of the choir gallery (now becoming a Ruckpositiv), tremulants were rebuilt, and 32' electronic extensions were added to two stops in the pedal division.
In 1997, a digital electronic relay was installed, allowing both the Gallery and Antiphonal Organs to be played by either organ console. Likewise a Midi playback system was added and the organ's rectifiers were replaced.
In 2000, a complete cleaning of the instrument was undertaken, a new swell-box motor was built, and a new pedalboard was installed. -Database Manager
Stoplist
Specification from church web site Source: Source not recorded Date not recorded
Chicago, Illinois
St. Luke Evangelical Lutheran Church
Schlicker Organ Company 1962 3 manuals, 42 stops, 59 ranks
________________________________________________________________________________________
GREAT ORGAN (II) SWELL ORGAN (III)
16' Gedecktpommer 61 8' Rohrfloete 61
8' Principal 61 8' Salicional 61 a
8' Gemshorn 61 8' Voix celeste 61 a
8' Holzfloete 61 4' Geigend Principal 61
4' Octave 61 4' Spitzfloete 61
4' Querfloete 61 2' Hohlfloete 61
2 2/3' Quint 61 1 1/3' Kleinnasat 61
2' Octave 61 Mixture IV-V 293
Mixture IV-VI 330 16' Fagot 61
16' Trompeta Real (TC) -- 8' Schalmei 61
8' Trompeta Real 73 4' Clarion 61
4' Trompeta Real (fr. 8') -- Tremolo
Chimes 21 tubes Swell 16'
Swell to Great 16' Swell 4'
Swell to Great 8'
Swell to Great 4' PEDAL ORGAN
Positiv to Great 16' 32' Soubasse (ext) dg b
Positiv to Great 8' 32' Subbass (ext) dg b
16' Principal 44
POSITIV ORGAN (I) 16' Subbass 32
8' Gedeckt 61 16' Pommer GT
4' Rohrfloete 61 8' Octave (fr. 16' Prin.) --
2 2/3' Nasat 61 8' Gemshorn GT
2' Principal 61 4' Choralbass 32 a
2' Blockfloete 61 4' Gemshorn GT
1 3/5' Terz (TC) 49 Rauschquint II 64 a
1' Siffloete 61 Mixture IV 128
Scharf III-IV 232 32' Contrafagott (ext SW) 12
16' Regal 61 16' Posaune 32
8' Krummhorn 61 16' Fagott SW
Tremolo 8' Trompeta Real GT
16' Trompeta Real (TC) GT 8' Fagott SW
8' Trompeta Real GT 4' Clarion 32 a
4' Trompeta Real GT
Swell to Positiv 8' a from previous 1903 Kilgen organ
swell to Positiv 4' b added 1994
ANTIPHONAL ORGAN
playable from gallery or its own two-manual console
UPPER MANUAL LOWER MANUAL PEDAL
8' Rohrfloete 8' Principal * 16' Gedecktbass 12
4' Blockfloete 8' Rohrfloete 61 8' Rohrfloete
2' Principal 4' Octave 61 4' Principal
1 1/3' Nasat 2' Blockfloete 61 2' Blockfloete
Tremolo Mixture II 98 Rauschquint II
* 1-12 from Rohrfloete
COMBINATION ACTION ACCESSORIES
Swell 1-5 (thumb) Swell to Pedal (thumb & toe)
Great 1-5 (thumb) Great to Pedal (thumb & toe)
Positiv 1-5 (thumb) Positiv to Pedal (thumb & toe)
Pedal 1-4 (toe) Full Organ (thumb & toe)
General 1-4 (thumb) Balanced Swell Pedal
General 5-8 (toe) crescendo Pedal
General Cancel (thumb) Transposer
Setter (thumb) MIDI
Zimbelstern - Gallery (toe)
Zimbelstern - Antiphonal (toe)
[Received from Steven E. Lawson 2015-08-22]
