Mayflower Congregational Church: Sanctuary
2345 Robinson Rd. SE
Grand Rapids, MI
Images
2010-04-05 - Church Exterior (Photograph by Chad Boorsma/Database Manager)
2010-04-05 - Church Exterior (Photograph by Chad Boorsma/Database Manager)
2010-04-06 - Sanctuary Interior and Chancel (Photograph by Chad Boorsma/Database Manager)
2010-04-06 - Nave and Balcony (Photograph by Chad Boorsma/Database Manager)
2010-04-06 - Gallery Pipe Displays and Celestial Chamber Grille (Photograph by Chad Boorsma/Database Manager)
2010-04-06 - Right Gallery Pipe Display (Photograph by Chad Boorsma/Database Manager)
2010-04-06 - Left Gallery Pipe Display (Photograph by Chad Boorsma/Database Manager)
2010-04-06 - Chancel, Right Facade, and Console (Photograph by Chad Boorsma/Database Manager)
2010-04-06 - Left Pipe Facade (Photograph by Chad Boorsma/Database Manager)

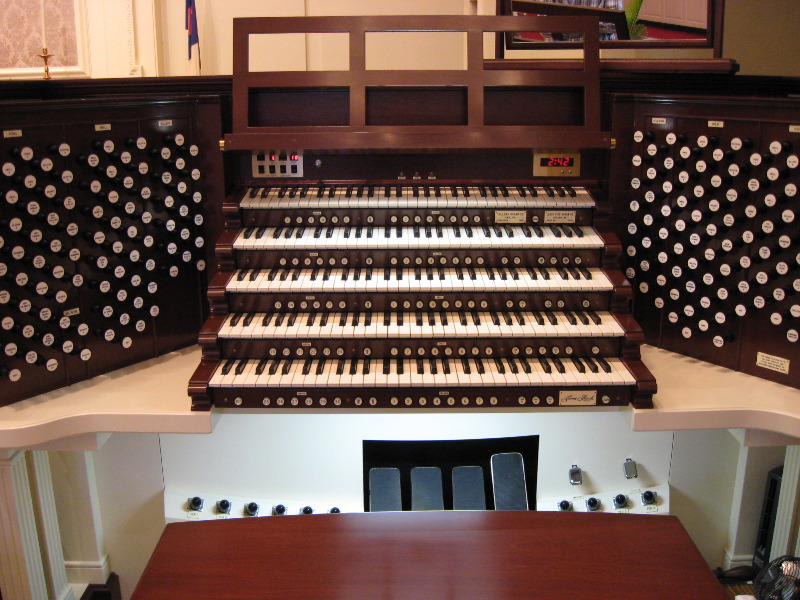

2010-04-06 - Console (Photograph by Chad Boorsma/Database Manager)
2010-04-06 - Console (Photograph by Chad Boorsma/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Movable Console
- 5 manuals
- 108 stops
- 7 divisions
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Has sequencer
- Has combination thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2007-08-03 - Identified through on-line information from Douglas W. Craw. -- Major rebuild of 1968 Tellers with the addition of 11 ranks of new pipes -Database Manager
2009-06-30 - Updated through on-line information from Chad Boorsma. -Database Manager
Stoplist
Stoplist from dedication program Source: Source not recorded Date not recorded
Grand Rapids, Michigan
MAYFLOWER CONGREGATIONAL CHURCH
Built by Tellers Organ Company in 1968 (Opus 1054)
Rebuilt by Lauck Pipe Organ Company in 1998 (Opus 48)
_____________________________________________________________________
GREAT: SWELL:
Manual II Manual III
16' Violone 61 * 16' Rohrgedeckt 12
16' Quintaton 61 8' Geigen Principal 61
8' Principal 61 8' Rohrflöte 61
8' Violincello 12 8' Viole de Gambe 61
8' Flûte Harmonique 49 * 8' Voix Celeste 61
8' Bourdon 61 8' Viola Céleste II [CH]
5 1/3' Grosse Quinte 61 * 8' Flûte Céleste II [CH]
4' Octave 61 4' Geigen Octave 61
4' Rohrflöte 61 4' Traverseflöte 61
3 1/5' Grosse Tierce 61 * 4' Aeoline 61 *
2 2/3' Twelfth 12 4' Vox Angelica 61 *
2' Fifteenth 61 4' Flûte Céleste II [CH]
1 3/5' Seventeenth 8 2 2/3' Nasat 61
IV Fourniture 244 2' Blockflöte 61
III Scharf 183 1 3/5' Terz 61
16' Double Trumpet 61 * IV Plein Jeu 244
8' Trumpet 12 * III Cymbale 183 *
4' Clarion 12 * 16' Bombarde 61
Flute Tremulant 8' 1st Trompette 61
Main Tremulant 8' 2nd Trompette 12
Symphonic Carillon 8' Hautbois [CH]
Harp 8' Voix Humaine 61
Celesta 4' Clairon 61
Zimbelstern Flue & Reed Tremulants
MIDI MIDI
POSITIV: CELESTIAL:
Manual I Manual V
8' Nasonflöte 61 8' Harmonic Flute 61
4' Spitzprinzipal 61 8' Gemshorn 61
4' Spillflöte 61 8' Gemshorn Céleste 49
2 2/3' Nasard 61 8' Flûte Céleste II 110
2' Prinzipal 61 4' Unda Maris II 122
1 3/5' Tierce 61 8' Herald Trumpet [GALLERY]
1 1/3' Larigot 61 8' Petite Trompette 61
1 1/7' Septieme 61 Tremulant
1' Sifflöte 61 MIDI
4/5' Tierce
IV Zimbel 244 PEDAL:
8' Trompete 61 32' Contra Violone 12
8' Krummhorn 61 32' Untersatz 12
4' Klarine 12 16' Principal 32
Tremulant 16' Violone [GT]
16' Bourdon 32
CHOIR: 16' Quintaton [GT]
Manual I 16' Rohrgedeckt [SW]
8' Koppelgedeckt 61 10 2/3' Grosse Quinte [Bourdon]
8' Viola Pomposa 61 8' Octave 32
8' Viola Céleste 61 8' Violoncello [GT]
8' Flûte Douce 61 8' Bourdon 12
8' Flûte Céleste 49 8' Rohrgedeckt [SW]
4' Gemshorn 61 4' Choral Bass 32
4' Flûte Douce 12 4' Nachthorn 32
4' Flûte Céleste 12 2' Nachthorn 12
2' Flachflöte 61 IV Mixture 128
8' Tuba [PD] 32' Contra Trombone 12
8' Hautbois 61 16' Trombone 12
4' Rohr Schalmei 61 16' Double Trumpet [GT]
Tremulant 16' Bombarde [SW]
Symphonic Carillon 8' Tromba 61
Harp 8' Trumpet [GT]
Celesta 8' Trompette [SW]
MIDI 4' Clarion [Tromba]
4' Trompette [SW]
GALLERY: 4' Krummhorn [POS]
Manual IV 2' Rohr Schalmei [CH]
8' Principal 61 MIDI
8' Principal Céleste 49 *
8' Bourdon 61 GALLERY PEDAL:
4' Prestant 61 16' Bourdon 12
2' Spitzprincipal 61 8' Bourdon [GALLERY]
IV Mixture 244
8' Herald Trumpet 61
8' Petite Trompette [CEL] * new stops by Lauck
MIDI
[Received on line from Chad Boorsma March 06, 2010.]
