Cathedral of Mary Our Queen, Catholic: Sanctuary & Gallery
5200 N. Charles Street
Baltimore, MD
Images
2021-03-06 - Builder nameplate (Photograph by Paul Binko, submitted by Jeff Scofield/Jeff Scofield)
2019-10-22 - Expression Shoes (Photograph by Jacob Kruzansky/Database Manager)

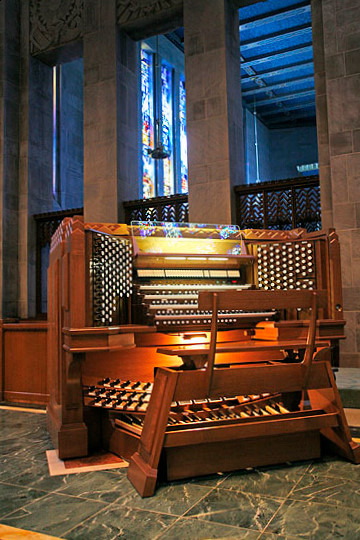

2019-10-22 - Gallery Console (Photograph by Jacob Kruzansky/Database Manager)
2024-07-21 - Left Stop Jamb (Photograph by Seth Daily/Database Manager)
2024-07-21 - Right Stop Jamb (Photograph by Seth Daily/Database Manager)
2007-09-01 - Cathedral Exterior (Image from Schantz Organ Company; used with permission/Database Manager)
2007-09-01 - Gallery Pipe Displays (Image from Schantz Organ Company; used with permission/Database Manager)
2007-09-01 - Console (Image from Schantz Organ Company; used with permission/Database Manager)
2007-09-01 - Console and Pipe Display (Image from Schantz Organ Company; used with permission/Database Manager)
2007-09-01 - Pipework (Image from Schantz Organ Company; used with permission/Database Manager)
2007-09-01 - Pipework (Image from Schantz Organ Company; used with permission/Database Manager)
Consoles
Gallery Console
- Organ type: Traditional With Roll Top
- Console position: Movable Console
- 4 manuals
- 93 stops
- 130 registers
- 9 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2007-08-15 - Identified through online information from Jeff Scofield. -- Rebuild of 1959 Möller. 103 ranks in gallery, 23 in sanctuary; duplicate master consoles in gallery and sanctuary. -Database Manager
2024-02-05 - The specification is for both the Gallery organ and the Sanctuary organ. The first page says only "Sanctuary" in big letters. -Bill Van Pelt
Stoplist
My personal knowledge of the organ is from my being the Organ Scholar and Choir Organist at the Cathedral of Mary Our Queen. Source: Stoplist from personal knowledge of the organ; pipe counts and rank count from Schantz Organ Co. brochure. Apr. 23, 2020
Baltimore, Maryland
CATHEDRAL OF MARY OUR QUEEN
Schantz Organ Company Opus 2275 2007 130 ranks
incorporating pipework from M. P. Möller Opus 9200, 1959
______________________________________________________________________
GALLERY ORGAN (104 ranks, 75 stops)
GREAT (Manual II, 4” and 5” wind pressure)
16' Geigen Principal* 73 pipes
8’ Open Diapason 61 pipes
8’ Geigen* ext. Geigen Principal
8’ Bourdon* 61 pipes
8’ Harmonic Flute 61 pipes
4’ Principal 61 pipes
4’ Spitzflöte* 61 pipes
2-2/3’ Octave Quinte* 61 pipes
2’ Super Octave 61 pipes
2-2/3’ Cornet III-V* 278 pipes
2’ Mixture IV 244 pipes
1/2’ Scharf III 183 pipes
16’ Posaune 73 pipes
8’ Trompete ext. Posaune
8’ State Trumpet (15”) 73 pipes
Chimes 25 bells
Tremulant
Bombarde Reeds on Great
16’ Great
4’ Great
Unison Off
CHOIR (Manual I, 4-1/2” wind pressure)
8’ Violoncello 61 pipes
8’ Violoncello Celeste* 61 pipes
8’ Dolcan* 61 pipes
8’ Dolcan Celeste* 54 pipes; starts at GG
8’ Lieblich Gedeckt* 61 pipes
4’ Principal 61 pipes
4’ Zauberflöte* 61 pipes
2’ Spillflöte* 61 pipes
1-1/3’ Fourniture III 183 pipes
16’ Bass Clarinet 73 pipes
8’ Clarinet ext. Bass Clarinet
4’ Rohr Schalmei* 61 pipes
8’ State Trumpet (15”) from Great
Zimbelstern 5 bells
Tremulant
Bombarde Orchestral Reeds on Choir
16’ Choir
4’ Choir
Unison Off
SWELL (Manual III, 5” wind pressure)
16’ Flauto Dolce* 73 pipes
8’ Principal 61 pipes
8’ Salicional* 61 pipes
8’ Voix Celeste* 54 pipes; starts at GG
8’ Rohrflöte* 61 pipes
8’ Flauto Dolce* ext. Flauto Dolce
8’ Flute Celeste* 54 pipes; starts at GG
4’ Prestant 61 pipes
4’ Flauto Traverso* 61 pipes
2-2/3' Nasard* 61 pipes
2’ Octavin 61 pipes
2’ Plein Jeu V 305 pipes
1-3/5' Tierce* 61 pipes
16’ Contre Trompette* 73 pipes
16’ Basson* 61 pipes
8’ Trompette* ext. Contre Trompette
8’ Hautbois 61 pipes
8’ Vox Humana* 61 pipes
4’ Clairon* 61 pipes
Tremulant
Vox Tremulant
16’ Swell
4’ Swell
Unison Off
BOMBARDE (Manual IV)
8’ Grand Diapason (8”) 61 pipes
4' Octave Major (8”) 61 pipes
2-2/3’ Grave Mixture V-VI (8”) 57 pipes
2’ Fourniture IV-V (8”) 285 pipes
2’ Grand Chorus VI-VIII (8”) 109 pipes
8’ English Horn* (6”) 61 pipes
8’ Orchestral Oboe (6”) 61 pipes
16’ Bombarde (15”) 61 pipes
8’ Trompette Harmonique (15”) 61 pipes
4’ Clairon Harmonique (15”) 61 pipes
8’ Tuba Major (18”) 61 pipes
16’ State Trumpet (15”) from Great
8’ State Trumpet (15”) from Great
Tremulant
POSITIV (Manual I/Floating, 3-1/2” wind pressure)
16’ Holzquintade* 61 pipes
8’ Spitz Principal 61 pipes
8’ Nason Flute* 61 pipes
4’ Principal 61 pipes
4’ Koppelflöte* 61 pipes
2-2/3’ Twelfth* 61 pipes
2’ Oktav 61 pipes
1-1/3’ Larigot* 61 pipes
1-3/5’ Seventeenth* 61 pipes
1’ Sifflöte* 61 pipes
1’ Zimbel IV 244 pipes
8’ Krummhorn 61 pipes
Tremulant
Positiv on Manual II
Positiv off Manual I
PEDAL (4” and 5” wind pressure)
32’ Major Bass (dg) 32 notes
32’ Violone (dg) 32 notes
32’ Soubasse* 56 pipes
32’ Resultant (Harmonics) 32 notes
16’ Contrebasse* 32 pipes
16’ Geigen Principal* from Great
16’ Bourdon* ext. Soubasse
16’ Flauto Dolce* from Swell
16’ Holzquintade* from Positiv
10-2/3’ Quinte* 44 pipes
8’ Octave 44 pipes
8’ Geigen* from Great
8’ Gedeckt Pommer* 32 pipes
8’ Flauto Dolce from Swell
5-1/3’ Octave Quinte* ext. Quinte
4’ Super Octave* 32 pipes
4’ Nachthorn* 32 pipes
2’ Waldflöte* 32 pipes
32’ Contre Bombarde (15”) 12 pipes
32’ Contra Bassoon (dg) 32 notes
16’ Bombarde (15”) from Bombarde
16’ Posaune from Great
16’ Basson* from Swell
16’ Bass Clarinet from Choir
8’ Trompete from Great
4’ Krummhorn from Positiv
2’ Cornettino* 32 pipes
16’ State Trumpet (15”) from Great
8’ State Trumpet (15”) from Great
8’ Trompette Harmonique (15”) from Bombarde
Chimes from Great
Unison Off
SANCTUARY ORGAN (26 ranks, 21 stops)
SANCTUARY GREAT (Manual II/Floating, 6” wind pressure)
16’ Bourdon* 61 pipes
8’ Principal* 61 pipes
8’ Hohlflöte* 61 pipes
8’ Gemshorn* 61 pipes
8’ Gemshorn Celeste* 54 pipes; starts at GG
4’ Octave 61 pipes
4’ Flûte Couverte* 61 pipes
2’ Blockflöte* 61 pipes
2’ Mixture IV 244 pipes
Tremulant
Sanctuary Great on Manual I
16’ Sanctuary Great
4’ Sanctuary Great
Unison Off
SANCTUARY SWELL (Manual III/Floating; 6-1/2” wind pressure)
16’ Holzgedeckt* 73 pipes
8’ Viole de Gambe* 61 pipes
8’ Viole Celeste* 54 pipes; starts at GG
8’ Holzgedeckt* ext. Holzgedeckt
4’ Fugara* 61 pipes
4’ Flûte Octaviante* 61 pipes
2’ Plein Jeu III 183 pipes
16’ Basset Horn* 61 pipes
8’ Trumpet* 61 pipes
8’ Oboe 61 pipes
Tremulant
Sanctuary Swell on Manual IV
Sanctuary Swell on Manual I
16’ Sanctuary Swell
4” Sanctuary Swell
Unison Off
SANCTUARY PEDAL (5” wind pressure)
32’ Resultant 32 notes
16’ Principal* 44 pipes
16’ Bourdon* from Sanctuary Great
16’ Holzgedeckt* from Sanctuary Swell
8’ Octave* ext. Principal
8’ Flûte Conique* 44 pipes
8’ Holzgedeckt* from Sanctuary Swell
4’ Choralbass* 32 pipes
4’ Flûte Conique* ext. Flûte Conique
16’ Basset Horn* from Sanctuary Swell
* denotes extant resources.
(dg) denotes a digital stop.
