Better Pipe Organ Database

Casavant Frères Ltée. Opus 3712 (1992)

Christ Our Savior Lutheran Church
14175 Farmington Rd.
Livonia, MI

Images

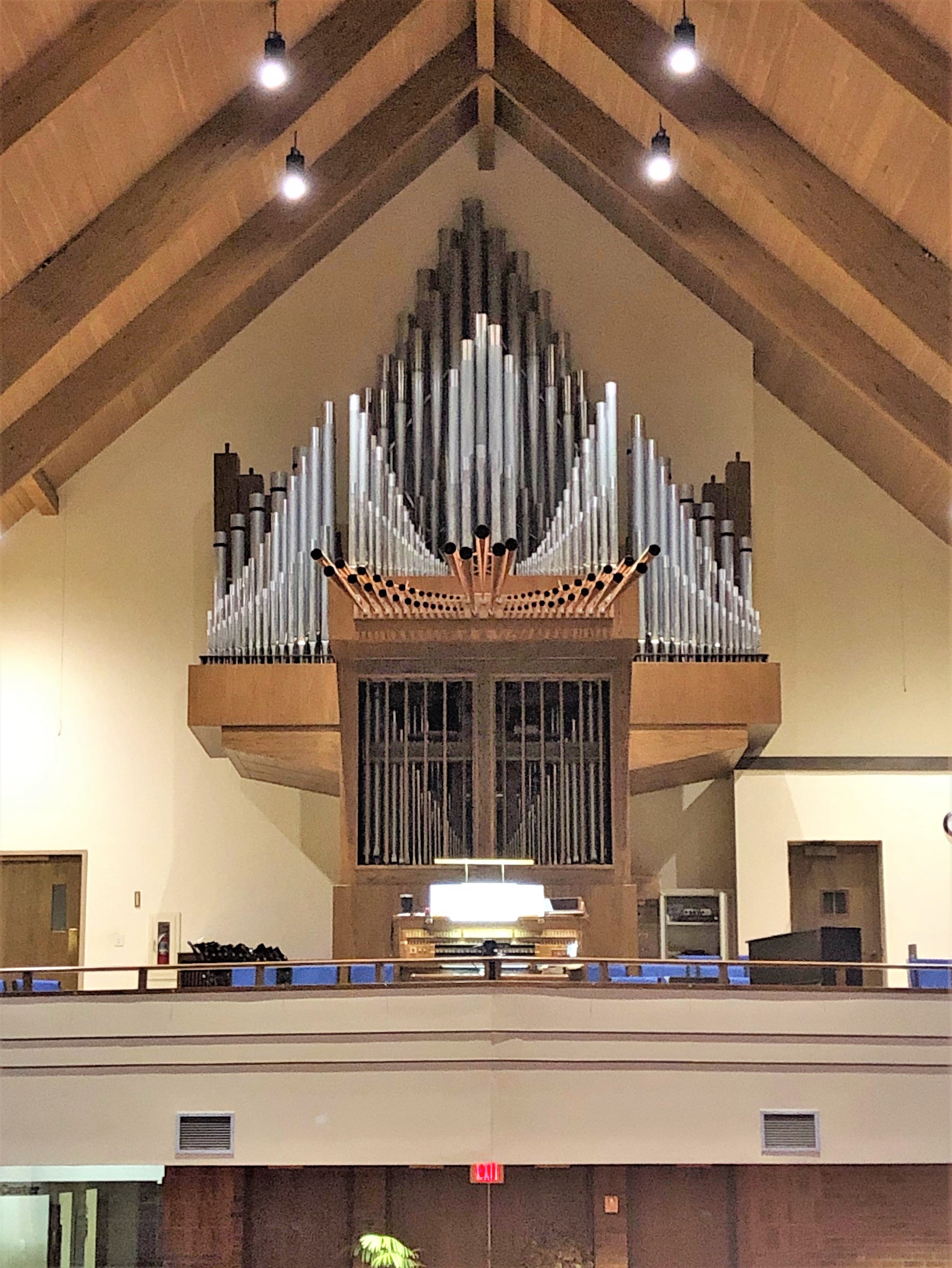

2020-08-13 - Organ case in rear gallery (Photograph by Roman Lizak /Roman Lizak)

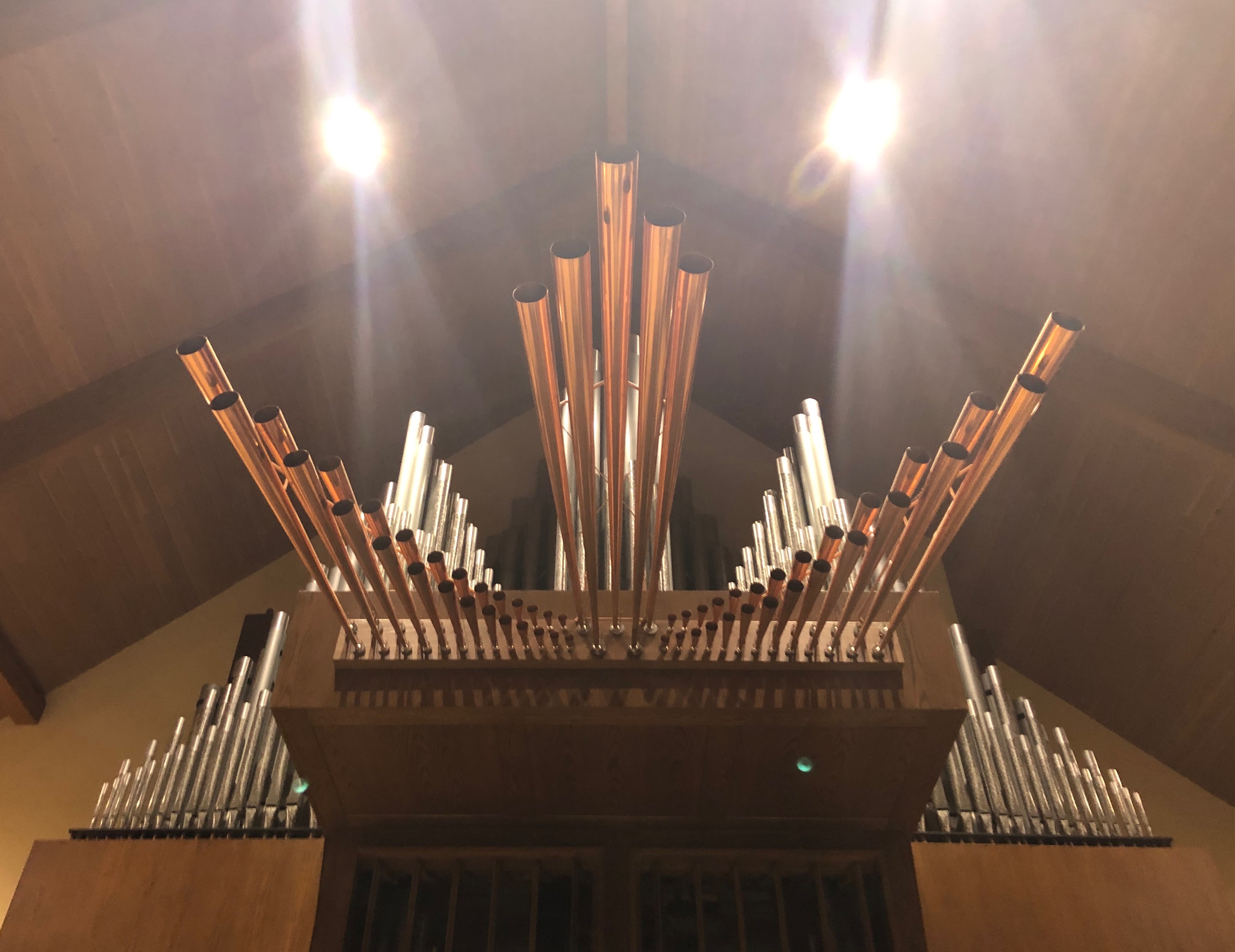

2020-08-13 - Trompette En Chamade (Photograph by Roman Lizak/Roman Lizak)

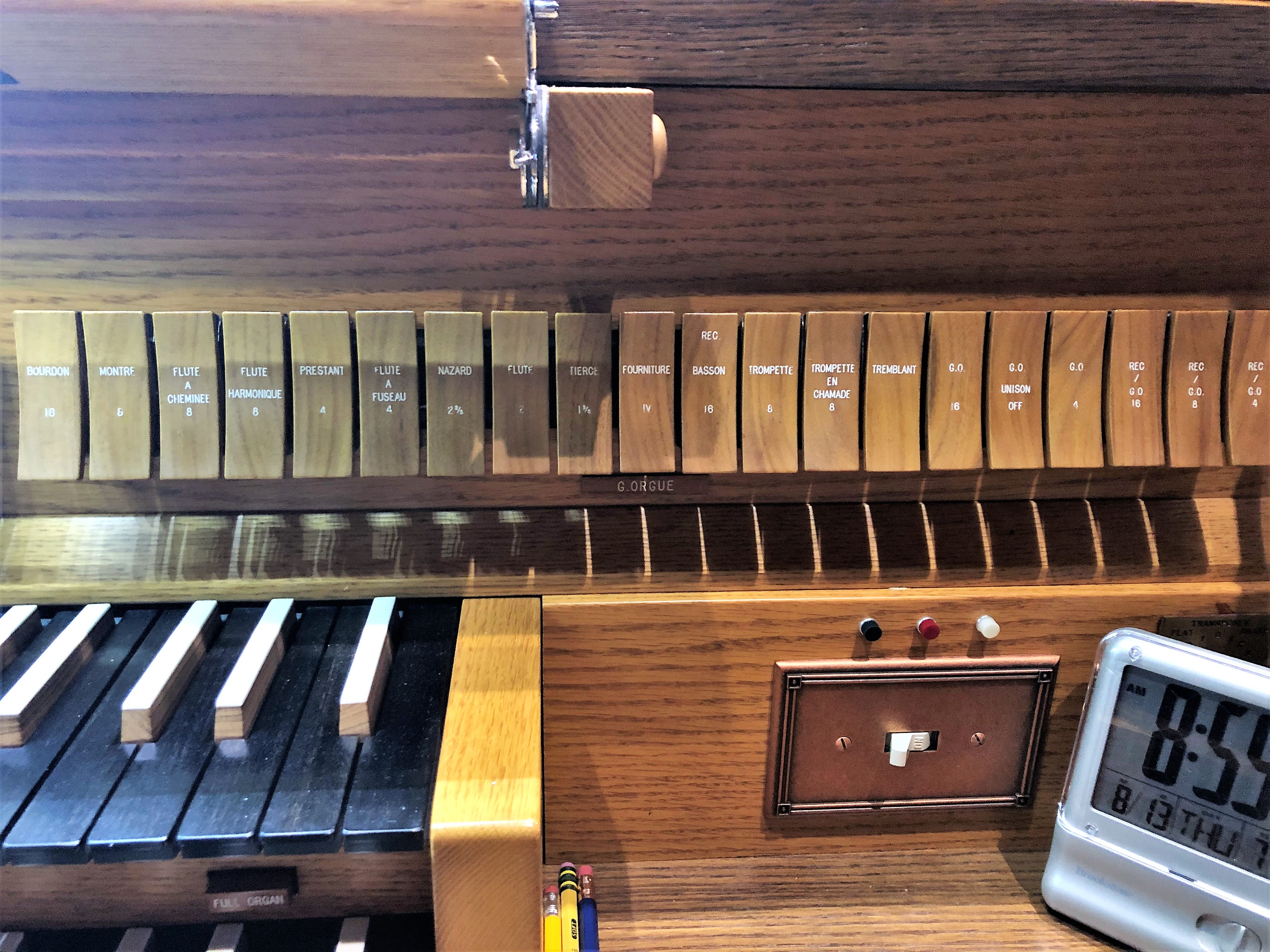

2020-08-13 - Grande Orgue Stops (Photograph by Roman Lizak/Roman Lizak)

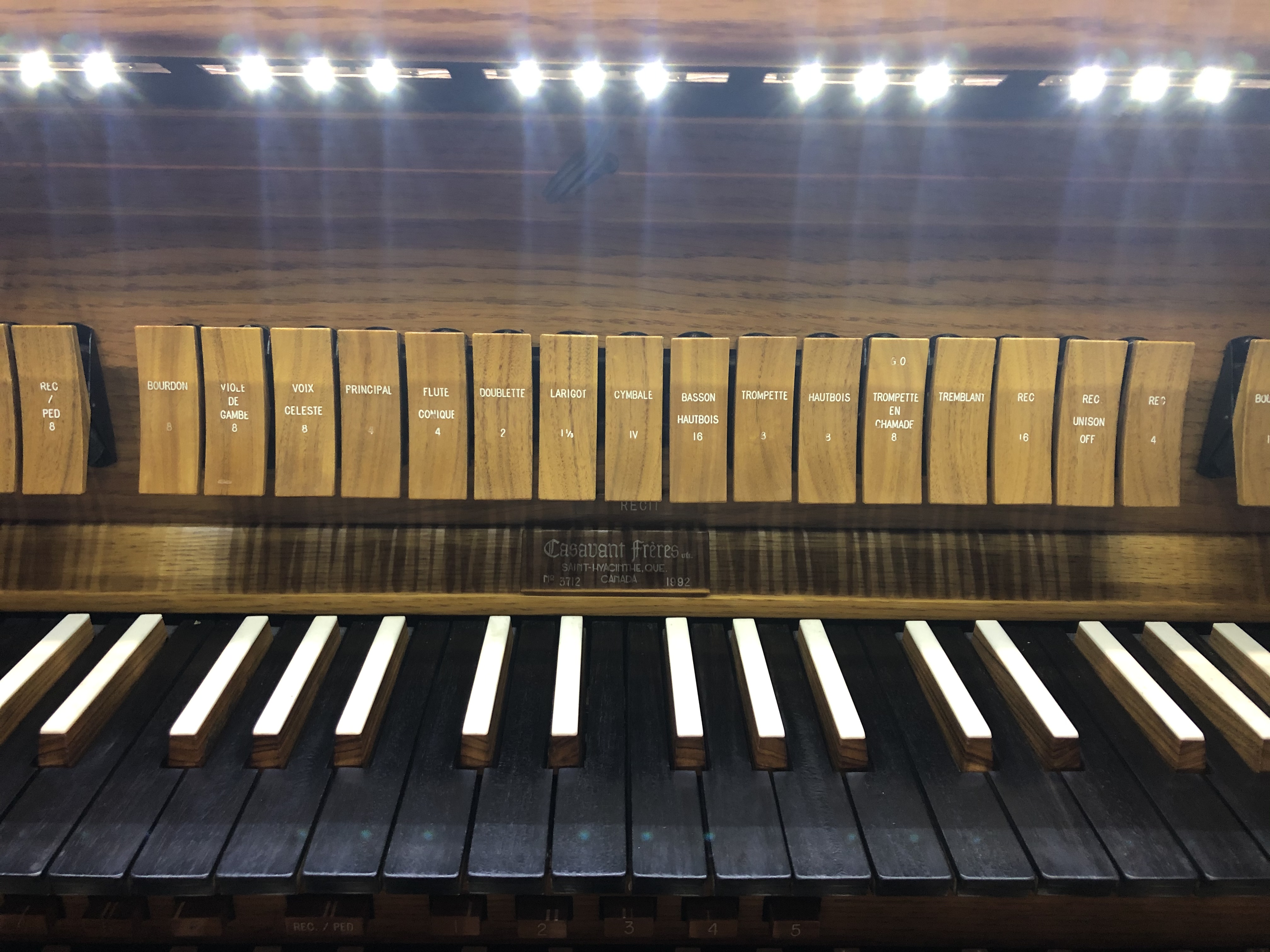

2020-08-13 - Récit Stops (Photograph by Roman Lizak/Roman Lizak)

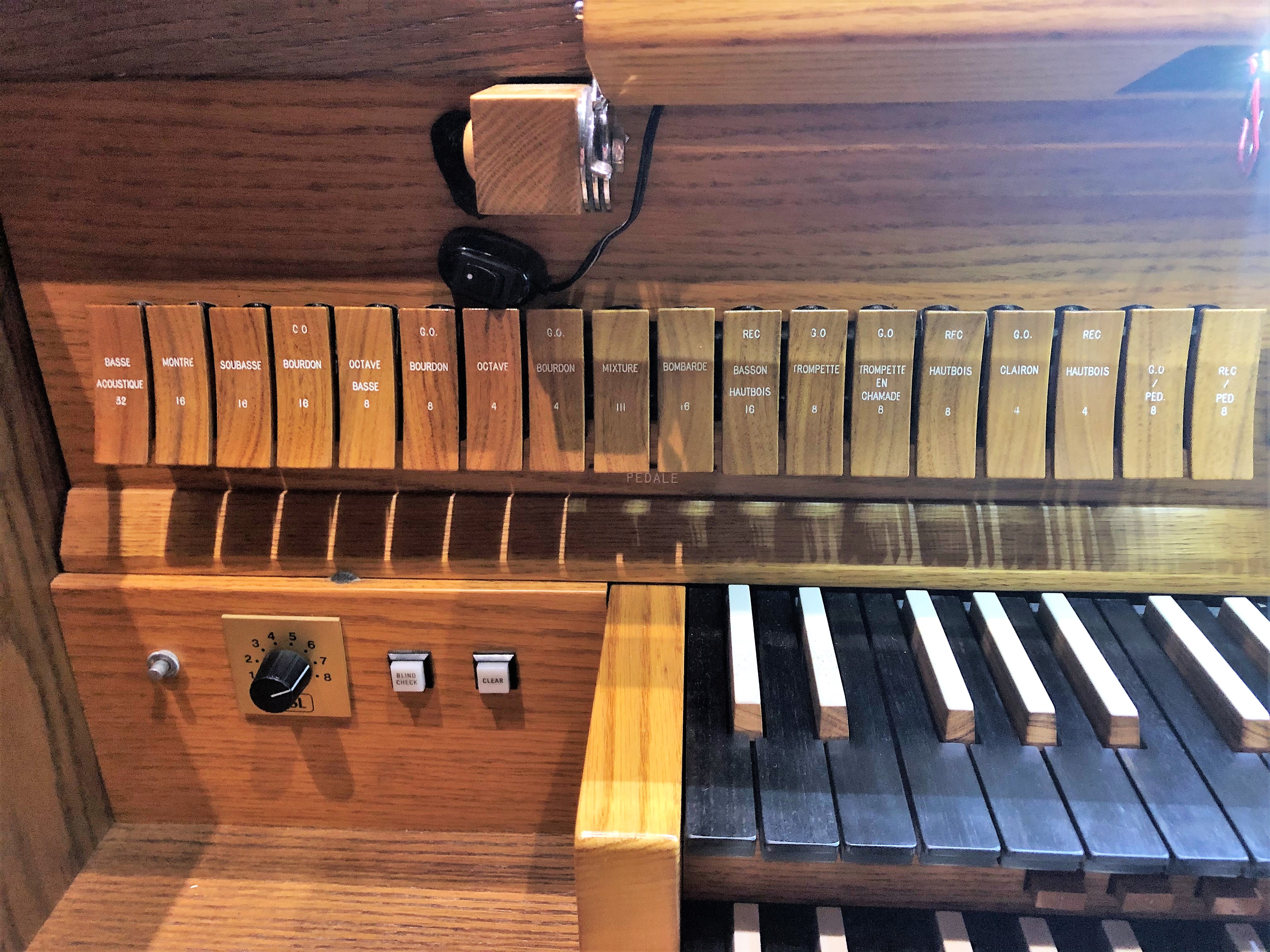

2020-08-13 - Pedale Stops (Photograph by Roman Lizak/Roman Lizak)

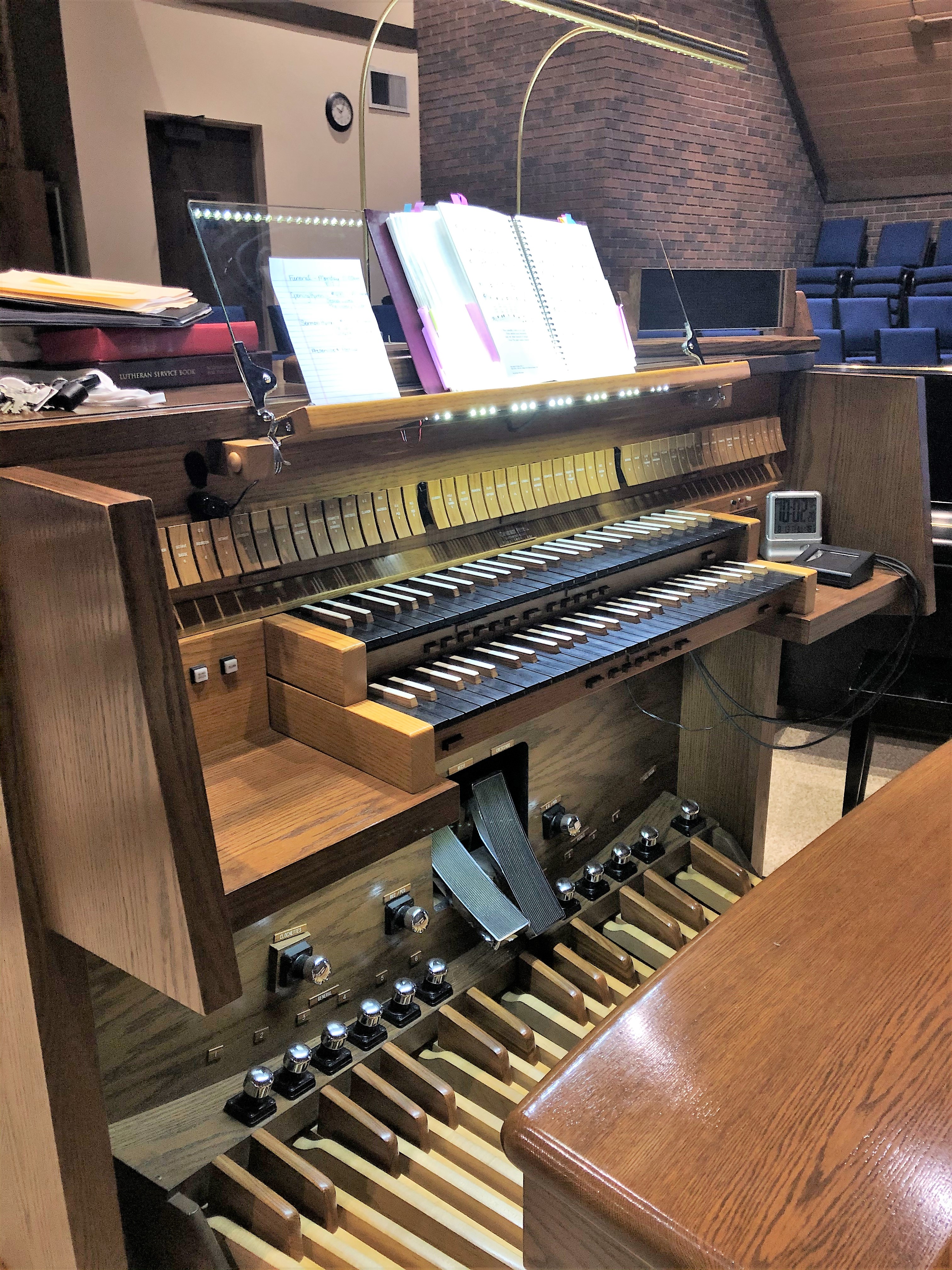

2020-08-13 - Console (Photograph by Roman Lizak/Roman Lizak )

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Center
2 manuals
41 stops
26 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-08-21 - Identified through online information from Douglas W. Craw. -- Identified through information in the organ dedication folder. -Database Manager

2010-07-21 - Updated through online information from Jeff Scofield. -Database Manager

2020-08-13 - Instrument is located in a fairly large space with carpeting, the balcony is tile but regardless the acoustics are wonderful. -Roman Lizak

Stoplist

Stoplist copied fromt he factory specifications Source: Source not recorded Date not recorded

       Livonia. Michigan
       Christ Our Savior Lutheran Church

       Casavant   Op. 3712   1992   2/34

       Courtesy of the Casavant Frères Archives
       St. Hyacinthe, Québec, Canada
       _________________________________________________

       GRAND ORGUE                      PÉDALE
   16' Bourdon              12      32' Basse acoustique     --
    8' Montre               56      16' Montre               12
    8' Flûte à cheminée     56         (ext. of Octavebasse 8')
    8' Flûte harmonique     44      16' Soubasse             32
      (1-12 from Flûte à chem)      16' Bourdon              GO
    4' Prestant             56       8' Octavebasse          32
    4' Flûte à fuseau       56       8' Bourdon              GO
2 2/3' Nazard               56       4' Octave               32
    2' Flûte                56       4' Bourdon              GO
1 3/5' Tierce               56     III  Mixture              96
   IV  Fourniture          224      16' Bombarde             32
   16' Basson               RE      16' Basson-hautbois      RE
    8' Trompette            56       8' Trompette            GO
       Tremblant                     8' Hautbois             RE
       Sub                           4' Clairon              GO
       Unison Off                    4' Hautbois             RE
       Super                         8' Trompette-en-chamade GO
    8' Trompette-en-chamade 56

       RÉCIT
    8' Bourdon              56
    8' Viole de gambe       56
    8' Voix céleste      tc 44
    4' Principal            56
    4' Flûte conique        56
    2' Doublette            56
1 1/3' Larigot              56
   IV  Cymbale             224
   16' Basson-hautbois L/2  12
    8' Trompette            56
    8' Hautbois             56
       Tremblant
       Sub
       Unison Off
       Super                            [Received online from Jeff
    8' Trompette-en-chamade GT           Scofield  July 21, 2010]

Documents

(1992-11-22) Dedication program, pp. 1-5, via Jeff Scofield -Jeff Scofield
(1992-11-22) Dedication program, pp. 6-11, via Jeff Scofield -Jeff Scofield
