Better Pipe Organ Database

M. P. Möller Opus 11809 (1991)

Christ United Methodist Church: Wilson Chapel
4488 Poplar Ave.
Memphis, TN

Images

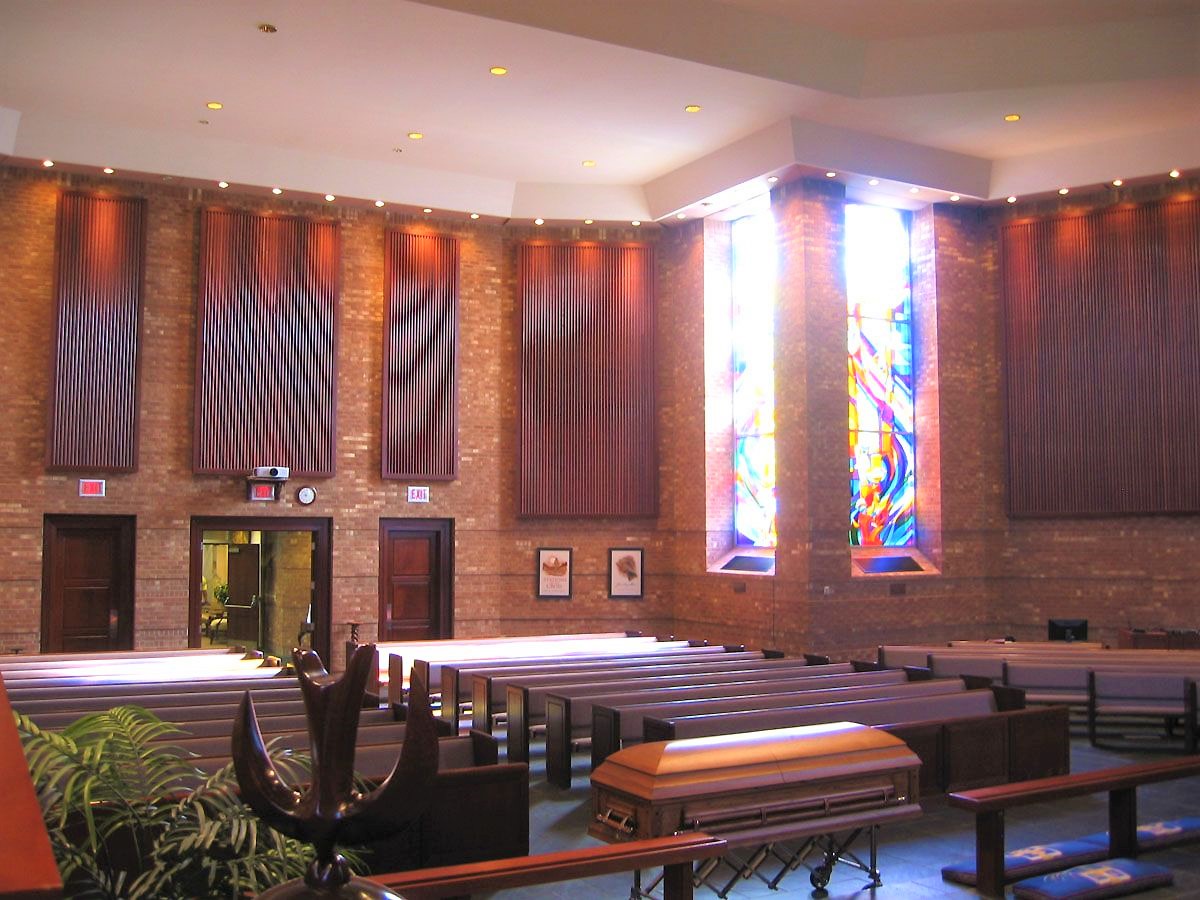

2012-07-23 - Chapel Interior, Chancel, and Pipe Façade (Photograph by Jeff Scofield/Database Manager)

2012-07-23 - Console and Pipe Façade (Photograph by Jeff Scofield/Database Manager)

2012-07-23 - Nave (Photograph by Jeff Scofield/Database Manager)

2012-07-23 - Console (Photograph by Jeff Scofield/Database Manager)

2012-07-23 - Chapel Exterior (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
2 manuals
21 stops
36 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-08-25 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2012-04-06 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

    Memphis, Tennessee
    Christ United Methodist Church, Chapel

    Möller   Op. 11809   1991   2/26
    ___________________________________________________________________________

    GREAT                    SWELL                          PEDAL
16' Violone  (a) 61      16' Rohrbass             pf    32' Untersatz        --
 8' Principal    61       8' Rohrflöte            61    16' Subbass          32
 8' Holzgedeckt  61       8' Gemshorn             61    16' Violone          GT
 8' Salicional   12       8' Gemshorn Celeste     61    16' Rohrbass         pf
 4' Octave       61       4' Principal            61     8' Principal        32
 4' Koppelflöte  61       4' Flute                12     8' Bass Flute       12
 2' Super Octave 61   2 2/3' Nazard               61     8' Salicional       GT
IV  Fourniture  244       2' Blockflöte           61     8' Rohrflöte        SW
 8' Trompette    SW   1 3/5' Tierce               61     4' Choral Bass      12
    Unison Off          III  Mixture             183     4' Flute            12
                         16' Basson    L/2        12    32' Reed Cornet      --
                          8' Trompette            61    16' Contre Trompette 12 SW
                          8' Hautbois             61    16' Basson           SW
                          4' Clairon              12     8' Trompette        SW
                             Tremulant                   4' Hautbois         SW
                             Sub
                             Unison Off
                             Super
                         16' Trompette-en-Chamade tc
                          8' Trompette-en-Chamade pf

 a  15 polished copper in façade

              [Received online from Jeff Scofield  April 1, 2012]

Documents

(1990-10-18) Factory specifications, collection of Jeff Scofield Stoplist and accessories -Jeff Scofield
