Better Pipe Organ Database

M. P. Möller Opus 11742 (1987)

St. Paul's United Church of Christ: Sanctuary
1401 S. Griffin Street
Grand Haven, MI

Images

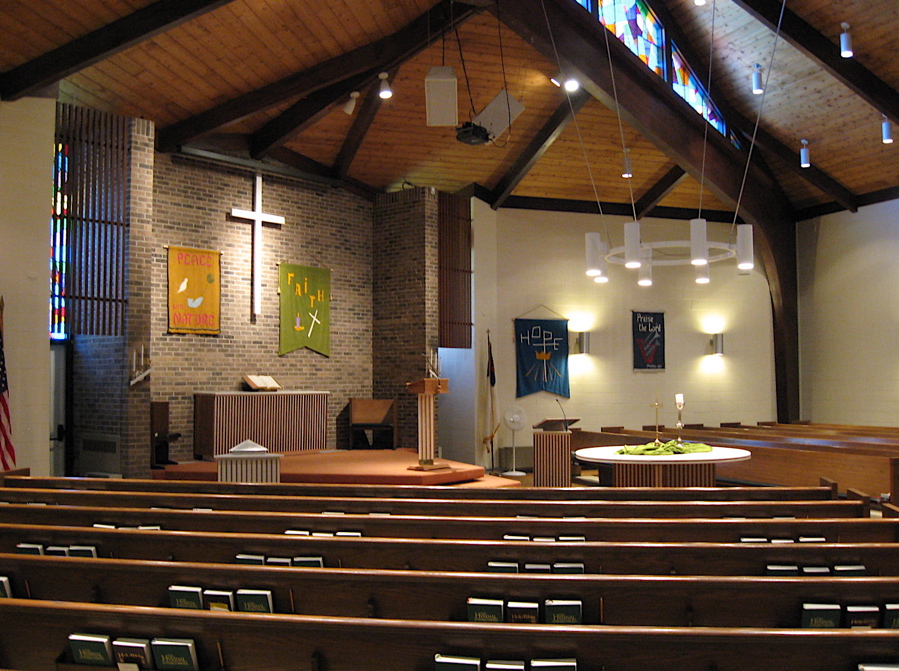

2010-07-21 - Sanctuary Interior and Chancel (Photograph by Chad Boorsma/Database Manager)

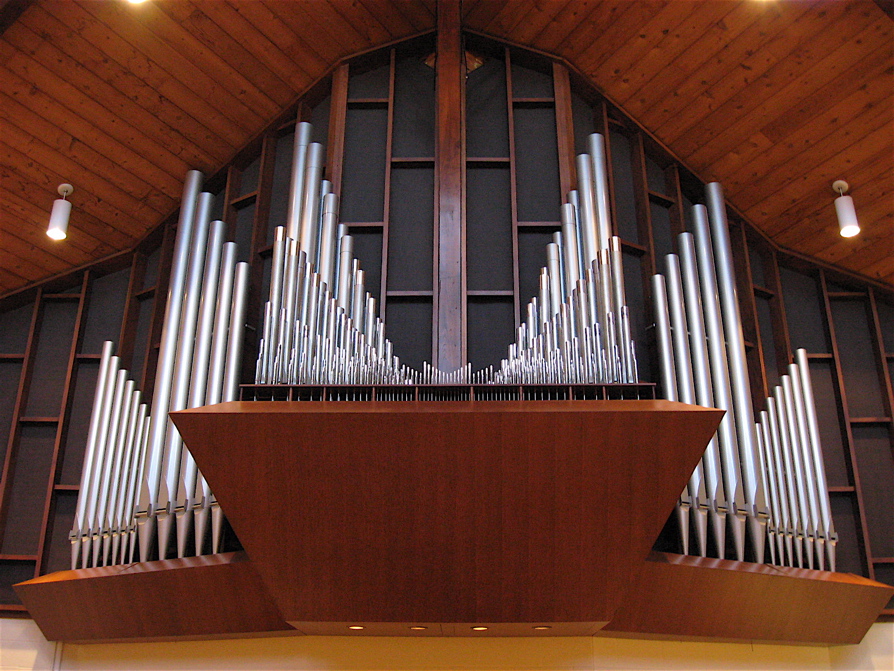

2010-07-21 - Pipe Display and Chamber Grillework (Photograph by Chad Boorsma/Database Manager)

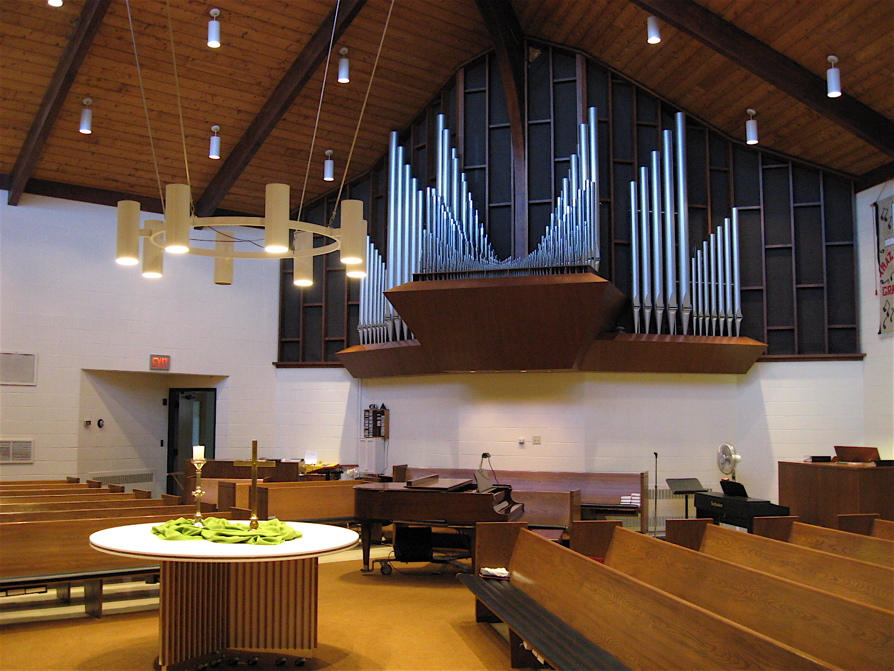

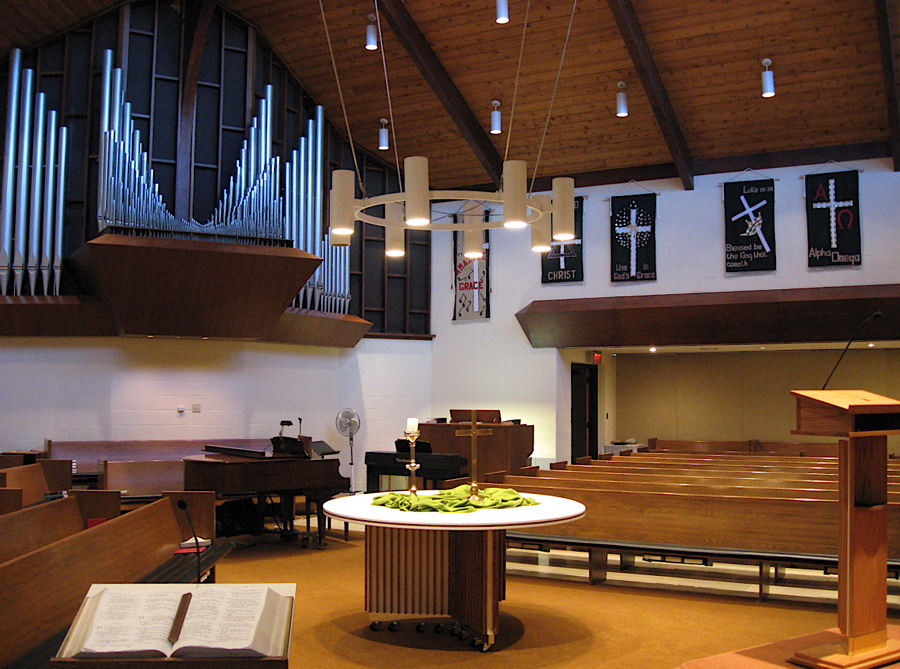

2010-07-21 - Nave, Pipe Display, and Chamber Grillework (Photograph by Chad Boorsma/Database Manager)

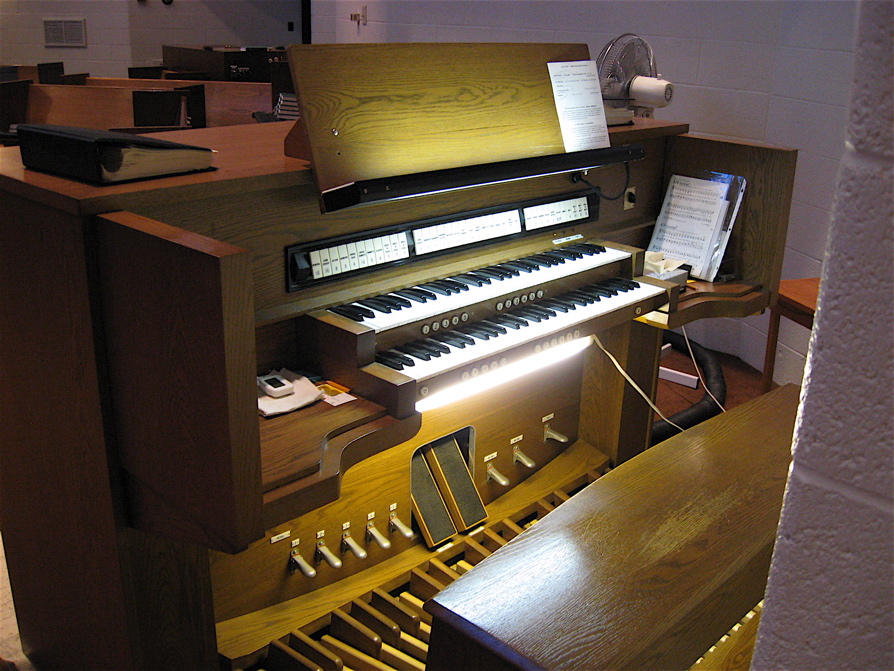

2010-07-21 - Console (Photograph by Chad Boorsma/Database Manager)

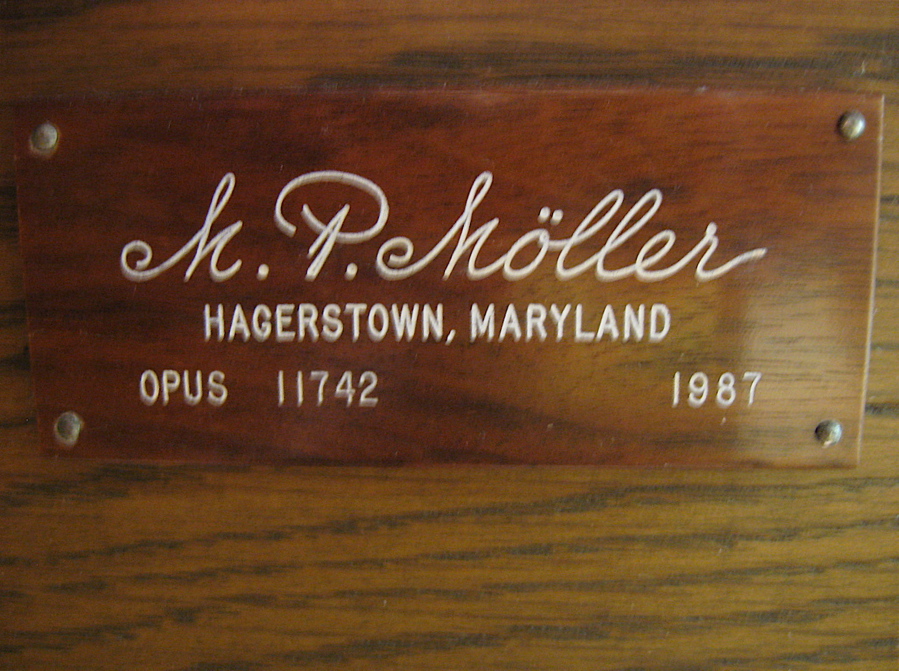

2010-07-21 - Builder's Nameplate (Photograph by Chad Boorsma/Database Manager)

2010-07-21 - Church Exterior (Photograph by Chad Boorsma/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
2 manuals
13 stops
25 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2007-08-28 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2010-07-23 - Updated through on-line information from Chad Boorsma. -- The organ chambers are at the back of the room with all of the Great and some of the Pedal pipes displayed in front of the chamber grillework. -Database Manager

Stoplist

Stoplist from Factory Specifications Source: Source not recorded Date not recorded

Grand Haven, Michigan
ST. PAUL'S UNITED CHURCH OF CHRIST

M. P. Möller     Opus 11742     1987     16 ranks
_________________________________________________________________

GREAT: (exposed)                 SWELL: (enclosed)
     8' Principal 61                16' Rohrgedackt 61
     8' Bordun 61                    8' Rohrflöte 12
     8' Gemshorn [SW]                8' Gemshorn 61
     4' Octave 61                    8' Gemshorn Celeste [TC] 49
     2' Super Octave 61              4' Spitzflöte 61
III-IV  Mixture 208              2 2/3' Nazard
        Chimes                       2' Weitprincipal 61
                                 1 3/5' Tierce 61
PEDAL:                              16' Contre Trompette 61
    16' Principal 32                 8' Trompette 12
    16' Rohrgedeckt [SW]             4' Clairon 12
     8' Octave 12                       Tremolo
     8' Rohrflöte [SW]
     4' Choralbass 12
    16' Contre Trompette [SW]
     8' Trompette [SW]
     4' Clairon [SW]

     [Received online from Chad Boorsma • July 22, 2010]

Documents

(1987-02-13) Factory Stoplist and accessories -Jeff Scofield
