Better Pipe Organ Database

M. P. Möller Opus 11733 (1986)

Sacred Heart Convent: Sacred Heart Chapel
916 Convent Rd.
Cullman, AL

Images

2019-08-26 - Chapel exterior (Photograph by Convent Facebook, submitted by Jeff Scofield/Jeff Scofield)

2022-03-15 - Chapel exterior (Photograph by Convent Facebook, submitted by Jeff Scofield/Jeff Scofield)

2022-02-15 - Chapel interior and console (Photograph by Convent Facebook, submitted by Jeff Scofield/Jeff Scofield)

Unknown - Air view of convent (Photograph from an archival source: mapio.net, submitted by Jeff Scofield/Jeff Scofield)

2007-10-29 - Console (Photograph by Ken Stein, photographybystein.com, submitted by Jeff Scofield/Jeff Scofield)

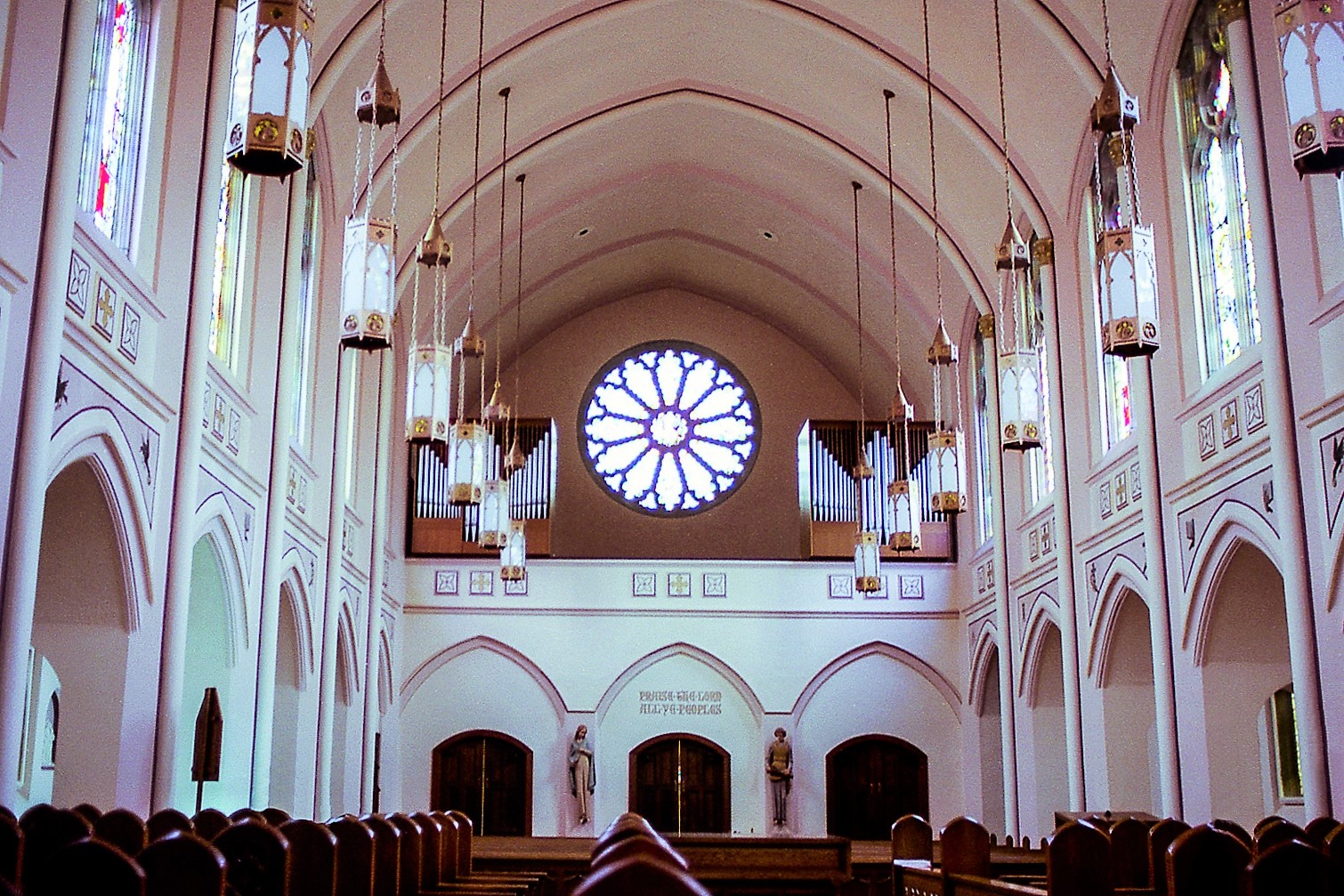

2007-10-29 - Chapel interior to front (Photograph by Ken Stein, photographybystein.com, submitted by Jeff Scofield/Jeff Scofield)

2007-10-29 - Gallery and organ (Photograph by Ken Stein, photographybystein.com, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Right
2 manuals
7 stops
29 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2007-08-28 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2012-02-11 - Updated through online information from Jeff Scofield. -- The organ is installed on each side of the gallery, facing down the nave; the console is located on the main floor, in the sanctuary. -Database Manager

Stoplist

Stoplist copied from the factory specificaitons Source: Source not recorded Date not recorded

        Cullman, Alabama
        Sacred Heart Convent

        Möller   Op. 11733   1986   2/10
        ______________________________________________________________________

        GREAT                    SWELL                     PEDAL
    16' Bourdon      61       8' Rohrflöte        61   16' Bourdon          GT
     8' Principal    61       8' Gemshorn         61    8' Principal        GT
     8' Gedeckt      12       8' Gemshorn Celeste 49    8' Rohrflöte        SW
     4' Octave       12       4' Rohrflöte        12    4' Octave           GT
     4' Gedeckt      12       4' Gemshorn         12    4' Flute            GT
 2 2/3' Nazard        7       2' Flute            12  III  Mixture          GT
     2' Super Octave 12   1 1/3' Larigot          --   16' Contre Trompette SW
     2' Flute        12       1' Sifflöte         --    8' Trompette        SW
III-IV  Mixture     208      16' Contre Trompette 61    4' Clairon          SW
        Tremolo               8' Trompette        12
        Chimes                4' Clairon          12
                                 Tremolo

               [Received online from Jeff Scofield February 11, 2012]

Documents

(1986-08-19) Factory specifications, collection of Jeff Scofield Stoplist and accessories -Jeff Scofield
