Better Pipe Organ Database

M. P. Möller Opus 11662 (1984)

Trinity Evangelical Lutheran Church: Sanctuary
1850 Cranston Rd.
Beloit, WI

Images

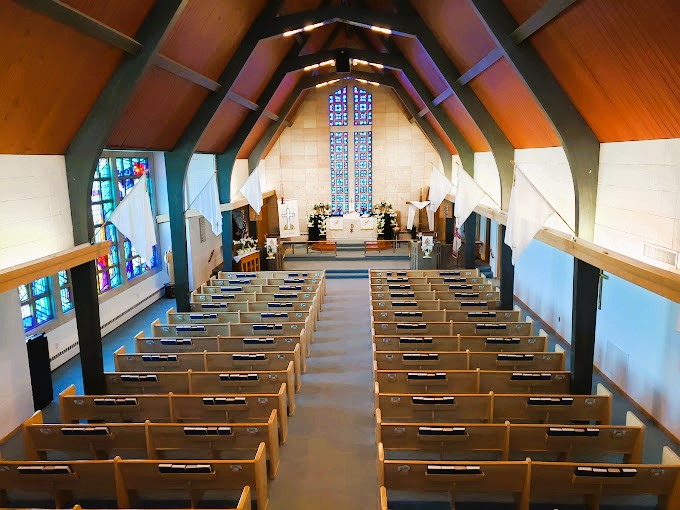

2020 - Church interior (Richard Rampenthal/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
43 stops
11 registers
5 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has coupler toe pistons

Notes

2007-08-28 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2012-02-14 - Updated through online information from Jeff Scofield. -- 10-stop Artiste with 2-stop Antiphonal -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

        Beloit, Wisconsin
        Trinity Evangelical Lutheran Church

        Möller   Op. 11662   1985   2/16
        ______________________________________________

        GREAT (exposed)               ANTIPHONAL
    16' Bourdon          92        8' Rohrgedeckt   95
     8' Principal        80        4' Principal     73
     8' Gedeckt                    4' Spillflöte
     8' Gemshorn                   2' Octave
     4' Octave                     2' Blockflöte
     4' Gedeckt                1 1/3' Quint
     2' Super Octave               1' Sifflöte
     2' Flute
    II  Sesquialtera     98           ANTIPHONAL PEDAL
III-IV  Mixture         208       16' Bourdon       12
     8' Trompette                  8' Gedeckt
        Tremolo                    4' Principal
        Chimes           21
                                      PEDAL
        SWELL                     16' Contrabass    32 *
     8' Rohrflöte        73       16' Bourdon
     8' Gemshorn         80        8' Principal
     8' Gemshorn Celeste 49        8' Rohrflöte
     4' Spitzprincipal   73        4' Octave
     4' Rohrflöte                  4' Gedeckt
     2' Spitzoctav                IV  Cornet 32'
 1 1/3' Larigot                   IV  Mixture
     1' Kleinoctav                16' Contre Trompette
    16' Contre Trompette 80        8' Trompette
     8' Trompette                  4' Clairon
     4' Clairon
        Tremolo                    *  exposed
        Unison Off

[Received online from Jeff Scofield  February 29, 2012]

Documents

(1984-02-20) Factory specifications, OHS Archives via Jeff Scofiel -Jeff Scofield
