Immaculate Conception Roman Catholic Shrine
48 Martin Luther King, Jr. Drive
Atlanta, GA
Images

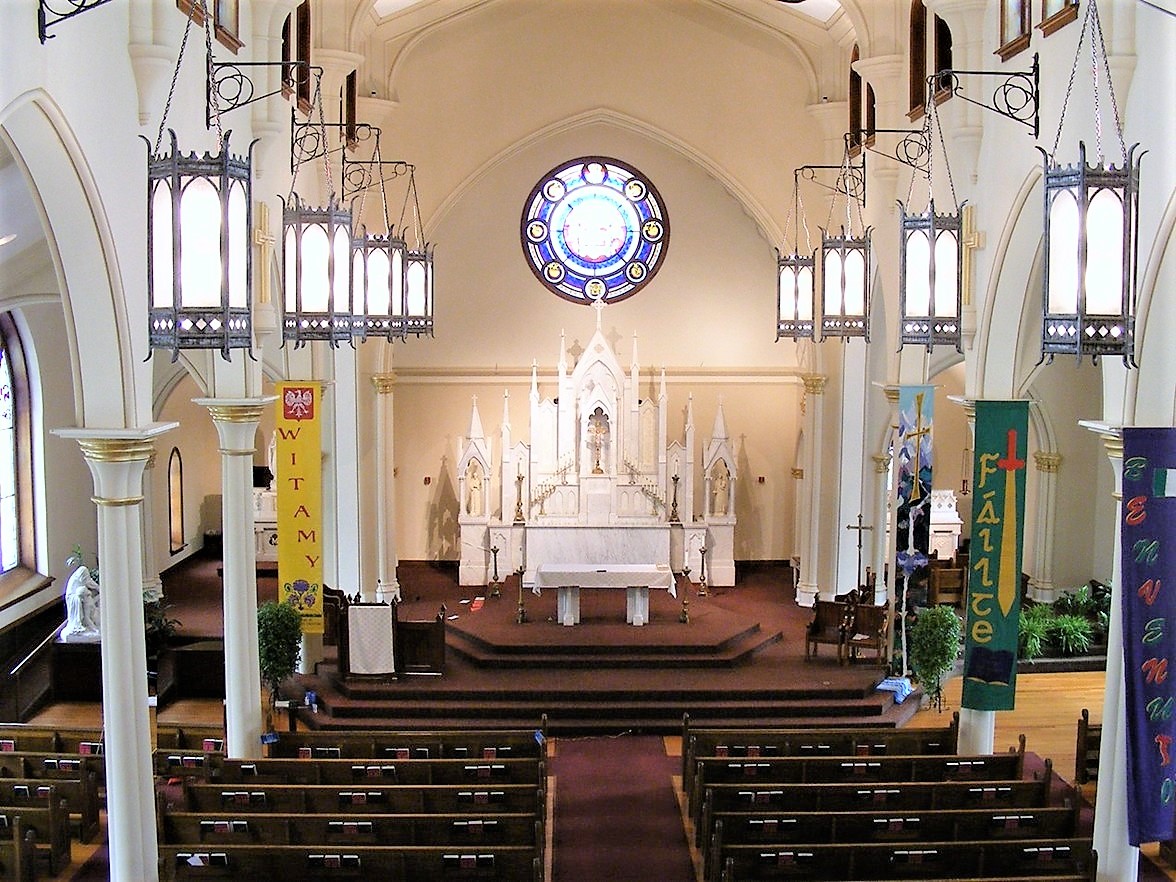

Unknown - Shrine interior (Photograph by Robert Tucker via Atlanta AGO/Database Manager)

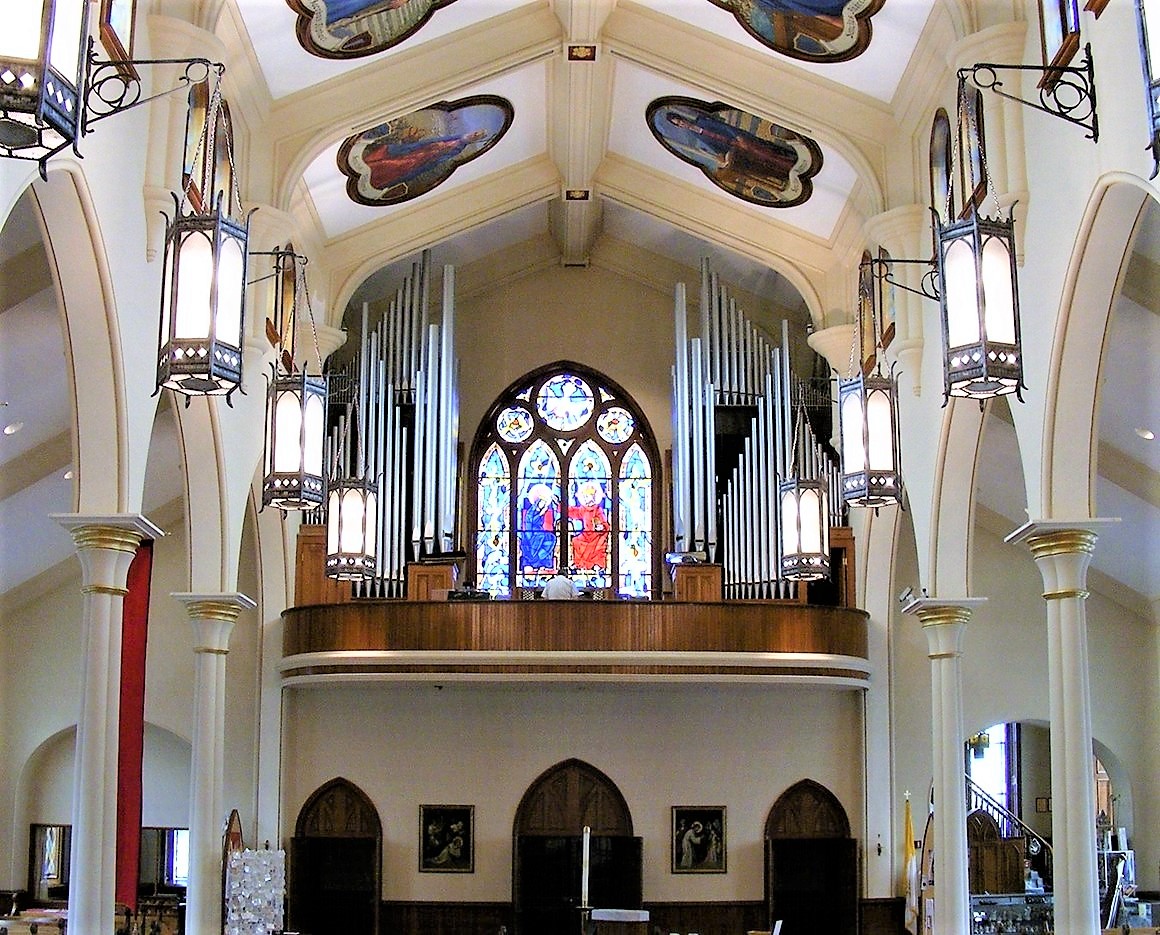

Unknown - Shrine interior to rear (Photograph by Robert Tucker via Atlanta AGO/Database Manager)

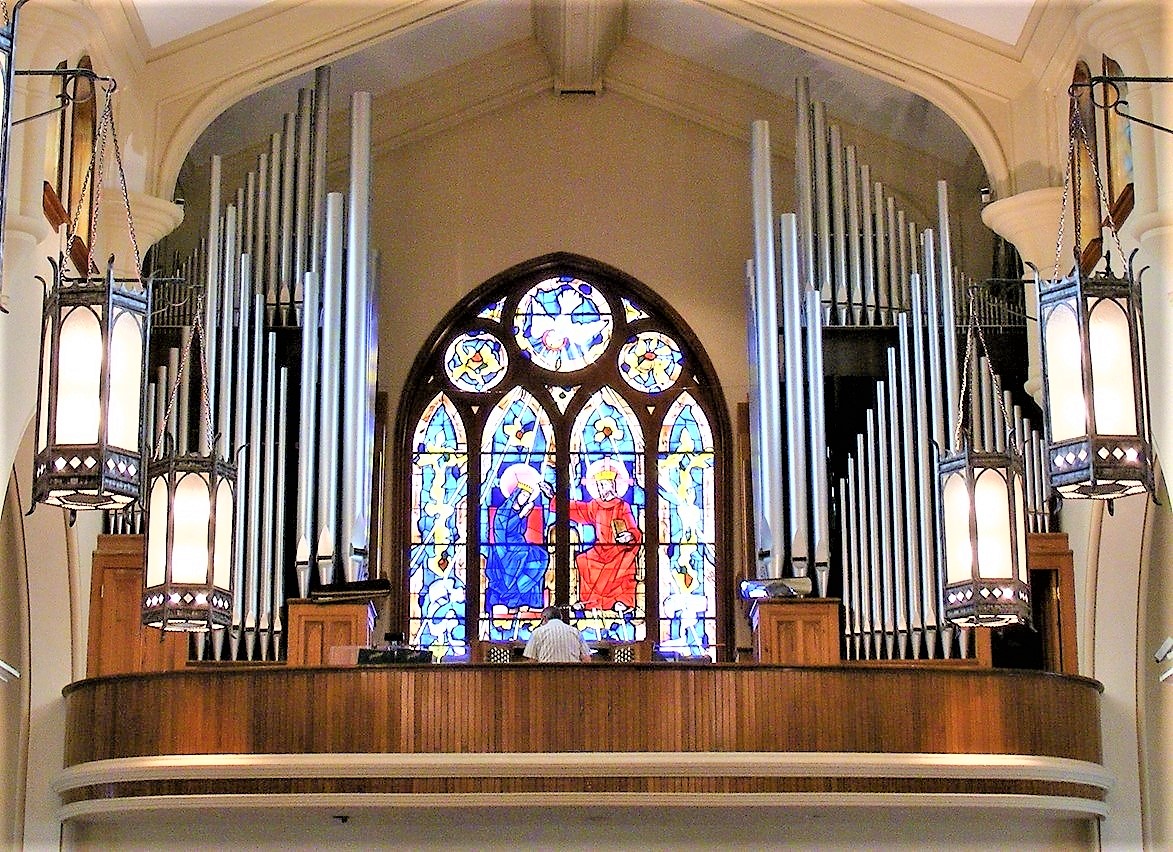

Unknown - Gallery and exposed pipes (Photograph by Robert Tucker via Atlanta AGO/Database Manager)

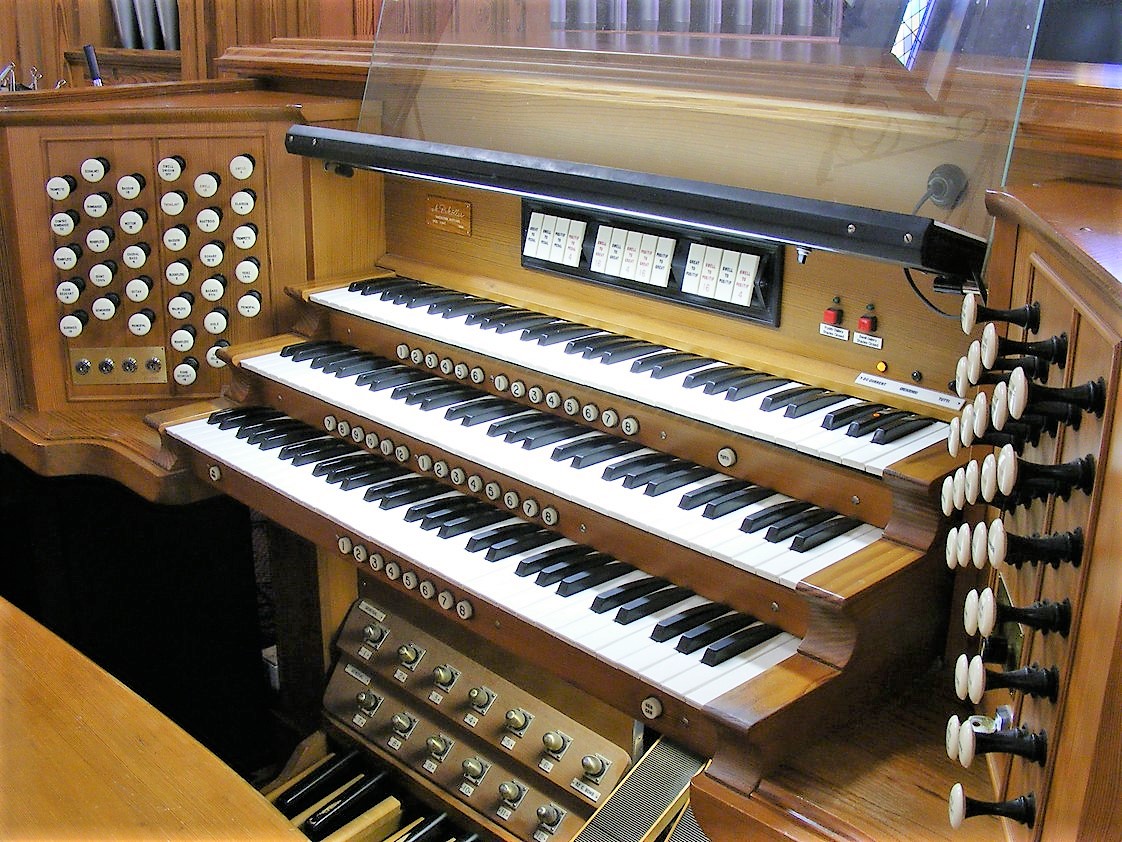

Unknown - Console (Photograph by Robert Tucker via Atlanta AGO/Database Manager)

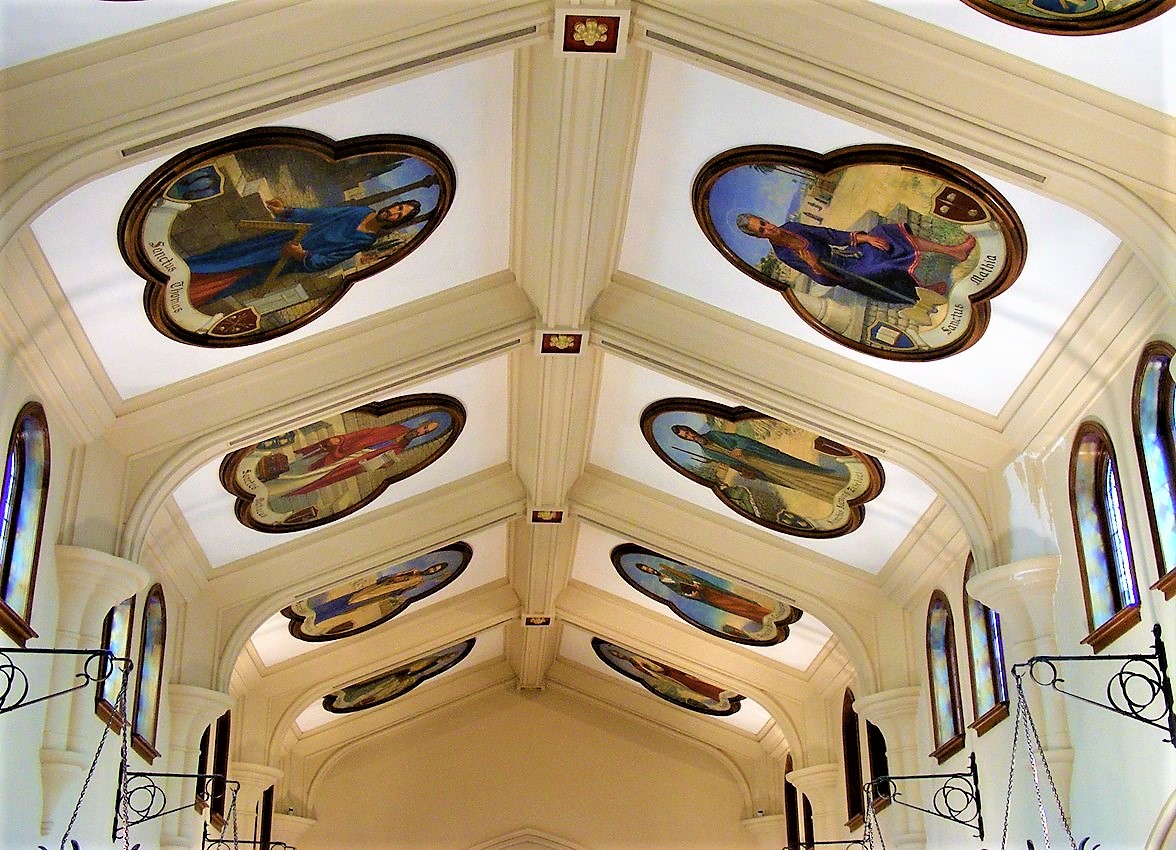

Unknown - Ceiling paintings (Photograph by Robert Tucker via Atlanta AGO/Database Manager)

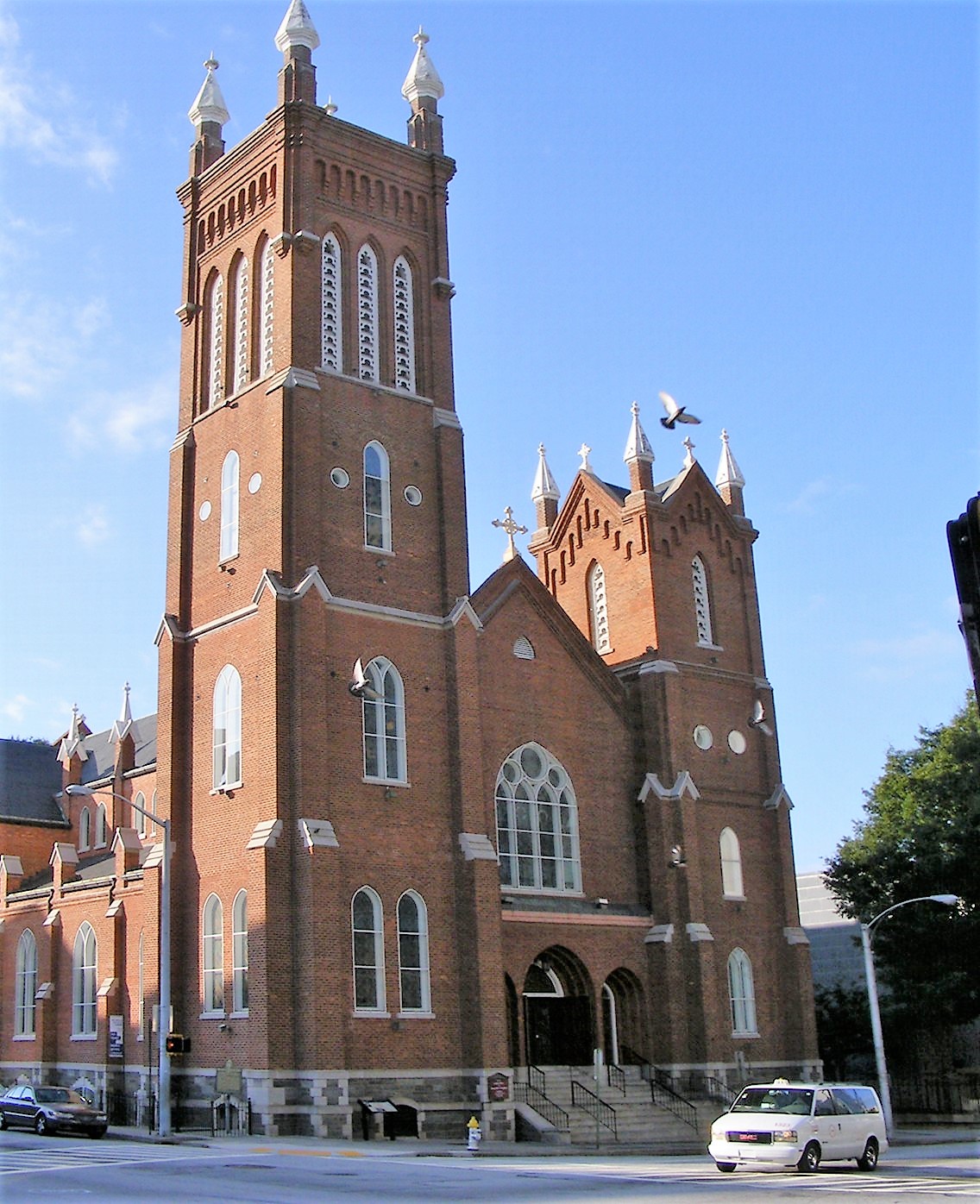

Unknown - Shrine exterior (Photograph by Robert Tucker via Atlanta AGO/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Console in Fixed Position, Center
- 3 manuals
- 49 stops
- 36 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2007-08-28 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager
2010-01-25 - Updated through online information from Jeffrey McIntyre. -- The parish has completed upgrades to the console capture system and relays, replacement of all of the failing zinc pipes (new pipes constructed in copper, but painted). Many of the remaining bass pipes were fitted with new languids and re-voiced. As well as zinc pipe replacement the following stops were replaced to correct scaling problems: Great 8' Trompete Positiv 8' Festival Trumpet Great IV-V Mixture The remaining reed stops of the organ were removed for cleaning and regulation in 2001 by Parkey Organ Builders. At that time, a significant amount of revoicing and regulation was done to correct problems and complete the tonal finishing from the 1982 installation. The organ is used today extensively for weddings in addition the regular services. -Database Manager
2012-01-04 - Updated through online information from Jeff Scofield. -Database Manager
Stoplist
Stoplist copied from the factory specifications Source: Source not recorded Date not recorded
Atlanta, Georgia
Shrine of the Immaculate Conception
Möller Op. 11647 1984 3/53
_____________________________________________________
GREAT POSITIF (expressive)
16' Gemshorn 61 8' Holzgedeckt 61
8' Principal 61 8' Flauto Dolce Cel II 110
8' Bordun 61 4' Principal 61
4' Octav 61 4' Spillflöte 61
4' Spitzflöte 61 2' Oktav 61
2' Super Octave 61 1 1/3' Quint 61
II Cornet 122 1' Kleinoktav 12
IV-V Mixture 265 IV-V Zimbel 264
8' Trompete 61 8' Krummhorn 61
Unison Off Tremulant
Super Sub
8' Festival Trumpet PO Unison Off
8' Festival Trumpet 61
SWELL
16' Rohrgedeckt 61 PEDAL
8' Rohrflöte 12 16' Principal 32
8' Viole 61 16' Subbass 32
8' Viole Celeste 61 16' Gemshorn GT
4' Principal 61 16' Rohrgedeckt SW
4' Spitzflöte 61 10 2/3' Quint SW
2 2/3' Nasard 61 8' Octav 32
2' Blockflöte 61 8' Rohrflöte SW
1 3/5' Terz 61 4' Choralbass 12
IV-V Scharf 265 4' Rohrflöte SW
16' Basson 1-24 L/2 61 IV Mixtur 128
8' Trompette 61 32' Contre Bombarde L/2 12
8' Hautbois 12 16' Bombarde 32
4' Clairon 61 16' Basson SW
Tremulant 8' Trompette 12
Sub 4' Schalmei 32
Unison Off
Super
[Received online from Jeff Scofield January 9, 2012]
