Better Pipe Organ Database

M. P. Möller Opus 11643 (1984)

Santa Cruz Resurrection Episcopal Church
11137 Griffing Blvd.
Biscayne Park, FL

Images

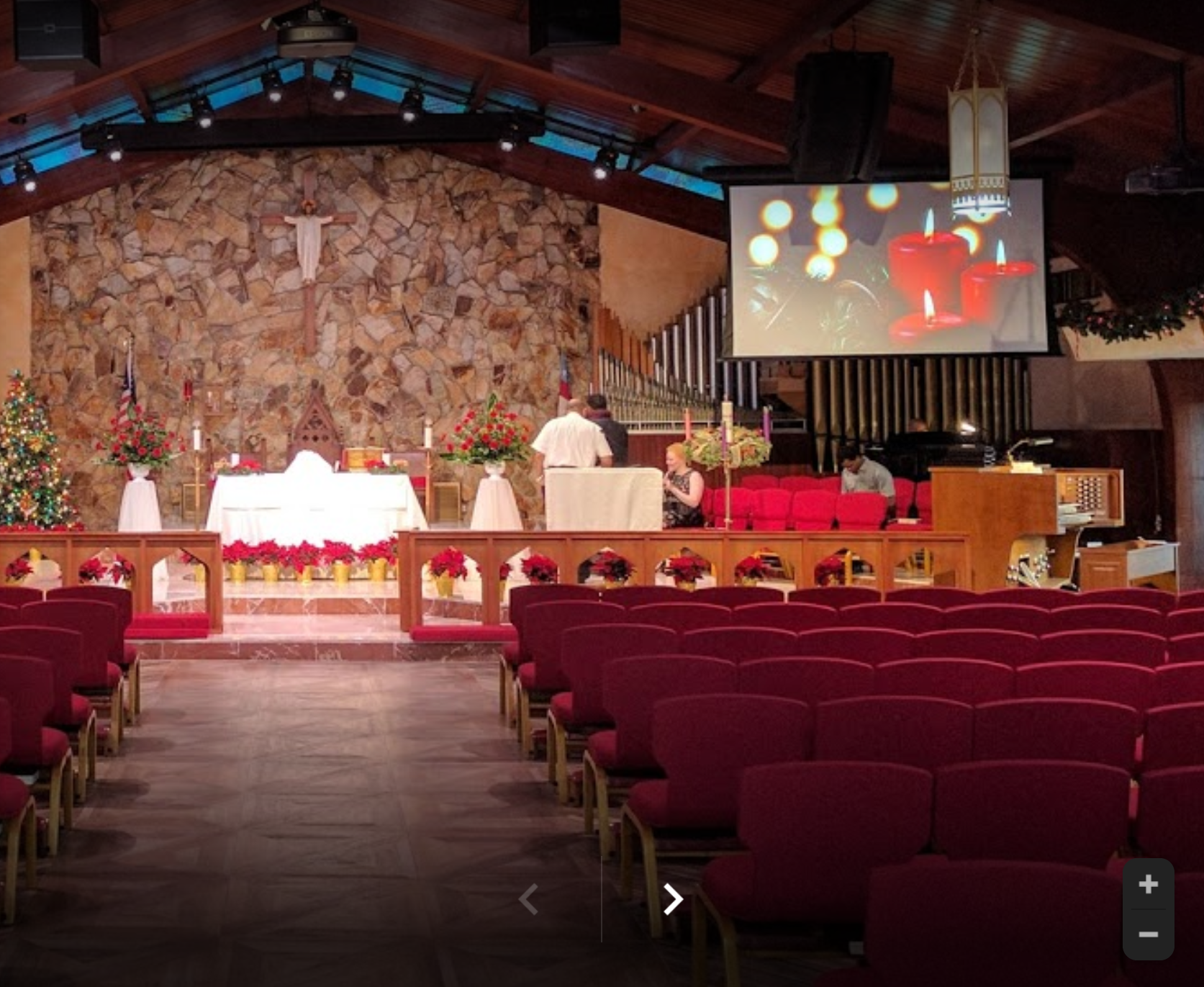

2020 - Altar, Console, and Pipework (Photograph by Ted Woods, submitted by Seth Carlson/Seth Carlson)

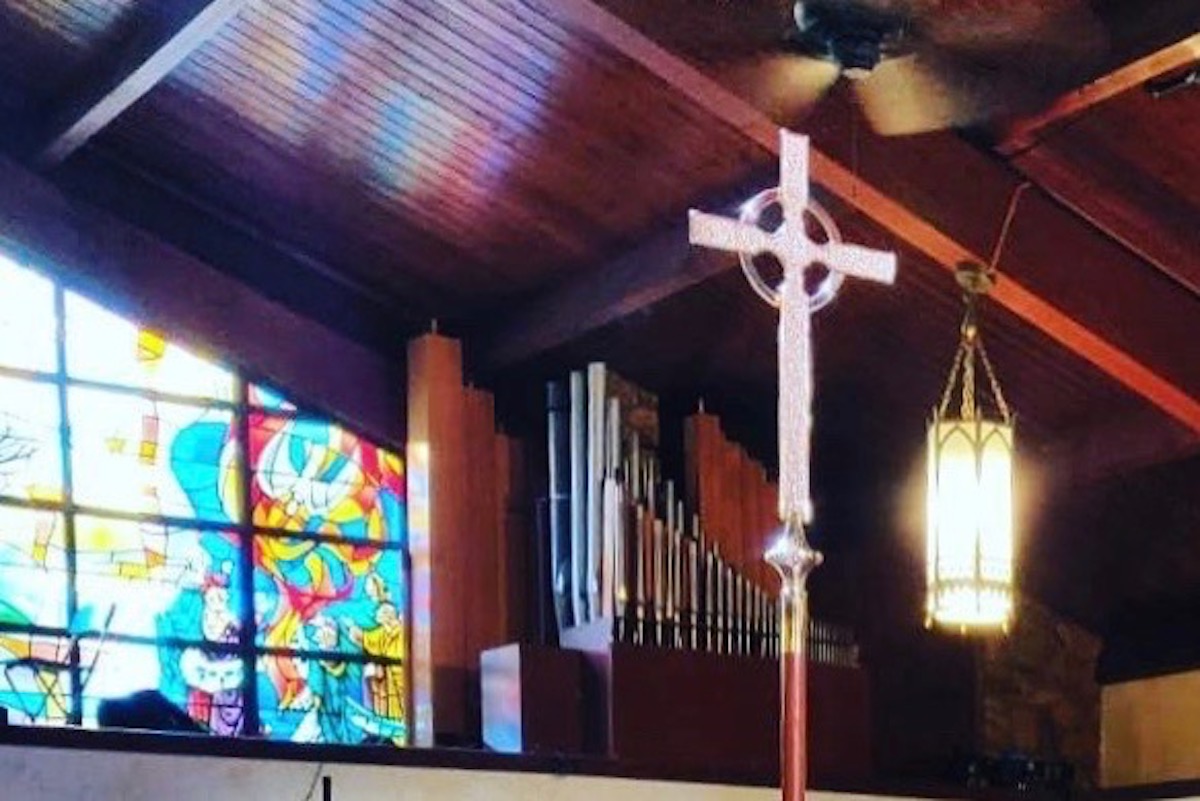

2020 - Balcony Pipework (Photograph by Ted Woods, submitted by Seth Carlson/Seth Carlson)

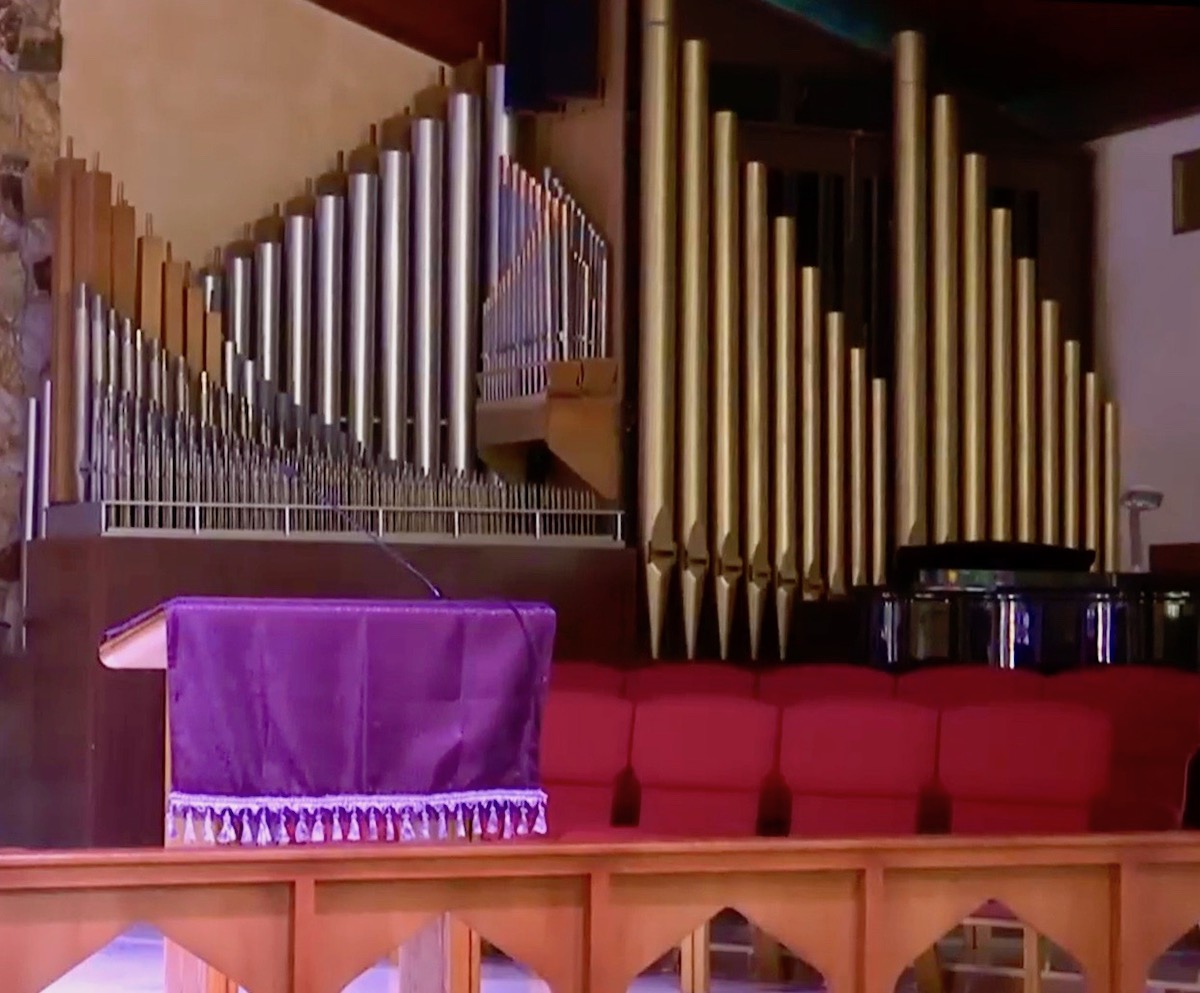

2020 - Pipework (Photograph by Ted Woods, submitted by Seth Carlson/Seth Carlson)

Consoles

Main

Organ type: Traditional Without Cover
2 manuals
8 stops
29 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2007-08-28 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2012-01-04 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

        ]Miami, Florida
        Church of the Resurrection, Episcopal

        Möller   Op. 11643   1984   2/12
        __________________________________________________________________

        GREAT                   SWELL                     PEDAL
    16' Bourdon      92      8' Rohrflöte        73   16' Bourdon
     8' Principal    80      8' Gemshorn         80    8' Principal
     8' Gedeckt              8' Gemshorn Celeste pf    8' Rohrflöte
     8' Gemshorn             4' Spitzprincipal   73    4' Octave
     4' Octave               4' Rohrflöte              4' Gedeckt
     4' Gedeckt              2' Spitzoctave          III  Mixture
     2' Super Octave     1 1/3' Larigot               16' Contre Trompette
     2' Flute                1' Klein Octave           4' Clairon
    II  Sesquialtera 98     16' Contre Trompette 80
III-IV  Mixture     208      8' Trompette
        Tremolo              4' Clairon
        Chimes       21         Tremolo


             [Received online from Jeff Scofield January 4, 2012

Documents

(1983-11-10) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
