Better Pipe Organ Database

M. P. Möller Opus 11621 (1983)

Holy Cross Roman Catholic Church
2631 Independence Rd.
Hutchinson, KS

Images

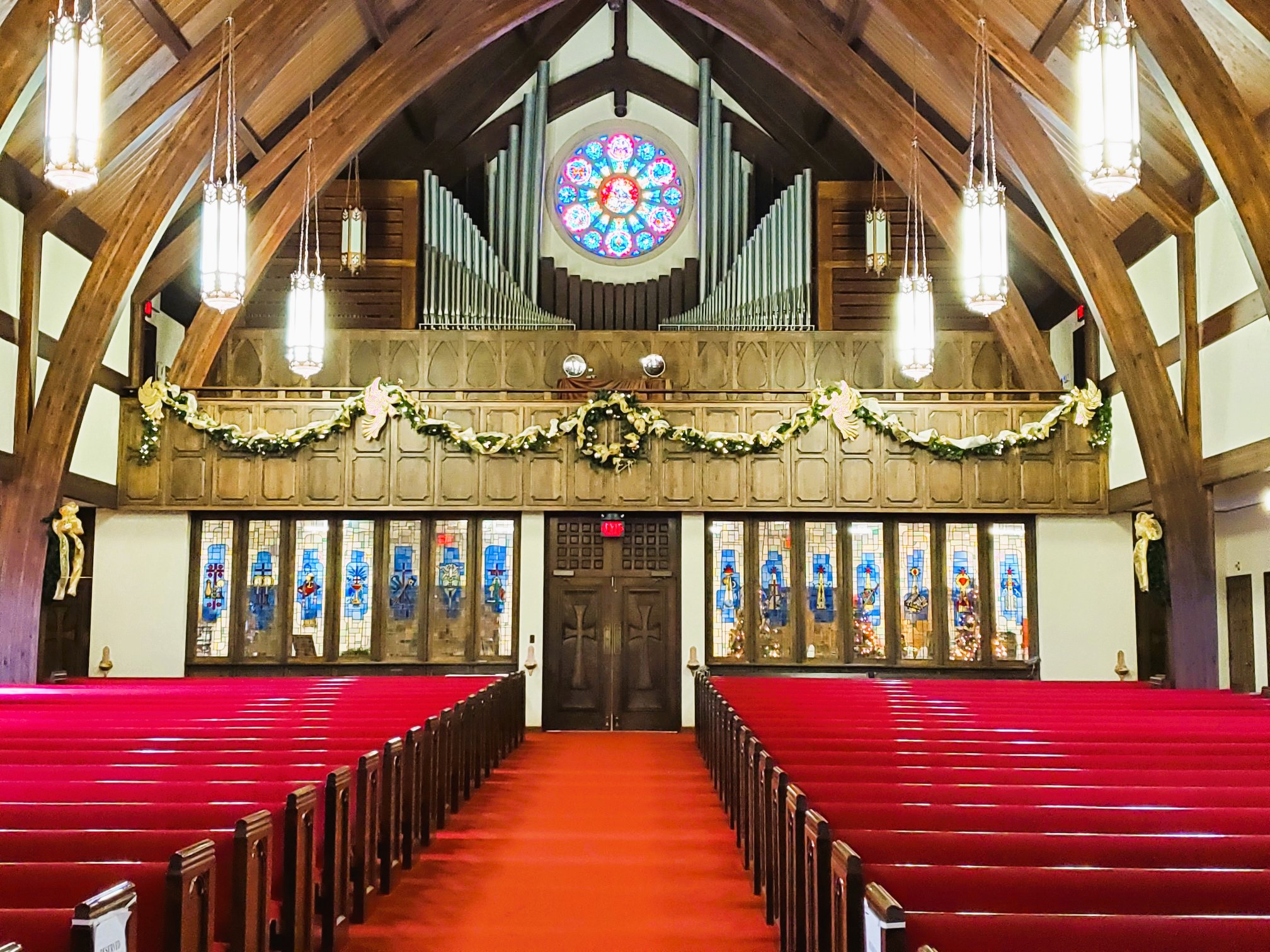

2020-01-09 - Church interior, gallery, organ and exposed pipes (Church Facebook/Jeff Scofield)

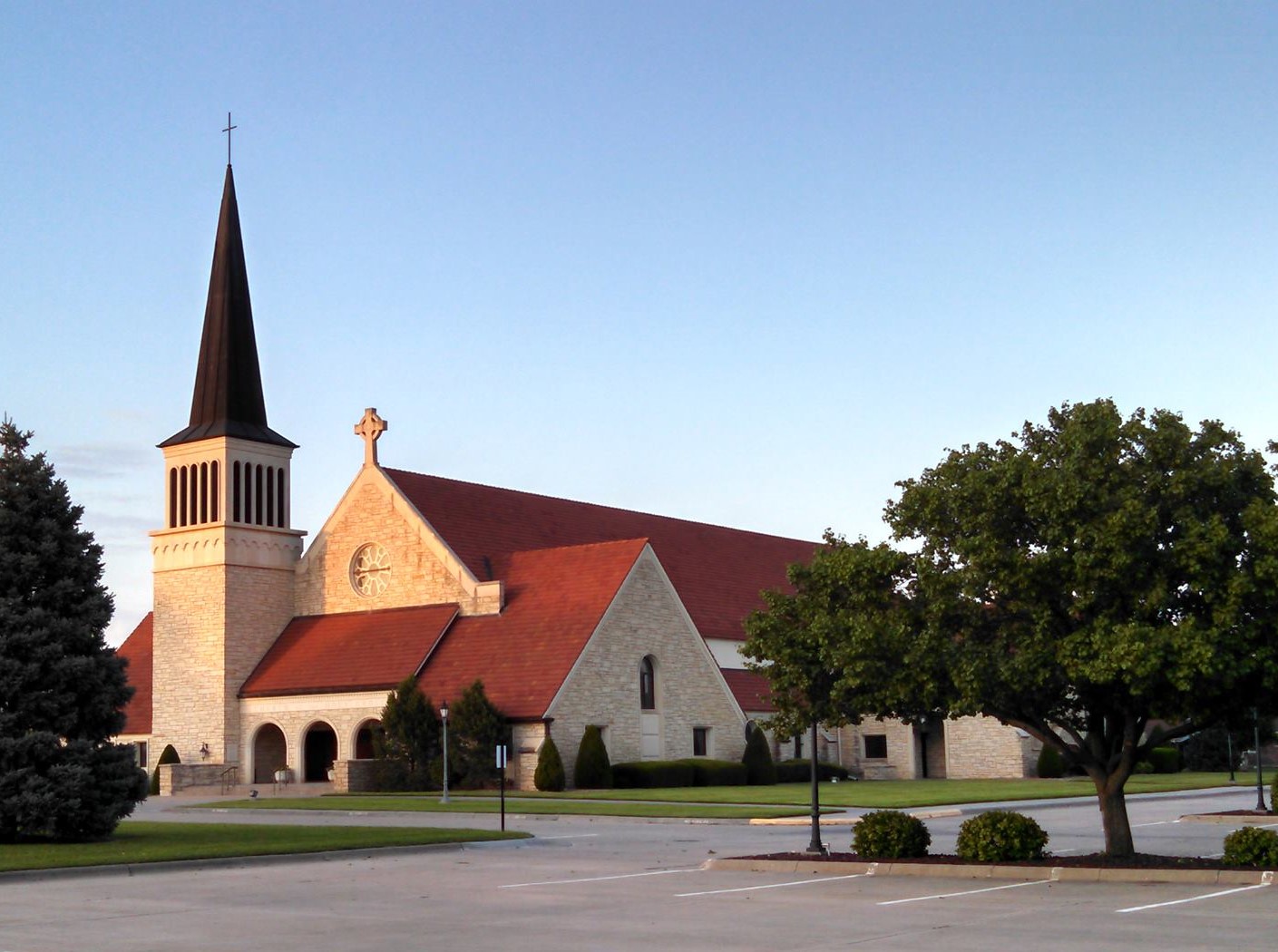

2022-09-27 - Building exterior (Church Facebook/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Center
3 manuals
18 stops
32 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-08-28 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2011-11-27 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

        Hutchinson, Kansas
        Holy Cross R. C. Church

        Möller   Op. 11621   1983   3/26
        ____________________________________________________

        GREAT (exposed)              CHOIR
    16' Gemshorn         -- a     8' Spitz Rohrgedeckt    61
     8' Principal        61       8' Unda Maris II       110
     4' Octave           61       4' Waldflöte            61
     2' Super Octave     61       2' Blockflöte           61
III-IV  Fourniture      190       8' Krummhorn            61
        Super                        Tremulant
        Chimes                    8' Trompette Harmonique pf
                                     Sub
     a  from SW and PD               Unison Off
                                     Super
        SWELL
     8' Flute Harmonique 61          PEDAL (*exposed)
     8' Gemshorn         61      32' Acousticbass         -- b
     8' Gemshorn Celeste pf    * 16' Gemshorn             12 SW
     4' Flötenprincipal  61    * 16' Subbass              12 CH
 2 2/3' Nazard           61       8' Principal            32
     2' Principal        61       8' Gedeckt              CH
 1 3/5' Terz             61       4' Choralbass           12
III-IV  Scharf          189     III  Mixture              -- c
     8' Trompette        61      16' Bombarde             12 SW
     4' Clairon          12       8' Trompette            SW
        Tremulant                 4' Clairon              SW
        Sub                       8' Trompette Harmonique pf
        Unison Off
        Super

     b  from CH Spitz Rohrgedeckt and Pedal Subbass
     c  from PD Principal unit

       [Received online from Jeff Scofield January 4, 2012]

Documents

(1983-08-13) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
