Better Pipe Organ Database

M. P. Möller Opus 11502 (1981)

New Hope Lutheran Church: Sanctuary
E9085 County Road V
Sand Creek, WI

Images

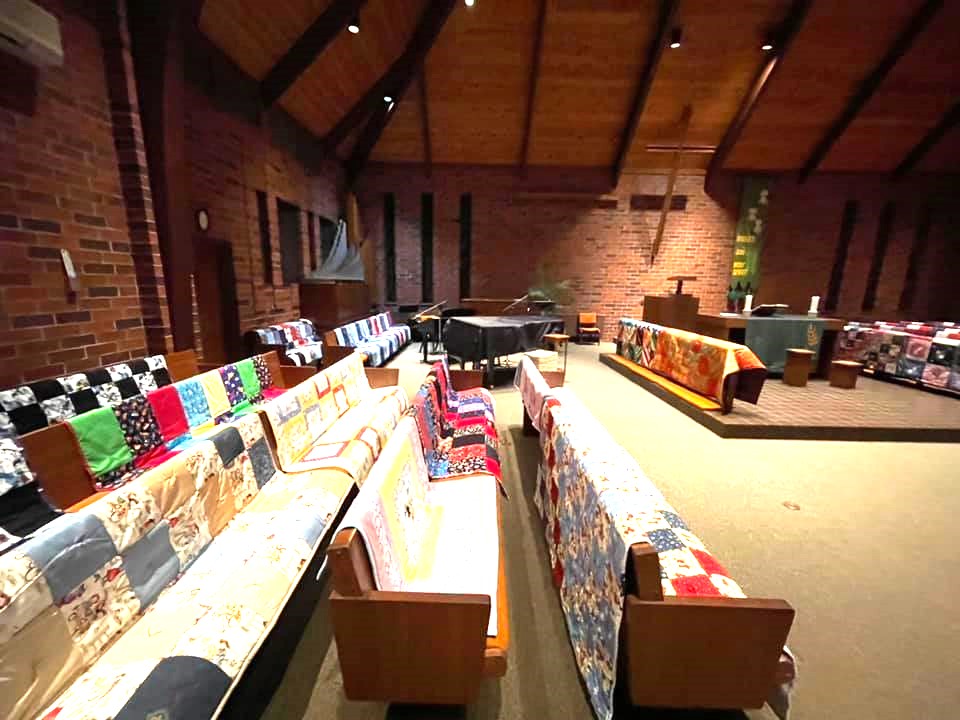

2021-09-28 - Church interior (Church Facebook via Jeff Scofield/Jeff Scofield)

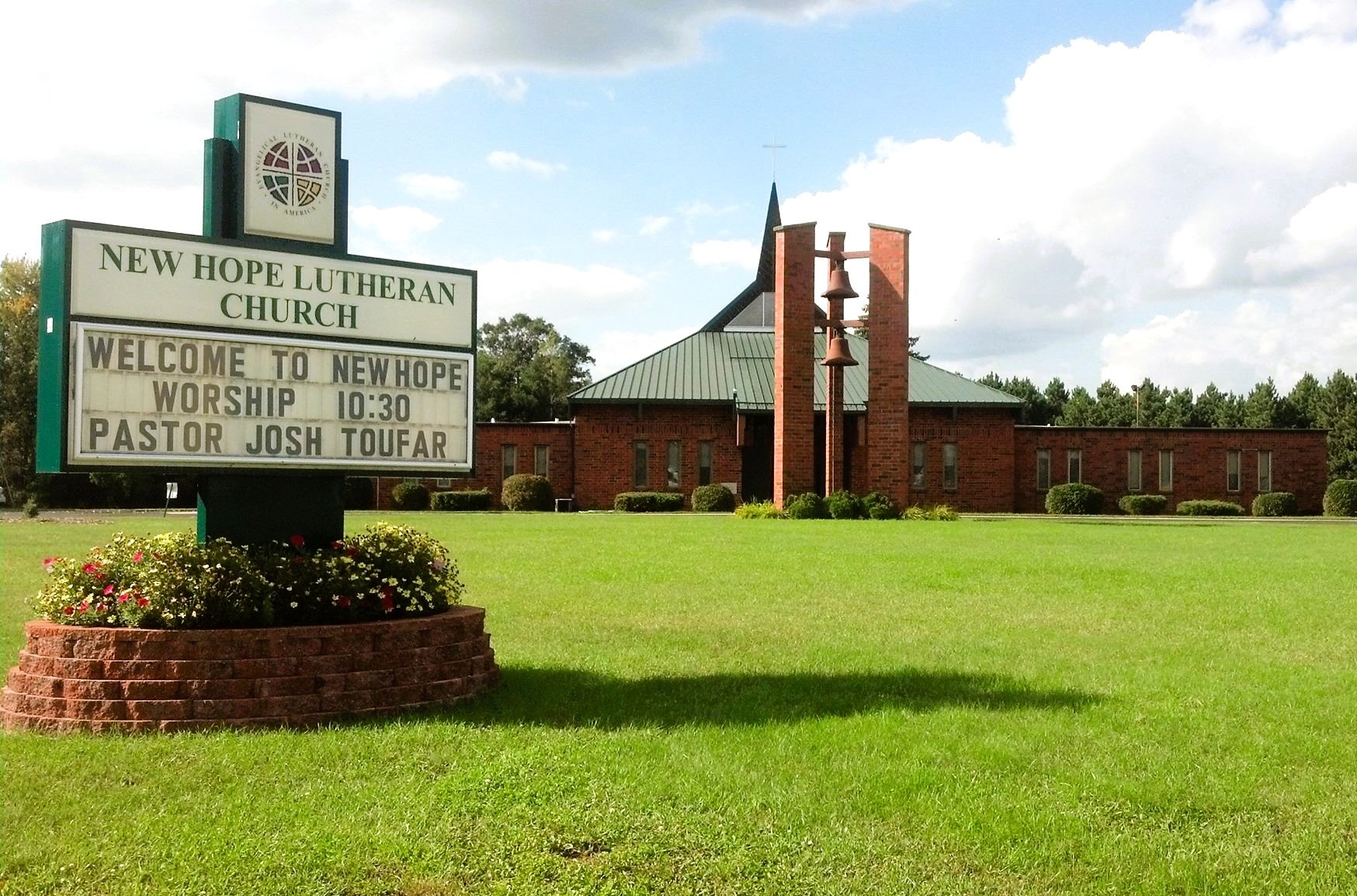

2014-09-17 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
30 stops
8 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2007-08-30 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2011-04-22 - Updated through on-line information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

        Sand Creek, Wisconsin
        New Hope Lutheran Church

        Möller   Op. 11502   1981   2/11
        _________________________________________________________________

        GREAT                 SWELL                      PEDAL
    16' Bourdon   92       8' Rohrflöte        73    16' Bourdon
     8' Principal 80       8' Gemshorn         80     8' Principal
     8' Gedeckt            8' Gemshorn Celeste 49     8' Gedeckt
     8' Gemshorn           4' Spitzprincipal   73     8' Gemshorn
     4' Octave             4' Rohrflöte               4' Octave
     4' Gedeckt            2' Spitzoctav              4' Rohrflöte
     2' Super Octave   1 1/3' Larigot               III  Mixture
     2' Flute             16' Contre Trompette 80    16' Contre Trompette
III-IV  Mixture  183         (1-6 half-length)        8' Trompette
     8' Trompette          8' Trompette               4' Clairon
        Tremolo            4' Clairon
        Chimes    pf          Tremolo

            [Received online from Jeff Scofield November 9, 2011]

Documents

(1980-07-18) Factory specifications via Jeff Scofield -Jeff Scofield
