M. P. Möller Opus 11560 (1982)

First Presbyterian Church: Sanctuary
116 E. Franklin St.
Taylorville, IL

Images

2020 - Church interior (Church Facebook via Jeff Scofield/Jeff Scofield)

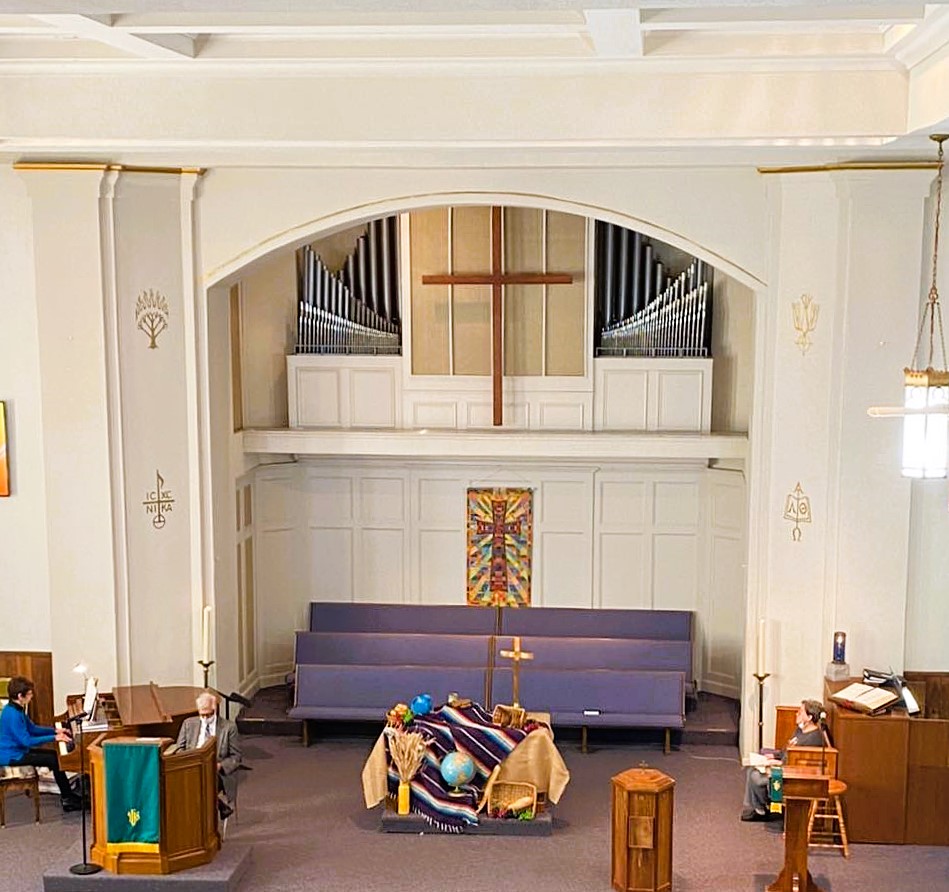

2020-10-11 - Church interior and organ (Church Facebook via Jeff Scofield/Jeff Scofield)

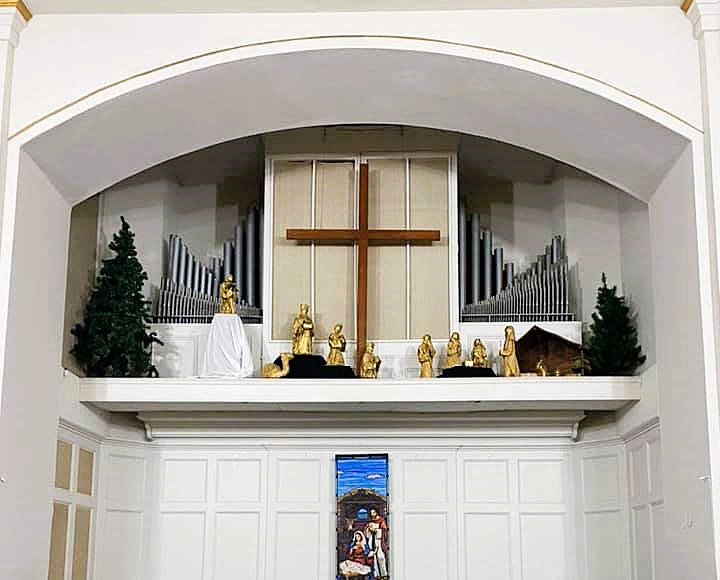

2020-11-30 - Exposed pipework (Church Facebook via Jeff Scofield/Jeff Scofield)

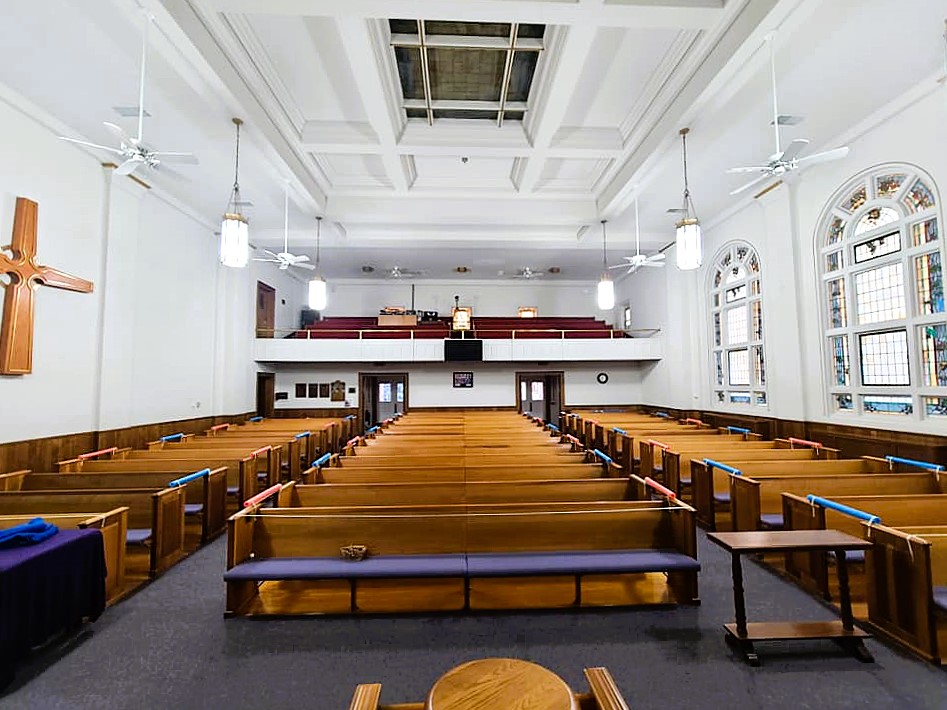

2020-07-03 - Church interior to rear (Church Facebook via Jeff Scofield/Jeff Scofield)

2020-04-08 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Right
2 manuals
30 stops
9 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2007-08-30 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2011-11-17 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

        Taylorville, Illinois
        First Presbyterian Church

        Möller   Op. 11560   1982   2/13
        ____________________________________________________________________

        GREAT (exposed)          SWELL                      PEDAL
    16' Bourdon       97      8' Rohrflöte        73    16' Principal     12
     8' Principal     73      8' Gemshorn         85    16' Bourdon
     8' Gedeckt               8' Gemshorn Celeste 49     8' Principal
     8' Gemshorn              4' Spitzprincipal   73     8' Gedeckt
     4' Octave                4' Rohrflöte               8' Gemshorn
     4' Gedeckt               2' Spitzoctave             4' Octave
     2' Flöte             1 1/3' Larigot                 4' Rohrflöte
    II  Sesquialtera  98     16' Contre Trompette 80   III  Mixture
III-IV  Mixture      183      8' Trompette              16' Contre Trompette
        Tremolo               4' Clairon                 8' Trompette
        Chimes        pf         Tremolo                 4' Clairon

                [Received online from Jeff Scofield  November 19, 2011]

Documents

(1981-07-24) Factory specifications via Jeff Scofield -Jeff Scofield
