Better Pipe Organ Database

Orgues Létourneau Ltée Opus 128 (2014)

University Parish of St. Joseph, Roman Catholic / St. Joseph Roman Catholic Church
371 Avenue of the Americas
New York City: Manhattan, NY

Images

2014 - Church exterior (Photograph by John Rust via the NYC AGO NYC Organ Project, submitted by Jeff Scofield/Jeff Scofield)

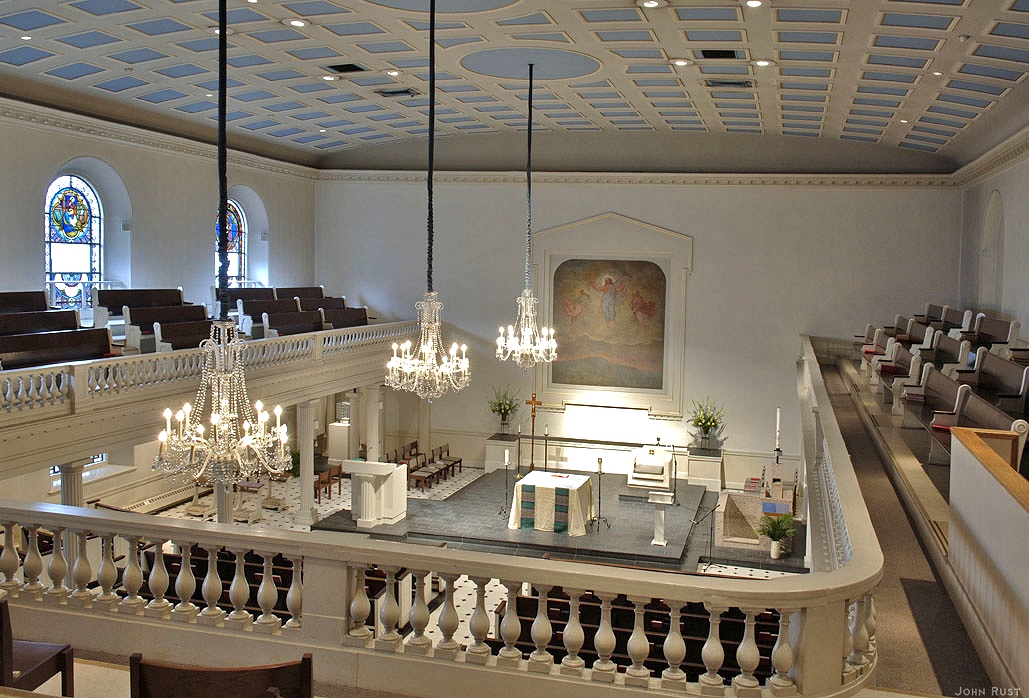

2014 - Church interior to front (Photograph by John Rust via the NYC AGO NYC Organ Project, submitted by Jeff Scofield/Jeff Scofield)

2014 - Organ case and console (Photograph by Orgues Létourneau website via the NYC AGO NYC Organ Project, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Console position: Keydesk Attached
3 manuals
31 stops
Key action Type: Mechanical (Details Unknown)
Stop action Type: Electrical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 58 notes
Pedal compass: 32 notes
Has crescendo
Has sequencer
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2004-10-30 - This building was originally named St. Joseph R.C. Church. -Database Manager

Stoplist

Specification from Orgues Letourneau Source: Source not recorded Date not recorded

New York City, New York
The University Parish of St. Joseph, Roman Catholic

Orgues Létourneau Ltée   Opus 128   2004           3 manuals, 31 stops, 39 ranks
________________________________________________________________________________

         GREAT ORGAN (I)                           SWELL ORGAN (II)
     16' Bourdon               58 a             8' Geigen Diapason       58
      8' Open Diapason         58 b             8' Gambe                 58
      8' Flûte harmonique      58               8' Voix céleste (GG)     51
      8' Flûte à cheminée      58               8' Bourdon               58
      8' Salicional            58 a             4' Principal             58 a
      8' Chimney Flute         58               4' Spire Flute           58 a
      4' Principal             58               2' Flageolet             58
      4' Open Flute            58               4' Flûte à fuseau        58
      2' Fifteenth             58           1 1/3' Larigot               58
  1 1/3' Mixture IV           232               2' Plein jeu III-IV     215
  2 2/3' Cornet III           174              16' Fagotto               58
      8' Trumpet               58               8' Trumpet               58 a
         Tremulant                              8' Oboe                  58
                                                   Tremulant
         PEDAL ORGAN
     32' Resultant             --                  SOLO ORGAN (III)
     16' Open Diapason         32 b             8' Festival Trumpet      58
     16' Subbass (wood)        32                    (chamade)
     16' Bourdon               GT
      8' Principal             32 b
      8' Bass Flute            32               a  from previous organ
      4' Choral Bass           32               b  façade
     16' Trombone              32
     16' Fagotto               SW
      8' Trumpet               32

         COMBINATIONS (256 levels)                 PISTON SEQUENCER
         Great Organ    1-6,0 (thumb)              NEXT  (3) thumb; (2) toe
         Swell Organ    1-6,0 (thumb)              PREV  (1) thumb; (1) toe
         Pedal Organ    1-6,0 (thumb)
         General        1-12  (thumb & toe)        EXPRESSION
         General Cancel       (thumb)              Balanced Swell Pedal (mech.)
         Set (with lock)      (thumb)              Register Crescendo Pedal

         REVERSIBLES
         Great to Pedal       (thumb & toe)
         Swell to Pedal       (thumb & toe)
         Solo to Pedal        (thumb & toe)
         Swell to Great       (thumb)
         Solo to Great        (thumb)
         Tutti                (thumb & toe)


[Received from Steven E. Lawson  2015-02-09]
