Better Pipe Organ Database

Wayne T. Warren (2003)

Tuskawilla Presbyterian Church
3600 W State Road 426
Oviedo, FL

Images

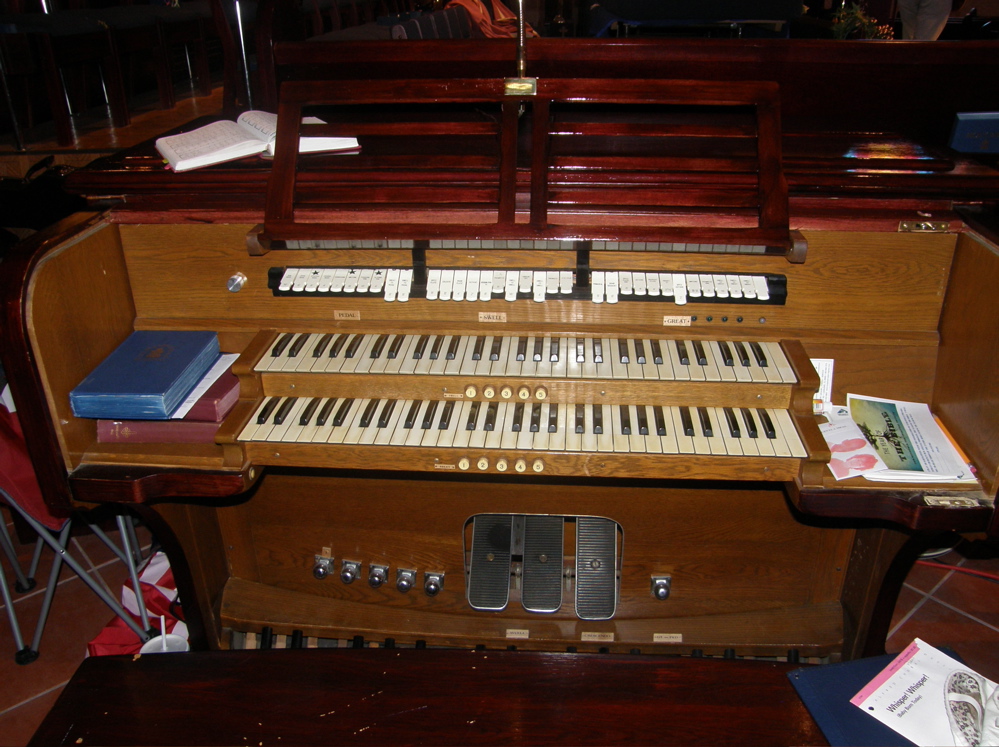

2011-12-18 - Console (Photograph by Stephen Hall/Database Manager)

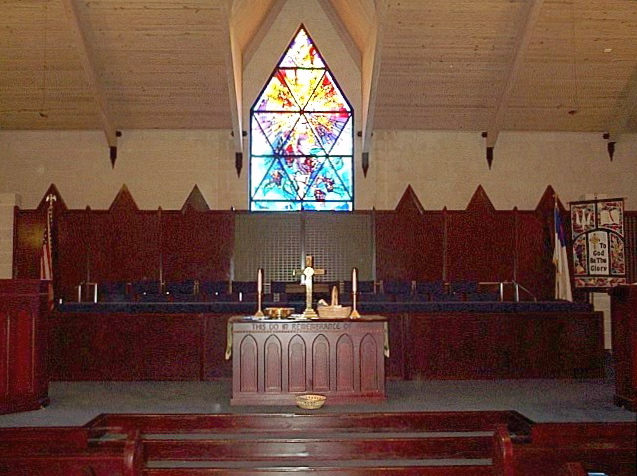

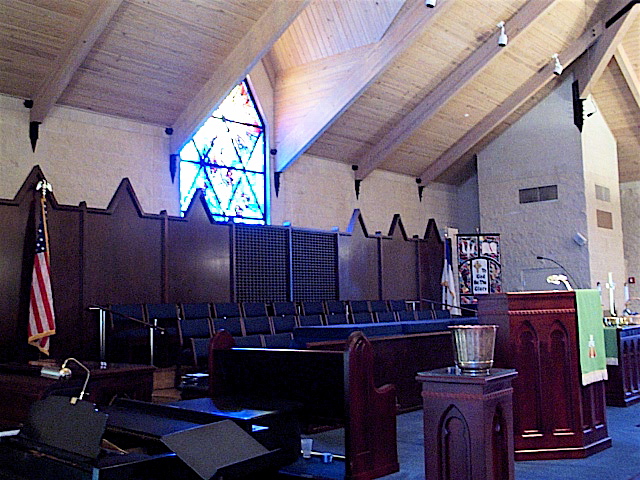

2008-06-22 - Chancel and Chamber Grillework & Wall (Photograph by Stephen Hall/Database Manager)

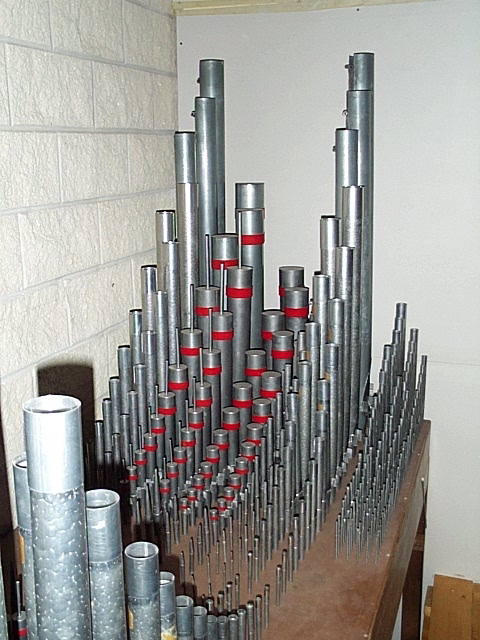

2008-06-22 - Great Pipework (L to R: 8' Principal, 8'Rohrflote, 4' Gedeckt, 2' Super Octave, 4' Octave, III-IV Mixture) (Photograph by Stephen Hall/Database Manager)

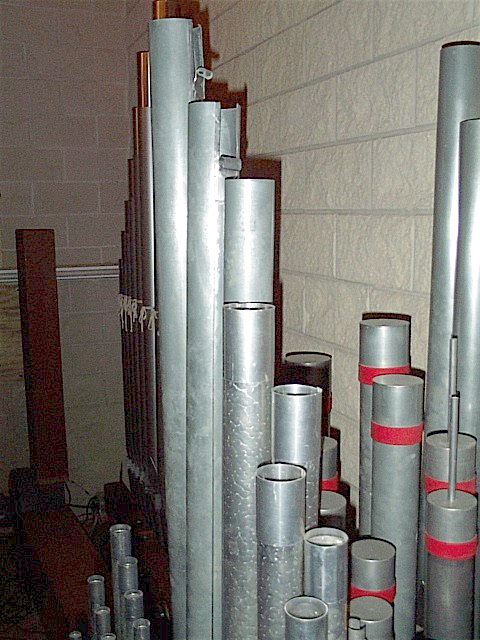

2008-06-22 - Great Bass Pipework on Off-Set Chests (Photograph by Stephen Hall/Database Manager)

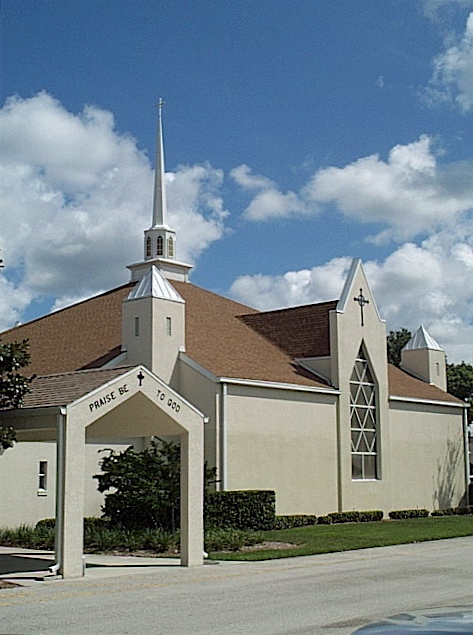

2008-06-22 - Church Exterior (Photograph by Stephen Hall/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Left
2 manuals
20 stops
23 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has coupler toe pistons

Notes

2007-09-11 - Identified through on-line information from Stephen Hall. -- The organ came from a service shop; it had previously been in a church in the Bahamas. It recieved a refurbished console and some odd parts from another instrument. The organ is at floor level between the rear wall of the chancel and a wooden screen with grill cloth separating the organ space from the chancel. The Swell box is in the center, the Great to the left, and the Pedal to the right. The organ suffered water damage from the three hurricanes which hit central Florida in 2004, but the damaged swell chests were repaired. The organ is in regular use for services. -Database Manager

2007-09-14 - Updated through on-line information from Stephen Hall. -- Rebuild of Steiner-Reck organ; console is refurbished Möller. -Database Manager

Stoplist

Stoplist taken from the console 2004 Source: Source not recorded Date not recorded

Oviedo, Florida
Tuskawilla Presbyterian Church

Wayne Warren 2003 (rebuild of Steiner-Reck)

GREAT
  8	Principal
  8	Bourdon
  8	Spitzflote (Sw)
  4	Octave
  4	Rohrflote
  2 2/3	Quinte (Tenor C)
  2	Super Octave
  1 1/3	Mixture IV-V
  8	Trumpet (Sw)

SWELL
  8	Spitzflote
  8	Spitzflote Celeste
  4	Nachthorn
  2 2/3	Nazard
  2	Blockflote
  1 3/5	Tierce
  8	Trumpet
	Tremolo

PEDAL
 16	Subbass
  8	Open Bass
  8	Gedackt Pommer
  4	Choral Bass
  2	Gemshorn
  2	Mixture III
 16	Contra Trumpet (ext from Swell)
  8	Trumpet (Sw)

 [Received on line from Stephen Hall February 28, 2009.]
