Naples United Church of Christ
5200 Crayton Road
Naples, FL
Images

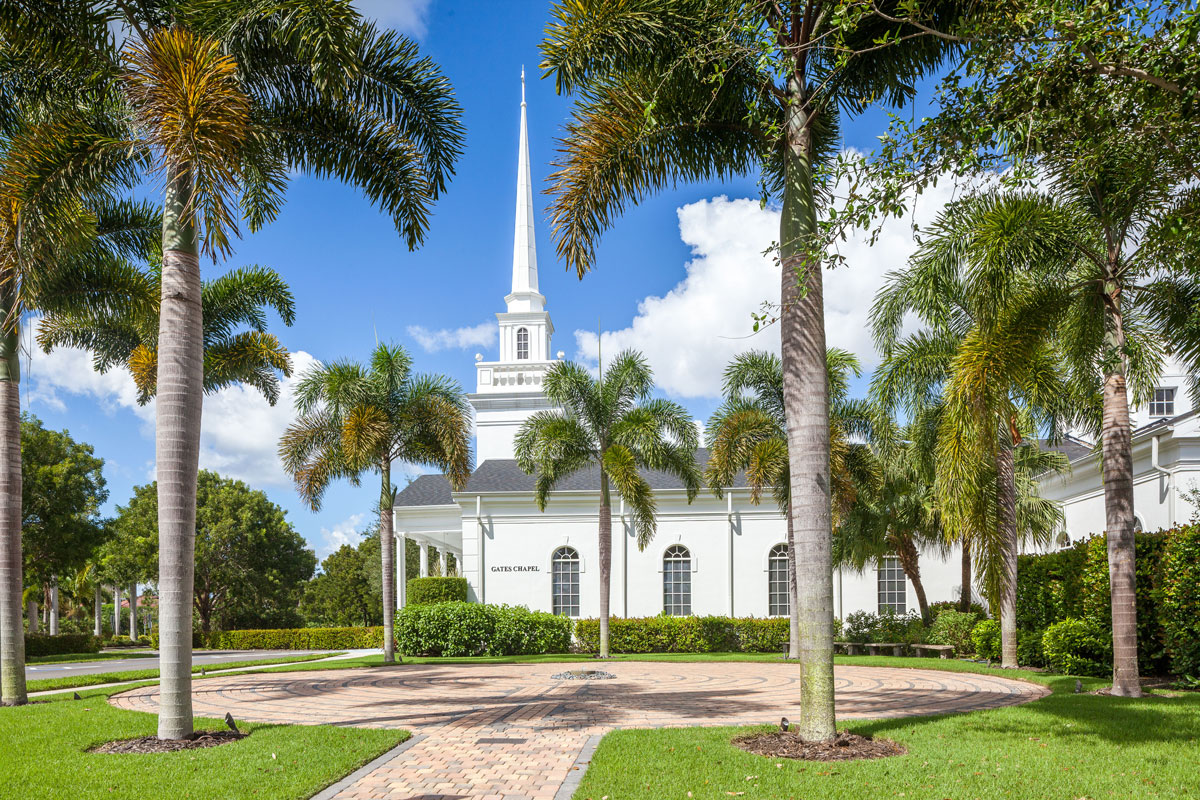

Unknown - Church exterior (Photograph by swflrelocationguide.com, submitted by Jeff Scofield/Jeff Scofield)

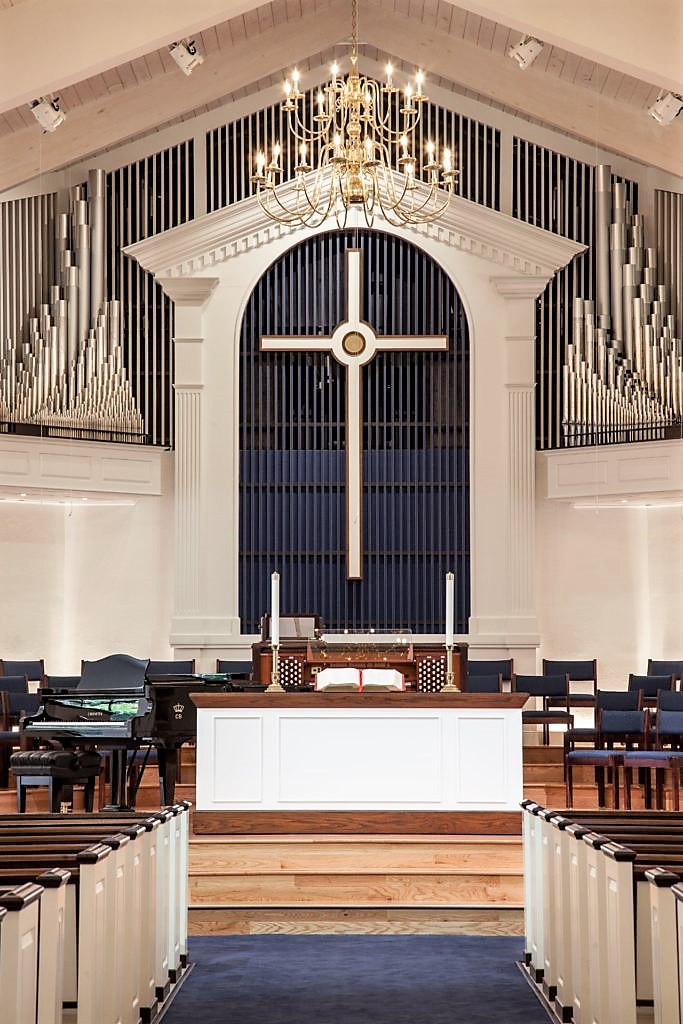

Unknown - Chancel and exposed pipes (Photograph by Church website, submitted by Jeff Scofield/Jeff Scofield)

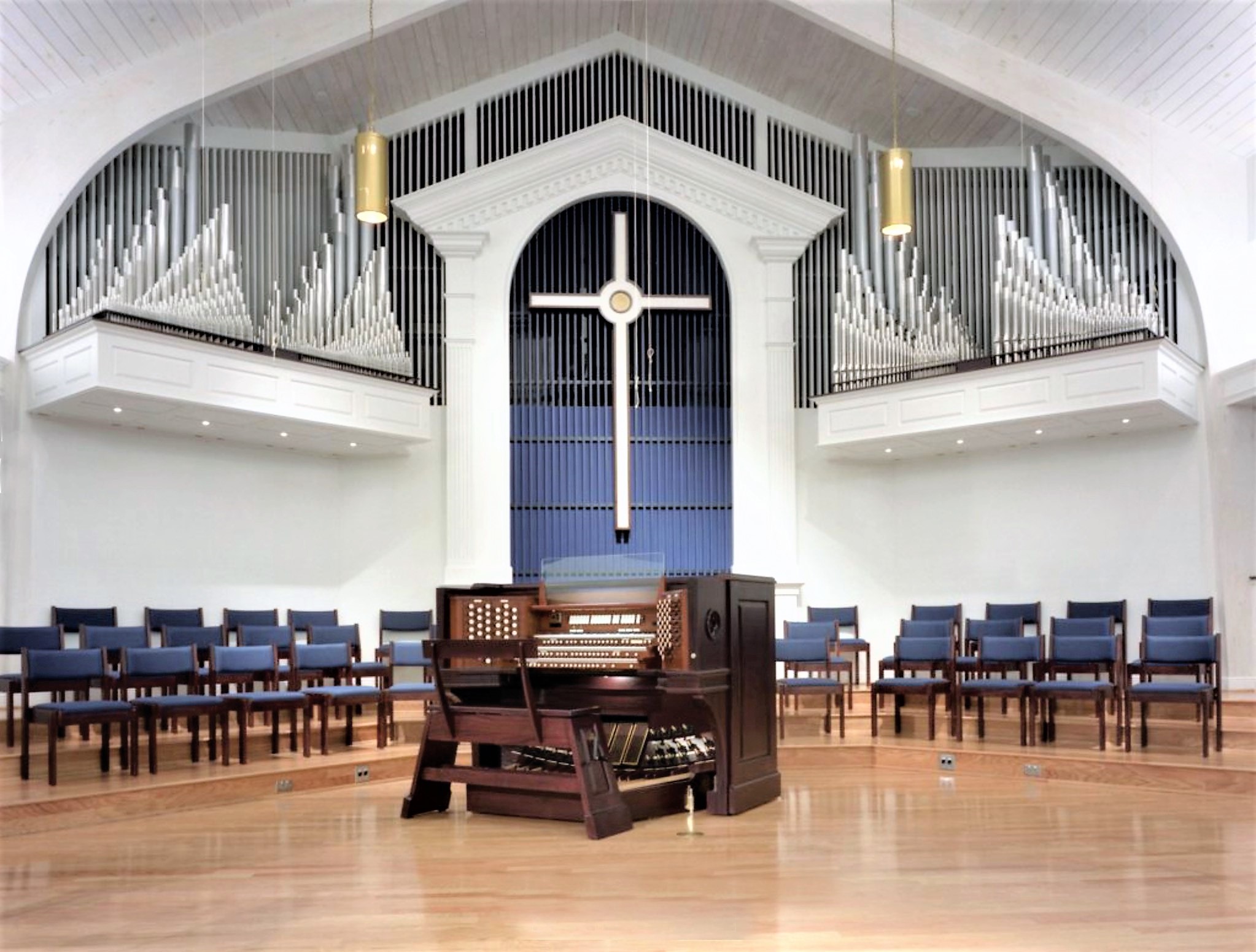

Unknown - Chancel, console and exposed pipes (Photograph by Church website, submitted by Jeff Scofield/Jeff Scofield)

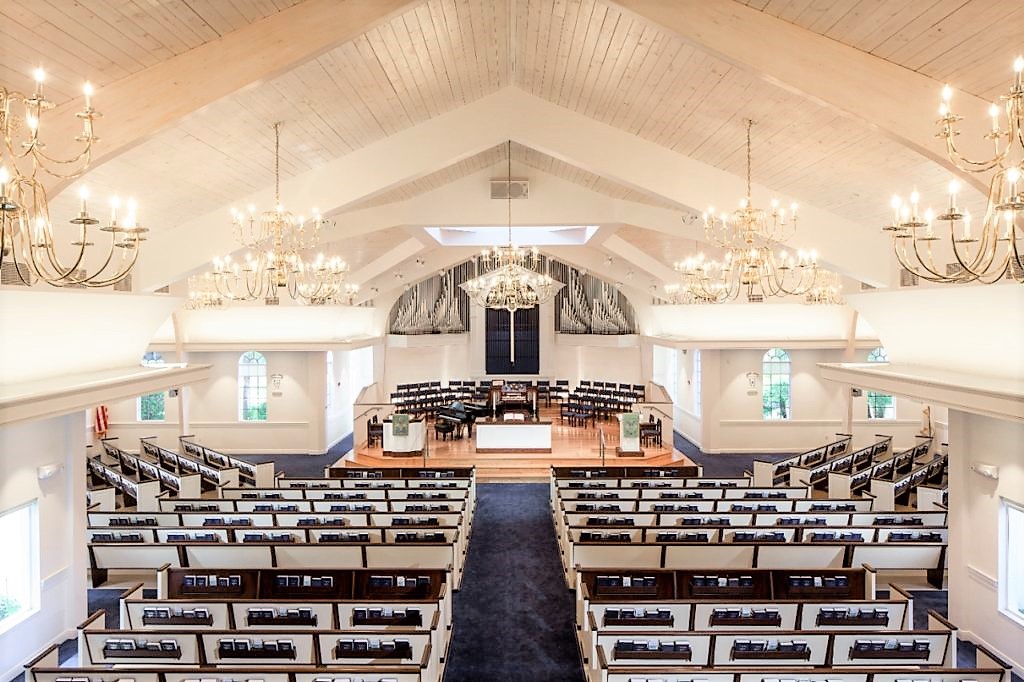

Unknown - Church interior to front and organ (Photograph by Church website, submitted by Jeff Scofield/Jeff Scofield)

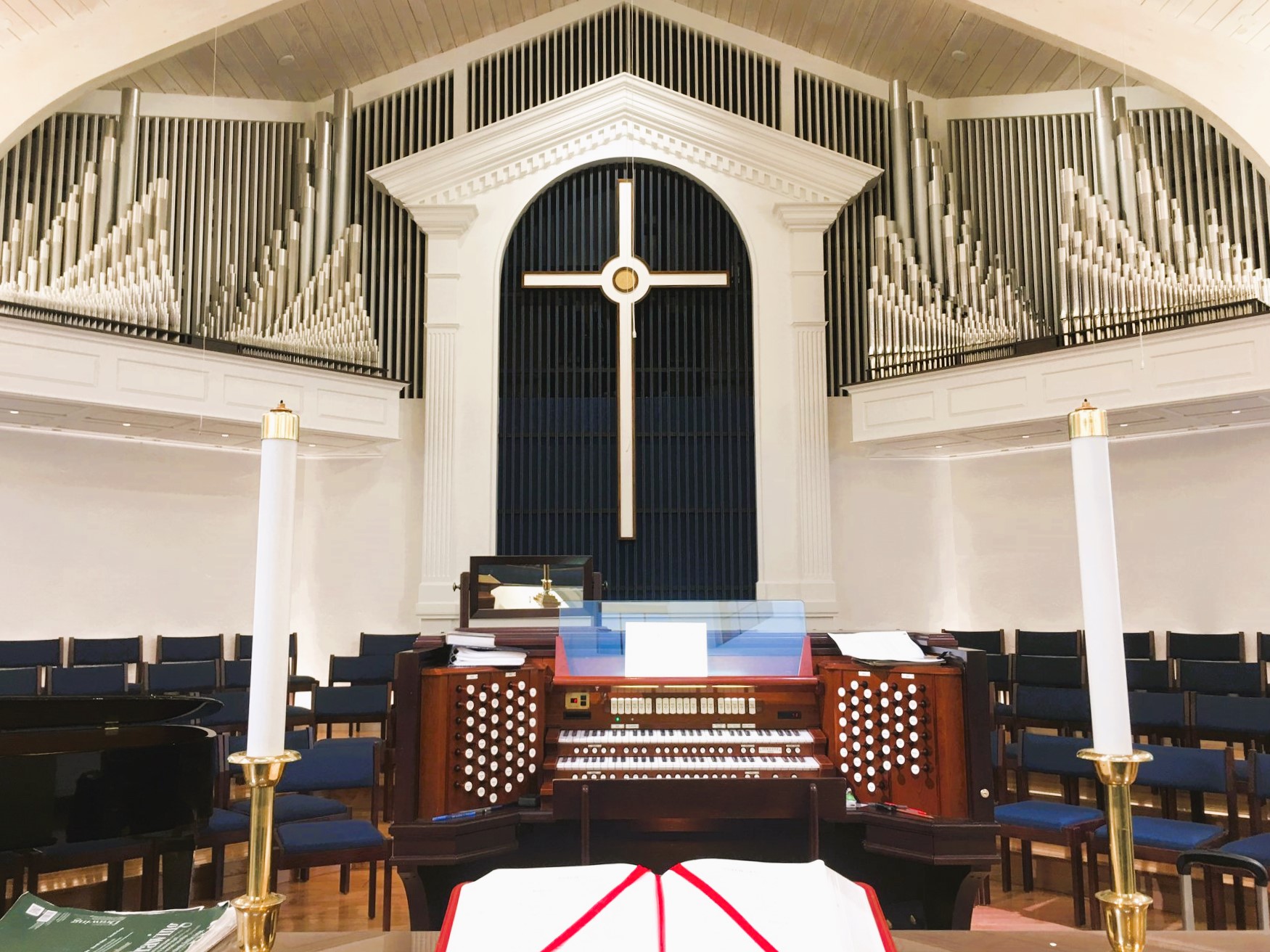

2019-01-04 - Console and exposed pipes (Church Facebook via Jeff Scofield/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Movable Console
- 3 manuals
- 43 stops
- 66 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2007-09-11 - Identified through online information from Stephen Hall. -- The Swell and Choir organs have a second set of shutters opening in the rear allowing the sound to enter the chapel located behind the chancel. 36 registers of the main organ are available through the two-manual chapel console, although there are no additional pipes for the chapel. The instrument is in regular use for services and concerts (September 2007). -Database Manager
Stoplist
Source: Source not recorded Date not recorded
Naples, Florida
NAPLES UNITED CHURCH OF CHRIST
Schantz Organ Company Opus 2232 58 ranks 2004
__________________________________________________________________
GREAT: CHOIR: *
16' Violone 73 8' Diapason 61
8' Principal 61 8' Holzgedeckt 61
8' Violone 8' Flute douce 61
8' Rohrflöte 61 8' Flute celeste [TC] 49
8' Traversflöte 49 4' Principal 61
4' Octave 61 4' Koppelflöte 61
4' Nachthorn 61 2' Octave 61
2 2/3' Twelfth 61 1 1/3' Quinte 61
2' Super Octave 61 IV Mixture 244
1 3/5' Seventeenth 61 8' Trompette 61
IV Fourniture 244 8' Cromorne 61
III Scharf 183 8' Cor anglais 61
8' Trumpet 61 Tremulant
Tremulant 8' Festival Trumpet 61
8' Festival Trumpet [CH]
Chimes 25 bells PEDAL:
32' Contra Principal
SWELL: * 32' Contra Bourdon
16' Bourdon 73 16' Principal 44
8' Diapason 61 16' Violone [GT]
8' Viole de gambe 61 16' Subbass 56
8' Viole celeste [GG] 54 16' Bourdon [SW]
8' Bourdon 10 2/3' Quinte Bourdon [SW]
4' Prestant 61 8' Octave
4' Flute harmonique 61 8' Violone [GT]
2 2/3' Nazard 61 8' Flute
2' Octavin 61 8' Bourdon [SW]
1 3/5' Tierce 61 4' Choral Bass 32
V Plein Jeu 305 4' Open Flute
16' Contre Trompette 73 IV Mixture 128
8' Trompette 32' Contre Bombarde
8' Hautbois 61 32' Contre Basson
4' Clairon 61 16' Bombarde 44
Tremulant 16' Contre Trompette [SW]
8' Festival Trumpet [CH] 8' Bombarde
4' Cromorne [CH]
CHAPEL PEDAL: 8' Festival Trumpet [CH]
32' Resultant [SW] 8' Festival Clarion [CH]
16' Bourdon [SW]
8' Bourdon [SW] * divisions playable from manuals
4' Bourdon [SW] on the Chapel console
16' Contre Trompette [SW]
8' Trompette [SW]
4' Cromorne
[Received on line from Chad Boorsma March 21, 2010.]
