Better Pipe Organ Database


Estey Organ Co. Opus 1558 (1917)

St. John's Lutheran Church
920 Perry Highway
Pittsburgh: Perrysville, PA

OHS convention: 2010


Images

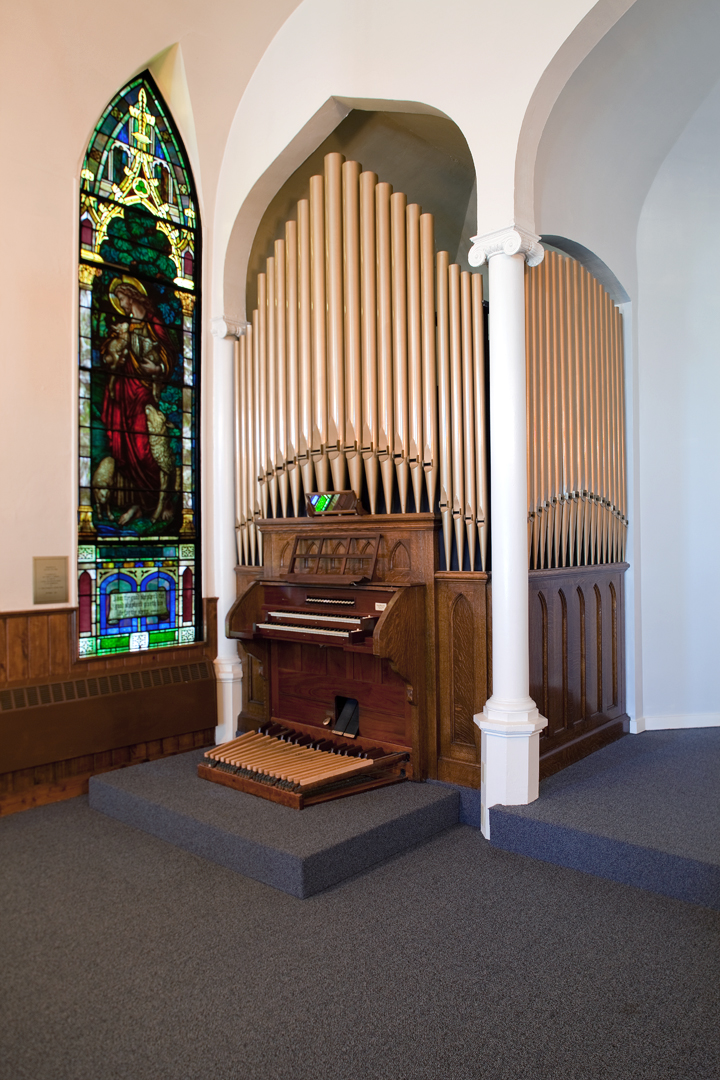

2009-09-19 - Organ (Photograph by Len Levasseur/Database Manager)

Consoles

Main


Notes

2007-09-21 - Identified by James R. Stettner through information from the Estey Opus List, published in The Boston Organ Club newsletter, 1973-1979. -Database Manager

2010-02-02 - Updated through information from R. J. Brunner, courtesy of Jim Stark. -Database Manager


Stoplist

Source: R.J. Brunner -- see documents tab

Great (61 notes) Open Diapason 8 (61 pipes, #1-17 in façade (first 6 are Haskell basses)), Melodia 8 (61 pipes, wood, 12 Haskell basses), Dulciana 8 (61 pipes, 12 Haskell basses)

Swell (expressive, 61 notes) Stopped Diapason 8 (61 pipes, wood), Salicional 8 (61 pipes), Harmonic Flute 4 (61 pipes), Oboe 8 (49 pipes, labial Oboe, shares bottom 12 w/Salicional), Tremolo

Pedal (30 notes) Bourdon 16 (30 pipes, wood)

Couplers Great to Pedal (with reversible toe pedal), Swell to Pedal, Swell to Great 16', Swell to Great 8', Swell to Great 4', Swell to Swell 16', Swell to Swell 4', Great Unison Separation, Swell Unison Separation

Accessories and Other Information Balanced Swell pedal (mechanical), Crescendo (mechanical), with indicator, 30-note concave, radiating Pedalboard, Quarter-sawn oak casework with mahogany console interior, Blower- ½ HP Spencer Orgoblo, 1750 RPM, 4" wind pressure, No combination pistons or pedals
