Better Pipe Organ Database

M. P. Möller Opus 11399 (1980)

St. John's Episcopal Church
1 N. Hanover St.
Carlisle, PA

Images

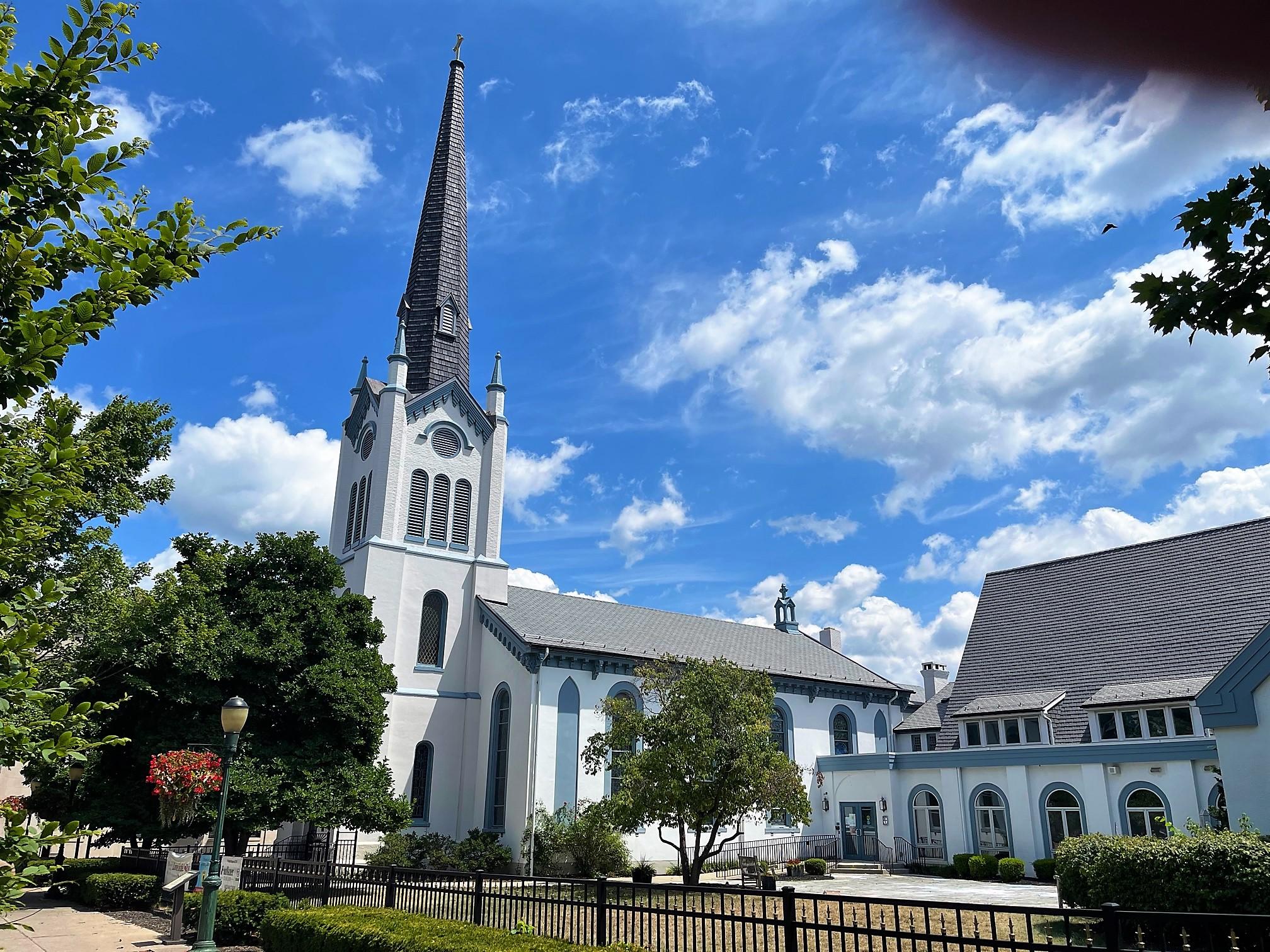

2022-07-21 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)

2022-07-21 - Exposed pipework (Photograph by Jeff Scofield/Jeff Scofield)

2022-07-21 - Builder nameplate (Photograph by Jeff Scofield/Jeff Scofield)

2022-07-21 - Right stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

2022-07-21 - Left stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

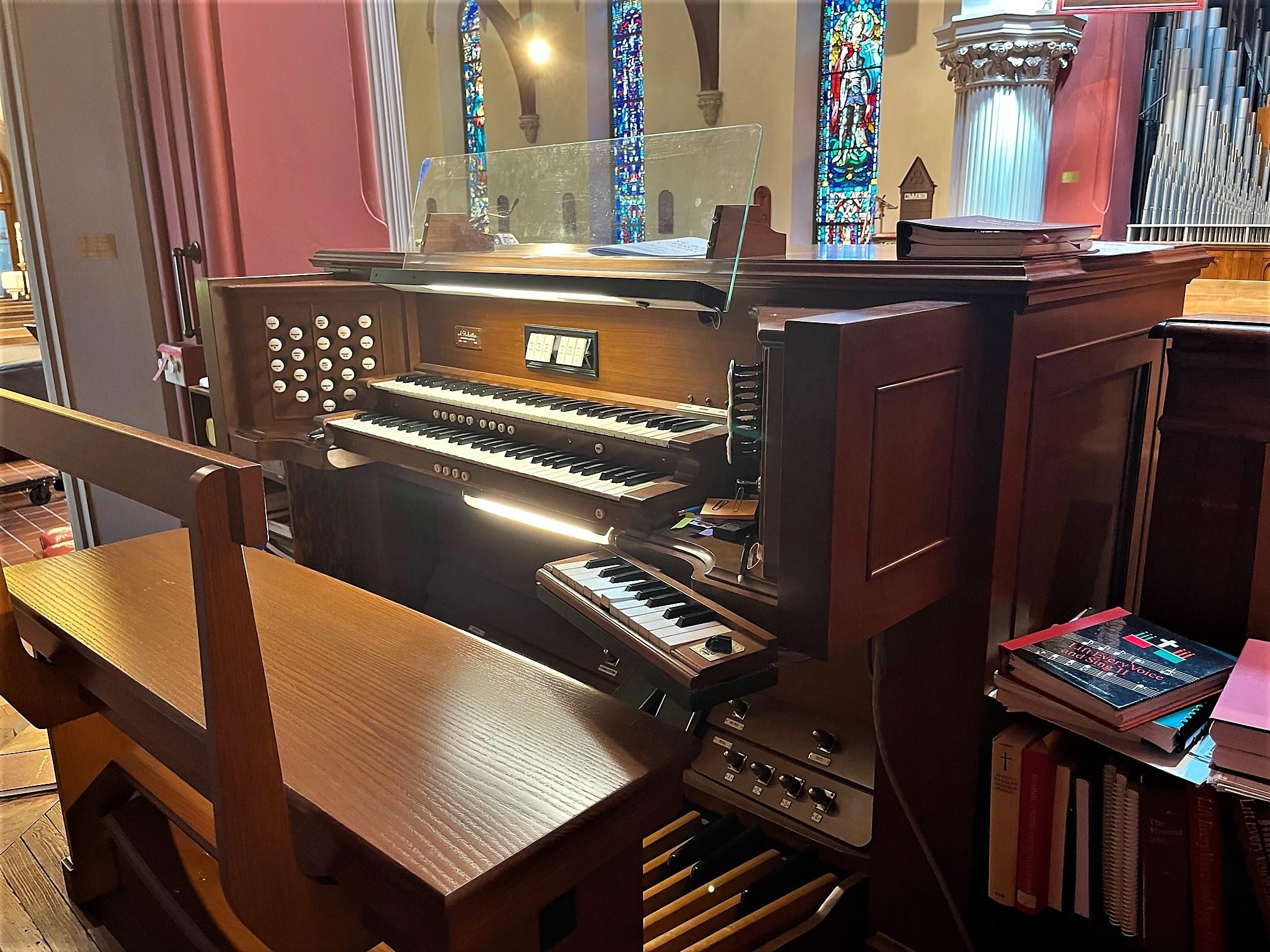

2022-07-21 - Console (Photograph by Jeff Scofield/Jeff Scofield)

2022-07-21 - Sanctuary and exposed pipes (Photograph by Jeff Scofield/Jeff Scofield)

2022-07-21 - Church interior (Photograph by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Right
2 manuals
19 stops
24 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-09-22 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2011-03-16 - Updated through online information from Jeff Scofield. -Database Manager

2019-05-27 - Chimes added in 1996. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

        Carlisle, Pennsylvania
        St. John's Episcopal Church

        Möller   Op. 11399   1980   2/27
        _____________________________________________________________

        GREAT (exposed)           SWELL                PEDAL
     8' Principal    61        8' Rohrflöte  61    16' Subbass     32 *
     8' Bordun       61        8' Gemshorn   61    16' Gedeckt     12 *
     8' Gemshorn     SW        8' Celeste    49 *   8' Principal   32
     4' Octave       61        4' Spitzflöte 61     8' Rohrflöte   SW
     2' Waldflöte    61        2' Principal  61     4' Choralbass  12
    II  Sesquialtera 98    1 1/3' Quintflöte 61   III  Mixture     96
III-IV  Mixture     220   III-IV  Scharf    220    16' Posaune L/2 12 GT
     8' Trompete     61        8' Schalmei   61     4' Clarion     GT
        Super                     Tremulant
                                  Sub
     *  present pipes             Unison Off
                                  Super

       [Received online from Jeff Scofield  March 30, 2011]

Documents

(1979-10-24) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
