Better Pipe Organ Database

M. P. Möller Opus 11384 (1979)

Trinity Episcopal Church
130 North West Street
Wheaton, IL

Images

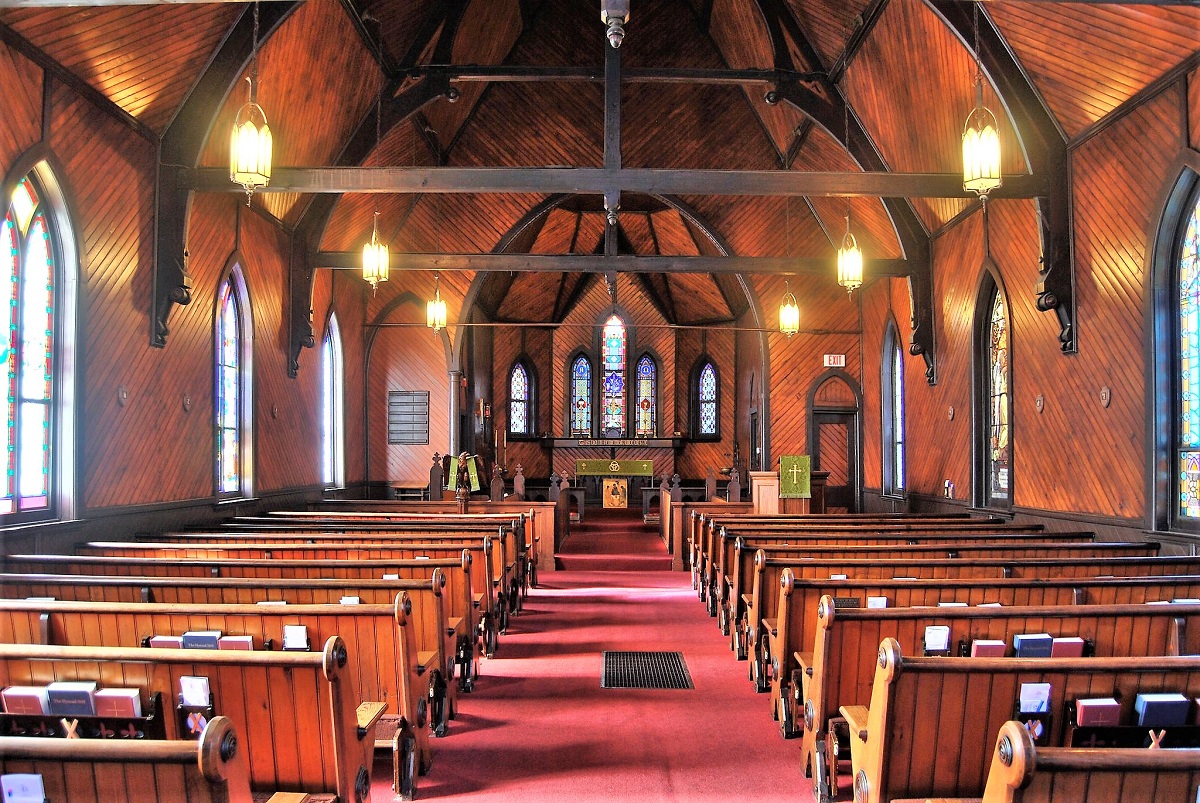

2011-01-22 - Chapel Interior (Photograph by Stephen Schnurr/Database Manager)

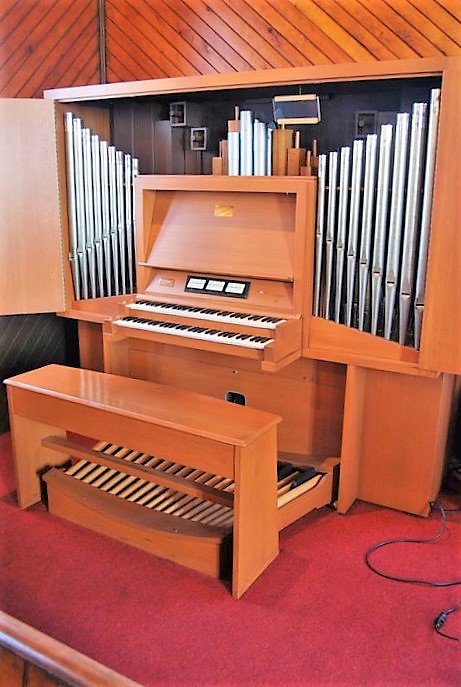

2011-01-22 - Organ (Photograph by Stephen Schnurr/Database Manager)

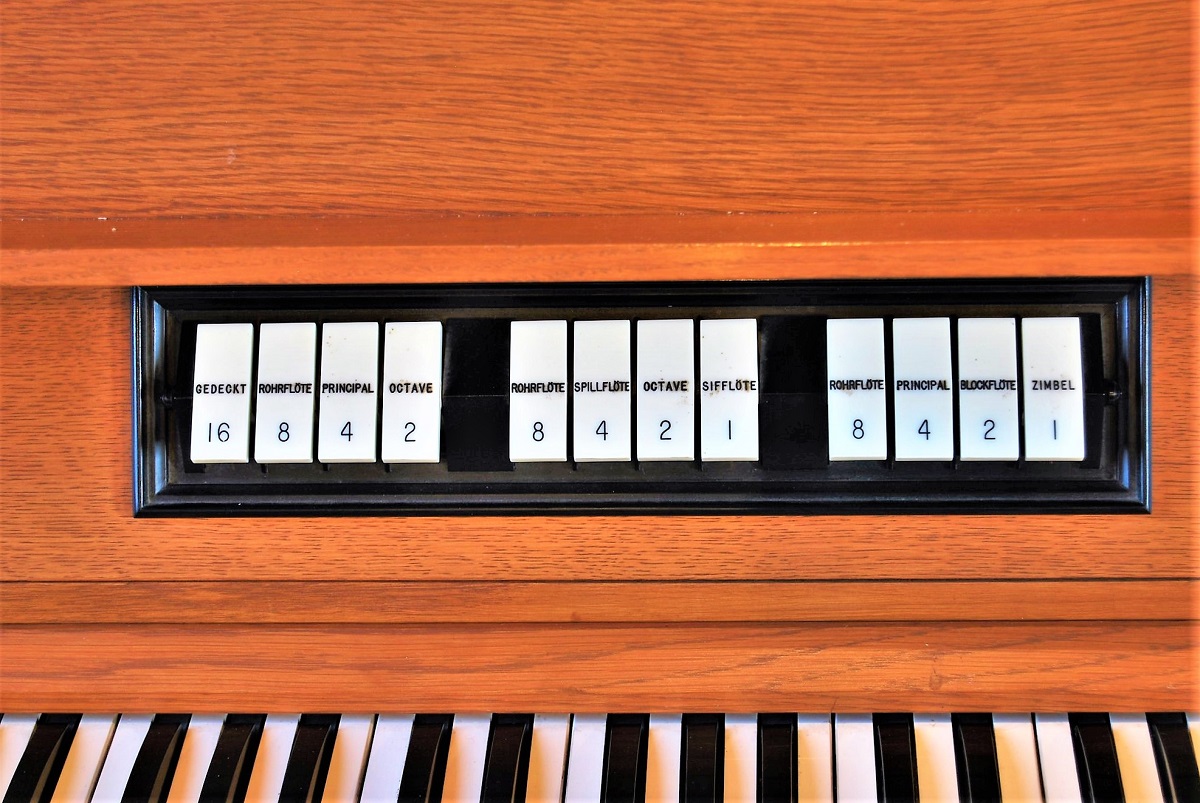

2011-01-22 - Stop Tablets (Photograph by Stephen Schnurr/Database Manager)

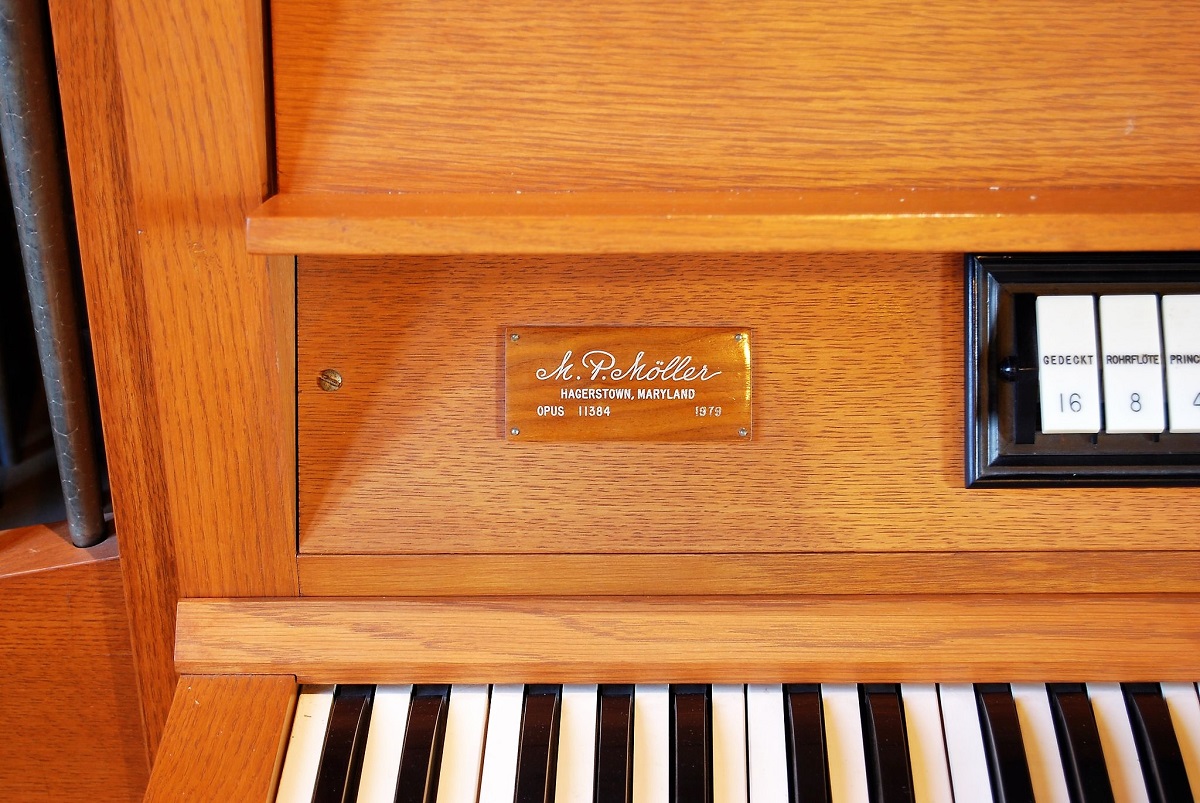

2012-01-22 - Builder name plate (Photograph by Stephen Schnurr/Database Manager)

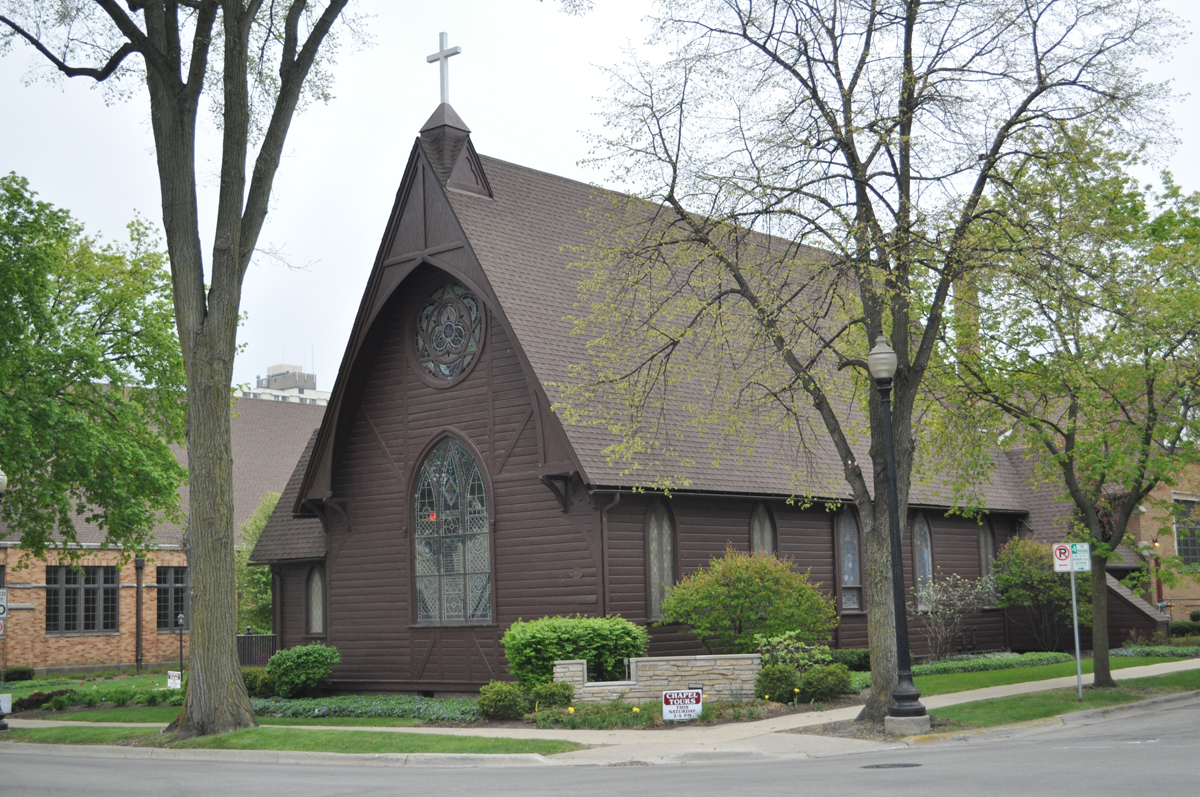

2012-04-01 - Chapel Exterior (Photograph by Kristina Powers/Database Manager)

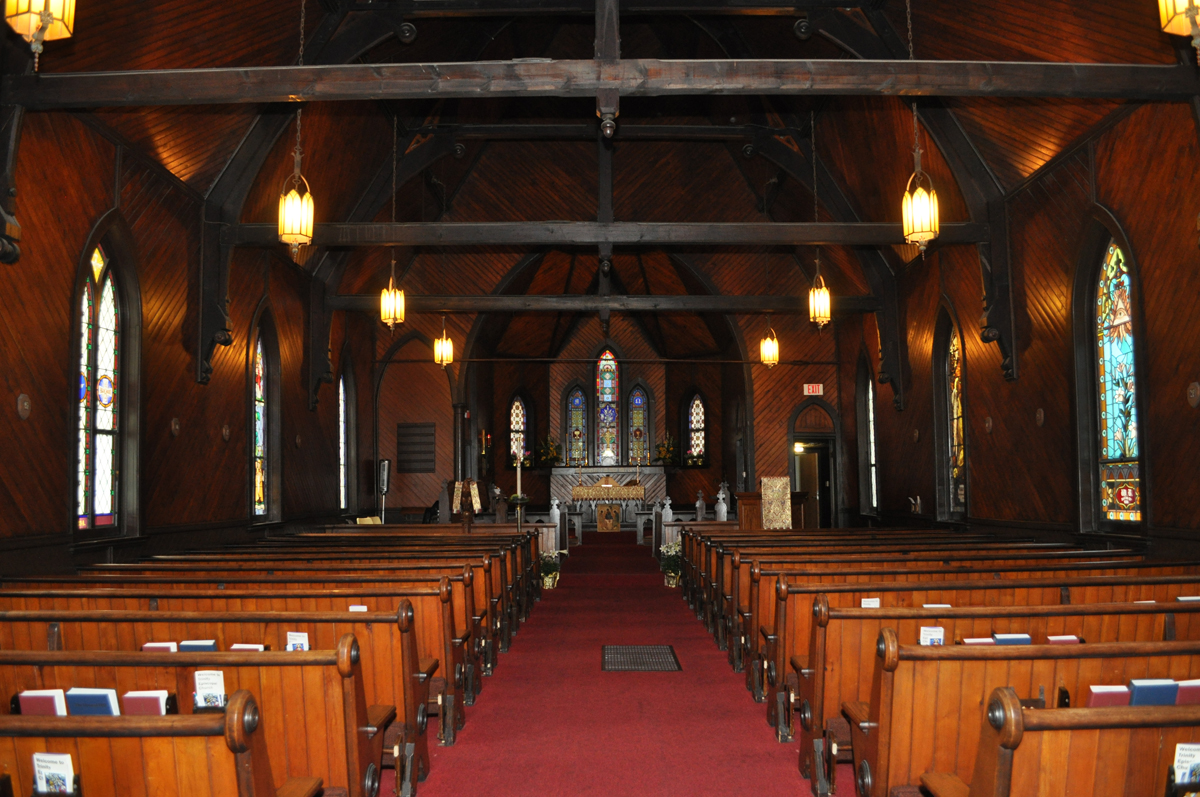

2012-04-01 - Chapel Interior and Chancel (Photograph by Kristina Powers/Database Manager)

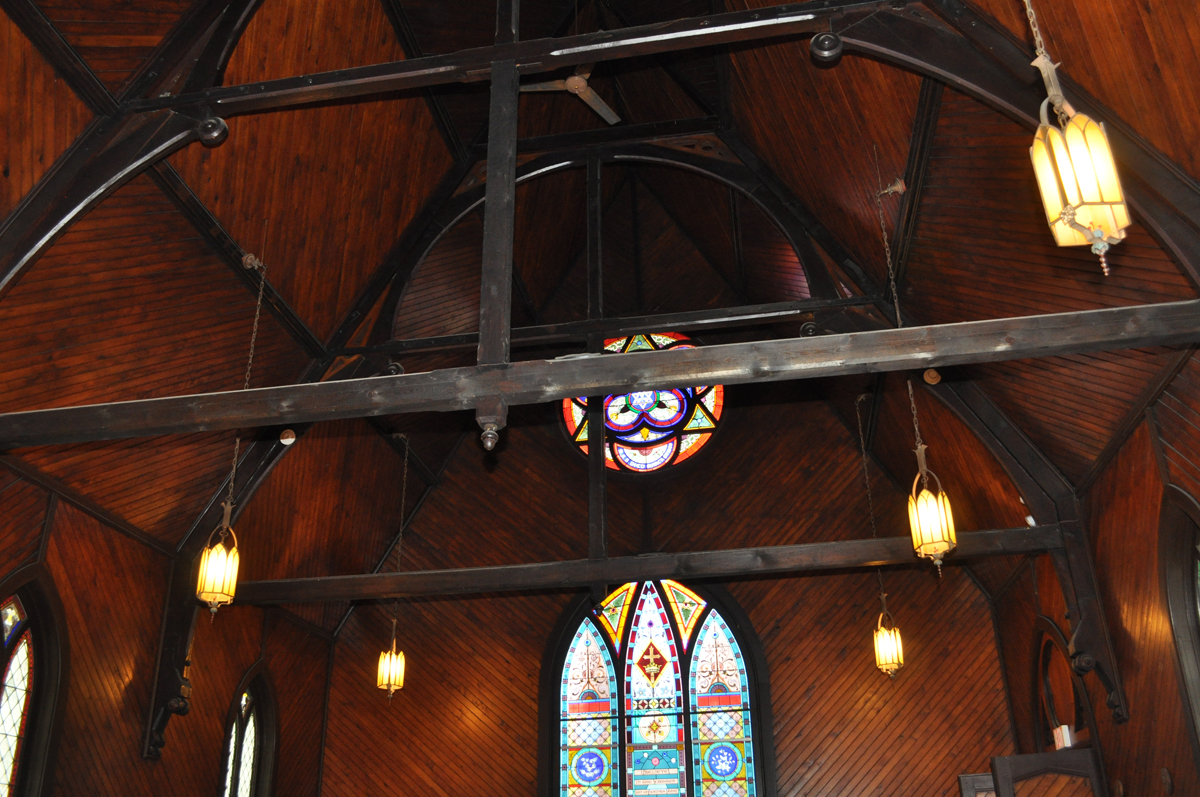

2012-04-01 - Ceiling and Stained Glass Windows (Photograph by Kristina Powers/Database Manager)

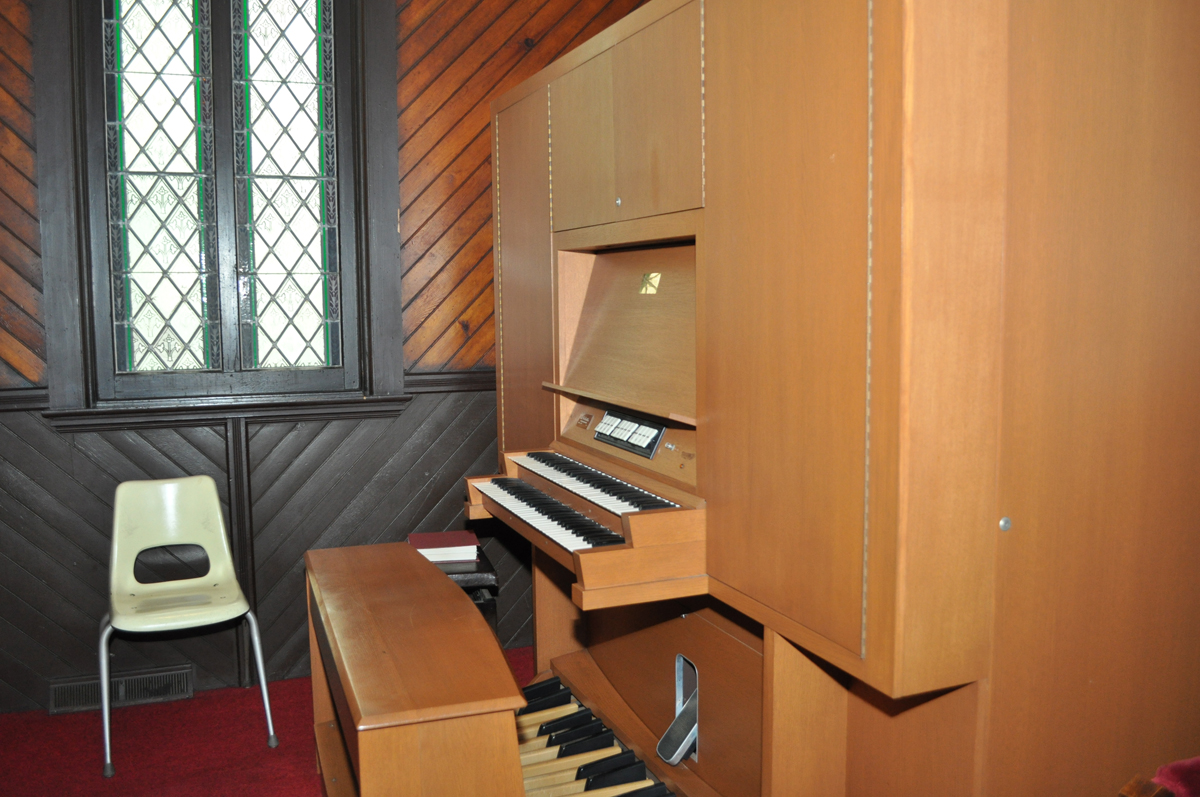

2012-04-01 - Organ Case (Photograph by Kristina Powers/Database Manager)

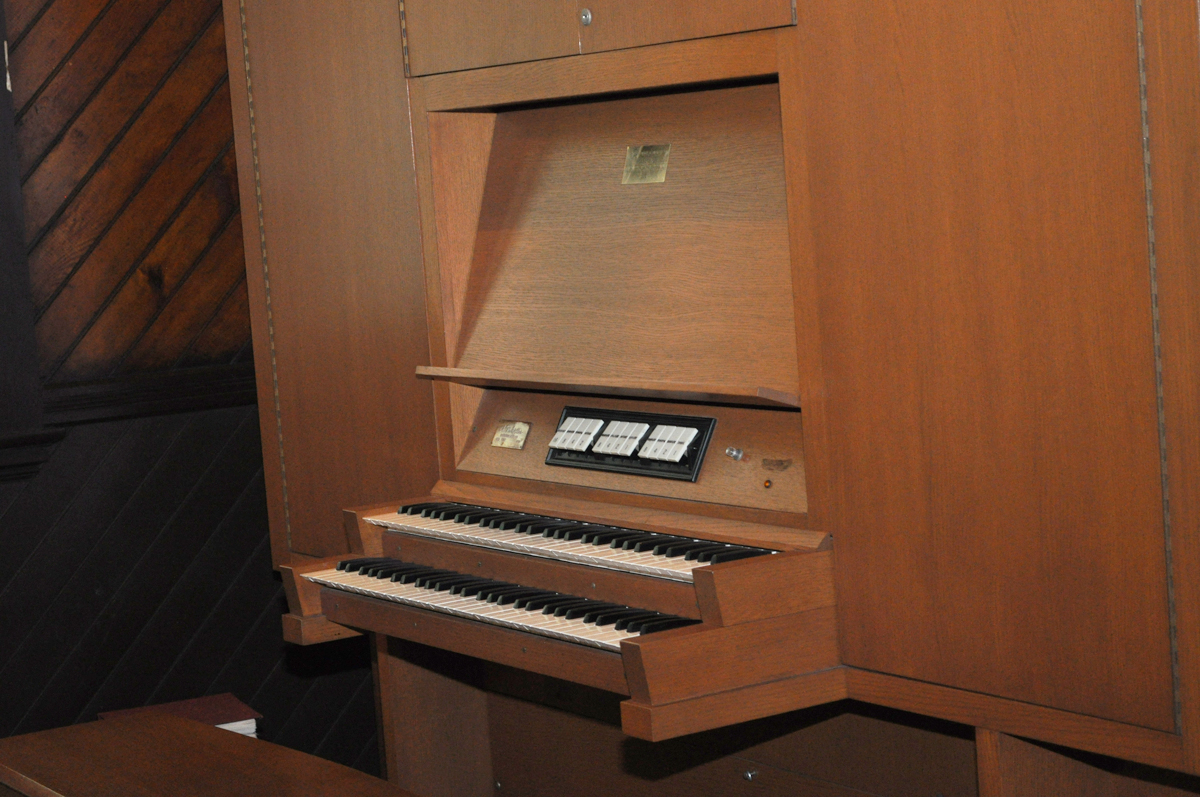

2012-04-01 - Keydesk (Photograph by Kristina Powers/Database Manager)

2012-04-01 - Tiffany stained glass window detail (Photograph by Kristina Powers/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached, Manuals Set Into Case
2 manuals
2 stops
12 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: No Enclosed Divisions
Combination action: None

Notes

2007-09-22 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2011-03-14 - Updated through online information from Jeff Scofield. -Database Manager

2012-10-17 - Updated through online information from Kristina Powers. -- The chapel was offering tours this past April for their 100th anniversary, and I inquired about the organ. I was told that it's in use but is referred to as "the calliope" because it sounds wheezy when played; needs attention. -Database Manager

2013-06-13 - Updated through online information from Robert Ward. -- Organ is in regular use during the summer months as the congregation worships in the Chapel during this time. The organ is also used for Weddings and Funerals held in the Chapel. The term "the calliope" is a nickname for this organ. However, it is in wonderful condition. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

   Wheaton, Illinois
   Trinity Episcopal Church

   Möller   Op. 11384   1979   2/2
   _____________________________________________________

   GREAT                 SWELL              PEDAL
8' Rohrflöte  90      8' Rohrflöte      16' Gedeckt   12
4' Principal  78      4' Spillflöte      8' Rohrflöte
2' Blockflöte         2' Octave          4' Principal
1' Zimbel      a      1' Sifflöte a      2' Octave

a  repeat 7 top notes

  [Received online from Jeff Scofield  March 19, 2011]

Documents

(1979-01-09) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
