M. P. Möller Opus 11371 (1979)

Shiloh Congregational Church: Sanctuary
5300 Philadelphia Dr.
Dayton, OH

Images

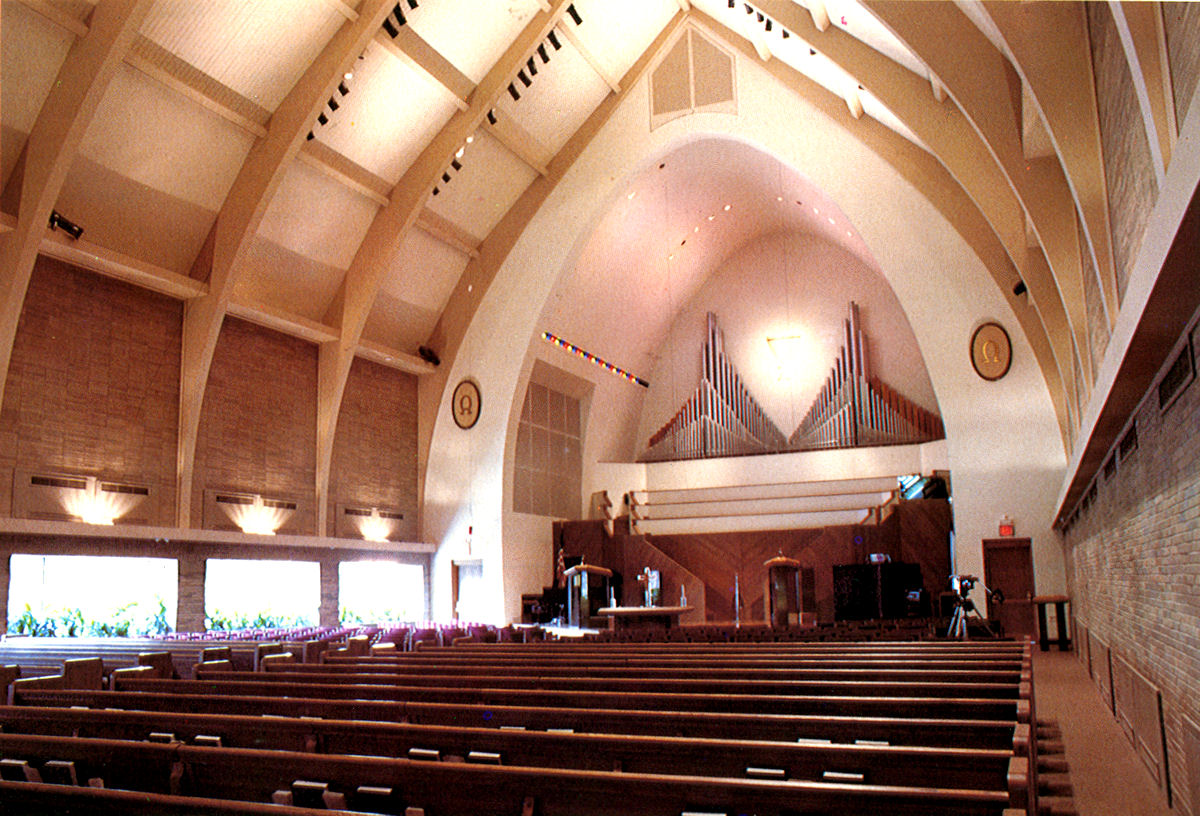

1979-06-30 - Sanctuary interior and exposed pipework in front (Photograph from a 1981 Moller brochure in the collection of James R. Stettner/Database Manager)

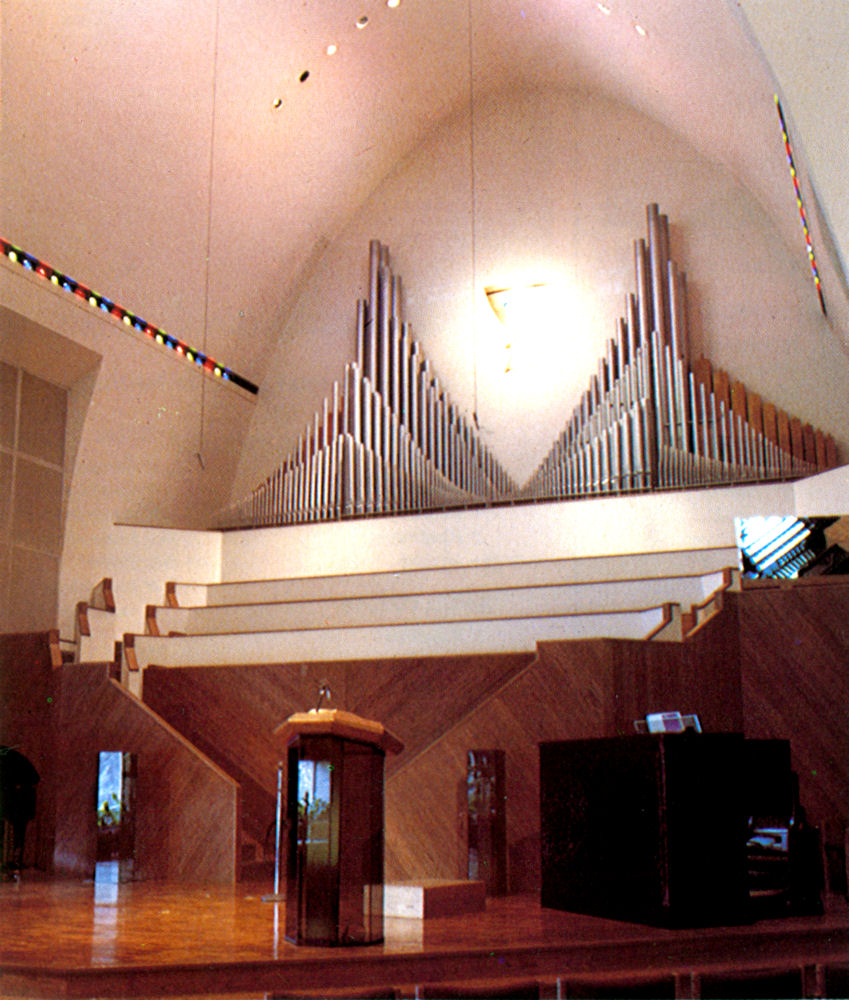

1979-06-30 - Chancel and exposed pipework in front (Photograph from a 1981 Moller brochure in the collection of James R. Stettner/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Right
4 manuals
64 stops
42 registers
6 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-09-22 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2009-09-22 - Updated through on-line information from Lawrence Stofer. -Database Manager

2011-03-09 - Updated through on-line information from Jeff Scofield. -Database Manager

2014-04-24 - Updated through online information from Michael Hughes. -- New four-manual Allen console replaced older Moller console in 2013. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

        Dayton, Ohio
        Shiloh Congregational Church

        Möller   Op. 11371   1979   4/55
        ______________________________________________________

        GREAT (II)                        SWELL (III)
    16' Violone              61       16' Rohrgedeckt       61
     8' Principal            61        8' Principal         61
     8' Bourdon              61        8' Rohrflöte         12
     8' Violone              12        8' Viola da Gamba    61
     4' Octave               61        8' Viola Celeste     61
     4' Spitzflöte           61        4' Principal         61
     2' Super Octave         61        4' Lochgedeckt       61
III-IV  Fourniture          220        2' Zauberflöte       61
     8' Trompete             61   III-IV  Plein Jeu        220
        Unison Off                    16' Basson (1-18 L/2) 12
        Super                          8' Trompette         61
        Chimes               25        8' Hautbois (Basson) 12
     8' Trompette-en-Chamade AN        8' Vox Humana        61
                                       4' Clairon  (Basson) 12
        CHOIR (I)                         Tremulant
     8' Holzgedeckt          61           Sub
     8' Erzähler             61           Unison Off
     8' Flauto Dolce Cel II 110           Super
     4' Flachflöte           61
 2 2/3' Nazard               61           PEDAL
     2' Doublette            61       32' Quinted Bass      SW
 1 3/5' Tierce               61       16' Principal         32
   III  Zimbel              183       16' Subbass           32
    16' Dulzian              61       16' Violone           GT
     8' Dulzian              12       16' Rohrgedeckt       SW
     8' English Horn         61   10 2/3' Quint             GT
        Tremulant                      8' Octave            12
        Sub                            8' Spitzflöte        32
        Unison Off                     8' Rohrflöte         SW
        Super                          4' Choralbass        32
                                       4' Flute             12
        ANTIPHONAL (IV)                2' Flöte             12
     8' Principal            61      III  Rauschquint       96
     8' Spitzflöte           61      III  Rauschepfeife     36
     4' Spitzprincipal       61       32' Kontra Posaune    12 L/2
     2' Gemshorn             61       16' Posaune           32
   III  Scharf              183       16' Basson            SW
        Unison Off                    16' Dulzian           CH
        Super                          8' Posaune           12
     8' Trompette-en-Chamade 61        8' Hautbois          SW
                                       4' Dulzian           CH
        ANTIPHONAL PEDAL
    16' Bourdon              32
     8' Flute                12

       [Received online from Jeff Scofield  March 12, 2011]

Documents

(1979-01-22) Factory specifications, collection of Jeff Scofield Stoplist and accessories -Jeff Scofield
