Better Pipe Organ Database

M. P. Möller Opus 11357 (1979)

St. John's Episcopal Church: Church
302 Warren St.
Mankato, MN

Images

2021-09-26 - Church interior (Church Facebook via Jeff Scofield/Jeff Scofield)

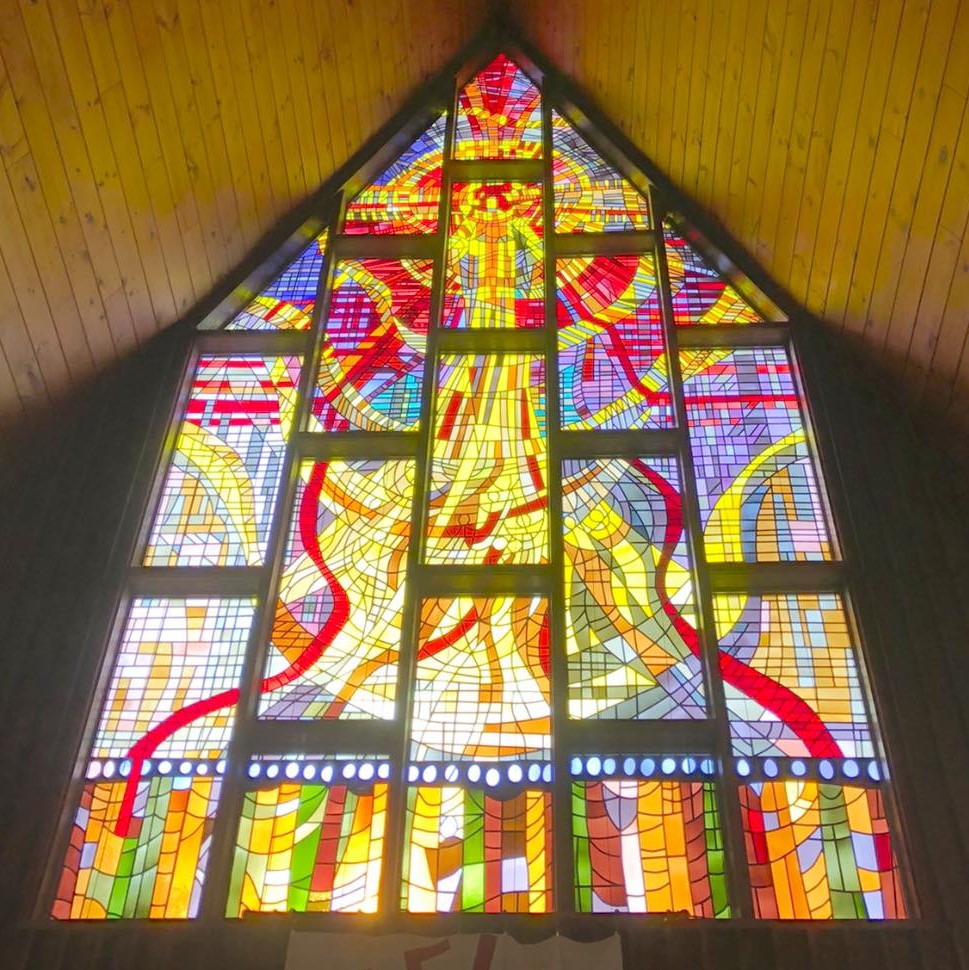

2021-09-26 - Stained-glass window (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
20 stops
8 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has combination toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-09-22 - Identified by Jeff Scofield through information in Möller factory documents. 21 ranks prepared-for -Database Manager

2009-09-28 - Updated through on-line information from Mark Thompson. -- 9 ranks, 22 stops, chimes, couplers sw-gt 16 8 4, ch-gt 16 8 4, unison off gt,sw, ch,ch-ped, gt-ped, sw-ped. At present the only stop on the choir division is a Trumpet Militaire, very loud. The other Trompette is a separate and much less loud stop. -Database Manager

2011-03-09 - Updated through on-line information from Jeff Scofield. -- 21 ranks prepared-for at installation, including the entire Choir division. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Mankato, Minnesota
       St. John's Episcopal Church

       Möller   Op. 11357   1979   3/9
       ___________________________________________________

       Stops without pipecounts or origin are prepared-for

       GREAT                        CHOIR
    8' Principal        61       8' Gedeckt
    8' Bourdon          61       8' Gemshorn
    4' Octave           12       8' Gemshorn Celeste
    4' Spitzflöte                4' Koppelflöte
    2' Fifteenth        12       2' Principal
   II  Mixture         122   1 3/5' Tierce
       Sub                   1 1/3' Larigot
       Super                     8' Clarinet
       Chimes                       Tremulant
    8' Trumpet Harmonic             Sub
                                    Unison Off
       SWELL                        Super
   16' Rohrgedeckt
    8' Rohrflöte        61          PEDAL
    8' Viola            61      32' Resultant
    8' Viola Celeste    49      16' Principal
    4' Principal                16' Bourdon
    4' Flute            12      16' Rohrgedeckt      12 SW
2 2/3' Nazard           --       8' Octave           32
    2' Blockflöte                8' Flute            SW
  III  Plein Jeu                 4' Choralbass       12
   16' Contre Trompette 12 L/2  16' Contre Trompette SW
    8' Trompette        61       8' Trompette        SW
    4' Clairon                   4' Clairon          SW
       Tremulant
       Sub
       Unison Off
       Super

      [Received online from Jeff Scofield  March 10, 2011]

Documents

(1979-03-30) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
