M. P. Möller Opus 11307 (1978)

The Little Home Church by the Wayside
32W128 Army Trail Road
Wayne, IL

Images

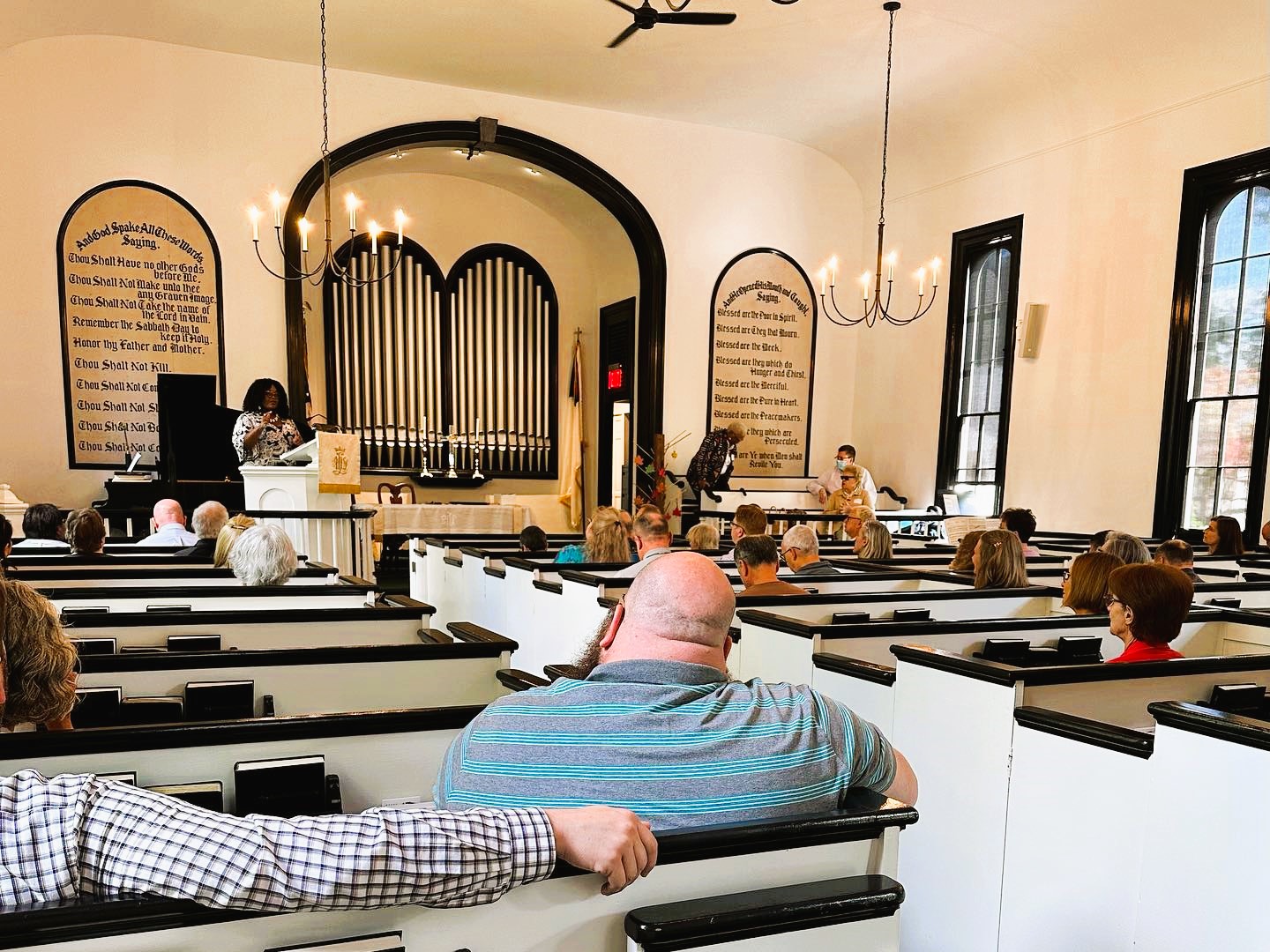

2023-09-09 - Church interior (Church Facebook via Jeff Scofield/Jeff Scofield)

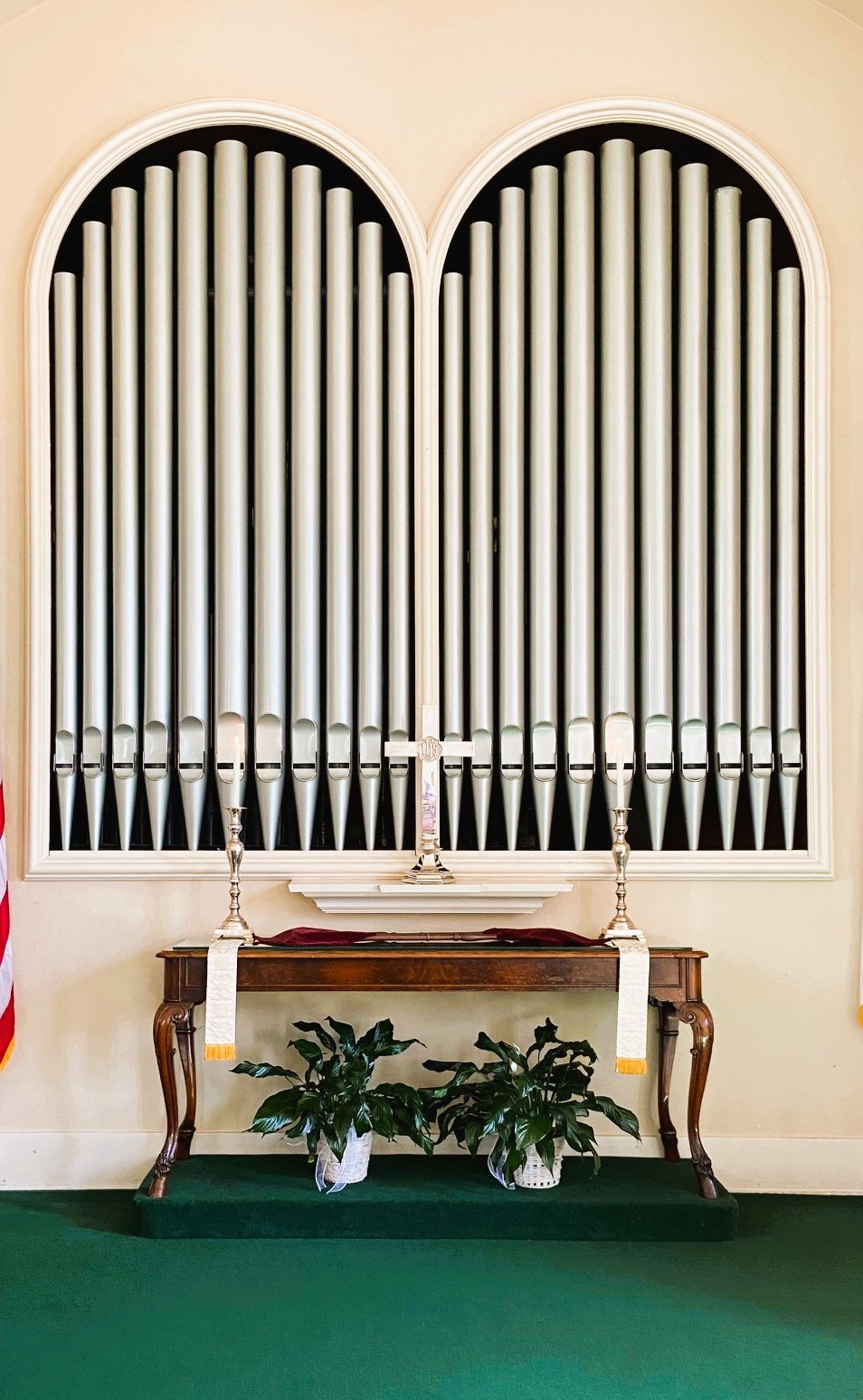

2020-05-10 - Façade pipes (Church Facebook via Jeff Scofield/Jeff Scofield)

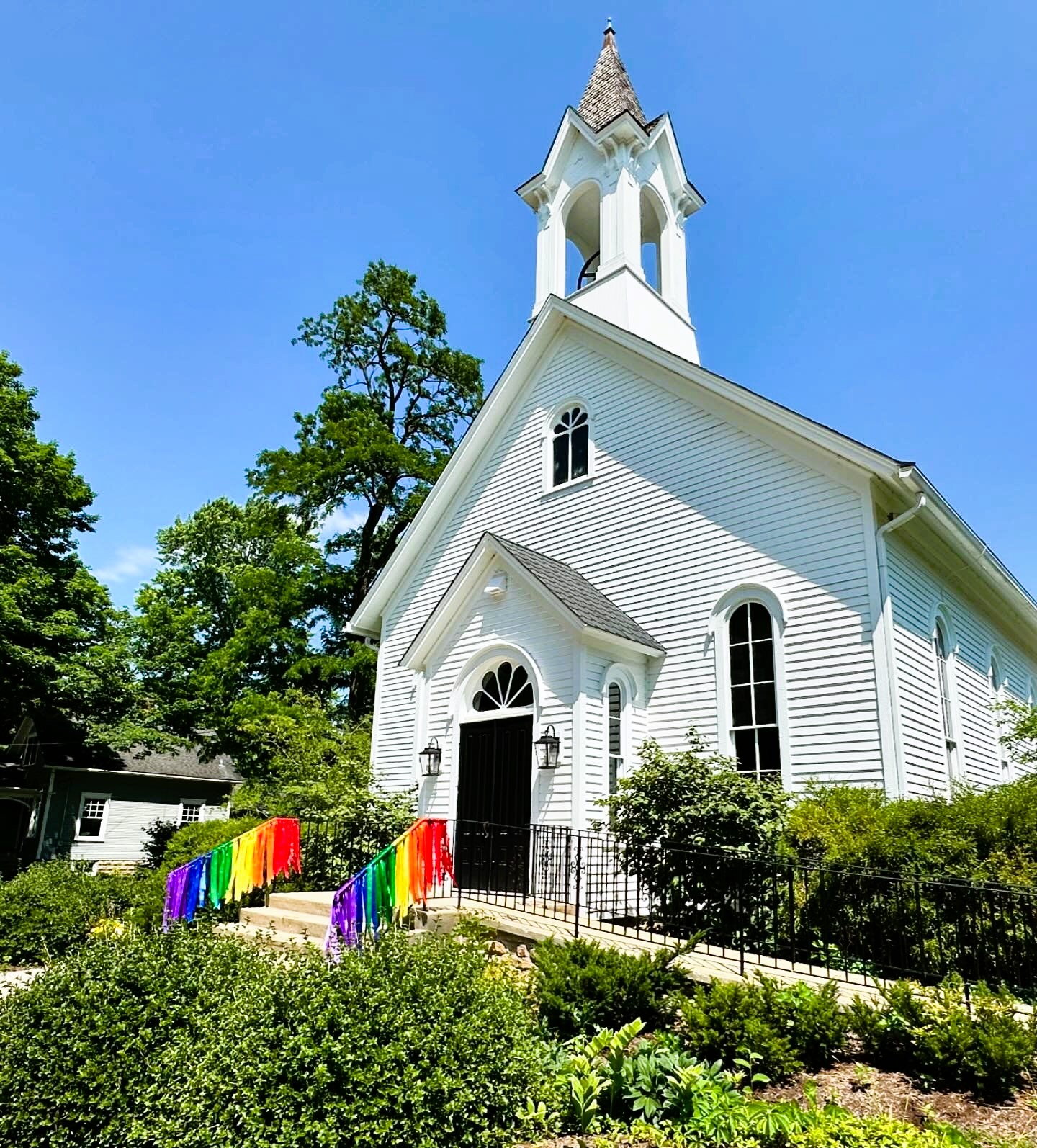

2020-06-14 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

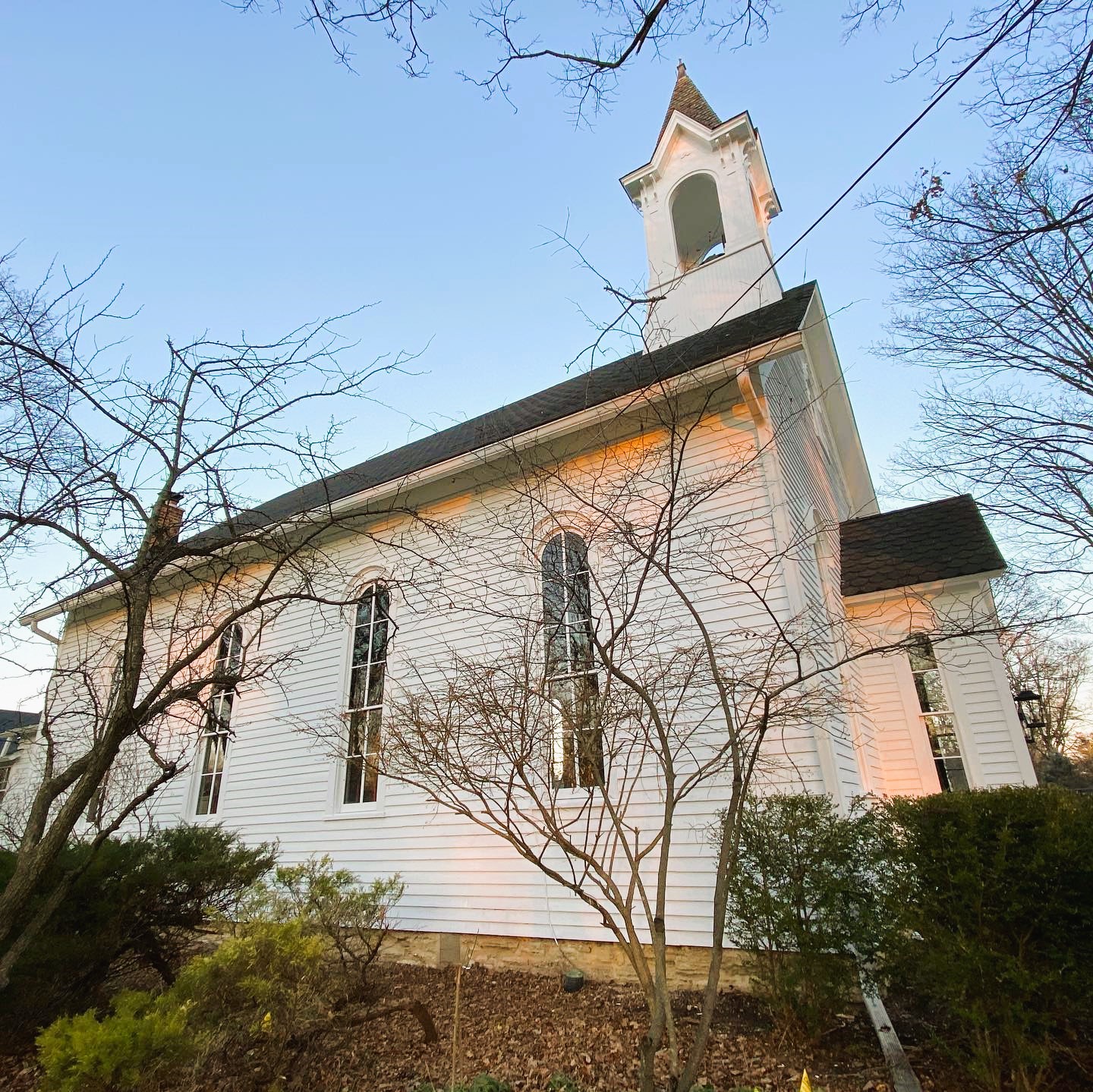

2020-12-03 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
10 stops
31 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2007-10-05 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2010-02-22 - Updated through online information from Jeff Scofield. -Database Manager

2010-02-23 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

             Wayne, Illinois
             The Little Home Church by the Wayside, UCC

             Möller   Op. 11307   1978   2/13

             GREAT (unenclosed)
 1.      16' Bourdon            90 pipes
 2.       8' Principal          80 pipes
 3.       8' Gedeckt            from #1
 4.       8' Gemshorn           from #15
 5.       4' Octave             from #2
 6.       4' Gedeckt            from #1
 7.       2' Super Octave       from #2    repeat 5 top notes
 8.       2' Flute              from #1    repeat 7 top notes
 9.      II  Sesquialtera       98 pipes   tc
10.  III-IV  Mixture           183 pipes
11.       8' Trompette          from #21
12.          Tremolo
13.          Chimes                        prepared for

             SWELL
14.       8' Rohrflöte          73 pipes
15.       8' Gemshorn           80 pipes
16.       8' Gemshorn Celeste   49 pipes   tc; does not couple to GT
17.       4' Spitzprinzipal     73 pipes
18.       4' Rohrflöte          from #14
19.       2' Spitzoctav         from #17
20.   1 1/3' Larigot            from #15   repeat 12 top notes
21.      16' Contre Trompette   80 pipes   1-6 half-length
22.       8' Trompette          from #21
23.       4' Clairon            from #21   repeat  5 top notes
24.          Tremolo

             PEDAL
25.      16' Bourdon            from #1
26.       8' Principal          from #2
27.       8' Spitzflöte         44 pipes
28.       8' Gemshorn           from #15
29.       4' Octave             from #2
30.       4' Spitzflöte         from #27
31.     III  Mixture            from #10
32.      16' Contre Trompette   from #21
33.       8' Trompette          from #21
34.       4' Clairon            from #21

[Received on line from Jeff Scofield February 22, 2010.]

Documents

(1978-01-12) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
