Better Pipe Organ Database

M. P. Möller Opus 11304 (1978)

Holy Innocents' Episcopal Church: Church
805 Mount Vernon Hwy. NW
Atlanta, GA

Note: Not extant. Not playable. (in this location)

Images

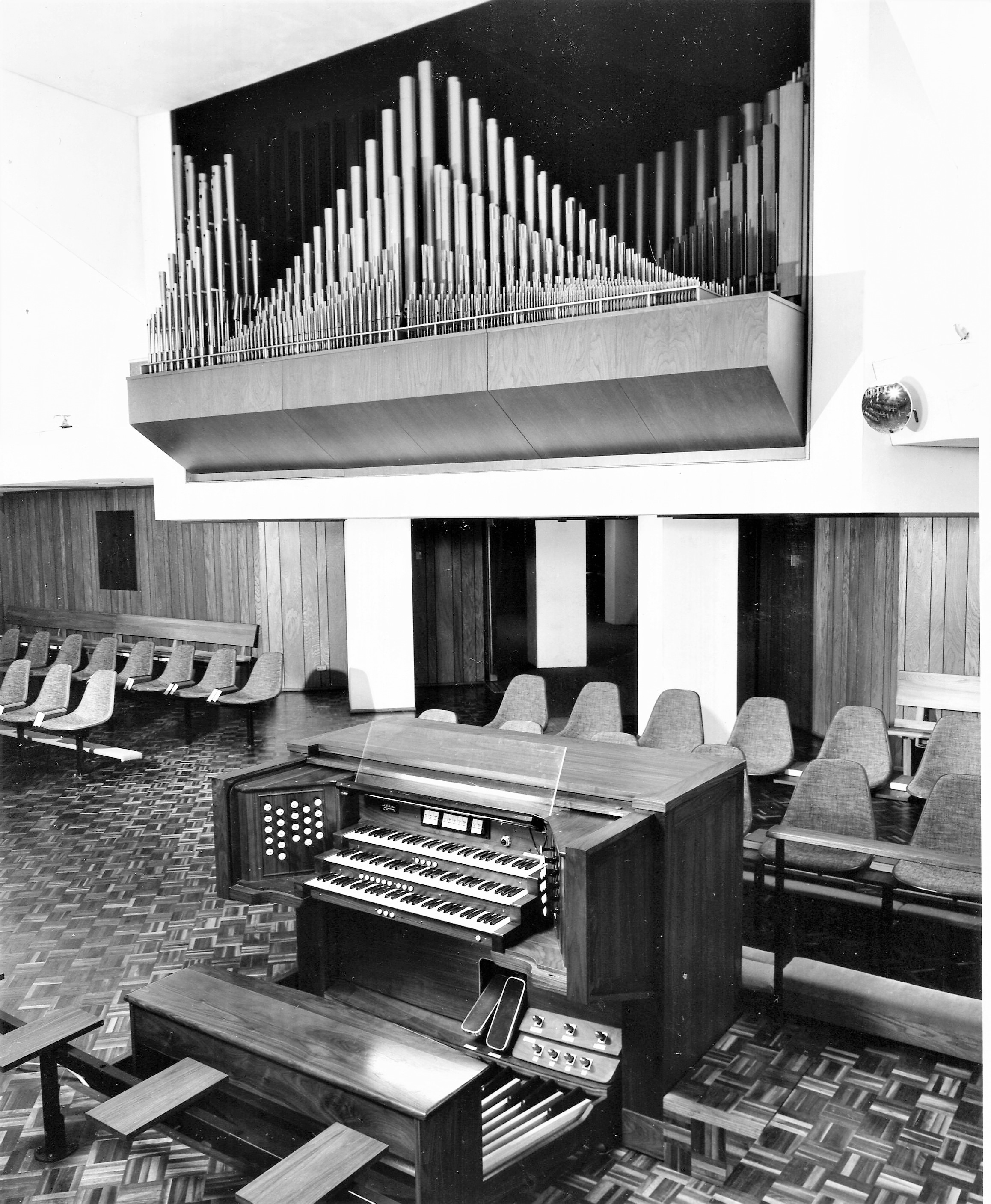

1978 - Console and exposed pipes (Photograph by Moller promotional photo, collection of Jeff Scofield, submitted by Jeff Scofield/Jeff Scofield)

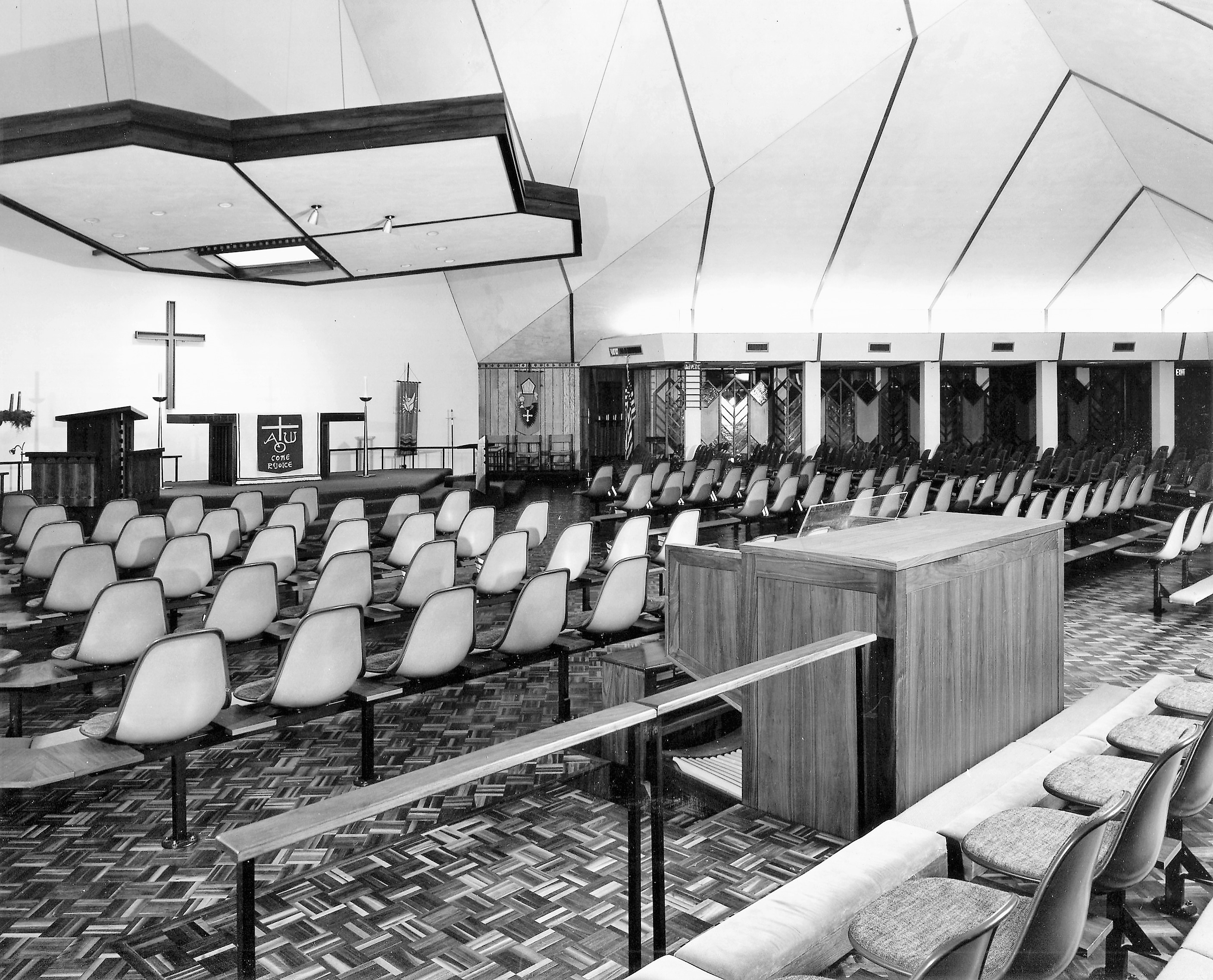

1978 - Console and church interior (Photograph by Moller promotional photo, collection of Jeff Scofield, submitted by Jeff Scofield/Jeff Scofield)

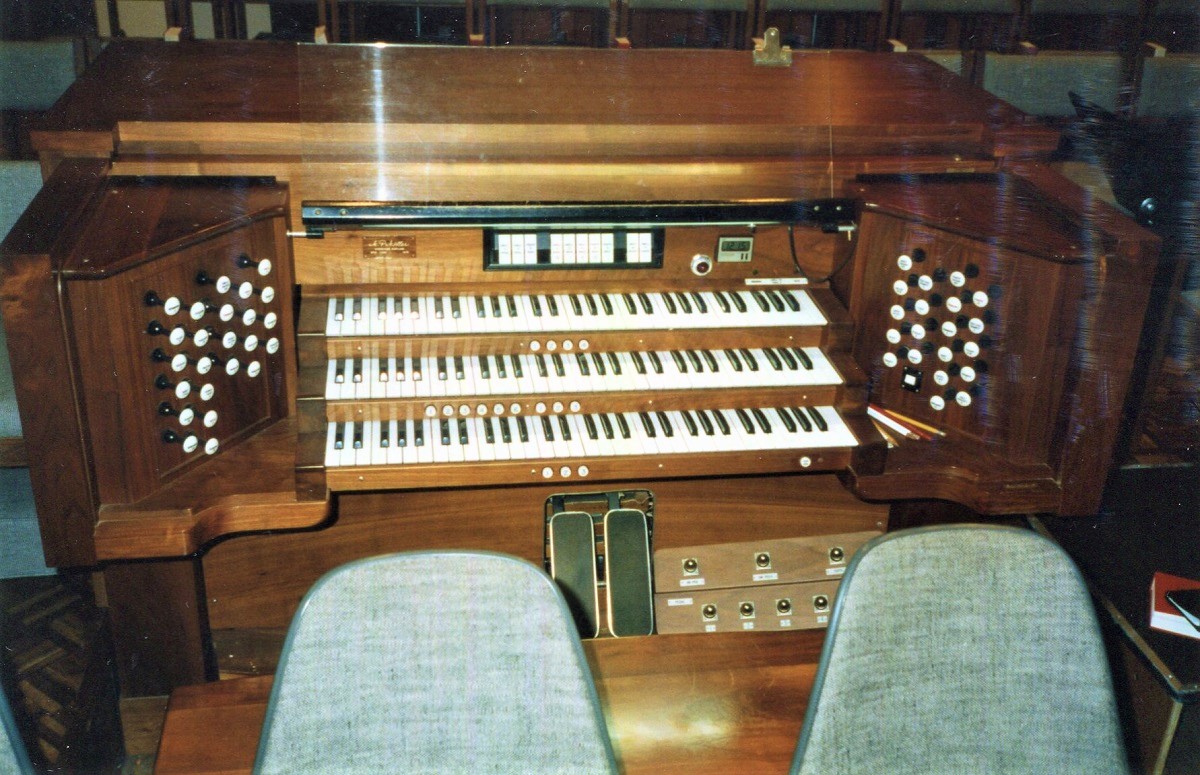

1991-07-19 - Console (Photograph by Jeff Scofield/Database Manager)

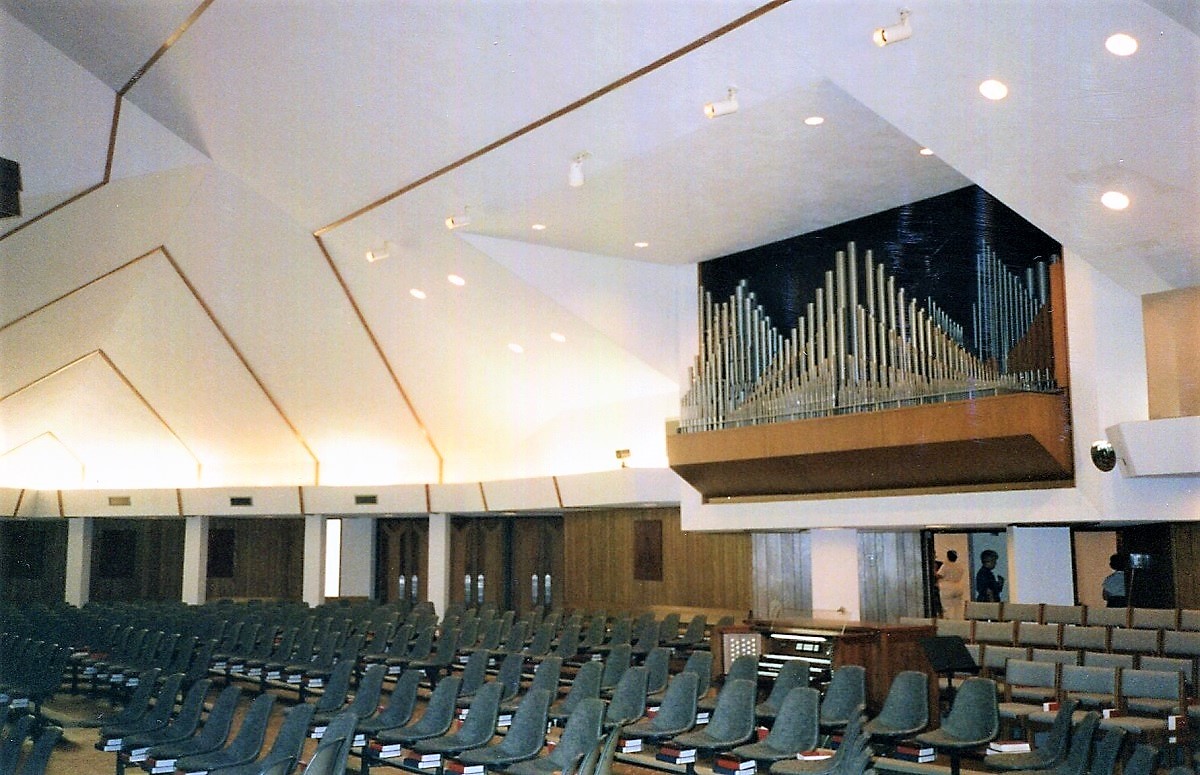

1991-07-19 - Sanctuary interior (Photograph by Jeff Scofield/Database Manager)

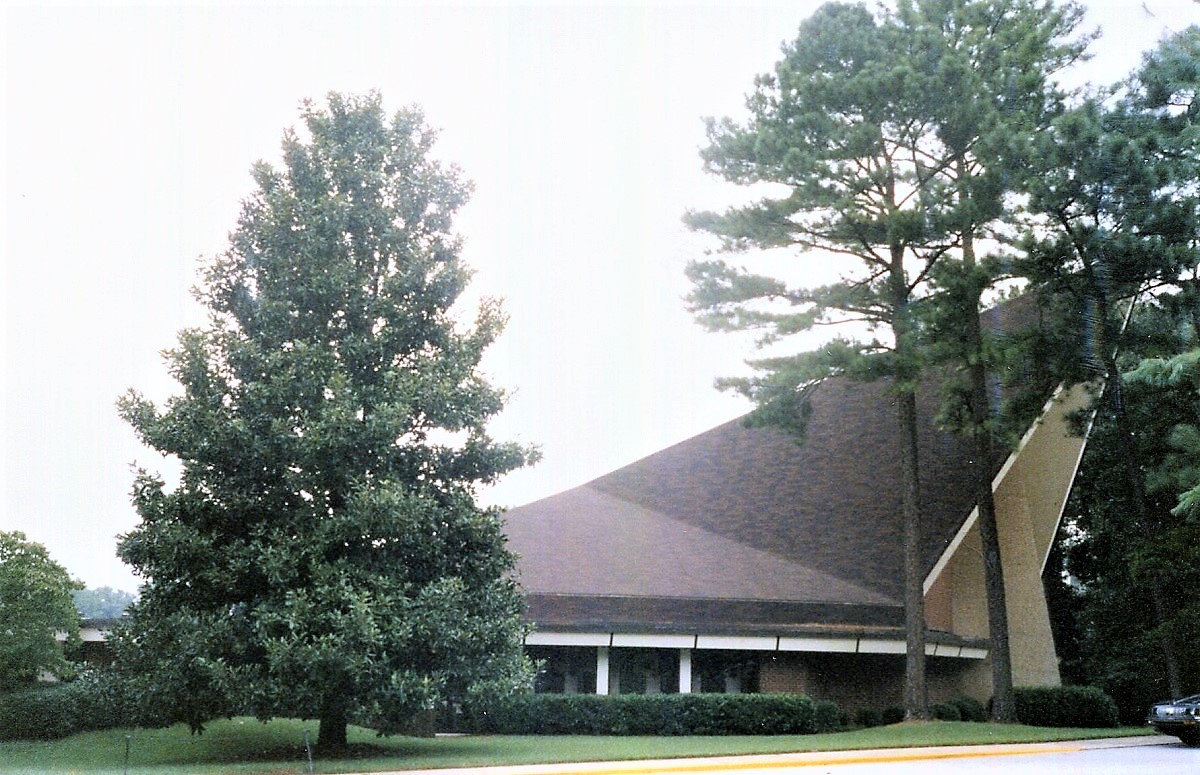

1991-07-19 - Church exterior (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
3 manuals
31 stops
23 registers
4 divisions
Key action Type: Electrical
Stop action Type: Tubular Pneumatic (Details Unknown)
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2007-10-05 - Identified by Jeff Scofield through information in Möller factory documents. Replaced by Schoenstein 2000 -Database Manager

2010-02-22 - Updated through on-line information from Jeff Scofield. -- Installed in chamber on the rear wall over the doors, with all except the Swell functionally displayed; Quintaton and Festival Trumpet added by Möller in 1988; replaced by 2000 Schoenstein Op. 135 and sold to Good Shepherd Episcopal Church, Webster, NY, in 1999. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

        Atlanta, Georgia
        Holy Innocents Episcopal Church

        Möller   Op. 11304   1978   3/33

     *  Added in 1988

        GREAT (exposed)               POSITIV
    16' Bordun 61                 16' Quintaton 61 *
     8' Principal 61               8' Holzgedeckt 61
     8' Gedeckt 12                 4' Koppelflöte 61
     4' Octav 61                   2' Principal 61
     4' Flöte 12               1 1/3' Quint 61
     2' Super Octav 61        II-III  Scharf 171
III-IV  Mixtur 208                 8' Krummhorn 61
        Unison Off                    Tremulant
     8' Festival Trumpet 61 *         Sub
                                      Unison Off
        SWELL                      8' Festival Trumpet GT
     8' Rohrflöte 61
     8' Gemshorn 61                   PEDAL
     8' Gemshorn Celeste 49 tc    16' Principal 32
     4' Spitzflöte 61             16' Bordun GT
     2' Blockflöte 61             16' Quintaton GT
    II  Sesquialtera 98 tc    10 2/3' Quint GT
   III  Cymbale 183                8' Octav 12
     8' Trompette 61               8' Gedeckt GT
        Tremulant                  4' Choralbass 32
        Sub                      III  Mixtur 96
        Unison off                16' Posaune 32 (1-12 L/2)
        Super                      8' Posaune 12
                                   4' Posaune 12
                                   4' Krummhorn PO

[Received on line from Jeff Scofield February 22, 2010.]

Documents

(1978-04-19) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield

Related Pipe Organ Database Entries

#54871 - Parsons Pipe Organ Builders (2000)
