M. P. Möller Opus 11254 (1978)

Good Shepherd Lutheran Church: Sanctuary
1111 N. Elmhurst Rd.
Prospect Heights, IL

Images

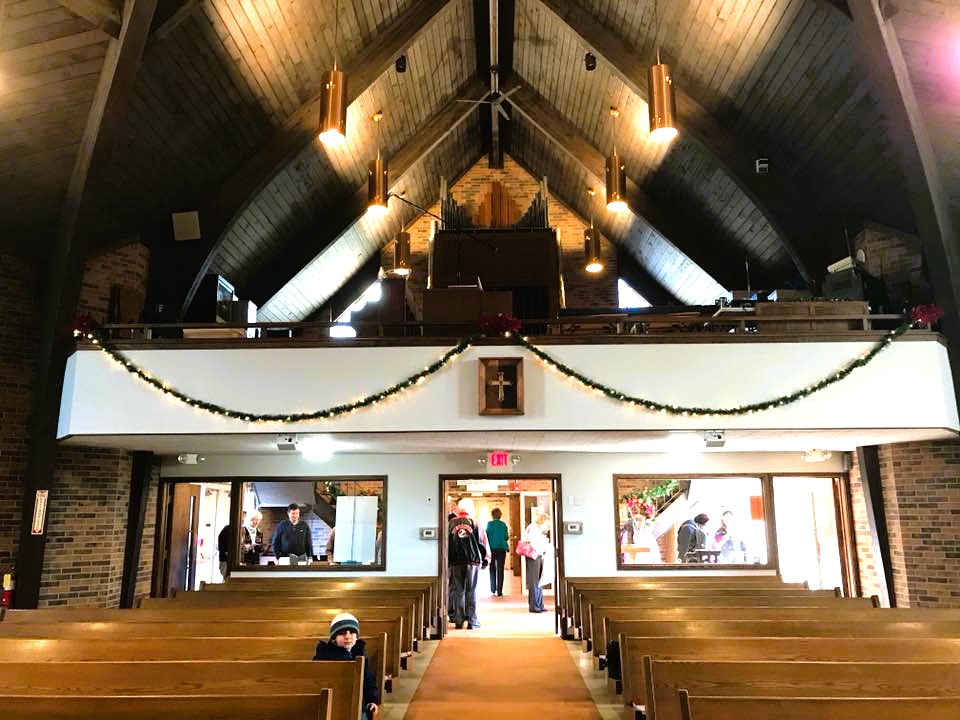

0201-12-03 - Church interior to gallery and organ (Church Facebook via Jeff Scofield/Jeff Scofield)

2023-04-08 - Church interior to front (Church Facebook via Jeff Scofield/Jeff Scofield)

2019-05-29 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
2 manuals
44 stops
9 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons

Notes

2007-10-06 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2010-02-09 - Updated through on-line information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

             Prospect Heights, Illinois
             Lutheran Church of the Good Shepherd

             Möller   Op. 11254   1978   2/12

             GREAT (exposed)
 1.      16' Bourdon            73 pipes
 2.       8' Principal          80 pipes
 3.       8' Gedeckt            from #1
 4.       8' Rohrflöte          from #19
 5.       8' Gemshorn           from #20
 6.       8' Gemshorn Celeste   from #21   tc
 7.       4' Octave             from #2
 8.       4' Spitzprinzipal     from #22
 9.       4' Blockflöte         66 pipes
10.   2 2/3' Nazard             from #19
11.       2' Fifteenth          from #2    repeat  5 top notes
12.       2' Spitzoctav         from #22   repeat 12 top notes
13.       2' Blockflöte         from #9    repeat  7 top notes
14.   1 3/5' Tierce             from #20
15.  III-IV  Mixture           183 pipes
16.      16' Contre Trompette   from #28
17.       8' Trompette          from #28
18.       4' Clairon            from #28   repeat  5 top notes

             SWELL
19.       8' Rohrflöte          73 pipes
20.       8' Gemshorn           80 pipes
21.       8' Gemshorn Celeste   49 pipes   tc
22.       4' Spitzprinzipal     73 pipes
23.       4' Spillflöte         from #19
24.       4' Gemshorn           from #20
25.       4' Gemshorn Celeste   from #21
26.       2' Spitzoctav         from #22
27.   1 1/3' Larigot            from #20
28.      16' Contre Trompette   80 pipes   1-6 half-length
29.       8' Trompette          from #28
30.       4' Clairon            from #28   repeat  5 top notes
31.          Tremolo

             PEDAL
32.      16' Contra Bass        12 pipes   20 from #2
33.      16' Bourdon            from #1
34.  10 2/3' Quint              from #1
35.       8' Principal          from #2
36.       8' Gedeckt            from #1
37.       8' Gemshorn           from #20
38.       4' Octave             from #2
39.       4' Blockflöte         from #9
40.       4' Rohrflöte          from #19
41.       2' Spitzoctav         from #22
42.     III  Mixture            from #15
43.      16' Contre Trompette   from #28
44.       8' Trompette          from #28
45.       4' Clairon            from #28

[Received on line from Jeff Scofield February 09, 2010.]

Documents

(1977-06-22) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
