Better Pipe Organ Database

M. P. Möller Opus 11217 (1977)

Christ Cathedral, Episcopal
138 S. Eighth Street
Salina, KS

Images

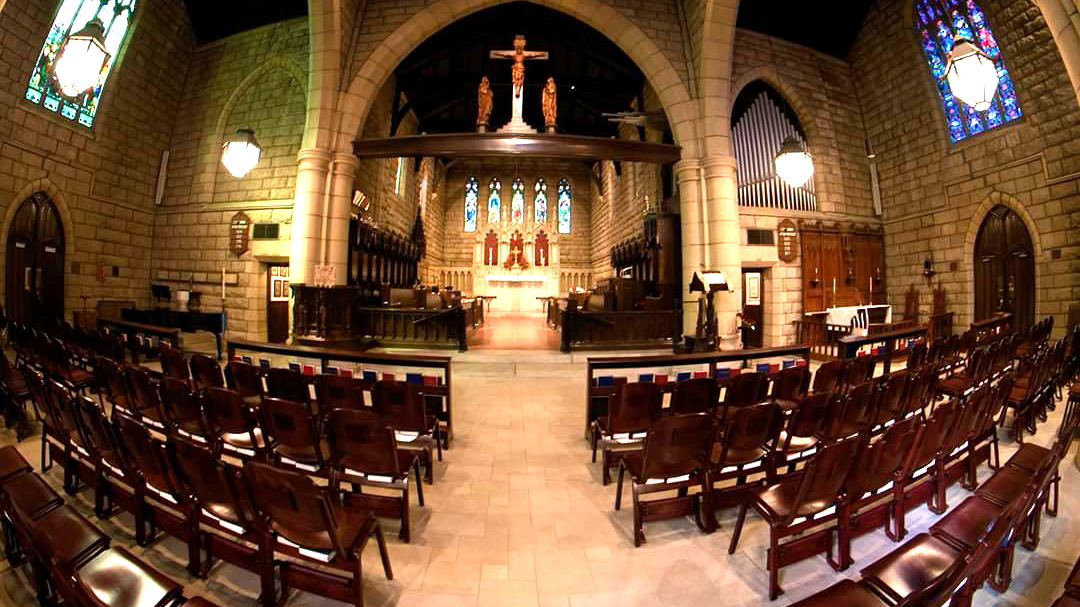

2018-10-21 - Cathedral interior (Church Facebook via Jeff Scofield/Jeff Scofield)

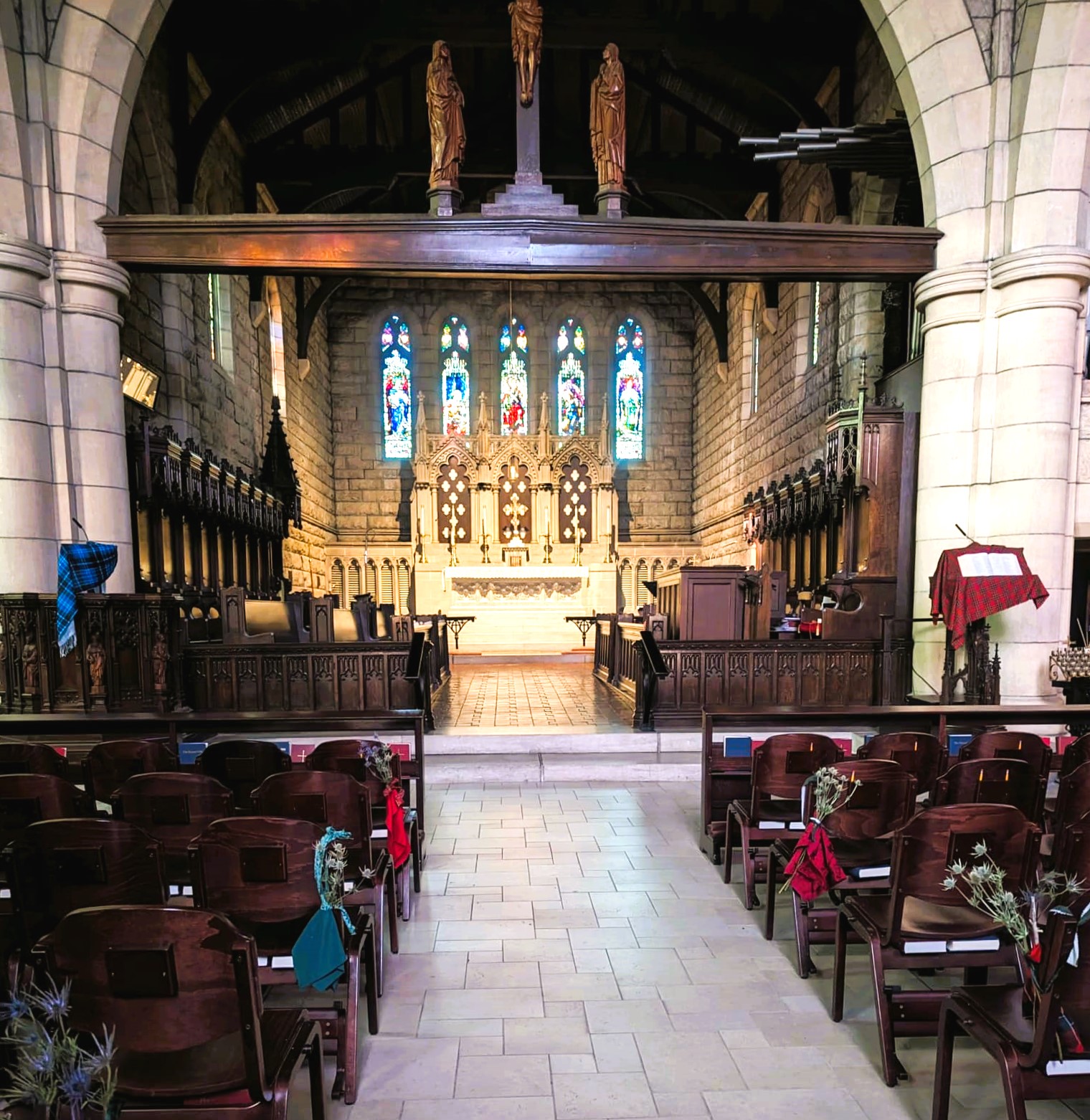

2023-11-30 - ca (Church Facebook via Jeff Scofield/Jeff Scofield)

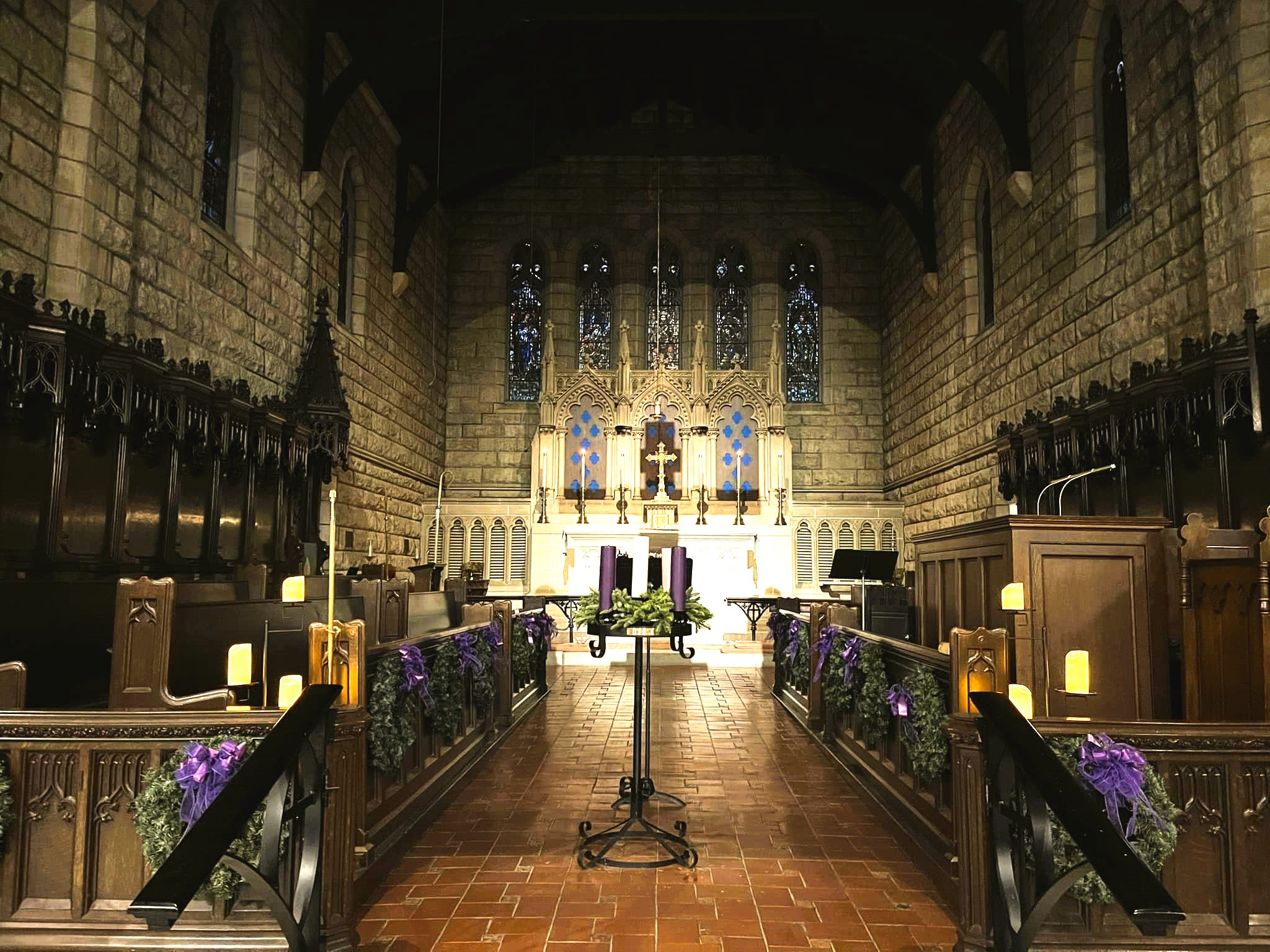

2023-12-03 - Sanctuary and console (Cathedral Facebook/Jeff Scofield)

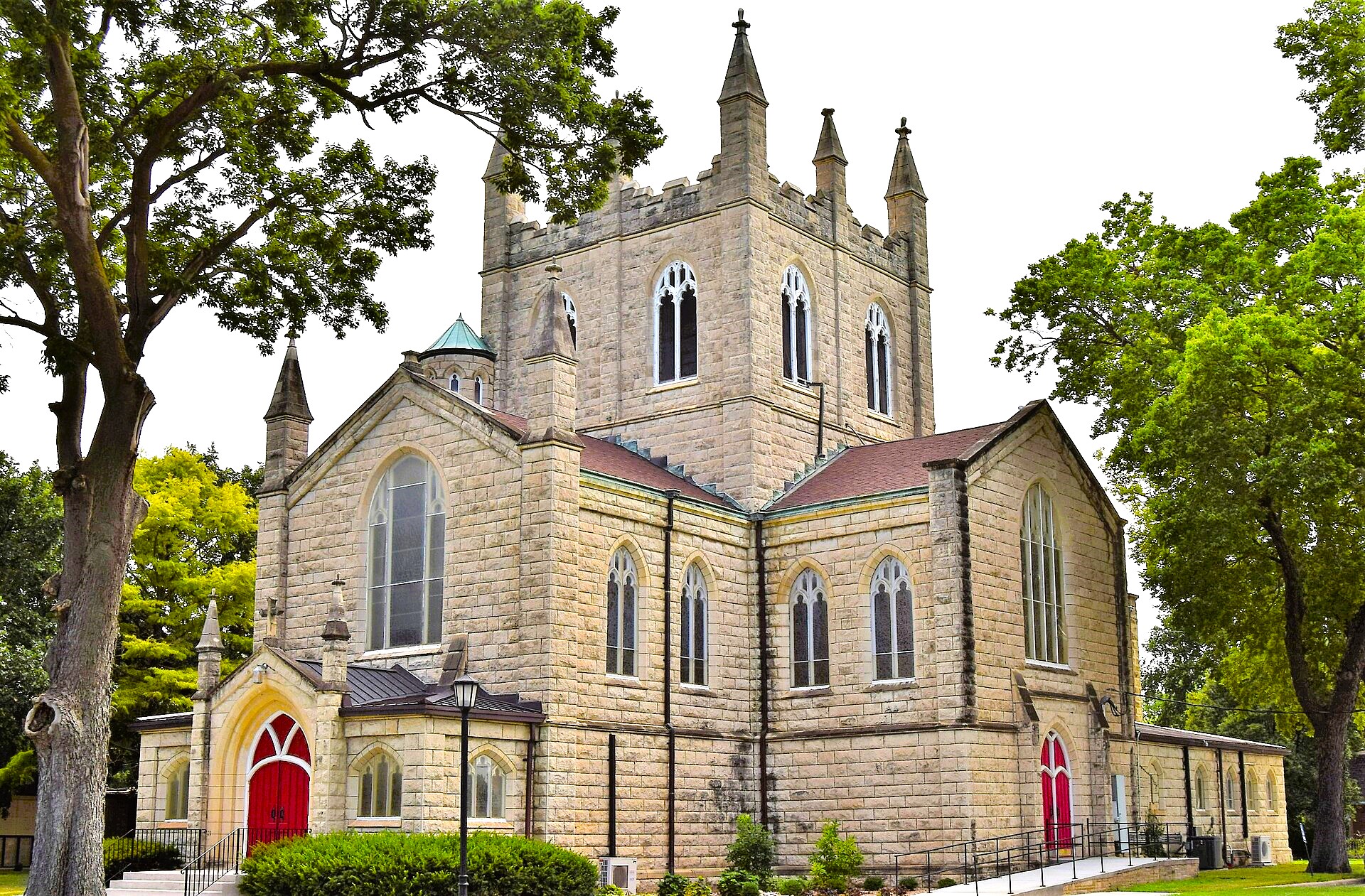

2018-08-30 - Cathedral exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

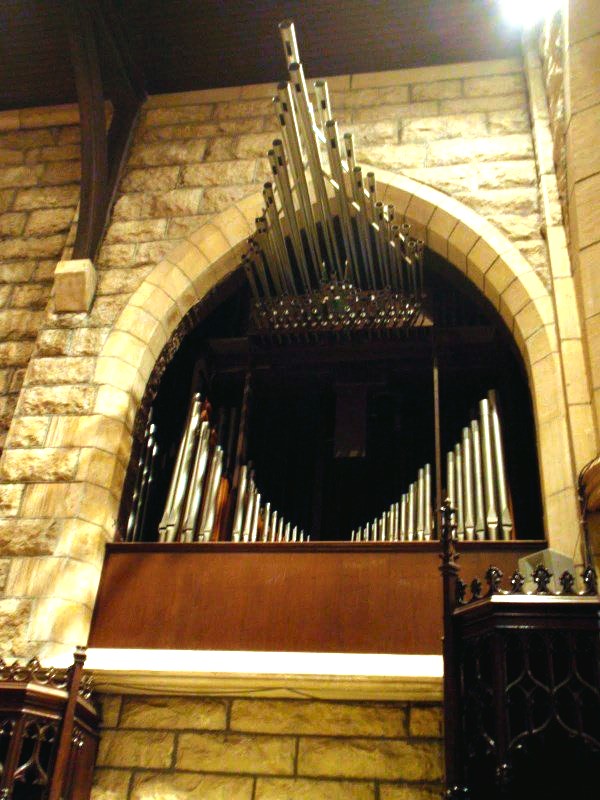

2011-02-27 - Exposed pipes and en-chamade (Cathedral Facebook/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
21 stops
36 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-10-07 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2009-12-08 - Updated through online information from Bob Helling. -Database Manager

2010-01-25 - Updated through online information from Jeff Scofield. -- 6-stop, 8-rank Positiv prepared-for. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

        Salina, Kansas
        Christ Cathedral, Episcopal

        Möller   Op. 11217   1977   3/30

        3" wind unless otherwise indicated

        GREAT                                 SWELL
     8' Principal 61                      16' Gemshorn 61
     8' Holzbourdon 61                     8' Rohrflöte 61
     4' Octave 61                          8' Gemshorn 12
     4' Koppelflöte 61                     8' Gemshorn Celeste 61
     2' Blockflöte 61                      4' Spitzflöte 61
III-IV  Fourniture 220                     2' Flötenprincipal 61
     8' Trompete 61                       II  Sesquialtera 98 tc
        Super                         III-IV  Scharf 220
     8' Trompette-en-Chamade 61 (5")      16' Basson 61 (1-18 L/2)
                                           8' Trompette 61
        PEDAL                              8' Basson 12
    32' Resultant --                          Tremulant
    16' Subbass 32                            Sub
    16' Gemshorn SW                           Super
     8' Principal 32
     8' Bourdon 12                            POSITIV (prepared for)
     8' Gemshorn SW                        8' Gedeckt
     4' Octave 12                          4' Prestant
     4' Bourdon 12                         2' Principal
   III  Mixture 96                     1 1/3' Larigot
    16' Contre Posaune 12 (L/2)       II-III  Zimbel
    16' Basson SW                          8' Krummhorn
     8' Posaune 12                            Tremulant
     4' Clarion 12                            Sub
     4' Basson SW                             Unison Off
     8' Trompette-en-Chamade GT           16' Trompette-en-Chamade tc
                                           8' Trompette-en-Chamade GT

[Received on line from Jeff Scofield January 25, 2010.]

Documents

(1977-05-02) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
