Better Pipe Organ Database

M. P. Möller Opus 11167 (1976)

Louisburg Baptist Church: Sanctuary
302 N. Main St.
Louisburg, NC

Images

2019 - Façade pipes (Deborah Peace/Jeff Scofield)

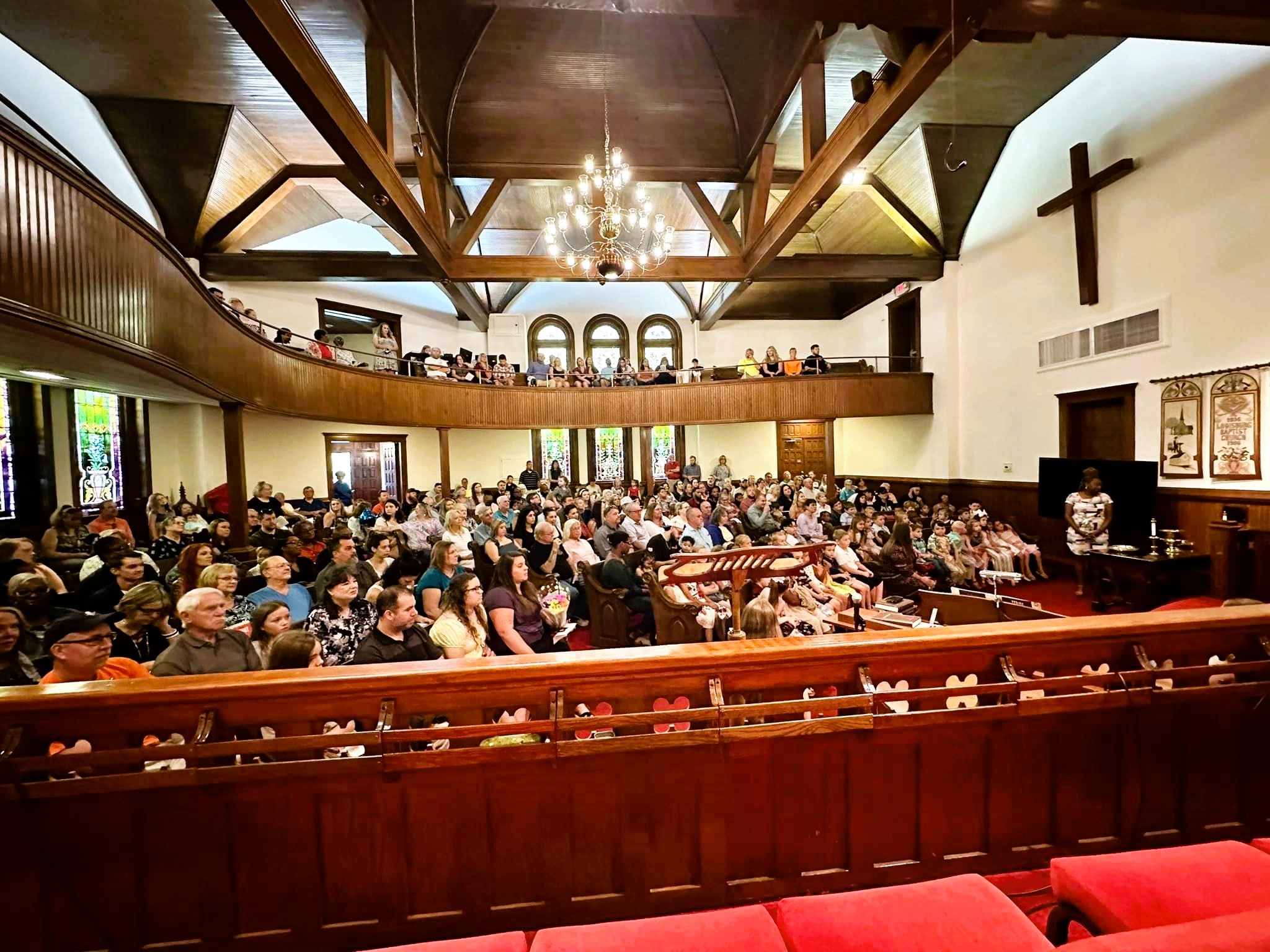

2023-06-14 - Church interior (Church Facebook via Jeff Scofield/Jeff Scofield)

2019 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Center
2 manuals
27 stops
6 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2007-10-08 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2010-01-10 - Updated through on-line information from Jeff Scofield. -Database Manager

2013-02-18 - Updated through online information from Brian D. Miller. -- The organ at Louisburg Baptist Church replaced a 1962 Baldwin, itself a replacement for the original 1904 pipe organ of unknown builder. The facade pipes from the 1904 organ remain. The instrument has been revoiced by Daniel Angerstein of Hendersonville, NC. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

             Louisburg, North Carolina
             Louisburg Baptist Church

             Möller   Op. 11167   1976   2/8

             GREAT
 1.      16' Bourdon            92 pipes
 2.       8' Principal          80 pipes
 3.       8' Gedeckt            from #1
 4.       8' Gemshorn           from #13
 5.       4' Octave             from #2
 6.       4' Gedeckt            from #1
 7.       2' Super Octave       from #2    repeat 5 top notes
 8.       2' Flute              from #1    repeat 5 top notes
 9.  II-III  Mixture            126 pipes
10.          Tremolo
11.          Chimes                        prepared for

             SWELL
12.       8' Spitzflöte         68 pipes   low octave from #13
13.       8' Gemshorn           85 pipes
14.       4' Spitzflöte         from #12
15.       2' Spitzflöte         from #12   repeat 5 top notes
16.   1 1/3' Larigot            from #13   repeat 7 top notes
17.      16' Contre Trompette   80 pipes   1-6 half-length
18.       8' Trompette          from #17
19.       4' Clairon            from #17   repeat 5 top notes
20.          Tremolo

             PEDAL
21.      16' Bourdon            from #1
22.       8' Principal          from #2
23.       8' Gedeckt            from #1
24.       8' Gemshorn           from #13
25.       4' Octave             from #2
26.       4' Spitzflöte         from #12
27.     III  Mixture            from #7 & 9
28.      16' Contre Trompette   from #17
29.       8' Trompette          from #17
30.       4' Clairon            from #17

[Received on line from Jeff Scofield January 10, 2010.]

Documents

(1976-06-07) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield

Related Pipe Organ Database Entries

#52769 - Daniel (Dan) L. Angerstein (2018)
