Advent Lutheran Church
16 Telford Ave.
West Lawn, PA
Images

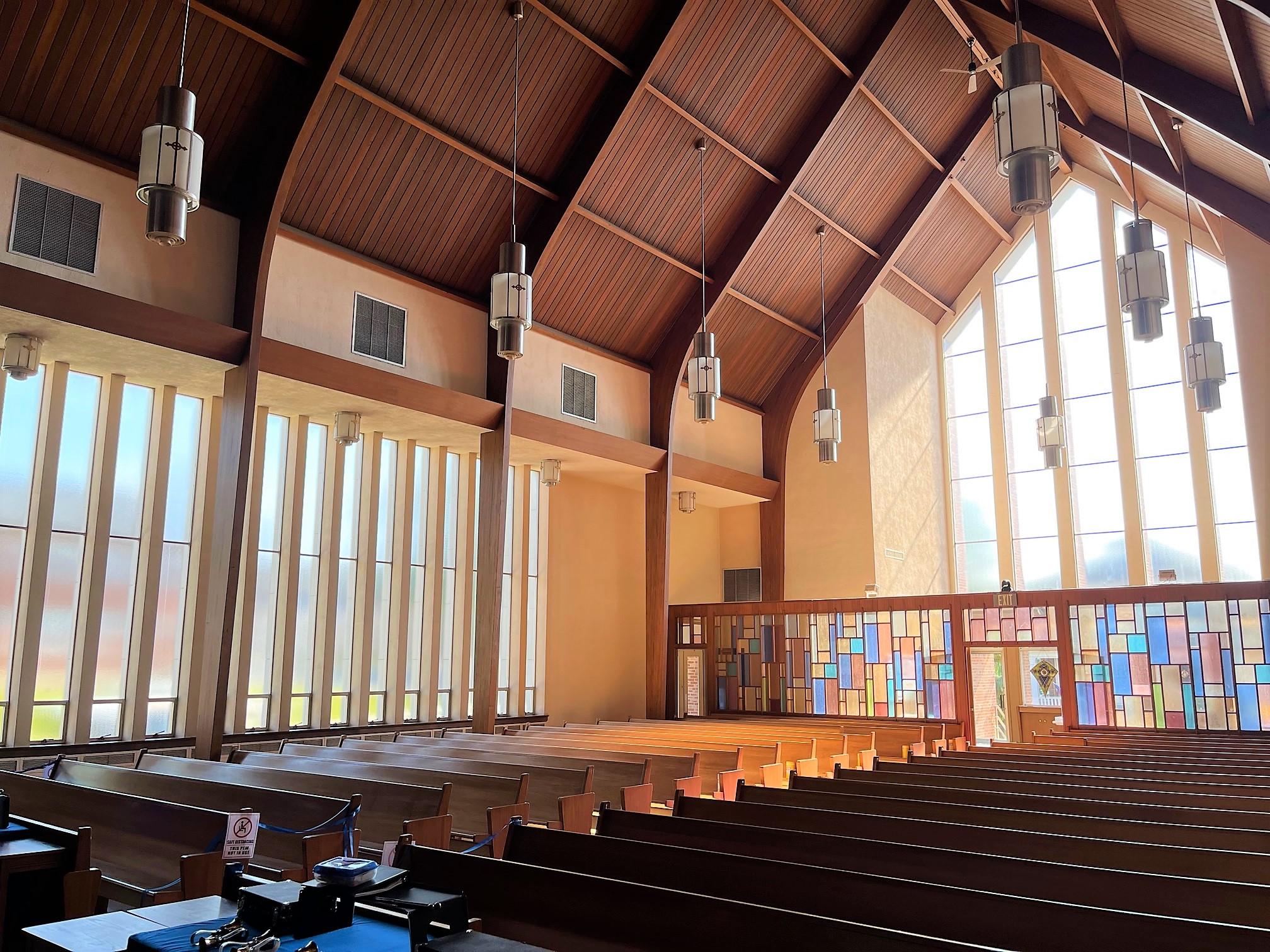

2022-07-19 - Church interior to rear (Photograph by Jeff Scofield/Jeff Scofield)

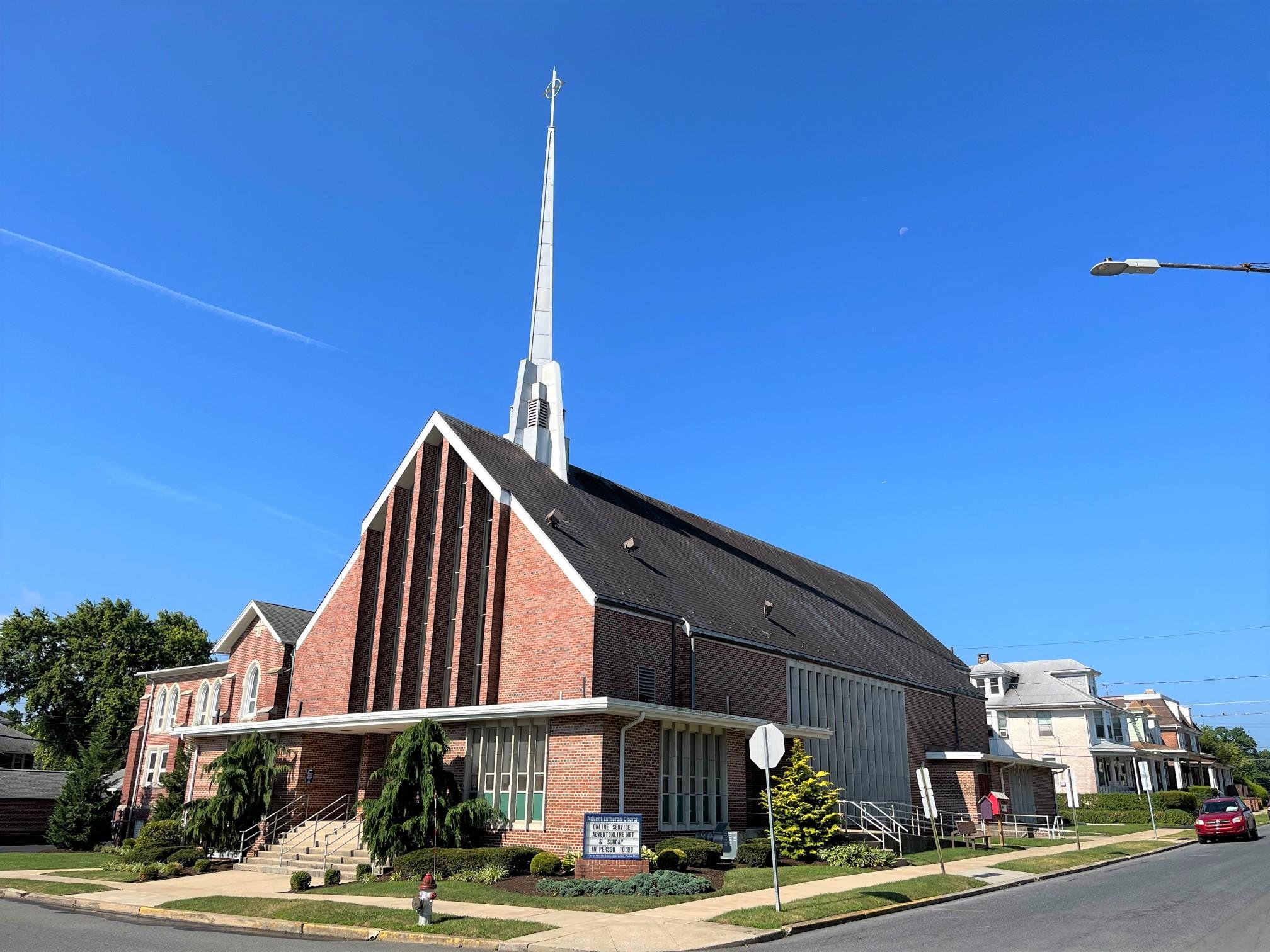

2022-07-19 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)

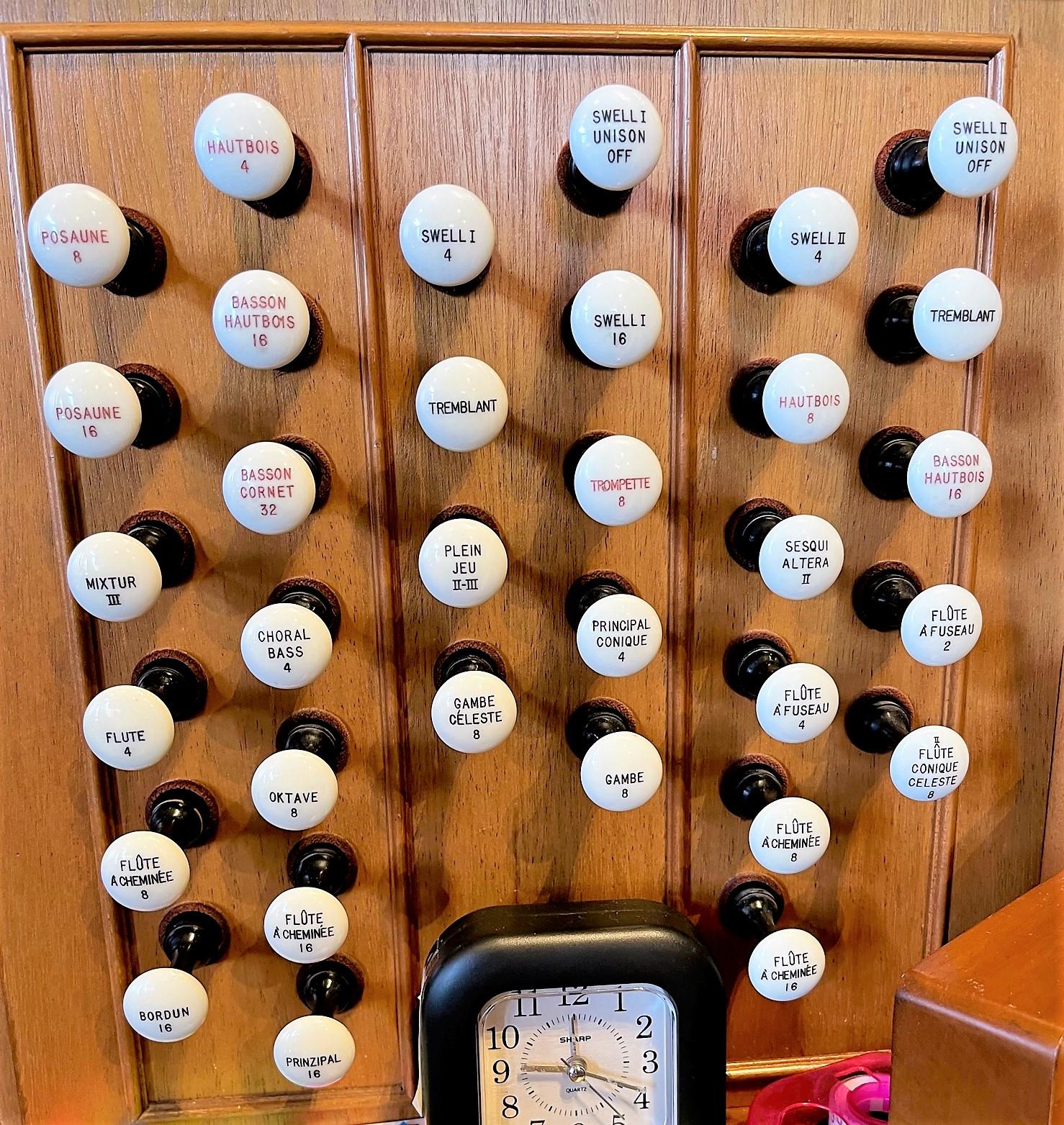

2022-07-19 - Right stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

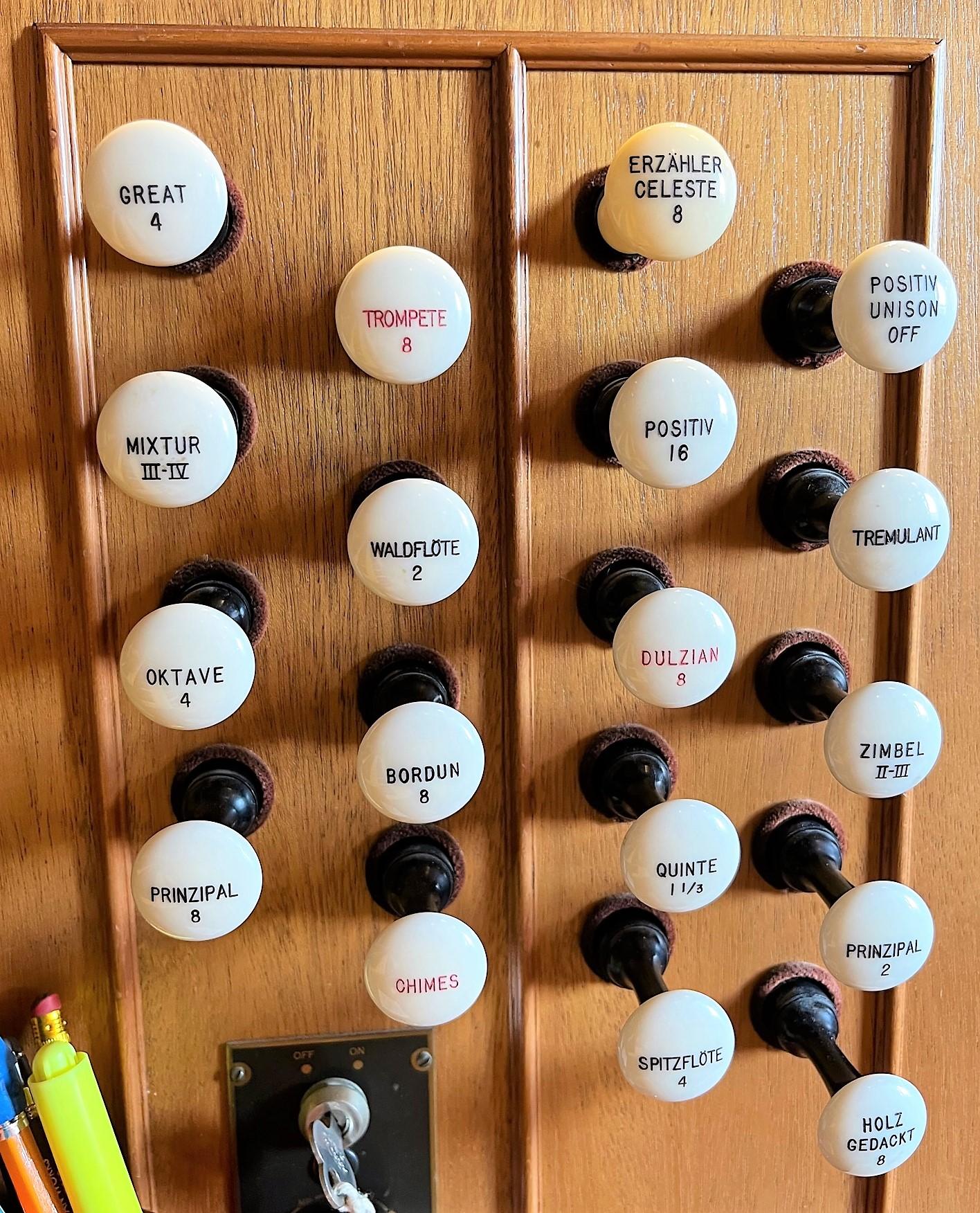

2022-07-19 - Left stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

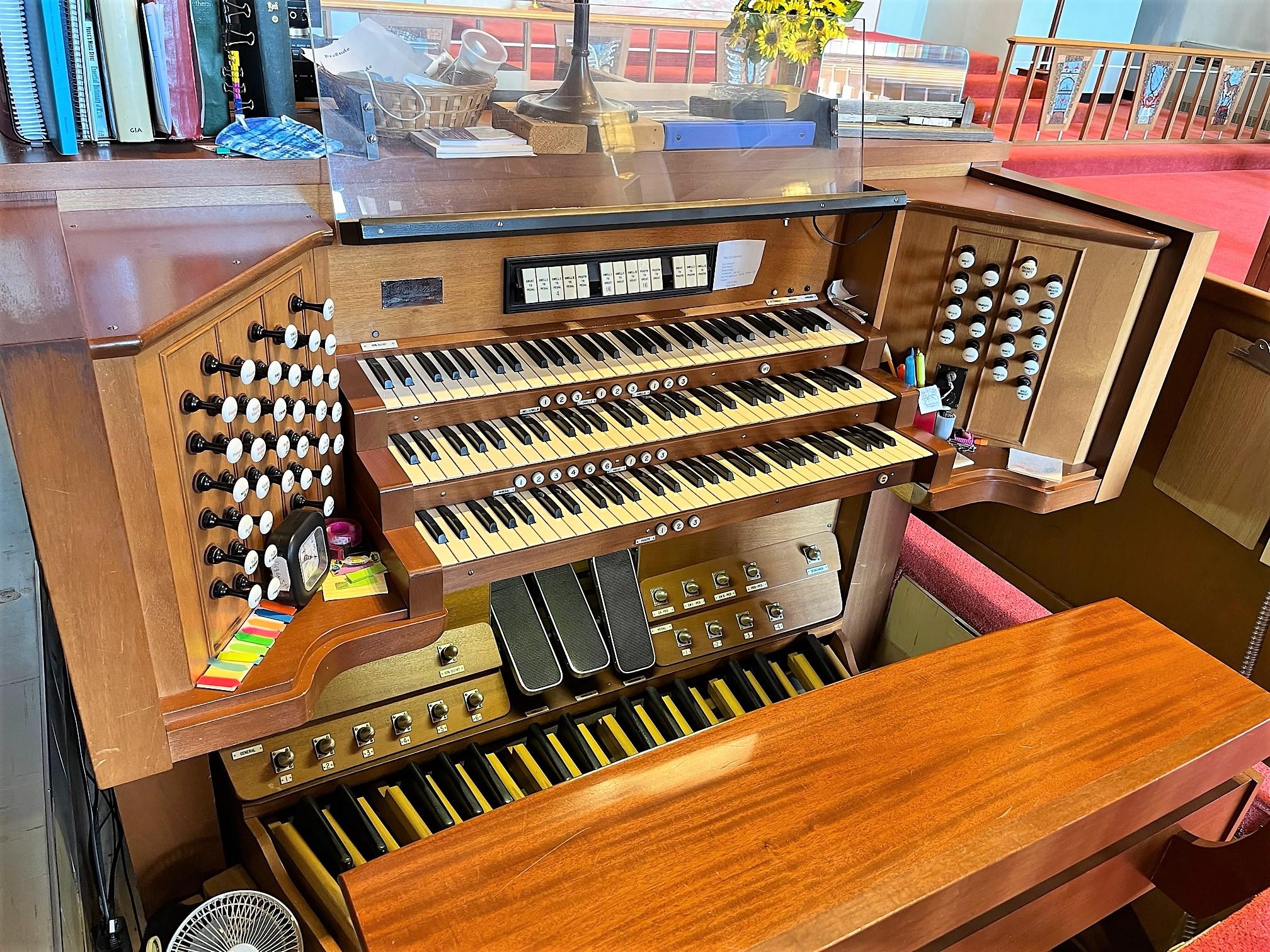

2022-07-19 - Console (Photograph by Jeff Scofield/Jeff Scofield)

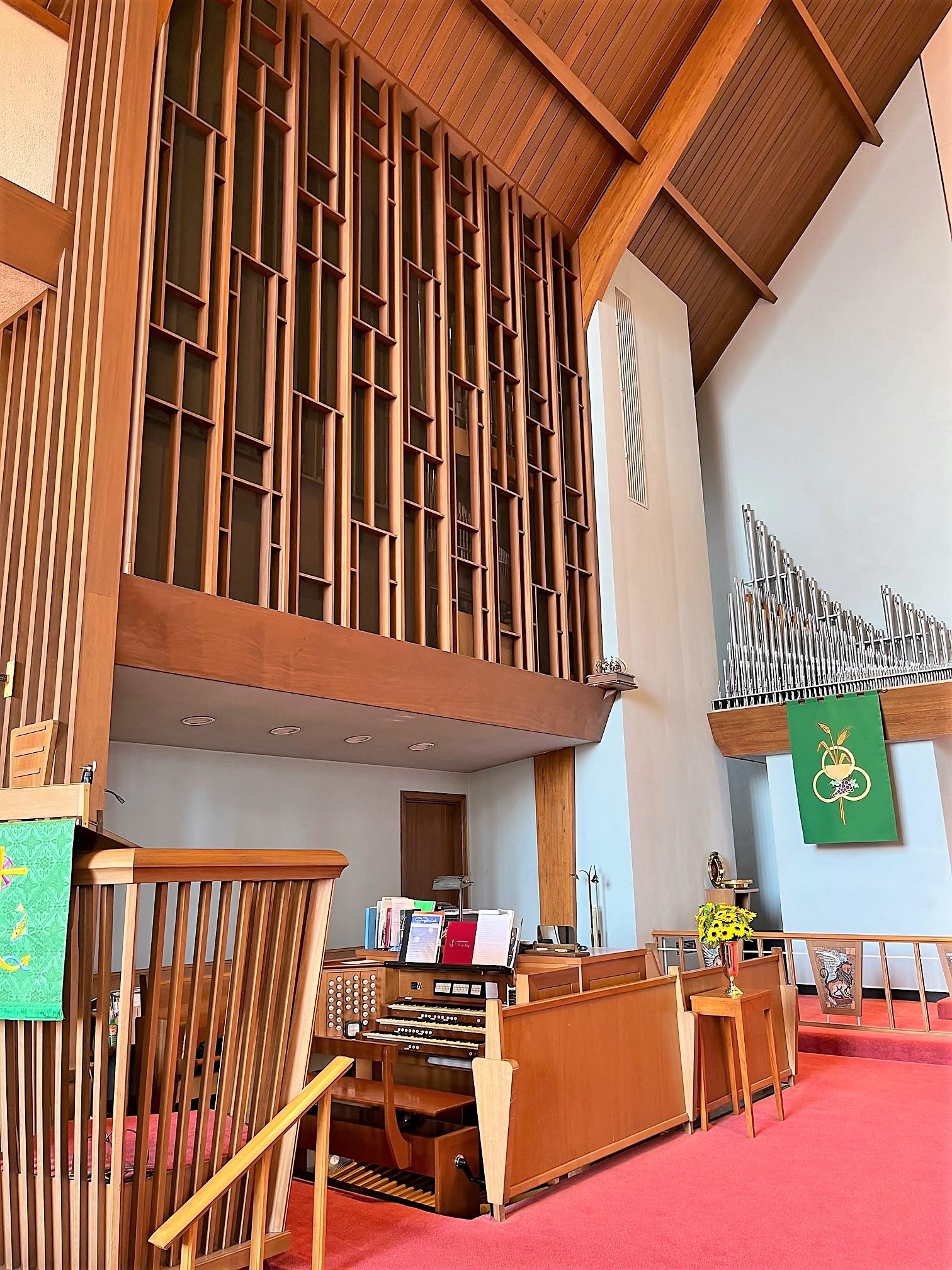

2022-07-19 - Console and chamber grille (Photograph by Jeff Scofield/Jeff Scofield)

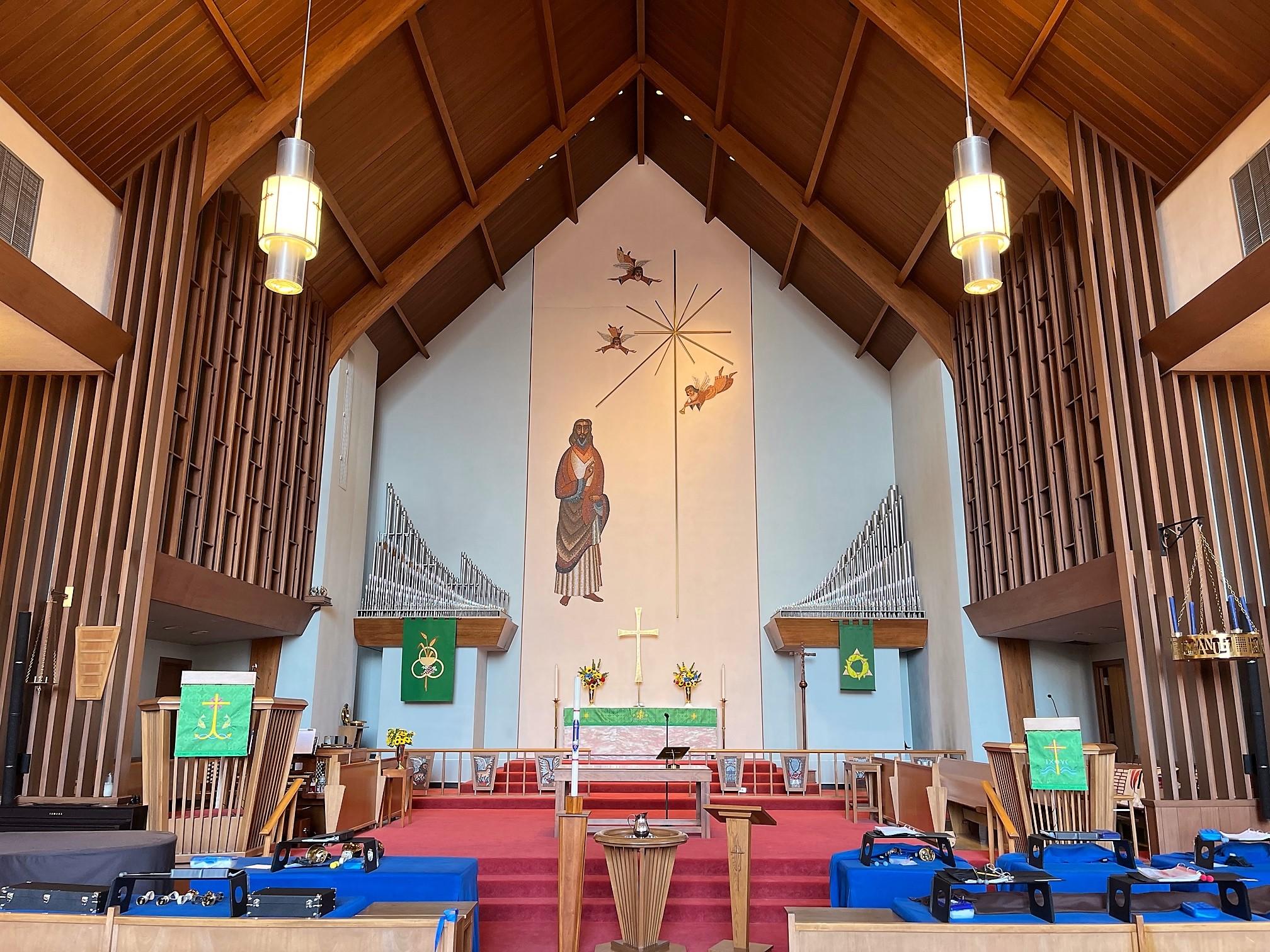

2022-07-19 - Chancel (Photograph by Jeff Scofield/Jeff Scofield)

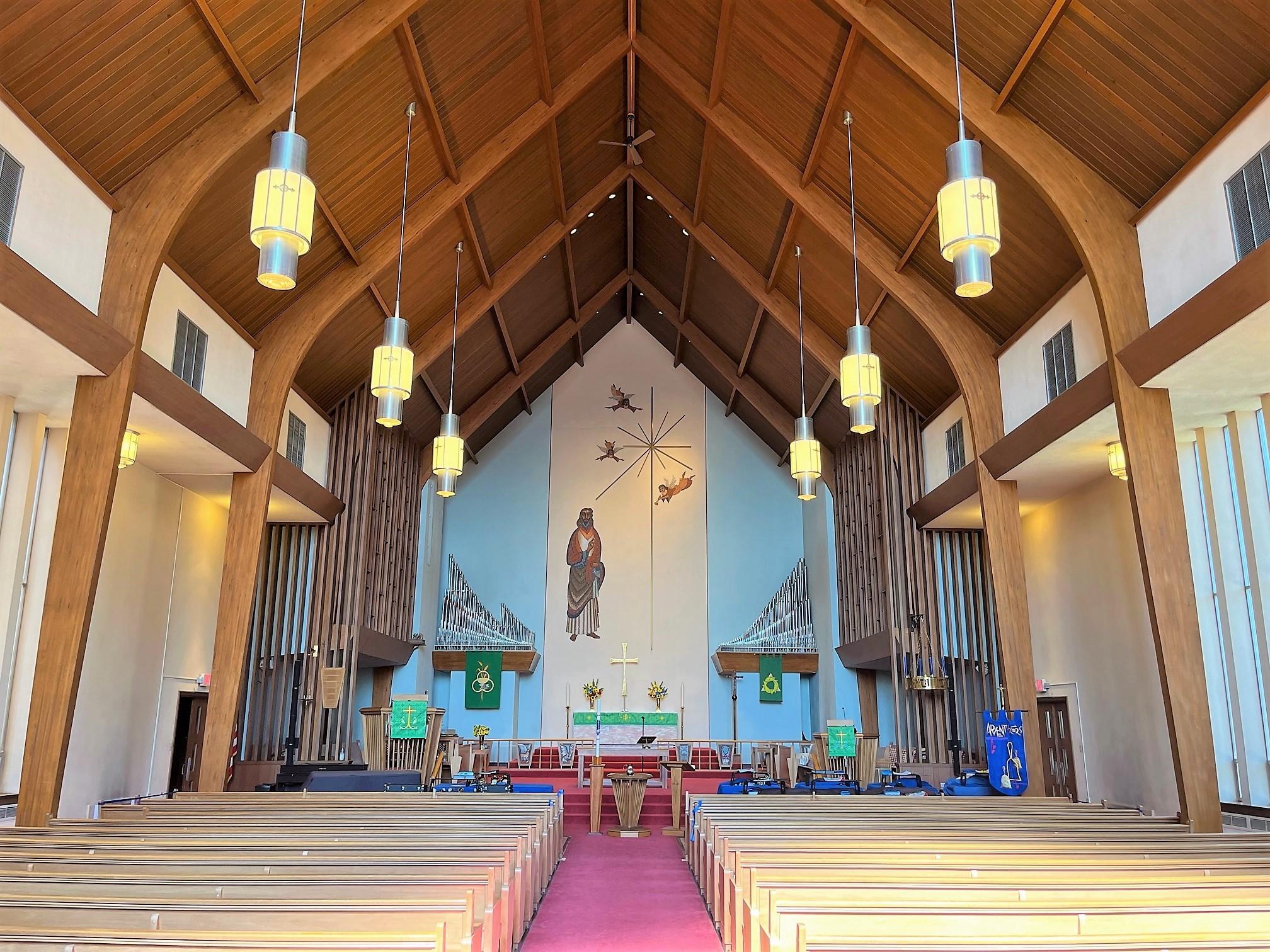

2022-07-19 - Church interior to front (Photograph by Jeff Scofield/Jeff Scofield)

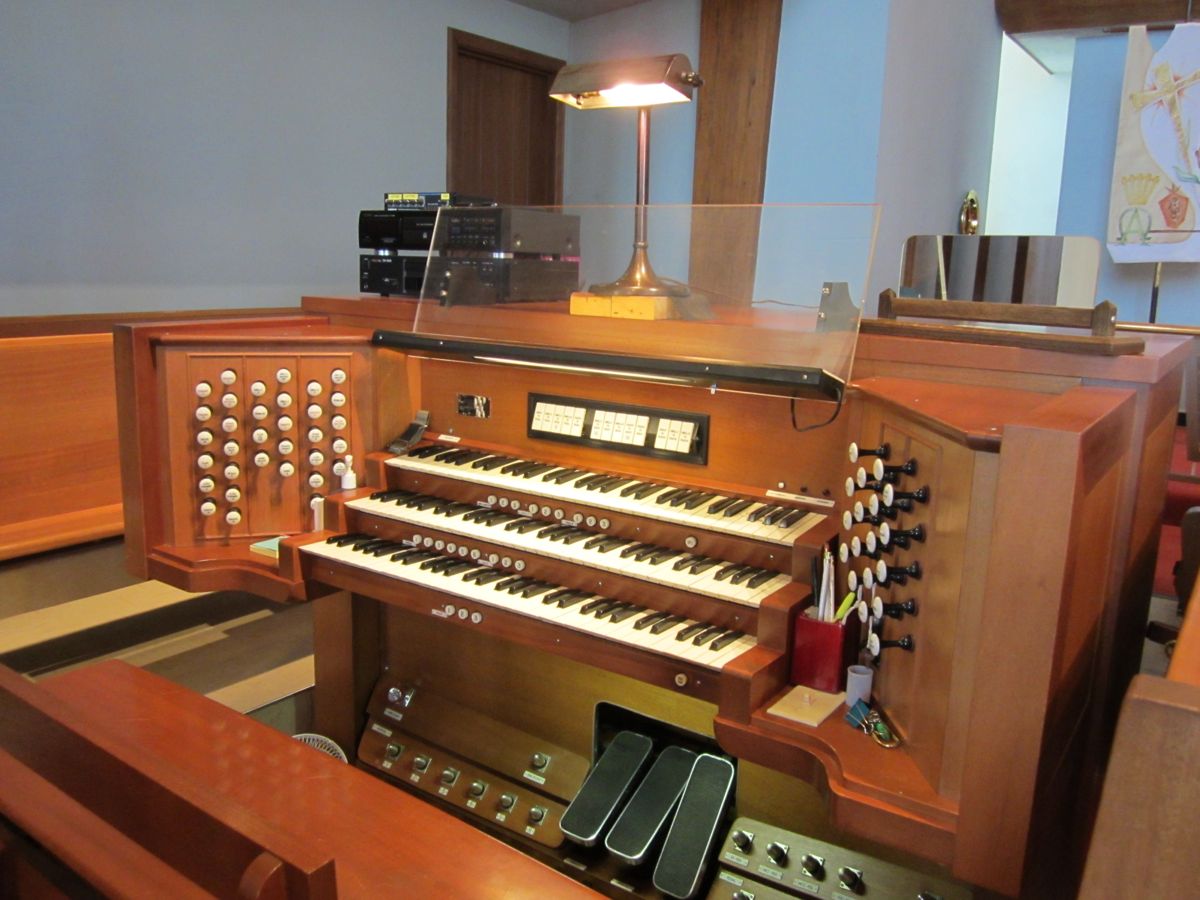

2013-04-27 - Console (Photograph by John C. Brewster/Database Manager)

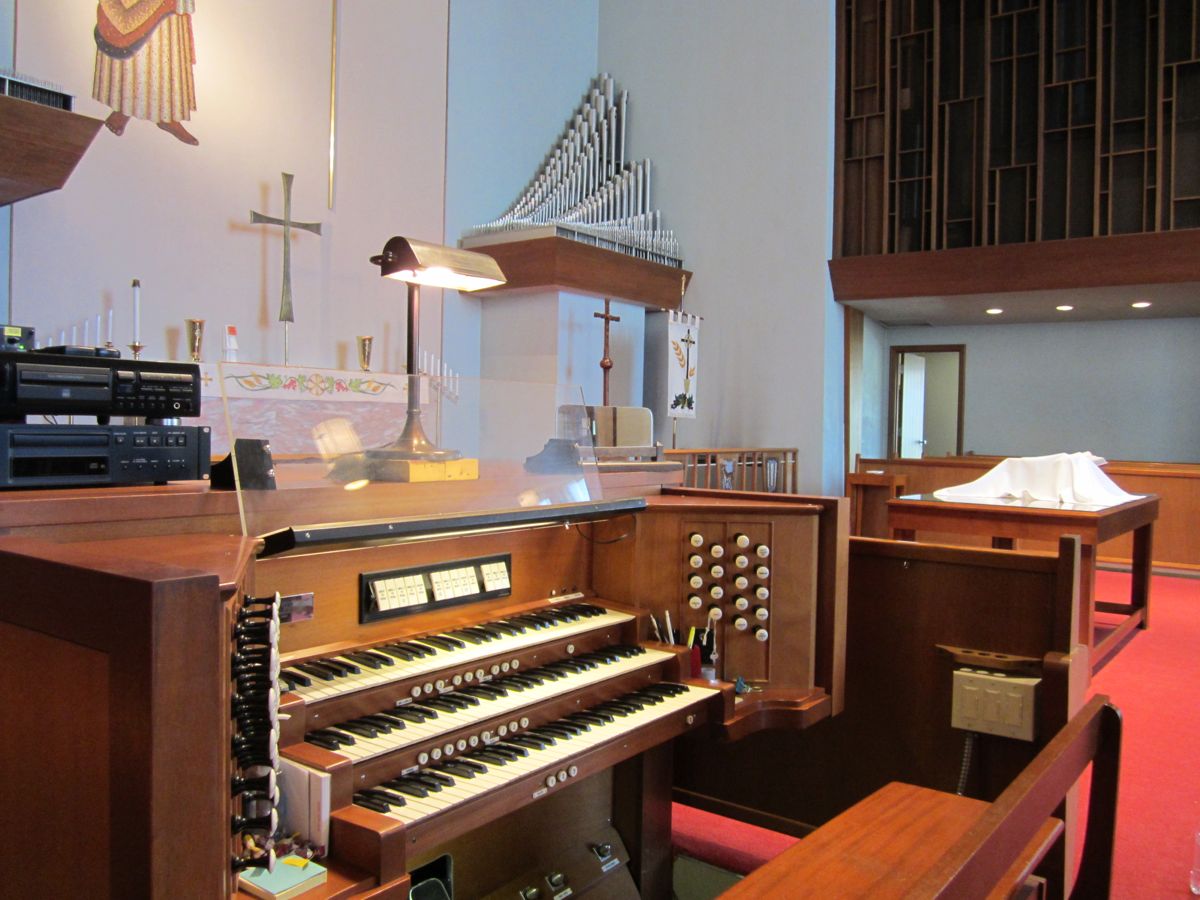

2013-04-27 - Console, Great Pipe Display, and Swell Chamber Grillework (Photograph by John C. Brewster/Database Manager)

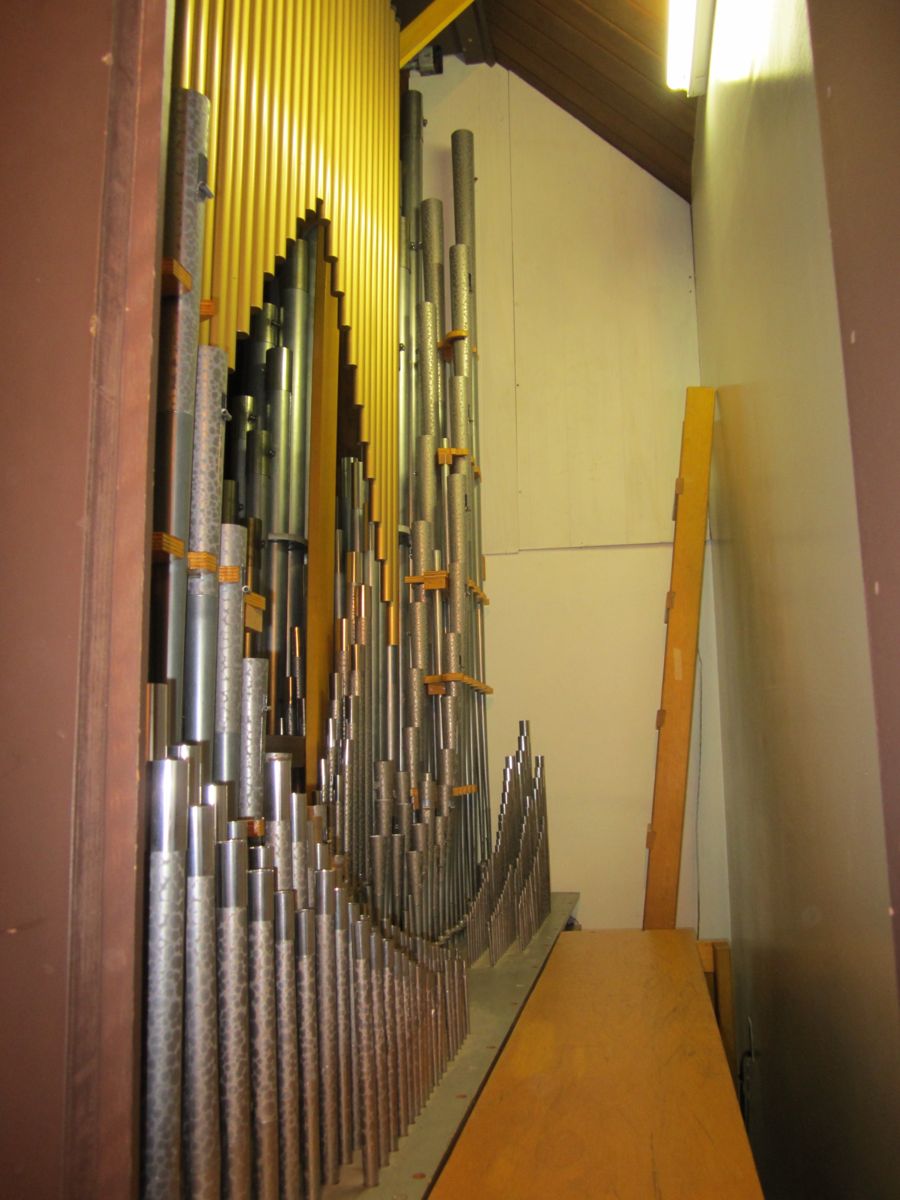

2013-04-27 - Swell Pipework and Chimes (Photograph by John C. Brewster/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Console in Fixed Position, Left
- 3 manuals
- 37 stops
- 26 registers
- 5 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2007-10-08 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager
2010-01-13 - Updated through online information from Jeff Scofield. -Database Manager
2013-05-18 - Updated through online information from John C. Brewster. -- I am fairly new to the church, however from my own observations and from speaking with the organ technicians I have been made aware of the work that will need to be done on the organ to keep it in top playing condition. During the next ten years, the tentative plan is: a. to retrofit the console with solid state controls and memory. b. have the chambers and pipe work undergo a cleaning and re-leathering. c. add a Trompette en Chamade and Viola Celeste. -Database Manager
2018-08-15 - Updated by John C. Brewster, the organist. <br>
2015 - The lowest twelve pipes on the Pedal 16- Prinzipal have been replaced with new pipes that are haskled.<br>
2017 – The following work on these ranks:<br>
• Positiv: Holzgedackt – restoppered<br>
• Swell II: Flute a Chiminee – shimming of the felt caps<br>
• Swell II: Flute a Fuseau – shimming of the felt caps -Database Manager
Stoplist
Stoplist copied from the factory specifications Source: Source not recorded Date not recorded
West Lawn, Pennsylvania
Advent Lutheran Church
Möller Op. 11187 1977 3/38
GREAT (exposed) SWELL I
8' Prinzipal 61 8' Gambe 61
8' Bordun 61 8' Gambe Celeste 61
4' Oktave 61 4' Principal Conique 61
2' Waldflöte 61 II-III Plein Jeu 159
III-IV Mixtur 220 8' Trompette 61
8' Trompete 61 Tremblant
Super Sub
Chimes 25 Unison Off
Super
POSITIV (exposed)
8' Holzgedackt 61 SWELL II
4' Spitzflöte 61 16' Flute a Chiminee 61
2' Prinzipal 61 8' Flute a Cheminee 12
1 1/3' Quinte 61 8' Flute Conique Celeste II 110
II-III Zimbel 159 4' Flute a Fuseau 61
8' Dulzian 61 2' Flute a Fuseau 12
Tremulant II Sesquialtera 122
Sub 16' Basson-Hautbois 61 (1-24 L/2)
Unison Off 8' Hautbois 12
Blank (solo reed) Tremblant
Unison Off
PEDAL Super
16' Prinzipal 32
16' Bordun 32
16' Flute a Cheminee SWII
10 2/3' Quinte SWII
8' Oktave 12
8' Flute a Cheminee SHII
4' Choralbass 32
III Mixtur 96
32' Basson-Cornet --
16' Posaune 32 (1-24 L/2)
16' Basson-Hautbois SWII
8' Posaune 12
4' Hautbois SWII
[Received on line from Jeff Scofield January 13, 2010.]
