Better Pipe Organ Database

M. P. Möller Opus 11190 (1977)

The United Church of Los Alamos
2525 Canyon Road
Los Alamos, NM

Images

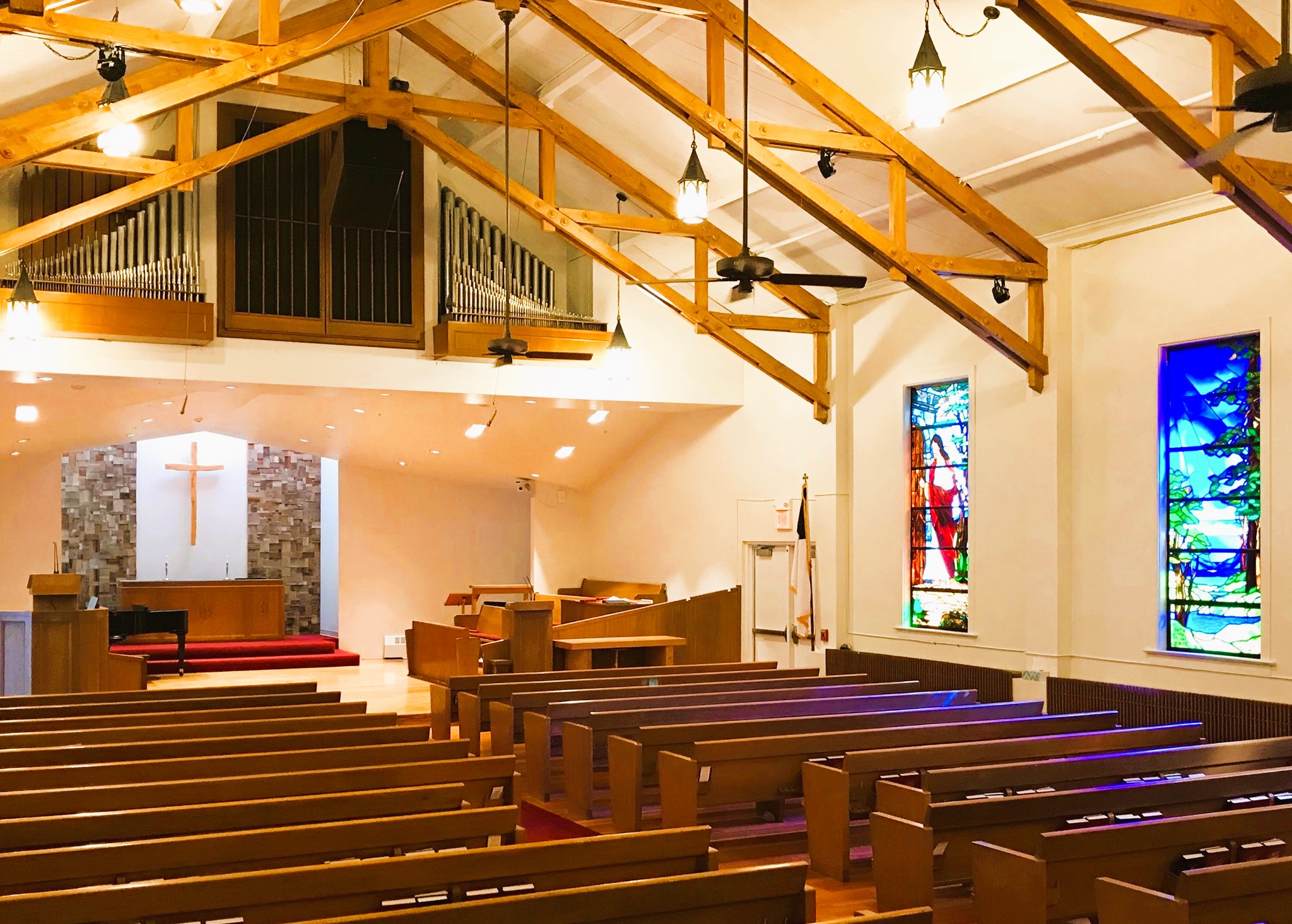

2019-08-19 - Church interior and exposed pipes (Church Facebook via Jeff Scofield/Jeff Scofield)

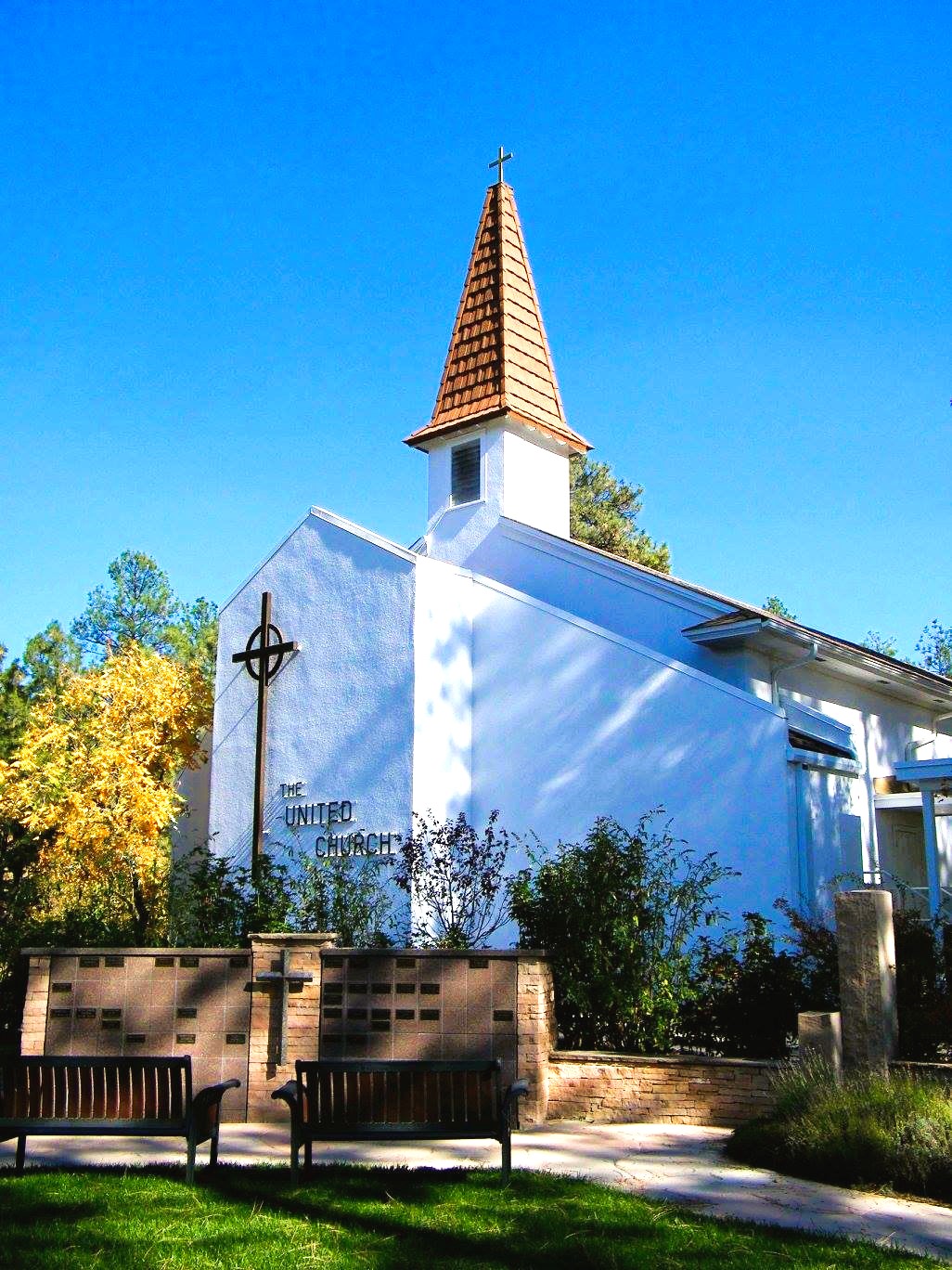

2019-06-24 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
22 stops
4 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2007-10-08 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2010-01-17 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

            Los Alamos, New Mexico
            The United Church

            Möller   Op. 11190   1977   2/3

            GREAT
 1.         Blank
 2.      8' Principal      73 pipes  1-12 from #3, 4 & 6
 3.      8' Gedeckt        80 pipes
 4.      8' Gemshorn       80 pipes
 5.      4' Octave         from #2
 6.      4' Flute          from #3
 7.      2' Super Octave   from #2   repeat 5 top notes
 8.         Blank
 9.      8' Trompette      from #20
10.         Chimes                   prepared for
11.         Blank

            SWELL
12.      8' Gedeckt        from #3
13.      8' Gemshorn       from #4
14.      4' Gemshorn       from #4
15.         Blank
16.      4' Flute          from #3
17.      2' Flute          from #3   repeat 5 top notes
18.  1 1/3' Larigot        from #4   repeat 12 top notes
19.         Blank
20.      8' Trompette      61 pipes
21.      4' Clairon        from #20
22.         Tremolo

            PEDAL
23.     16' Bourdon        12 pipes  20 from #3
24.         Blank
25.      8' Gedeckt        from #3
26.      8' Gemshorn       from #4
27.      4' Principal      from #2
28.      4' Flute          from #3
29.         Blank
30.         Blank
31.      8' Trompette      from #20  1-6 half-length
32.      4' Clairon        from #20

[Received on line from Jeff Scofield January 17, 2010.]

Documents

(1976-12-14) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
