Hellmuth Wolff & Associés (1975)

Iowa State University: Simon Estes Music Hall, Room 210
2427 Union Dr.
Ames, IA

Images

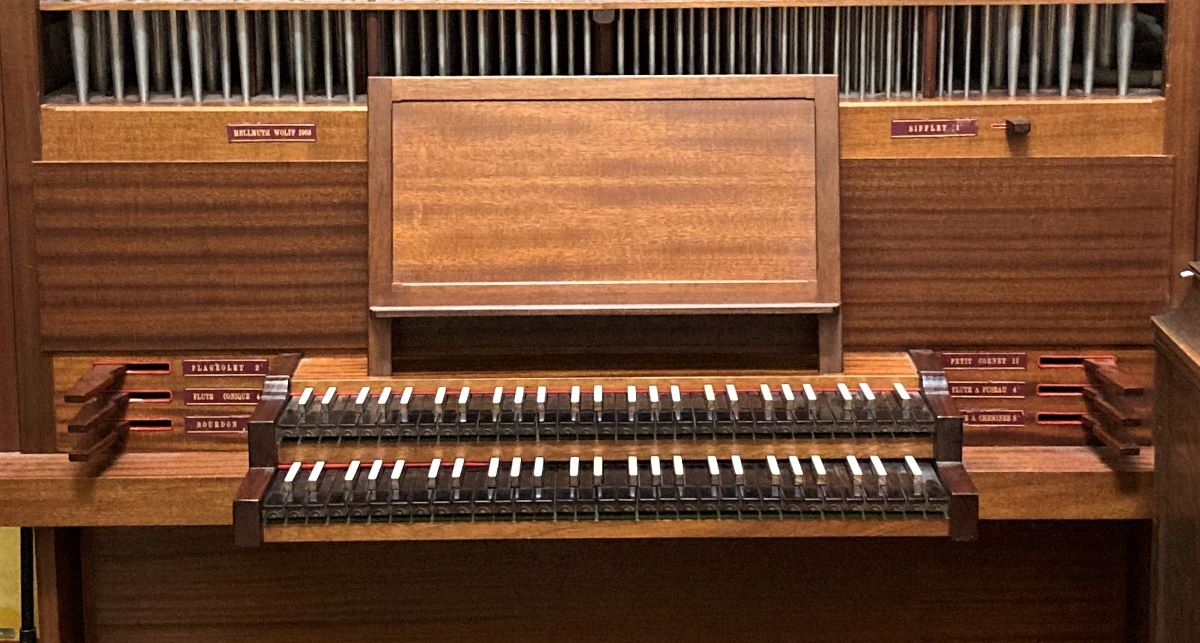

2023-06-09 - Keydesk (Photograph by Nicholas Sutton., submitted by Jim Stettner/Jim Stettner)

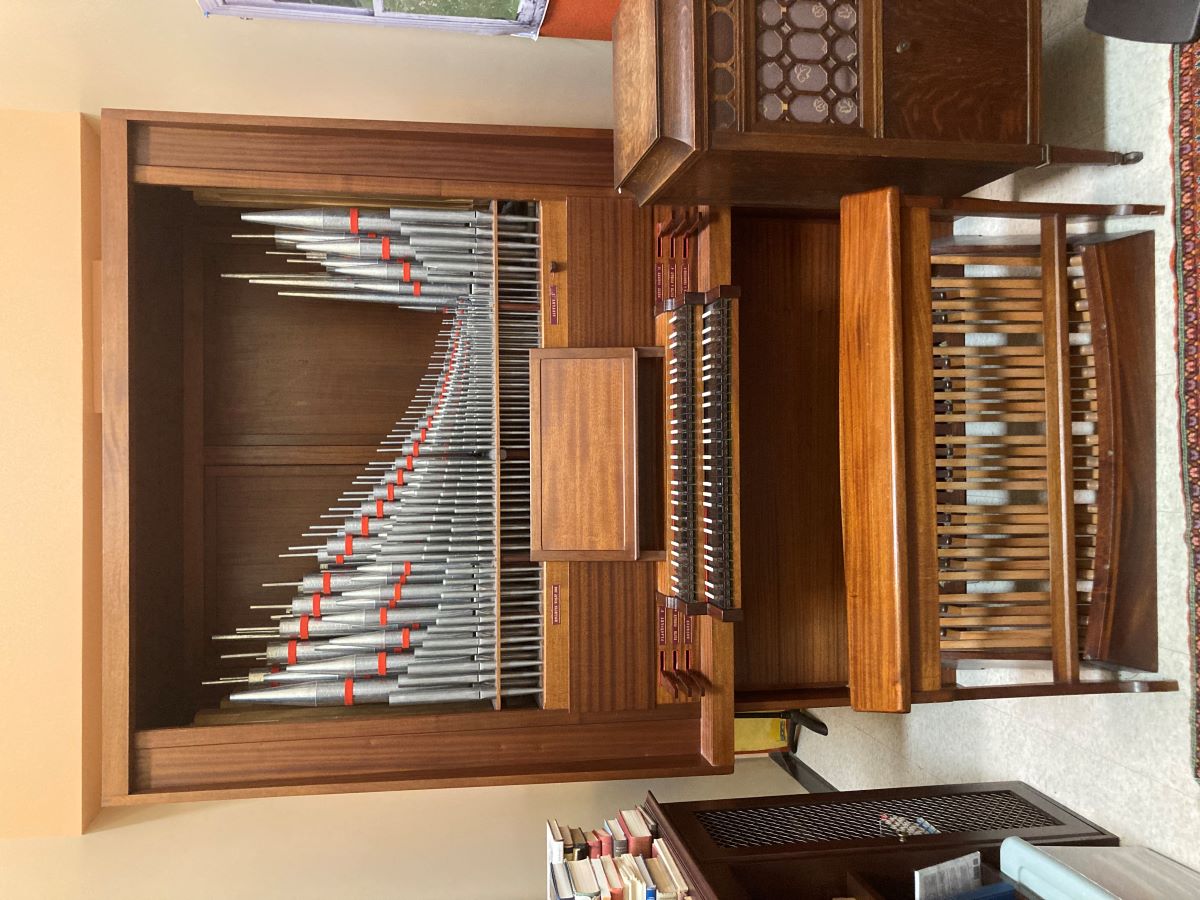

2023-06-09 - Organ case and console in Dr. Miriam Zach’s office (Photograph by Nicholas Sutton/Nicholas Sutton)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached
2 manuals
7 stops
7 registers
2 divisions
Key action Type: Mechanical (Suspended Tracker)
Stop action Type: Mechanical
Stop layout Type: Sliding Stop Controls/Levers
Manual compass: 56 notes
Pedal compass: 30 notes
Pedal Type: Concave Radiating (Details Unknown)
Expression Type: No Enclosed Divisions
Combination action: None
Has hitchdown couplers

Notes

2007-10-13 - Identified through on-line information from James R. Stettner. -- Originally built in 1969 for Frères de l'Instruction Chrétienne in Montreal. -Database Manager

2011-02-03 - Updated through on-line information from Ryan Frederick. -Database Manager

Stoplist

Source: Stoplist taken from detailed photo of the organ 2023-09-02

MANUAL I Flute a Cheminee 8, Flute a Fuseau 4, Sifflet 1, Petit Cornet II

MANUAL II Bourdon 8, Flute Conique 4, Flageolet 2

PEDAL No Independent registers

COUPLERS Not Visible. Likely hitch-down.
