New Scotland Presbyterian Church: Sanctuary; front
2010 New Scotland Road
New Scotland (Slingerlands), NY
Images

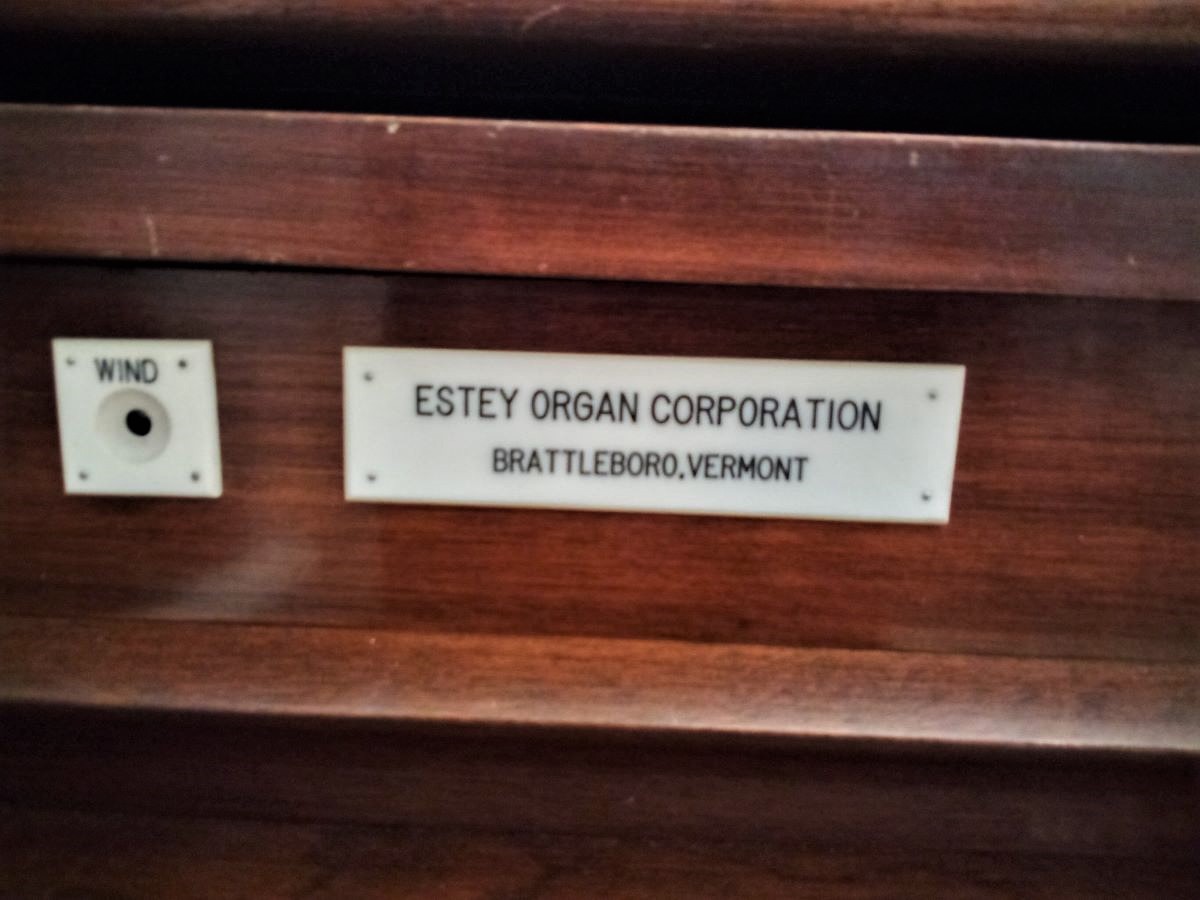

2022-02-08 - Builder's nameplate (Photograph by Bev LaVigne Thompson, submitted by Jim Stettner/Jim Stettner)

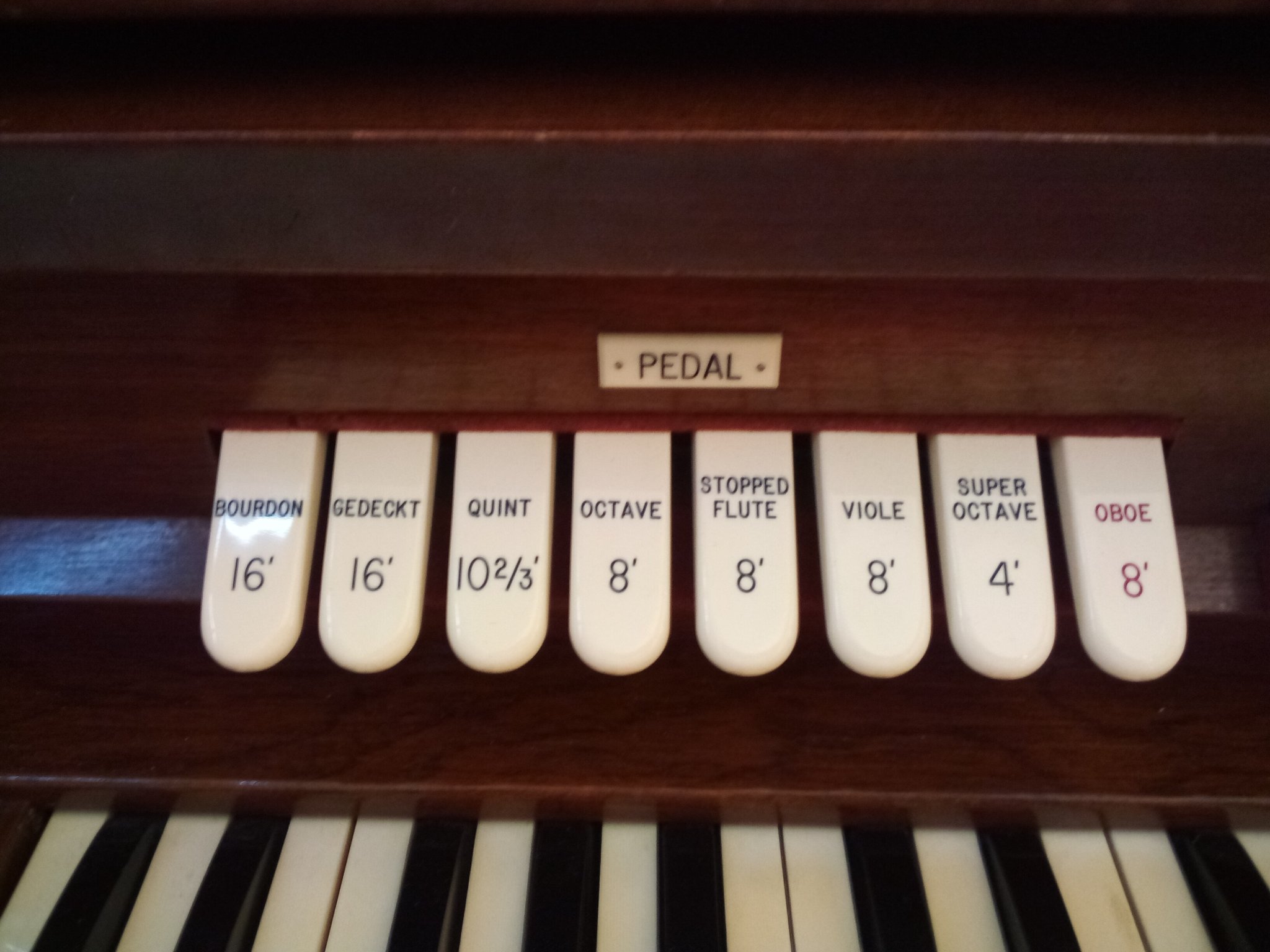

2022-07-28 - Console: Pedal stops (Photograph by Bev LaVigne Thompson, submitted by Jim Stettner/Jim Stettner)

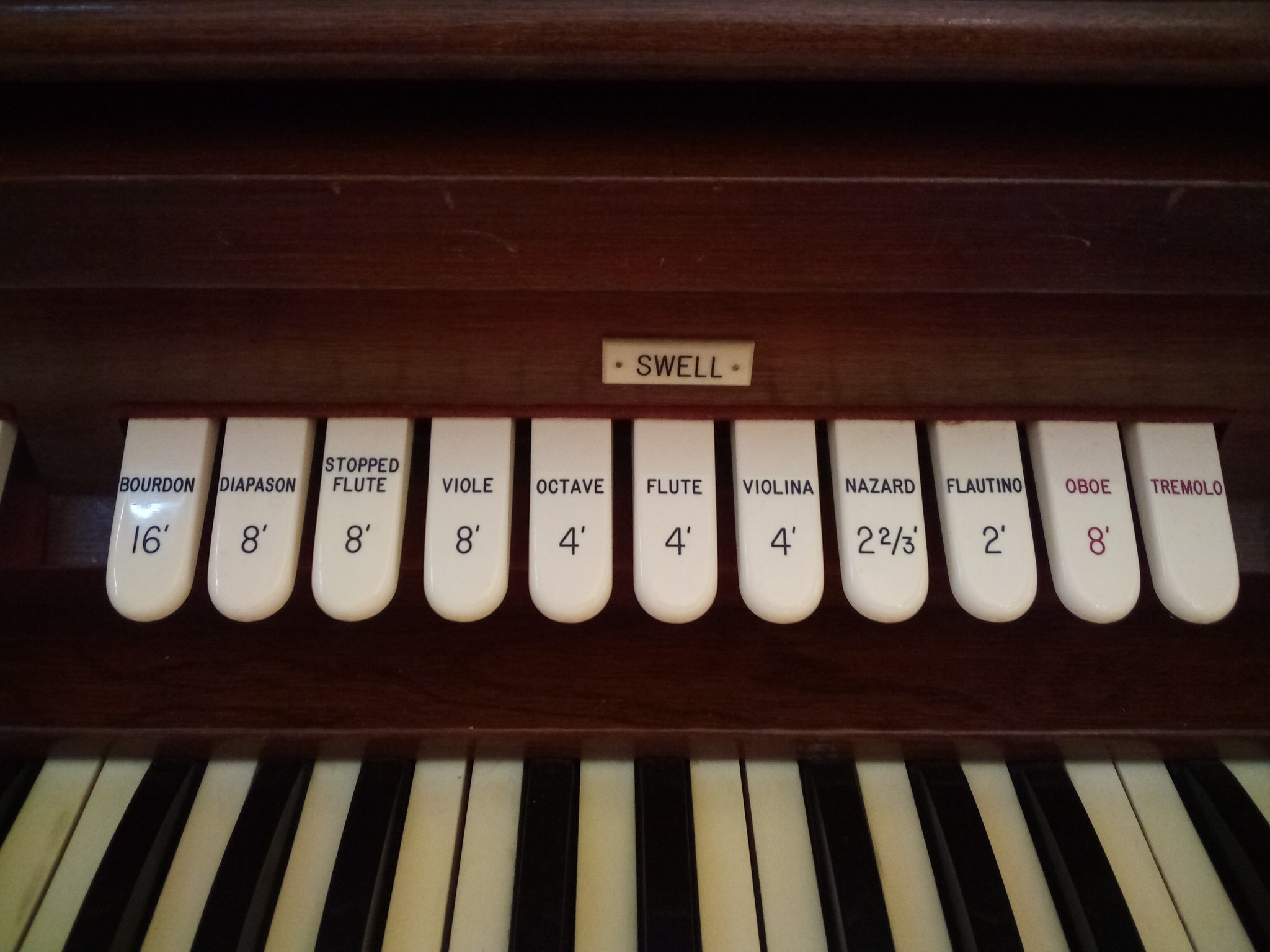

2022-07-28 - Console: Swell stops (Photograph by Bev LaVigne Thompson, submitted by Jim Stettner/Jim Stettner)

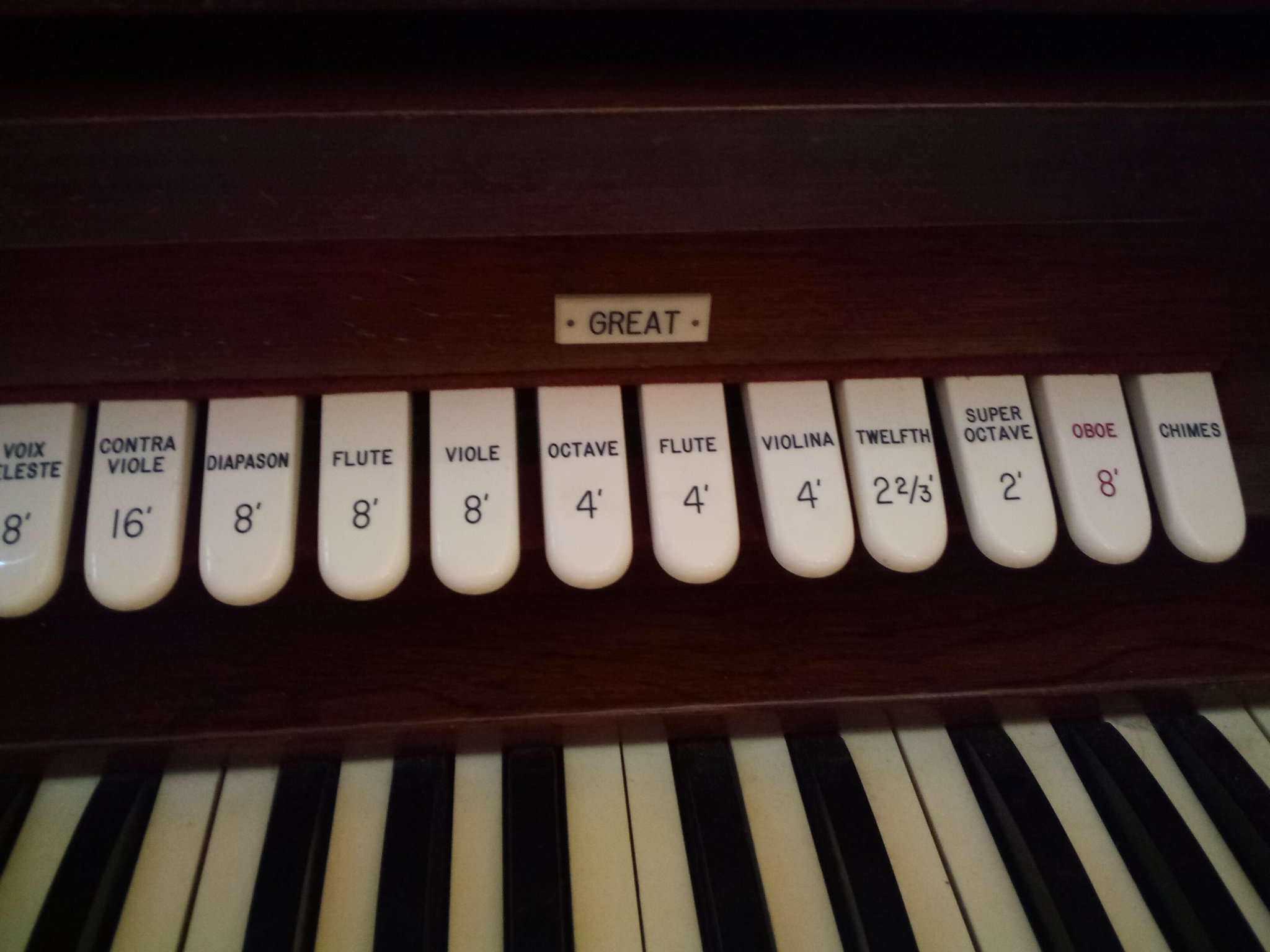

2022-07-28 - Console: Great stops (Photograph by Bev LaVigne Thompson, submitted by Jim Stettner/Jim Stettner)

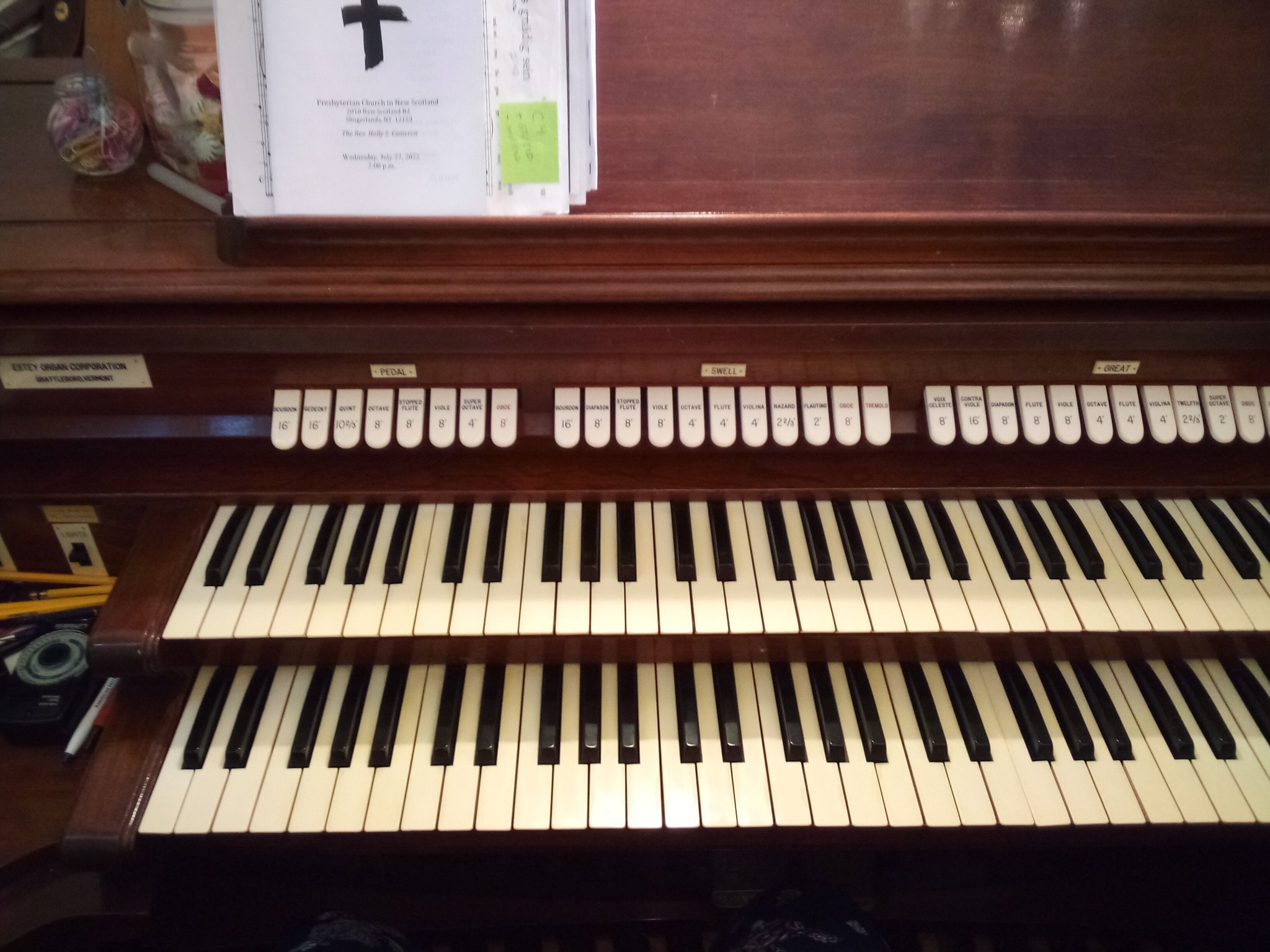

2022-07-28 - Console (Photograph by Bev LaVigne Thompson, submitted by Jim Stettner/Jim Stettner)

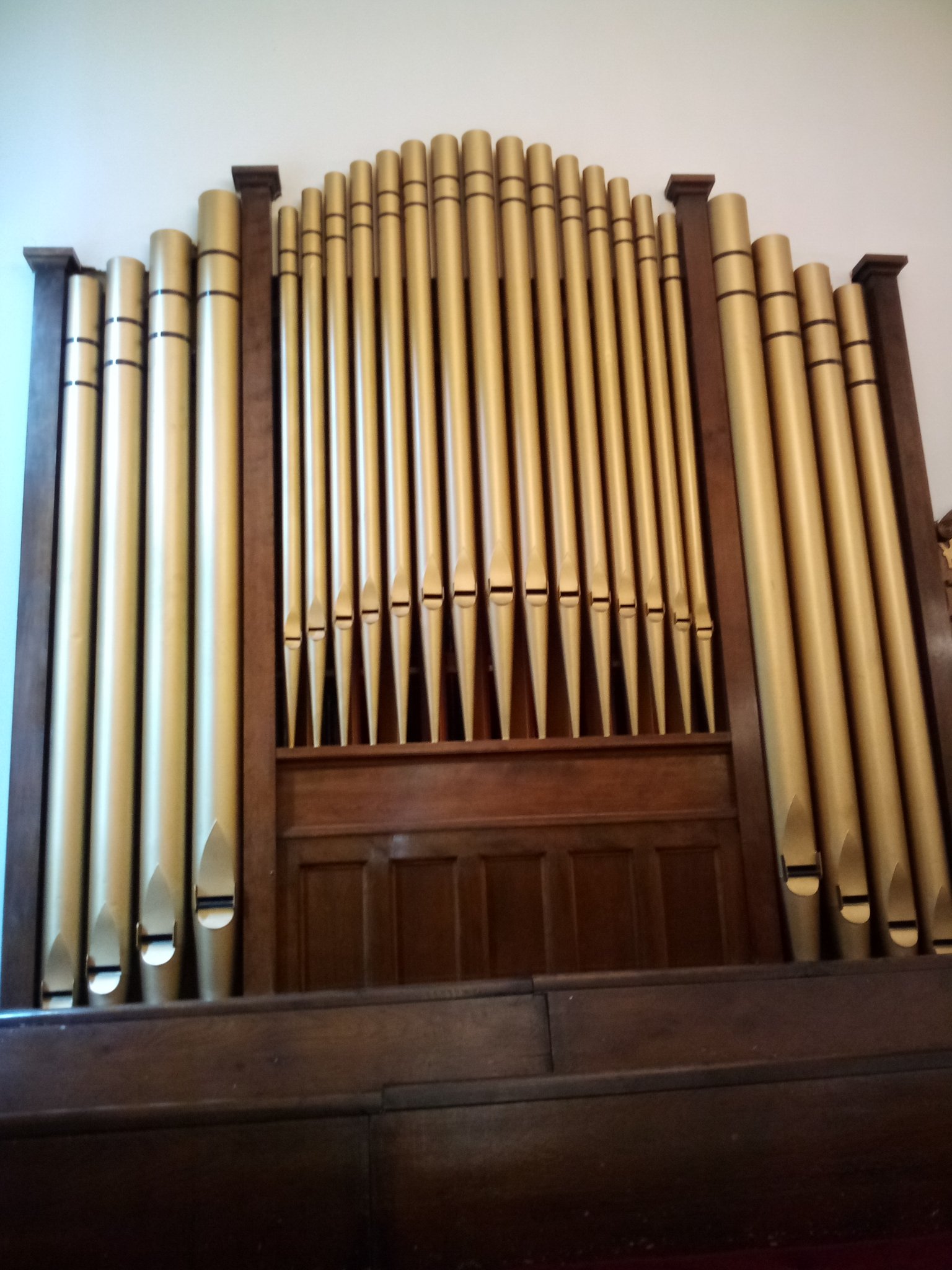

2022-07-28 - Original, retained 1916 Estey case (Photograph by Bev LaVigne Thompson, submitted by Jim Stettner/Jim Stettner)

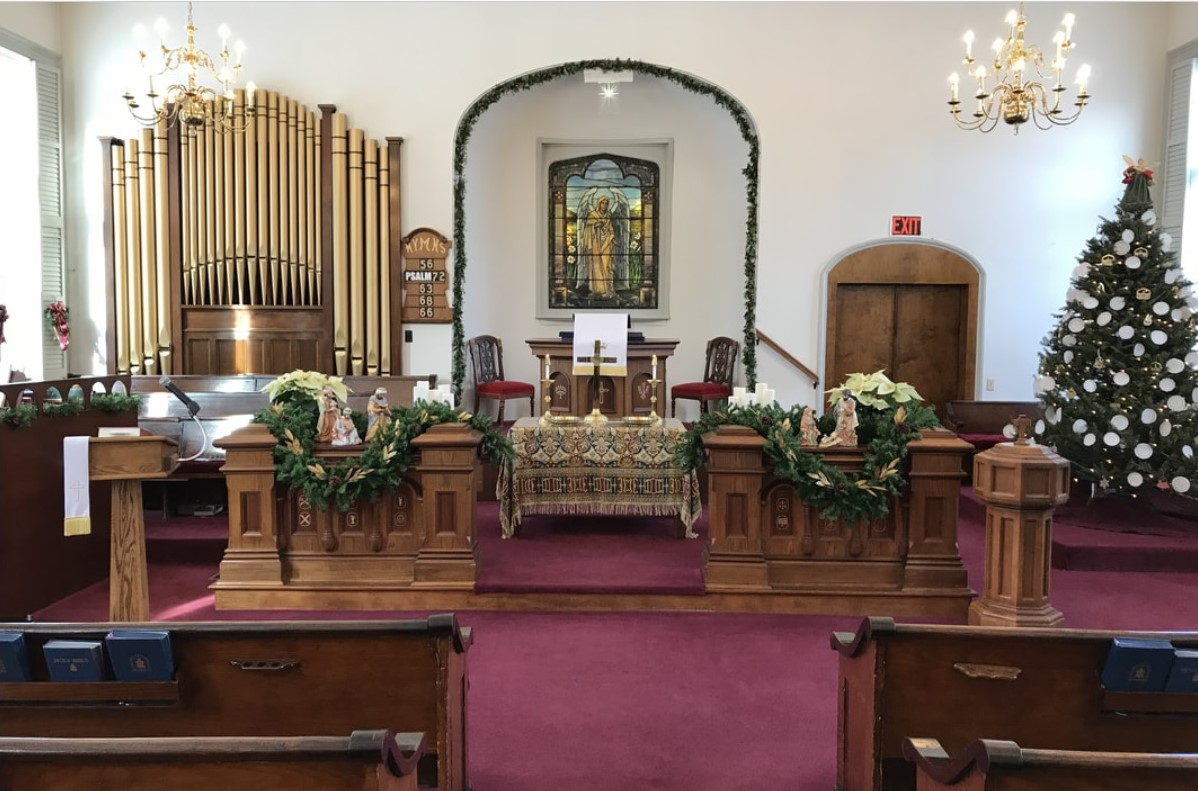

April, 2022 - Chancel and organ (Photograph from an archival source: Church website, submitted by Jim Stettner/Jim Stettner)

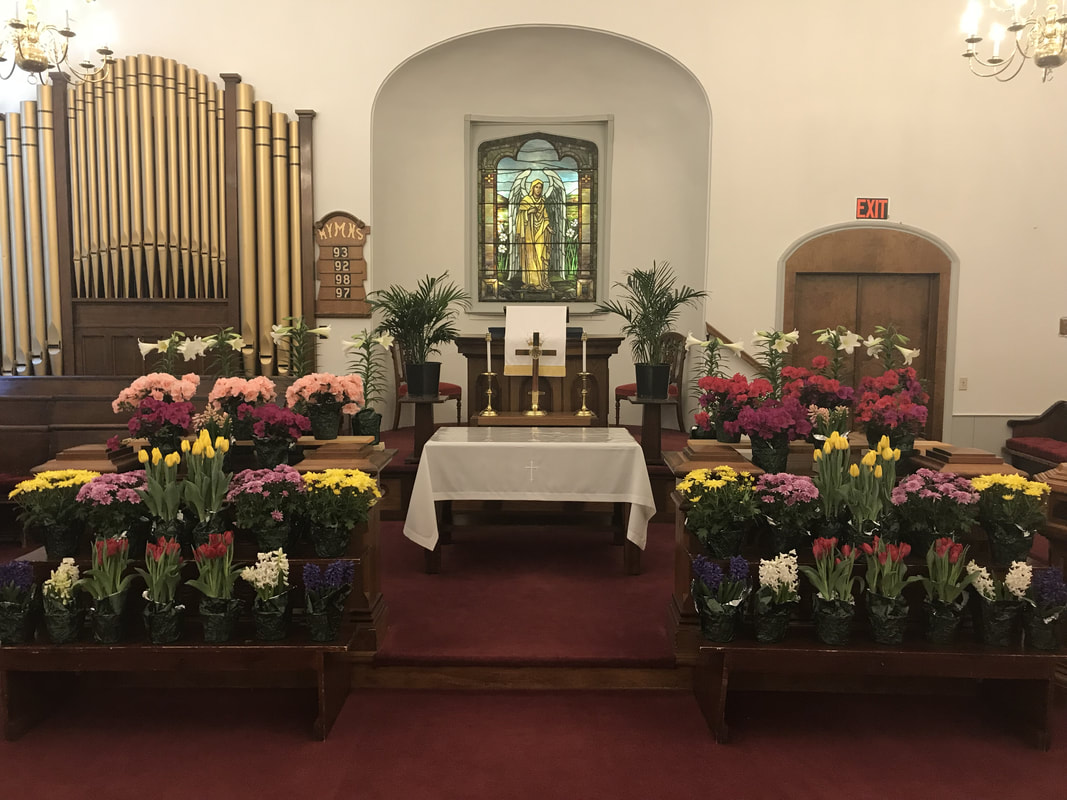

April, 2022 - Organ in front (Photograph from an archival source: Church website, submitted by Jim Stettner/Jim Stettner)

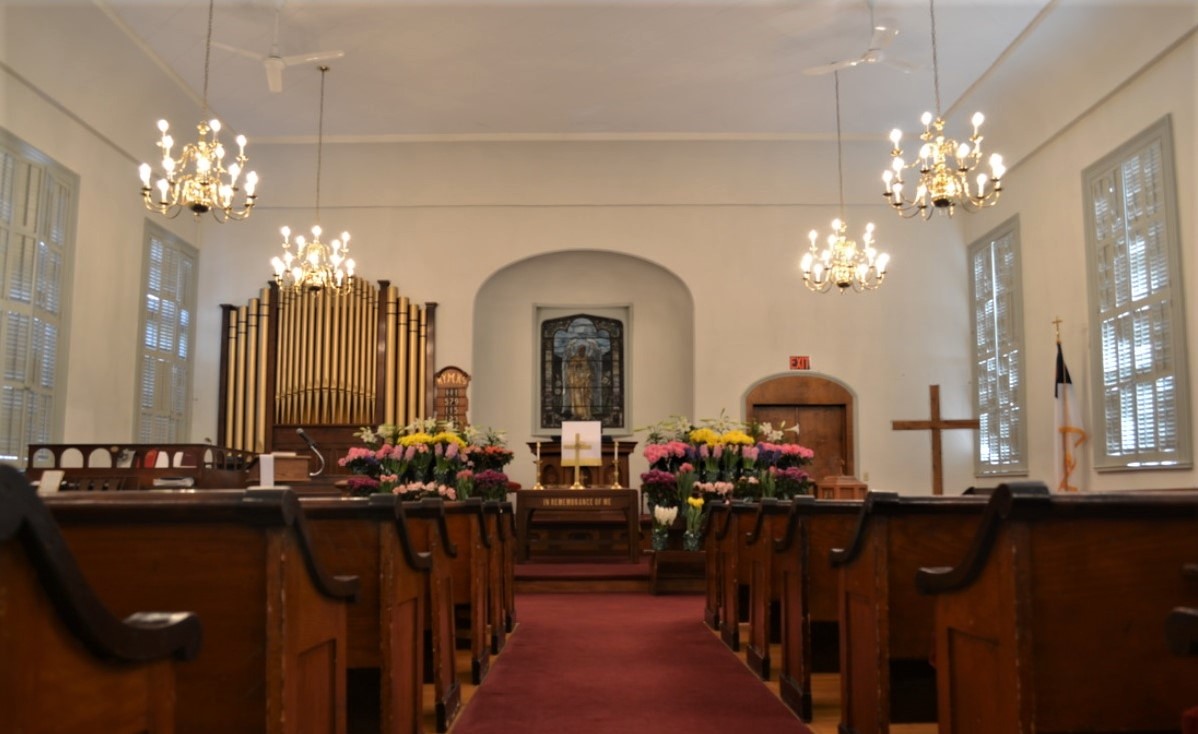

April, 2022 - Sanctuary interior showing organ at front, left. (Photograph from an archival source: Parish website, submitted by Jim Stettner/Jim Stettner)

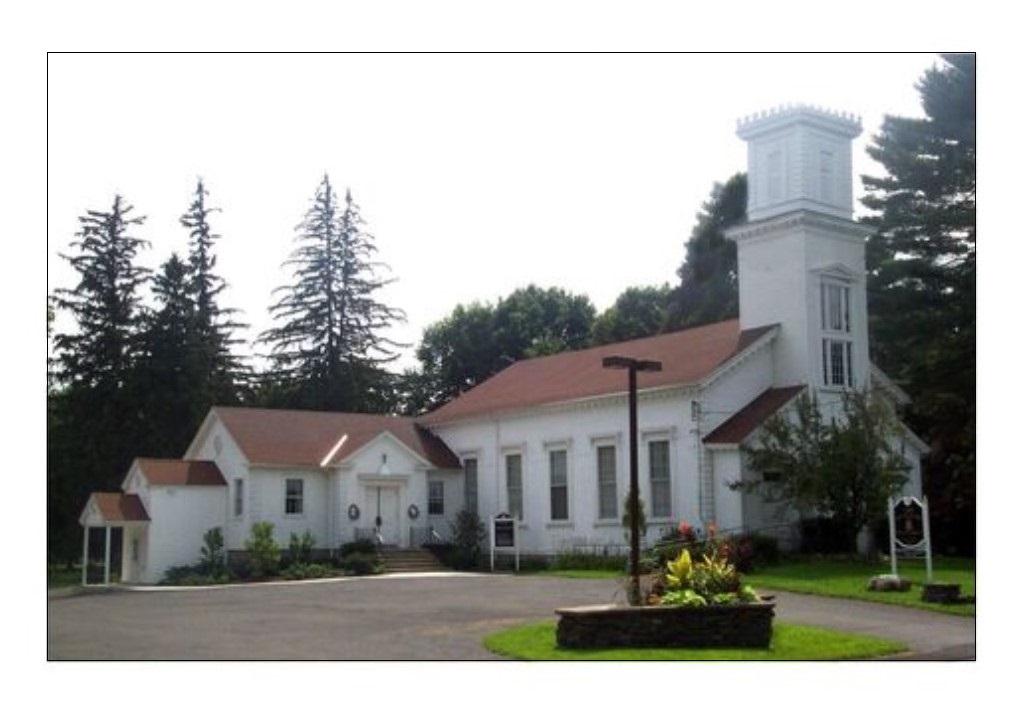

ca. 2020 - Church exterior (Photograph from an archival source: Parish website, submitted by Jim Stettner/Jim Stettner)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Left
- 2 manuals
- 5 stops
- 30 registers
- 2 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Stop Keys Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: None
Notes
2007-10-27 - Identified by James R. Stettner through information from the Estey Opus List, published in The Boston Organ Club newsletter, 1973-1979. -Database Manager
2022-07-29 - This organ retains the casework of the previous Estey organ (Opus 1491, 1916) and reportedly some of the pipework. -Jim Stettner
Stoplist
Source: Stoplist copied from photos of the console and stops July 30, 2022
New Scotland (Slingerlands), New York
New Scotland Presbyterian Church
Estey Organ Corporation, Opus 3205, 1952
GREAT (Expressive) SWELL (Expressive) PEDAL (Expressive)
16' Contra Viole 16' Bourdon 16' Bourdon
8' Diapason 8' Diapason 16' Gedeckt
8' Flute 8' Stopped Flute 10 2/3' Quint
8' Viole 8' Viole 8' Octave
4' Octave 8' Voix Celeste 8' Stopped Flute
4' Flute 4' Octave 8' Viole
4' Violina 4' Flute 4' Super Octave
2 2/3' Twelfth 4' Violina 8' Oboe
2' Super Octave 2 2/3' Nazard
8' Oboe 2' Flautino
Chimes 8' Oboe
Tremolo
STOP / RANK / PIPE ANALYSIS
16' Contra Viole (Gt) -- Tenor C. From 8' Viole.
16' Bourdon (Sw/Ped) 12 Extension of 8' Stopped Flute.
16' Gedeckt (Ped) -- 16' Bourdon on soft wind.
10 2/3' Quint (Ped) -- From the Bourdon unit.
8' Diapason (Sw/Gt) 61
8' Octave (Ped) -- Same as the 8' Diapason.
8' Stopped Flute (Sw/Ped) 61
8' Flute (Gt) -- Same as the 8' Stopped Flute.
8' Viole (Sw/Gt/Ped) 61
8' Voix Celeste (Sw) 49 Tenor C.
4' Octave (Sw/Gt) 12 Extension of the 8' Diapason.
4' Super Octave (Ped) -- Same as the 4' Octave.
4' Flute (Sw/Gt) 12 Extension of the 8' Stopped Flute.
4' Violina (Sw/Gt) 12 Extension of the 8' Viole.
2 2/3' Twelfth (Gt) 7 Extension of the 8' Diapason.
2 2/3' Nazard (Sw) 7 Extension of the 8' Stopped Flute.
2' Super Octave (Gt) 5 Extension of the 8' Diapason.
2' Flautino (Sw) 5 Extension of the 8' Stopped Flute.
8' Oboe (Sw/Gt/Ped) 61
Tremolo (Sw) Affects entire instrument.
Chimes (Gt) (2_)
PIPE SUMMARY
Diapason Stopped Flute Viole Voix Celeste Oboe
85 pipes 97 pipes 73 pipes 49 pipes 61 pipes
COUPLERS
None
FINGER PISTONS
None
TOE STUDS
None
PEDAL MOVEMENTS
Expression (bal.)
Crescendo (bal.)
ACTION: E-P unit VOICES: 5 STOPS: 30 RANKS: 5 PIPES: 365
