Better Pipe Organ Database

Vaughan Keyboard Service, Inc. (2004)

First Presbyterian Church
1051 Oak Ridge Turnpike
Oak Ridge, TN

Images

2021-07-26 - Church interior to rear (Photograph by Jeff Scofield/Jeff Scofield)

2021-07-26 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)

2021-07-26 - Console and exposed pipes (Photograph by Jeff Scofield/Jeff Scofield)

2021-07-26 - Swell and Pedal stopkeys (Photograph by Jeff Scofield/Jeff Scofield)

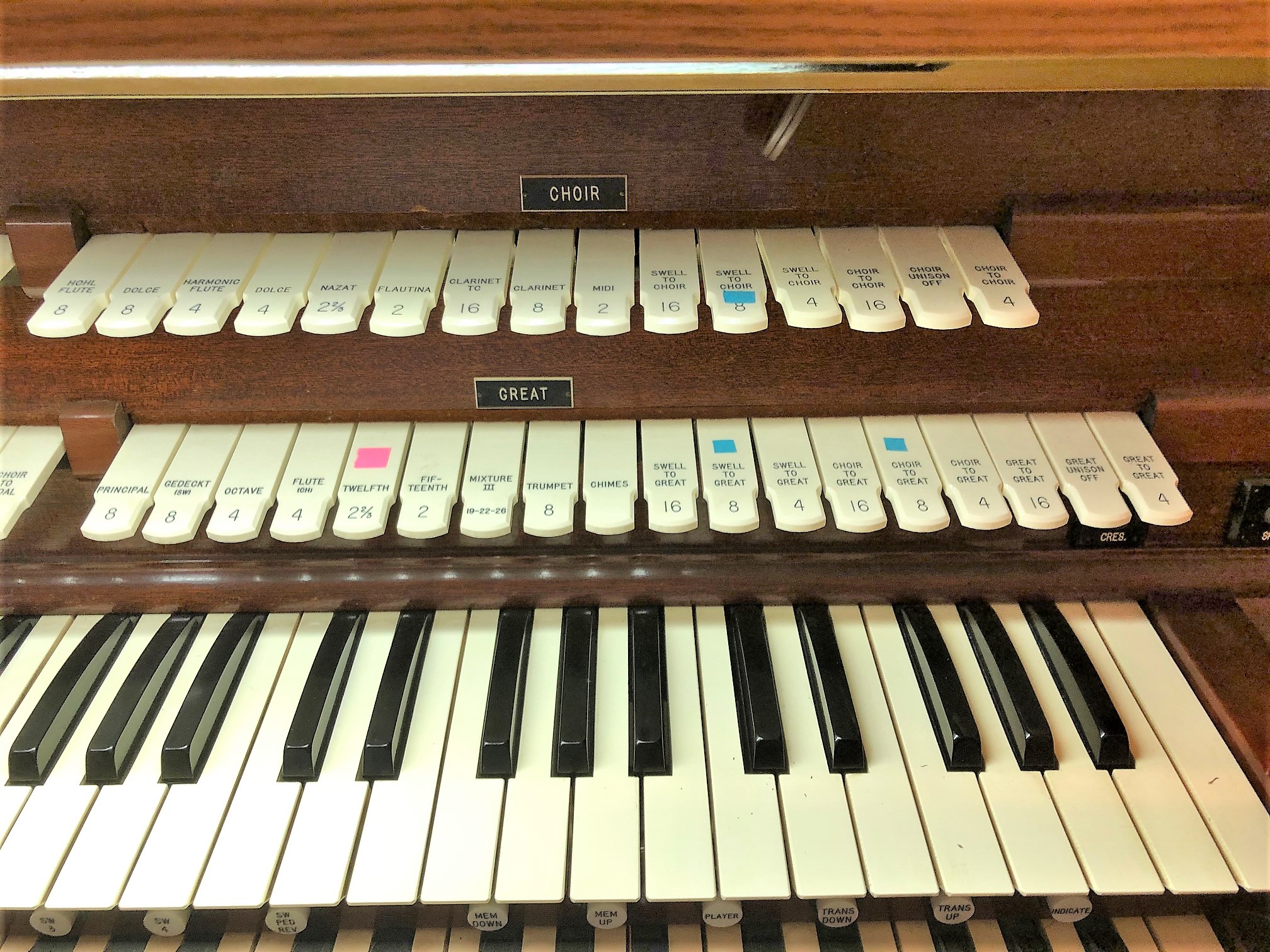

2021-07-26 - Great and Choir stopkeys (Photograph by Jeff Scofield/Jeff Scofield)

2021-07-26 - Console (Photograph by Jeff Scofield/Jeff Scofield)

2021-07-26 - Chancel and exposed pipes (Photograph by Jeff Scofield/Jeff Scofield)

2021-07-26 - Church interior (Photograph by Jeff Scofield/Jeff Scofield)

Unknown - Sanctuary interior with exposed pipework (Photograph by Jim Tonne/Database Manager)

Unknown - Exposed pipes in front of Swell and Choir chambers (Photograph by Jim Tonne/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
43 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2007-10-28 - Identified through online information from James R. Stettner. -- Organ Committee begins assessing organ in 2003 for major rebuild and upgrade. April 2004, organ removed. Room 100 used as "organ factory." New chests built for manual pipework. Hook & Hastings chests for Pedal 16' wood Open Diapason and 16' Bourdon retained and restored/releathered. Some pipes sent to makers for repair. By Sept. 2004, components installed, tested, and organ piped and playable. The new chromatic manual chests were installed with the tallest pipes at the back of the chamber and the smallest ones closest to the shutters to allow for the greatest, unobstructed tonal egress. Organ dedicated January 23, 2005. -Database Manager

Stoplist

Source: Taken from the console July 26, 2021

       Oak Ridge, Tennessee
       First Presbyterian Church

       Hook & Hastings         1921   Op. 2443
       Vaughan Keyboard Svcs   2004
       _______________________________________

       GREAT                    CHOIR
    8' Principal             8' Hohl Flute
    8' Gedeckt   CH          8' Dolce
    4' Octave                4' Harmonic Flute
    4' Flute     CH          4' Dolce
2 2/3' Twelfth           2 2/3' Nazat
    2' Fifteenth             2' Flautina
  III  Mixture    a         16' Clarinet    tc
    8' Trumpet               8' Clarinet
       Sub                      Sub
       Unison Off               Unison Off
       Super                    Super
       Chimes                   MIDI 2

       SWELL                    PEDAL
    8' Violin Diapason      32' Resultant
    8' Gedeckt              16' Open Diapason
    8' Salicional           16' Bourdon
    8' Voix Celeste         16' Gedeckt
    4' Prestant              8' Principal
    4' Flute                 8' Bass Flute
    2' Octavin               8' Fugara
    1' Flute                 4' Choralbass
   II  Sesquialtera          4' Flute
    8' Trompette             2' Octave
    8' Oboe                  8' Trompette
    4' Oboe                  4' Trompette
       Sub
       Unison Off
       Super
       MIDI 1                a  19-22-26

   [Received from Jeff Scofield July 26, 2021]
