St. Jacob Lutheran Church / First Lutheran Church: Sanctuary
213 E. Central Ave.
Miamisburg, OH
Images
2009-10-20 - Console (Photograph courtesy of Kim Izor/Database Manager)
2009-10-20 - Console (Photograph courtesy of Kim Izor/Database Manager)
2009-10-20 - Console, choir stalls, chamber grille/screen (Photograph courtesy of Kim Izor/Database Manager)
2009-10-20 - Chamber grille/screen (Photograph courtesy of Kim Izor/Database Manager)
2009-10-20 - Pipework: Pedal (Photograph courtesy of Kim Izor/Database Manager)
2009-10-20 - Pipework: Choir (Photograph courtesy of Kim Izor/Database Manager)

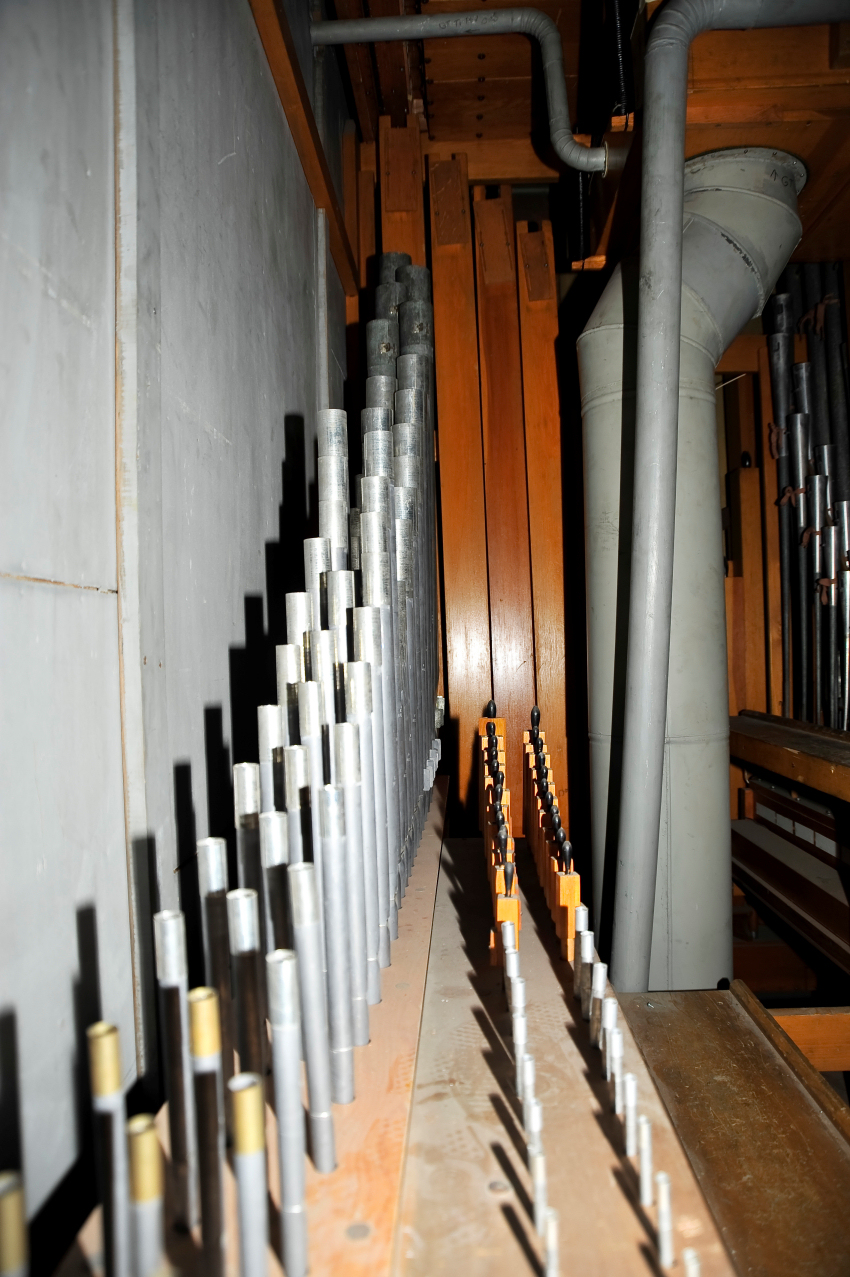

2009-10-20 - Pipework (Photograph courtesy of Kim Izor/Database Manager)
2009-10-20 - Pipework: Great (Photograph courtesy of Kim Izor/Database Manager)
2009-10-20 - Pipework: Swell (Photograph courtesy of Kim Izor/Database Manager)
2009-10-20 - Offset basses (Photograph courtesy of Kim Izor/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Right
- 3 manuals
- 64 registers
- Manual compass: 61 notes
- Pedal compass: 32 notes
Notes
2007-11-26 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager
2009-09-29 - Updated through on-line information from Kim Izor. -- Church name changed from St. Jacob to First, then back to St. Jacob. We have the original specs. and receipts. They contained 3 different Möller signatures. -Database Manager
2009-10-01 - 73-note manual chests, two pedal ranks (only) on 44-note chests. -Database Manager
Stoplist
Source: Taken from factory documents June 4th, 1927
Great Open Diapason 8 (61 Pipes), Doppel Floete 8 (73 Pipes), Melodia 8 (73 Pipes), Viole D'Gamba 8 (73 Pipes), Dulciana 8 (73 Pipes), Octave 4 (61 Notes (From 8' Open Diapason)), Flute Harmonic 4 (61 Notes (From Choir 8' Flute Harmonic)), Tuba 8 (61 Pipes)
Swell Bourdon 16 (97 Pipes (Unit)), Open Diapason 8 (73 Pipes), Gedeckt 8 (73 Notes (From 16' Bourdon), Viole D'Orchestre 8 (73 Pipes), Salicional 8 (73 Pipes), Vox Celeste (T.C) 8 (61 Pipes), Orchestral Flute 4 (73 Notes (From 16' Bourdon)), Salicet 4 (61 Notes (From 8' Salicional)), Flute Twelfth 2-2/3 (61 Notes), Flautina 2 (61 Notes), Oboe 8 (73 Pipes), Vox Humana 8 (73 Pipes)
Choir English Open Diapason 8 (73 Pipes), Flute Harmonic 8 (73 Pipes), Doppel Floete 8 (73 Notes (From Great)), Dulciana 8 (73 Notes (From Great)), Viole D'Gamba 8 (73 Notes (From Great)), Flute Traverso 4 (61 Notes (Fron Great 8' Melodia)), Clarinet 8 (61 Pipes)
Pedal Resultant 32 (32 Notes), Open Diapason 16 (44 Pipes), Bourdon 16 (44 Pipes), Lieblich Gedeckt 16 (32 Notes (From Swell 16' Bourdon)), Octave 8 (32 Notes (From 16' Open Diapason)), Flute 8 (32 Notes (From 16' Bourdon)), Violoncello 8 (32 Notes (From Great 8' Viole D'Gamba))
