Alfred Kern et Fils (1986)

Images

2017-08-22 - Builder's plate (Photograph from an archival source: Southern Methodist University Organ Dept. Facebook page, submitted by Jim Stettner/Jim Stettner)

2017-08-22 - Pedalboard and hitch-down couplers (Photograph from an archival source: Southern Methodist University Organ Dept. Facebook page, submitted by Jim Stettner/Jim Stettner)

2017-08-22 - Pedal stops (Photograph from an archival source: Southern Methodist University Organ Dept. Facebook page, submitted by Jim Stettner/Jim Stettner)

2017-08-22 - Manual II stops (Photograph from an archival source: Southern Methodist University Organ Dept. Facebook page, submitted by Jim Stettner/Jim Stettner)

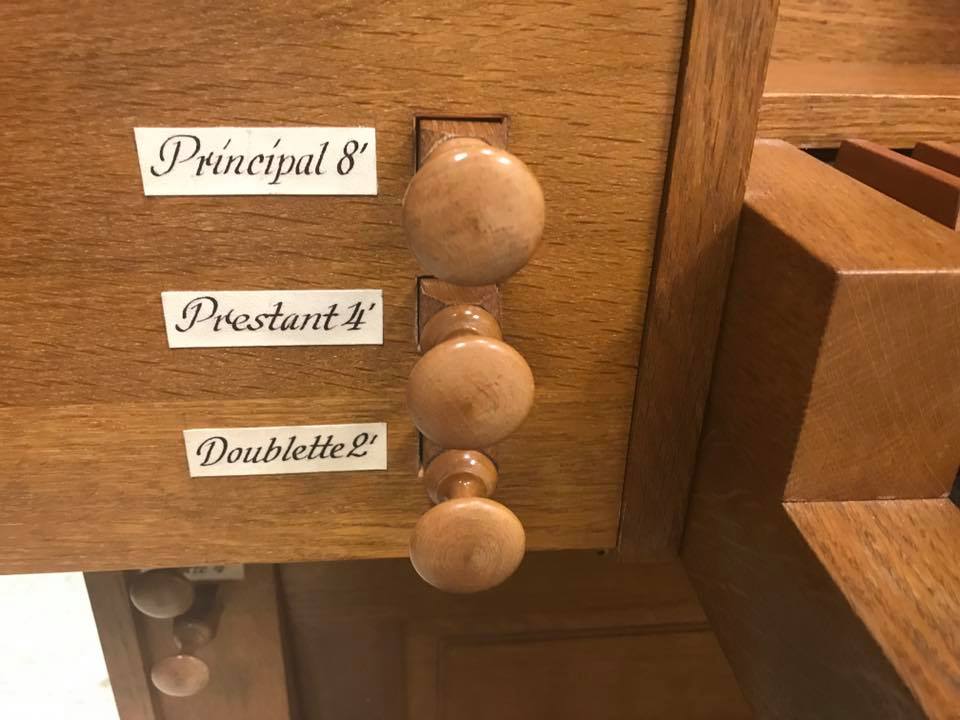

2017-08-22 - Manual I stops (Photograph from an archival source: Southern Methodist University Organ Dept. Facebook page, submitted by Jim Stettner/Jim Stettner)

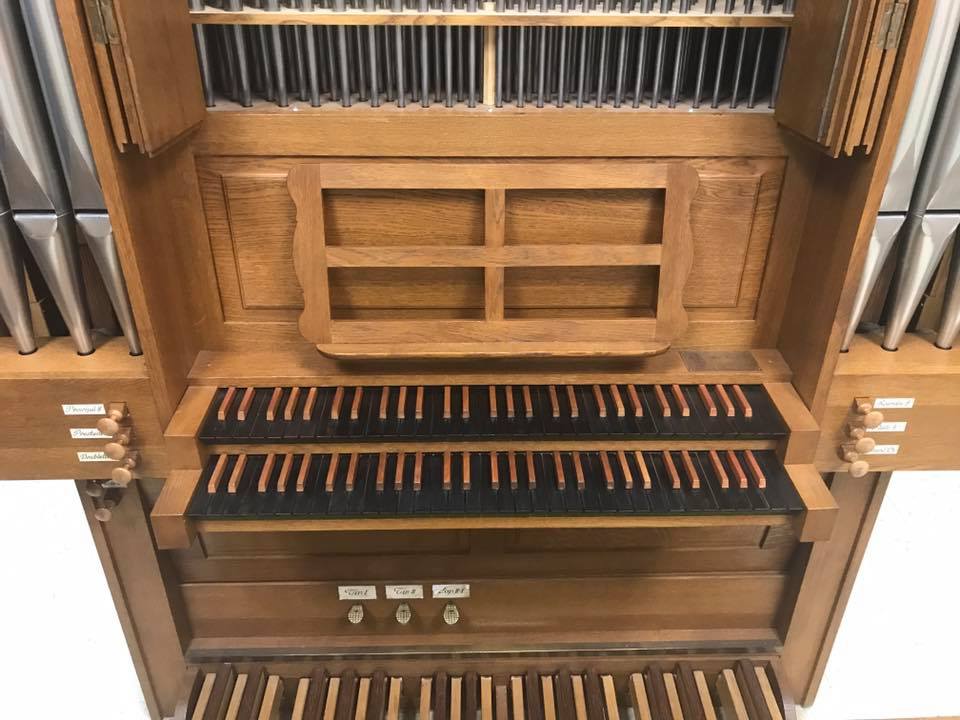

2017-08-22 - Keydesk (Photograph from an archival source: Southern Methodist University Organ Dept. Facebook page, submitted by Jim Stettner/Jim Stettner)

2017-08-22 - Organ case and keydesk (Photograph from an archival source: Southern Methodist University Organ Dept. Facebook page, submitted by Jim Stettner/Jim Stettner)

Consoles

Main

• Organ type: Traditional Without Cover
• Console position: Keydesk Attached
• 2 manuals
• 8 stops
• 8 registers
• 3 divisions
• Key action Type: Mechanical (Details Unknown)
• Stop action Type: Mechanical
• Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
• Manual compass: 61 notes
• Pedal compass: 32 notes
• Pedal Type: Flat Straight
• Expression Type: No Enclosed Divisions
• Combination action: None
• Has hitchdown couplers

Notes

2004-10-30 - Two of these organs. -Database Manager

Stoplist

Source: Stoplist copied from August 2017 photos of the keydesk January 12, 2023

Dallas, Texas
Southern Methodist University

Alfred Kern et Fils (1986)

       MANUAL I
8'     Principal
4'     Prestant
2'     Doublette

       MANUAL II
8'     Bourdon
4'     Flûte
2 2/3' Nazard

       PEDAL
8'     Flûte
4'     Flûte

       COUPLERS
Tir. I
Tir. II

op. II-I
