Better Pipe Organ Database

Schantz Organ Co. Opus 2321 (2014)

Sistersville Presbyterian Church: Sanctuary
801 Chelsea St.
Sistersville, WV

Images

2021-06-01 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Unknown - Console (Photograph courtesy of the Schantz Organ Company (2014)/Database Manager)

Unknown - Wood Pipes being reconditioned (Photograph courtesy of the Schantz Organ Company (2014)/Database Manager)

2014-11-04 - Organ Case (Photograph by Jeffrey Dexter/Database Manager)

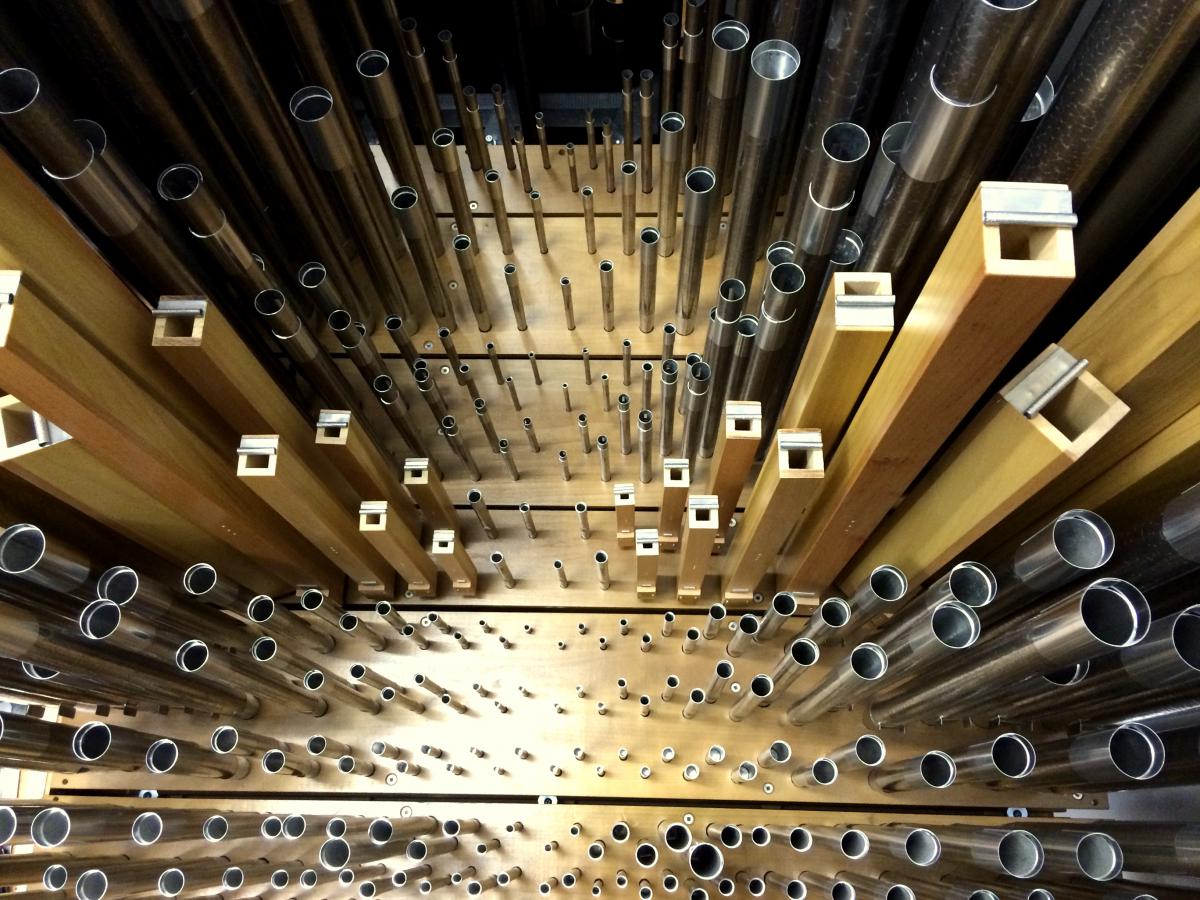

2014-11-04 - Great Pipework (Photograph by Jeffrey Dexter/Database Manager)

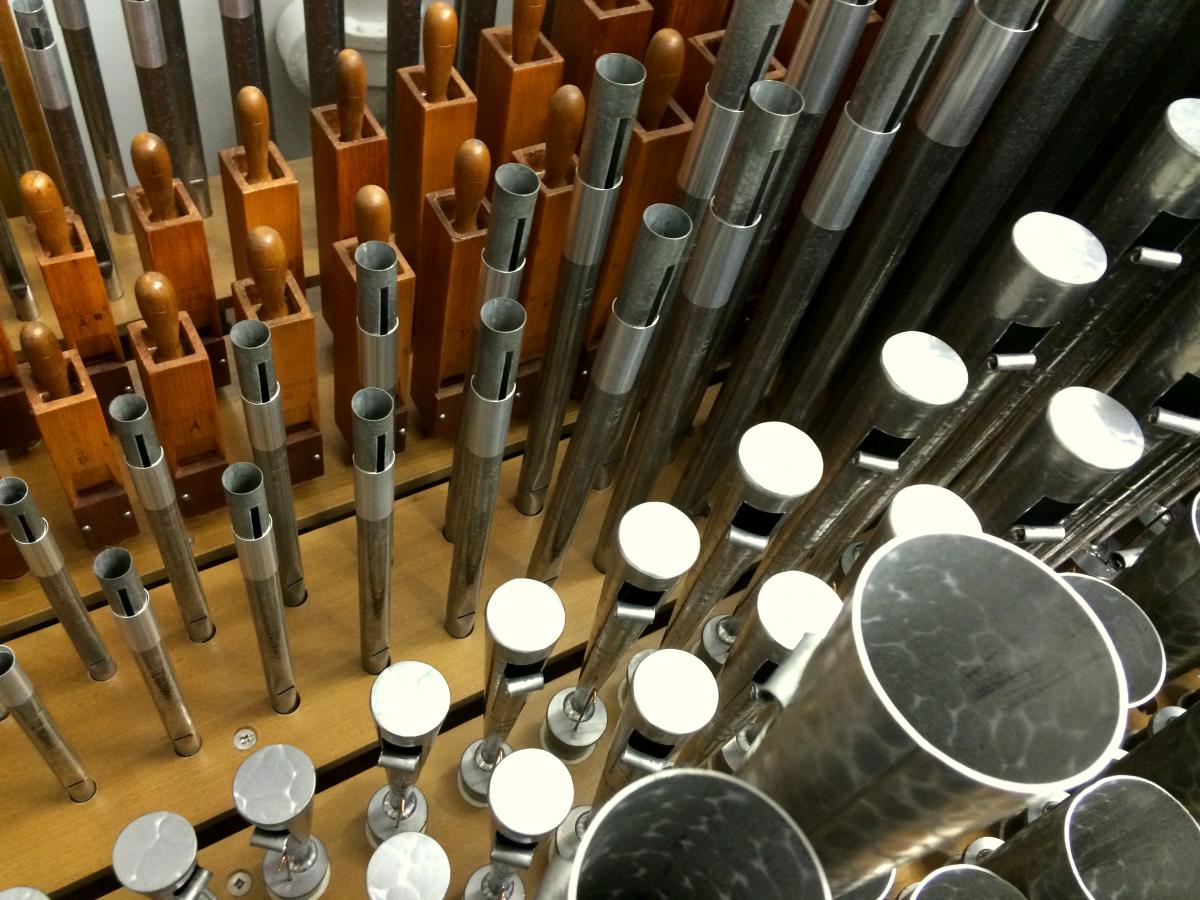

2014-11-04 - Swell Pipework (Photograph by Jeffrey Dexter/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Left
2 manuals
21 stops
38 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has sequencer
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-12-11 - Utilized pipework from Moller Op. M-13656 (1934-1967-1987) -Database Manager

2014-11-20 - Updated through online information from Jeffrey Dexter. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

    Sistersville, West Virginia
    Sistersville Presbyterian Church

    Schantz   2014   2/26
    _____________________________________________________________________________

    New pipework unless otherwise indicated

    GREAT                       SWELL                         PEDAL
 8' Open Diapason 61        16' Lieblich Bourdon 61 b     32' Resultant        --
 8' Clarabella    61         8' Geigenprincipal  61 c     16' Diapason         32 f
 8' Dulciana      61 a       8' Bourdon          12 b     16' Bourdon          32 g
 8' Unda Maris    49 a       8' Saliiconal       61 d     16' Lieblich Bourdon SW
 4' Principal     61         8' Voix Celeste     49 d      8' Octave           12 f
 4' Chimney Flute 61         8' Unda Maris II    GT        8' Bourdon          12 h
 2' Fifteenth     61         4' Octave           61        8' Lieblich Gedeckt SW
IV  Mixture      244         4' Harmonic Flute   61        4' Fifteenth        12 f
 8' Trumpet       SW     2 2/3' Nasard           61 e      4' Open Flute       12 h
    Sub                      2' Recorder         61       16' Double Trumpet   12 SW
    Unison Off           1 3/5' Tierce           61 e     16' Flugel Horn      SW
    Super                  III  Plein Jeu       183        8' Trumpet          SW
    Chimes        25        16' Flugel Horn      61        4' Corno d'Amor     SW
                             8' Trumpet          61 b
                             8' Corno d'Amor     12
                             4' Clarion          12
                                Tremulant
                                Sub
                                Unison Off
                                Super

 a  existing, enclosed in Swell
 b  existing Swell pipework
 c  existing Swell 4' plus 12 bass pipes
 d  existing Choir pipework
 e  from existing
    Sesquialtera
 f  existing Pedal/Great
 g  existing Bourdon 1-32
 h  existing SW Hohlflöte 33-56

                   [Received online from Jeff Scofield March 15, 2014]
