Better Pipe Organ Database

M. P. Möller Opus 5958 (1931)

Shrine of the Little Flower Roman Catholic Church
824 Kentucky Ave.
San Antonio, TX

Images

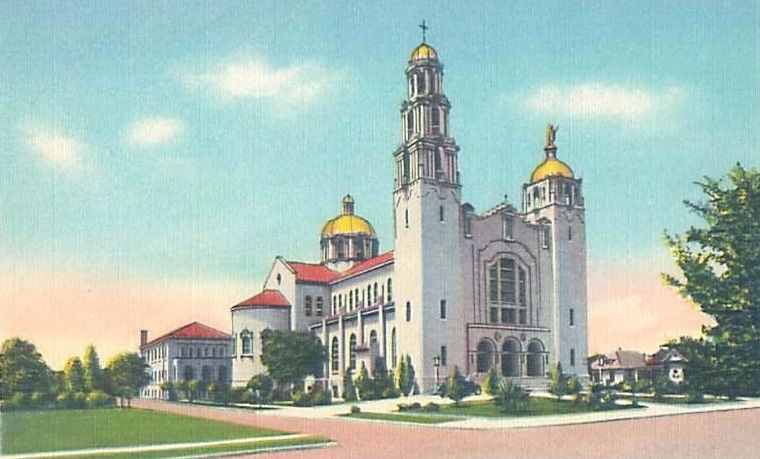

Unknown - Church Exterior (Vintage Postcard; image courtesy of T. Bradford Willis (ca. 1930)/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
3 manuals
19 stops
36 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has coupler toe pistons

Notes

2007-12-14 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       San Antonio, Texas
       Basilica of the Shrine of the Little Flower

       Möller   Op. 5958   1931   3/19
       _________________________________________________

       GREAT (encl w/CH)            CHOIR
   16' Dbl Open Diapason 12      8' Violine Diapason  73
    8' 1st Open Diapason 73      8' Melodia           73
    8' 2nd Open Diapason 12      8' Viola             GT
    8' Viola da Gamba    73      8' Dulciana          73
    8' Gross Flute       73      8' Unda Maris        61
    8' Melodia           CH      4' Flute Harmonic    GT
    8' Dulciana          CH      8' Clarinet          73
    4' Octave Diapason   12         Tremolo
    4' Flute Harmonic    61         Sub
    8' Harmonic Trumpet  61         Unison Off
       Tremolo                      Super
       Sub
       Unison Off                   ECHO (prepared for)
       Super                     8' Muted Viole
       Cathedral Chimes  21      8' Viole Celeste
                                 8' Echo Flute
       SWELL                     4' Echo Violine
   16' Bourdon           61      4' Fern Flute
    8' Open Diapason     73      8' Vox Humana
    8' Stopped Diapason  12         Tremolo
    8' Viole d'Orchestra 73         Cathedral Chimes
    8' Viole Celeste     61
    8' Salicional        73         PEDAL
    4' Orchestral Flute  12     32' Bourdon Resultant --
    4' Violine           --     16' Dbl Open Diapason GT
2 2/3' Flute Quint        7     16' Bourdon           32
    2' Piccolo            5     16' Lieblich Gedeckt  SW
    8' Oboe              73      8' Octave            GT
    8' Vox Humana        73      8' Pedal Flute       12
       Tremolo                   8' Trumpet           GT
       Sub
       Unison Off
       Super

   [Received online from Jeff Scofield September 18, 2013]

Documents

(1931-03-19) Factory Documentation Factory Documentation courtesy of the OHS Archive -Roman Lizak
