M. P. Möller Opus 6057 (1931)

First Trinity Lutheran Church
920 Wells Street
Marinette, WI

Images

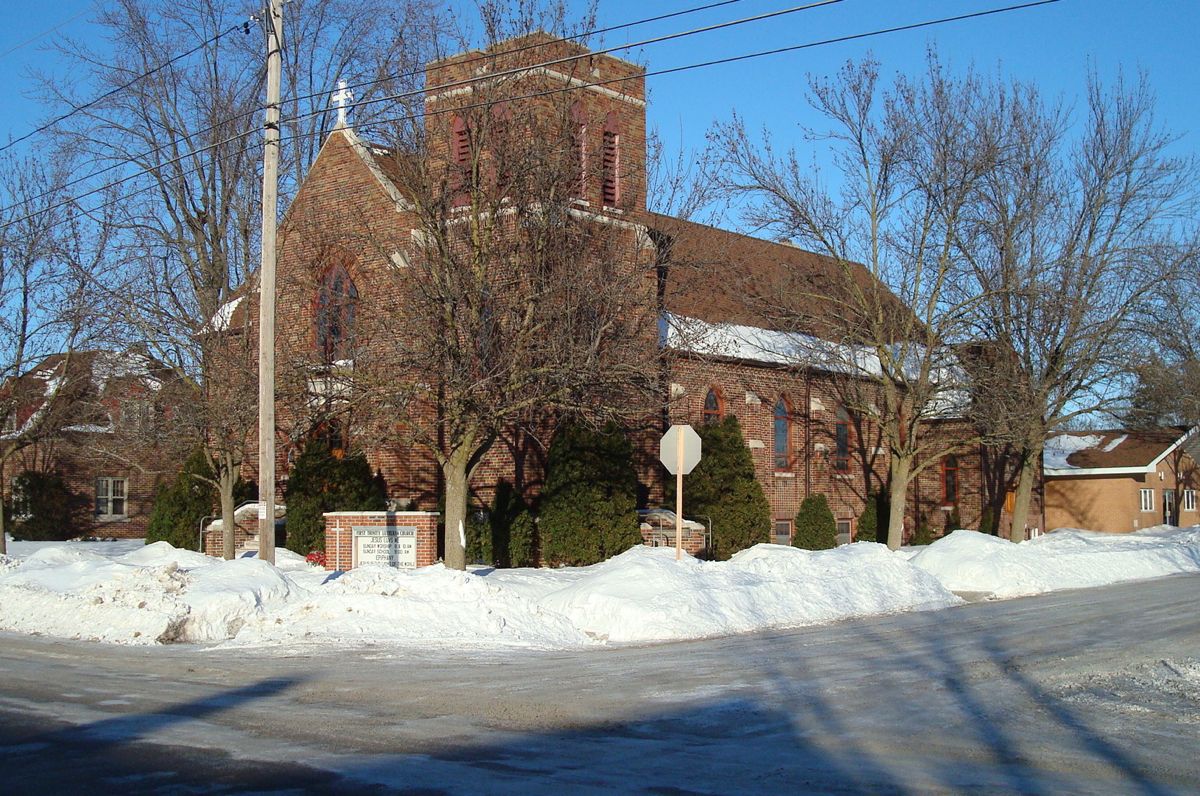

2014-02-07 - Church Exterior (Photograph by Rodney J. Weed/Database Manager)

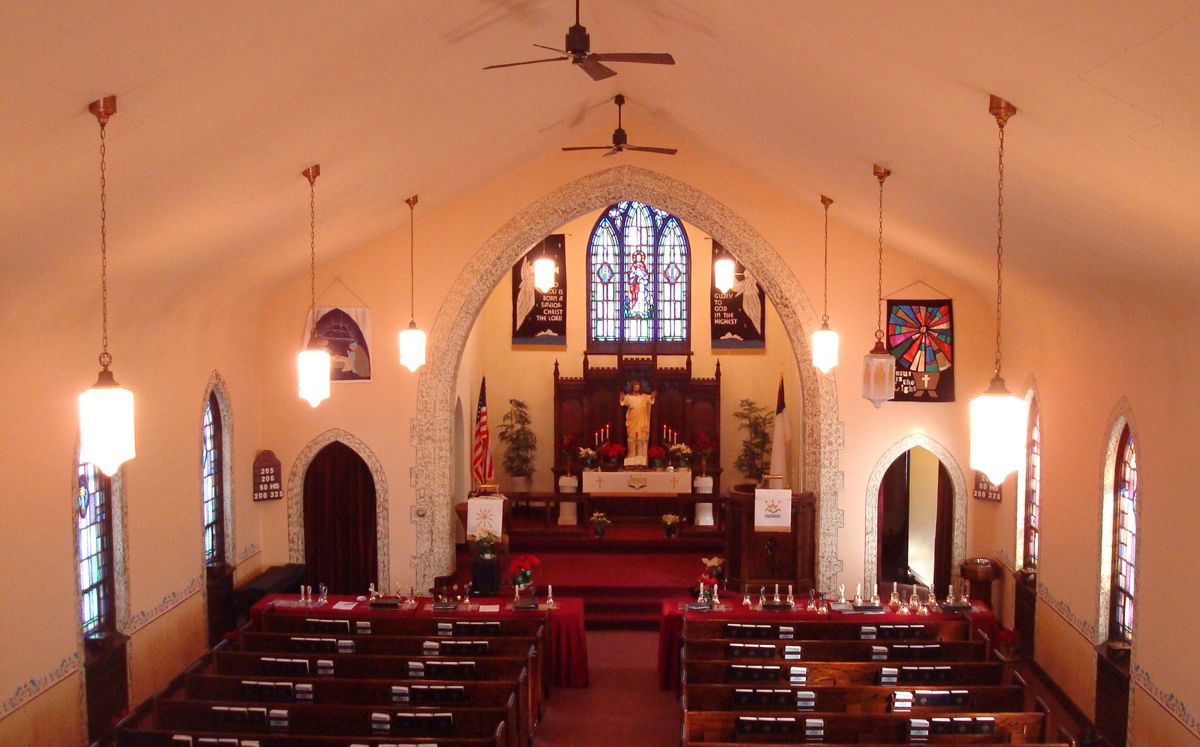

2014-02-07 - Sanctuary Interior and Chancel (Photograph by Rodney J. Weed/Database Manager)

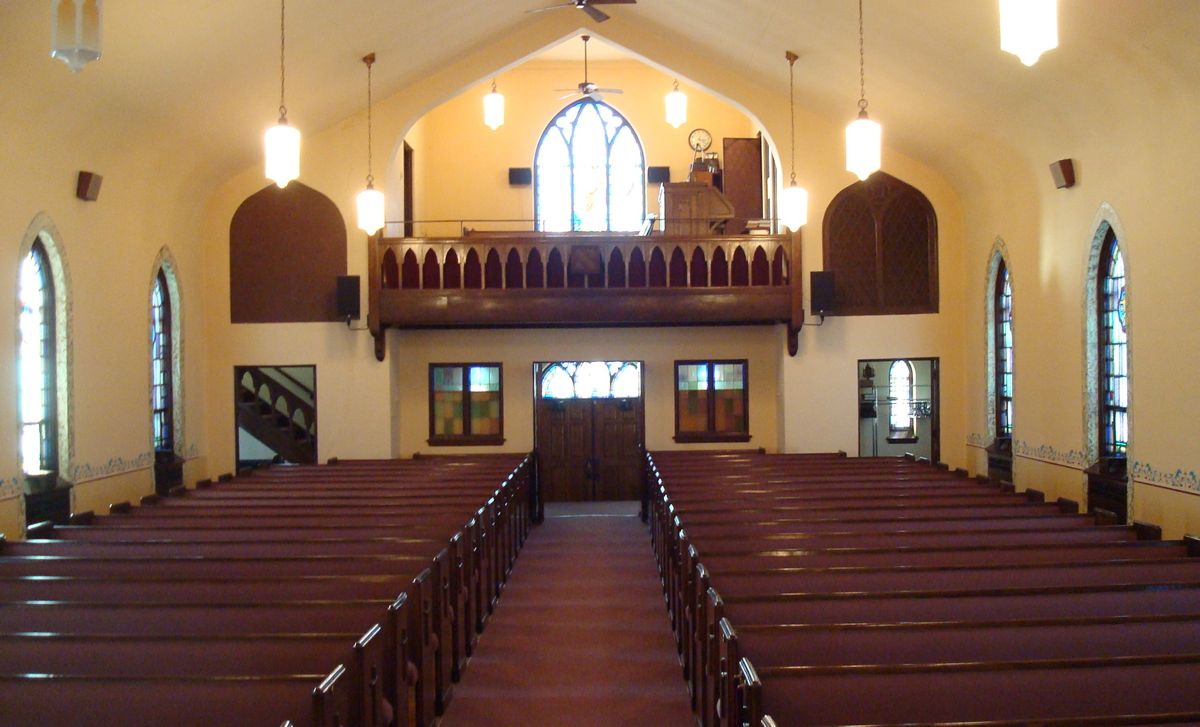

2014-02-07 - Nave, Balcony, and Chamber Grillework (Photograph by Rodney J. Weed/Database Manager)

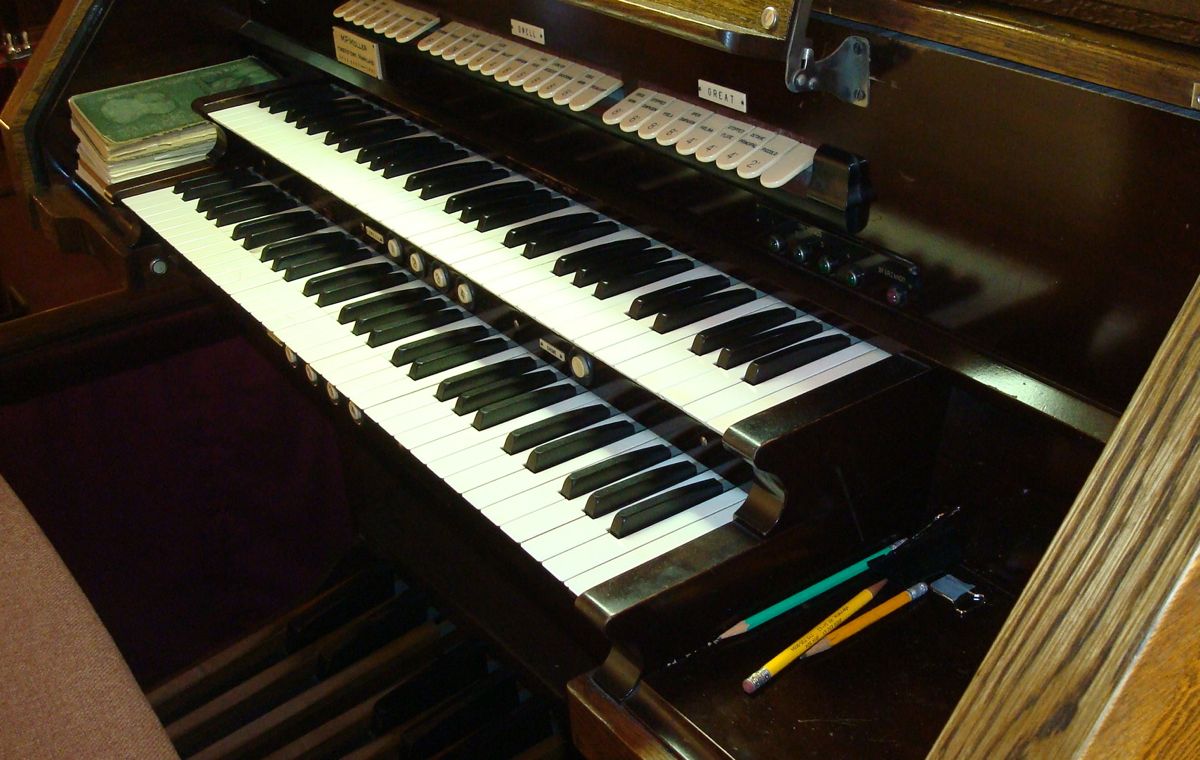

2014-02-07 - Console (Photograph by Rodney J. Weed/Database Manager)

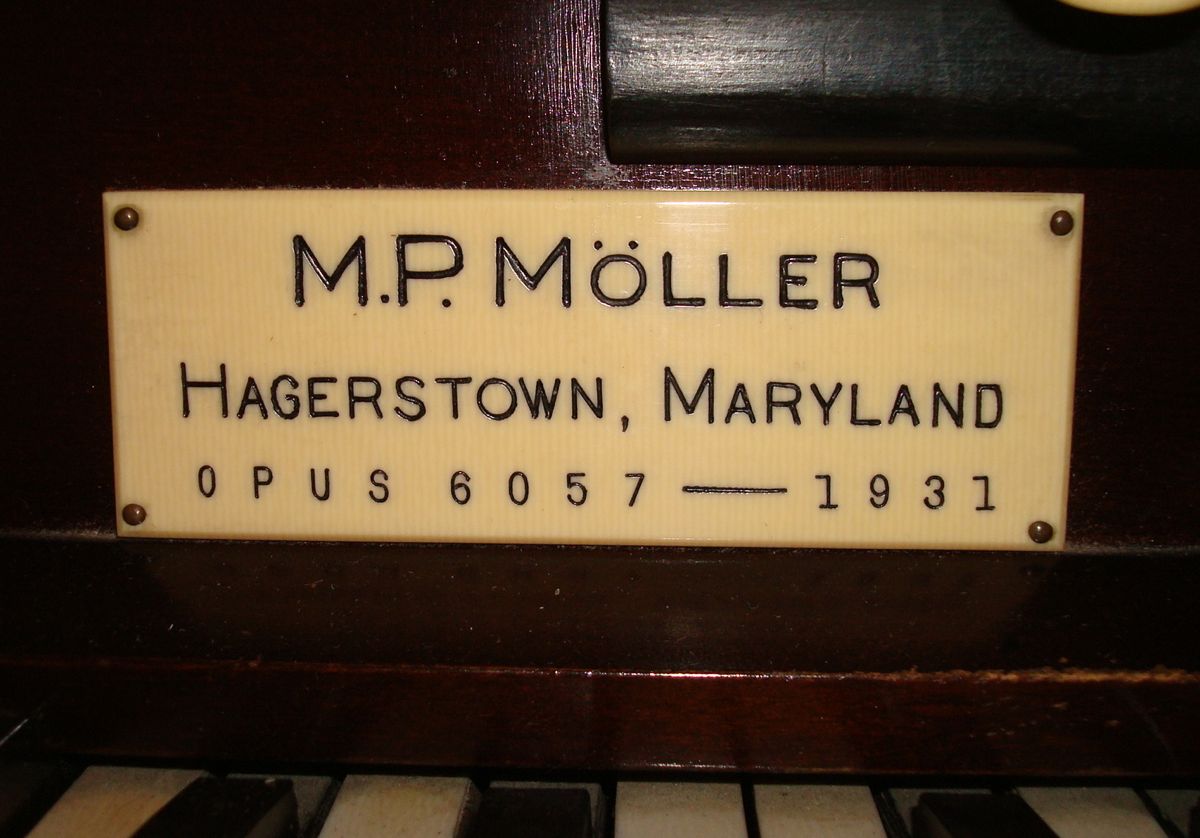

2014-02-07 - Builder's Nameplate (Photograph by Rodney J. Weed/Database Manager)

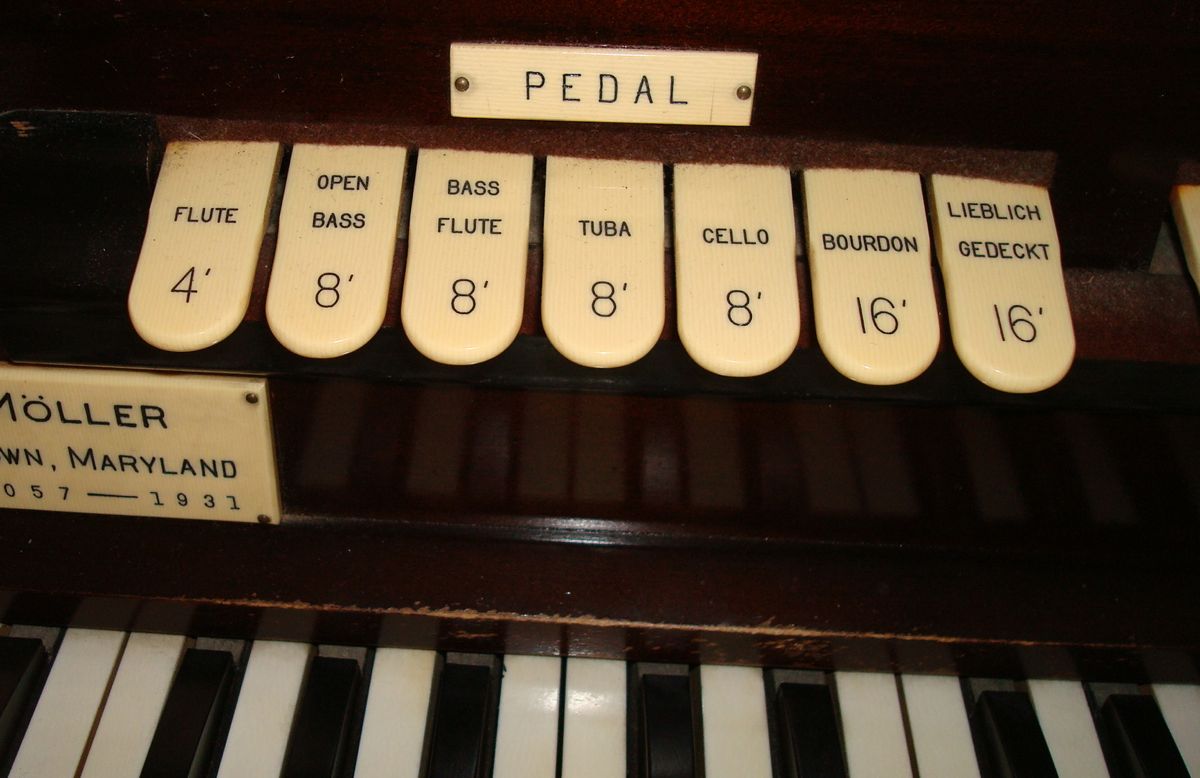

2014-02-07 - Pedal Stopkeys (Photograph by Rodney J. Weed/Database Manager)

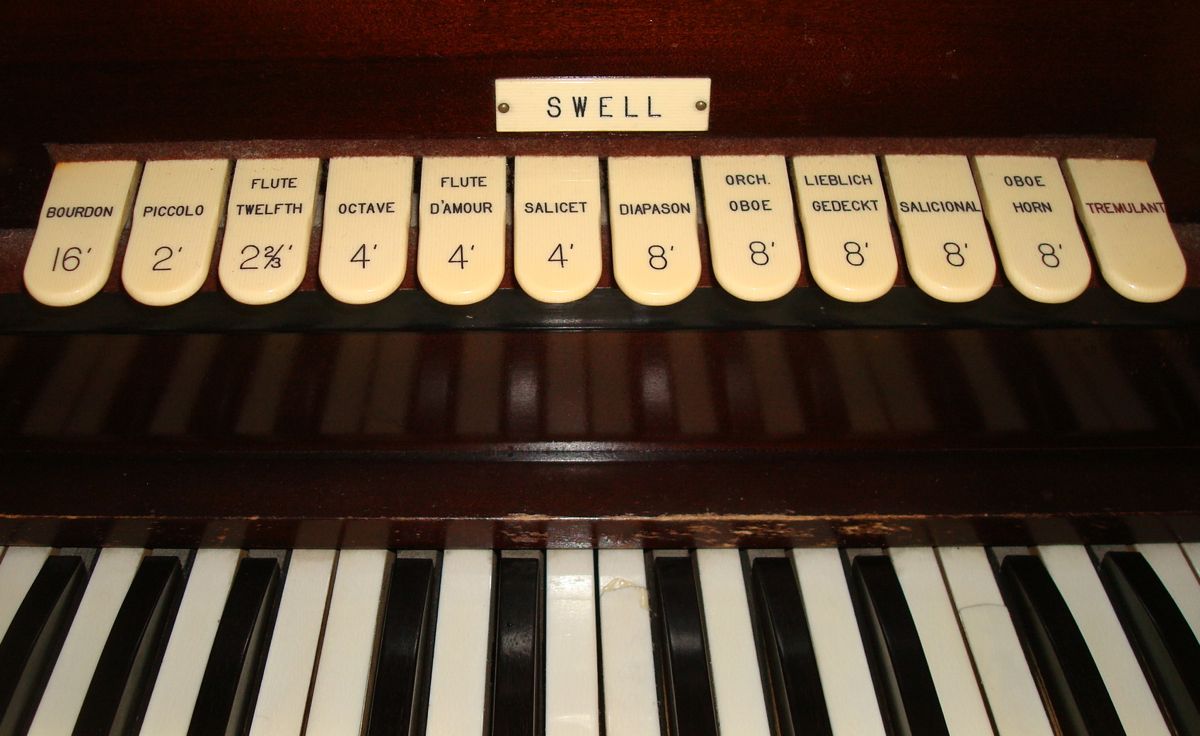

2014-02-07 - Swell Stopkeys (Photograph by Rodney J. Weed/Database Manager)

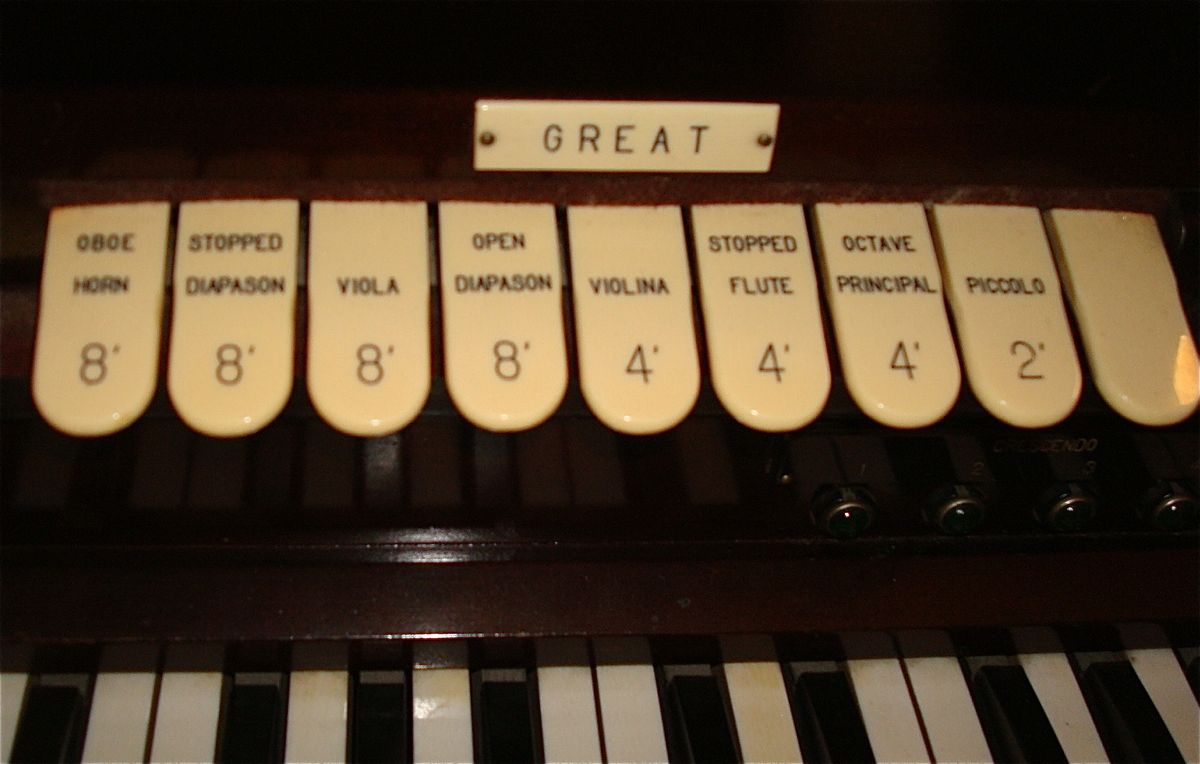

2014-02-07 - Great Stopkeys (Photograph by Rodney J. Weed/Database Manager)

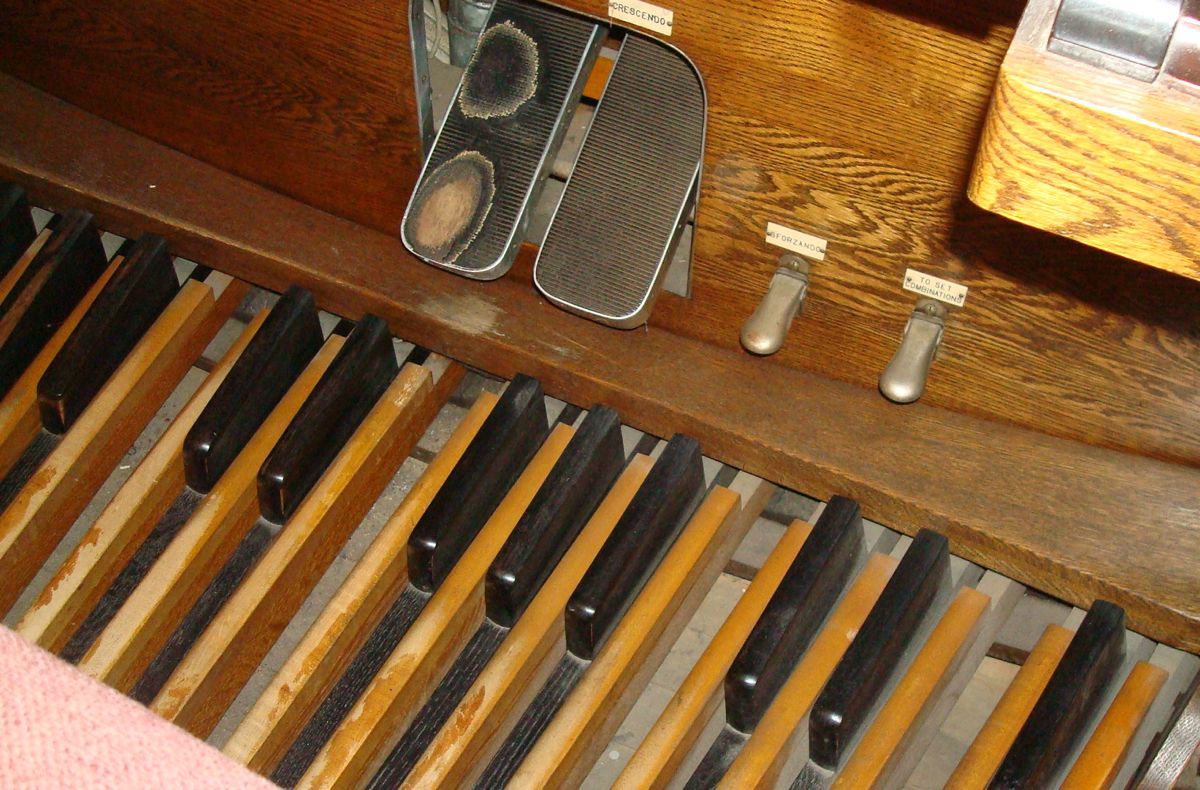

2014-02-07 - Pedalboard, Toe Levers, and Swell Pedal (Photograph by Rodney J. Weed/Database Manager)

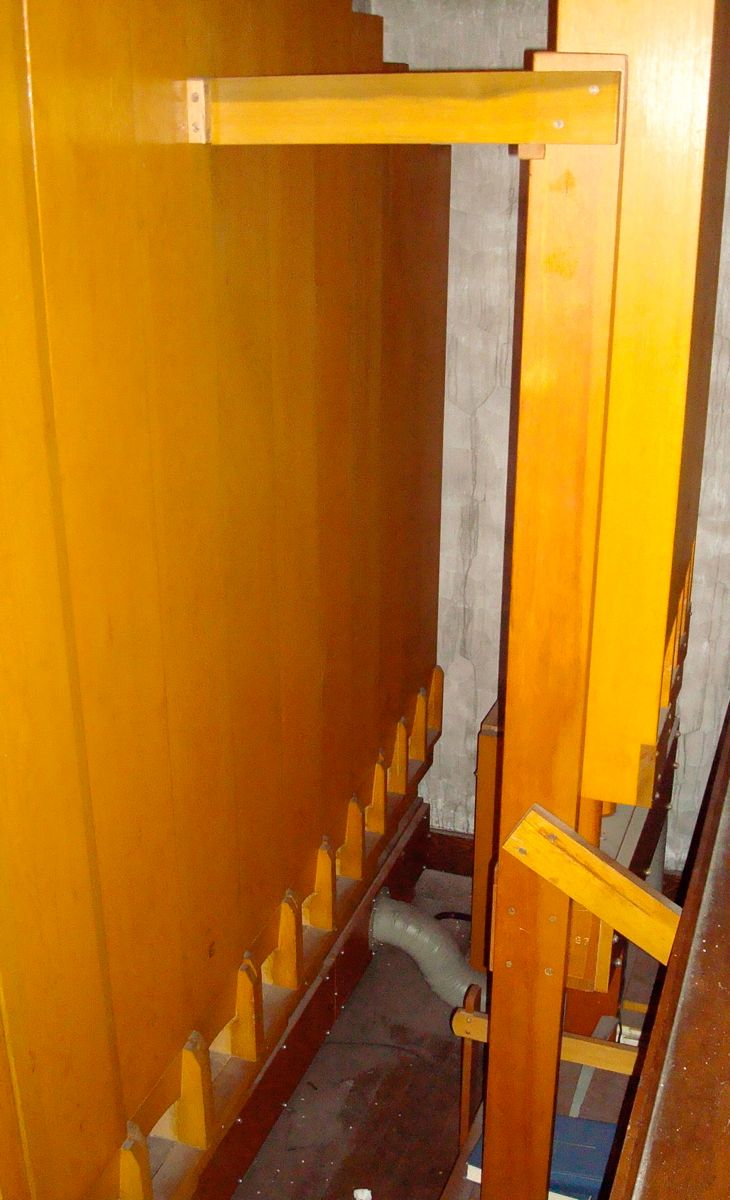

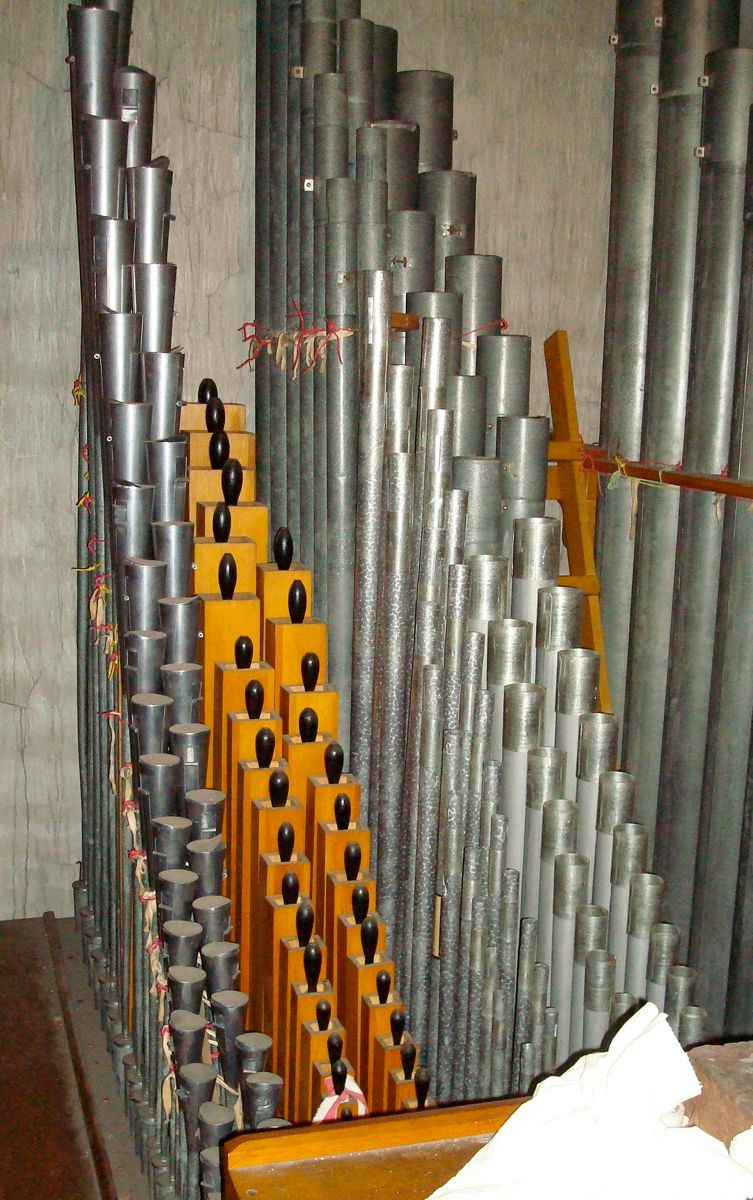

2014-02-07 - Pipework (Photograph by Rodney J. Weed/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Left
2 manuals
5 stops
26 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Mechanical
Has combination thumb pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-12-14 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2014-02-08 - Updated through online information from Rodney J. Weed. -Database Manager

2014-02-09 - Updated through online information from Rodney J. Weed. -Database Manager

Stoplist

Stplist taken from the console February 7, 2014 Source: Source not recorded Date not recorded

Marinette, Wisconsin  USA
First Trinity Lutheran Church   920 Wells Street

Möller Organ Company 1931  Opus 6057
26 speaking stops,  4 Ranks,  292 pipes


PEDAL ORGAN enclosed

1.  4'    Flute (SW 8)                      32 Notes
2.  8'    Open Bass (SW 14)                 32 Notes
3.  8'    Bass Flute (SW 8)                 32 Notes
4.  8'    Tuba (SW 18)                      32 Notes
5.  8'    Cello (SW 17)                     32 Notes
6. 16'   Bourdon (SW 8)                     32 Notes
7. 16'   Lieblich Gedeckt (SW 8)            32 Notes


SWELL ORGAN enclosed

8. 16'    Bourdon                           85 Pipes
9.  2'     Piccolo (SW 8)                   61 Notes
10. 2 2/3'  Flute Twelfth (SW 8)            61 Notes
11.  4'   Octave (SW 14)                    61 Notes
12.  4'   Flute D'Amour                     61 Notes
13.  4'   Salicet (SW 17)                   61 Notes
14.  8'   Diapason                          73 Pipes
15.  8'   Orch. Oboe (Syn SW 17+10)         61 Notes
16.  8'   Lieblich Gedeckt (SW 8)           61 Notes
17.  8'   Salicional                        73 Pipes
18.  8'   Oboe Horn                         61 Pipes
19.        Tremulant (to effect entire organ)


GREAT ORGAN enclosed

20.  8'   Oboe Horn (SW 18)                 61 Notes
21.  8'   Stopped Diapason (SW 8)           61 Notes
22.  8'   Viola (SW 17)                     61 Notes
23.  8'   Open Diapason (SW 14)             61 Notes
24.  4'   Violina (SW 17)                   61 Notes
25.  4'   Stopped Flute (SW 8)              61 Notes
26.  4'   Octave Principal (SW 14)          61 Notes
27.  2'   Piccolo (SW 8)                    61 Notes
28.        Blank



ACCESSORIES

Expression Pedal
Crescendo Pedal and Indicator Light
Wind Indicator Light
On-Off Switch Mounted on Console
Indirect Console Illumination
Pedal Illumination
Music Rack
Music Light
Roll Top Cover for Console
Organ bench with music compartment
Motor, Blower and Generator Unit


 [Received from Rodney J. Weed 2014-02-09.]
