Better Pipe Organ Database

Milnar Organ Co. (1992)

Church of the Nativity, Episcopal: Sanctuary
208 Euclid Ave. SE
Huntsville, AL

Images

2021-09-28 - Builder nameplate (Photograph by Jeff Scofield/Jeff Scofield)

2021-09-28 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)

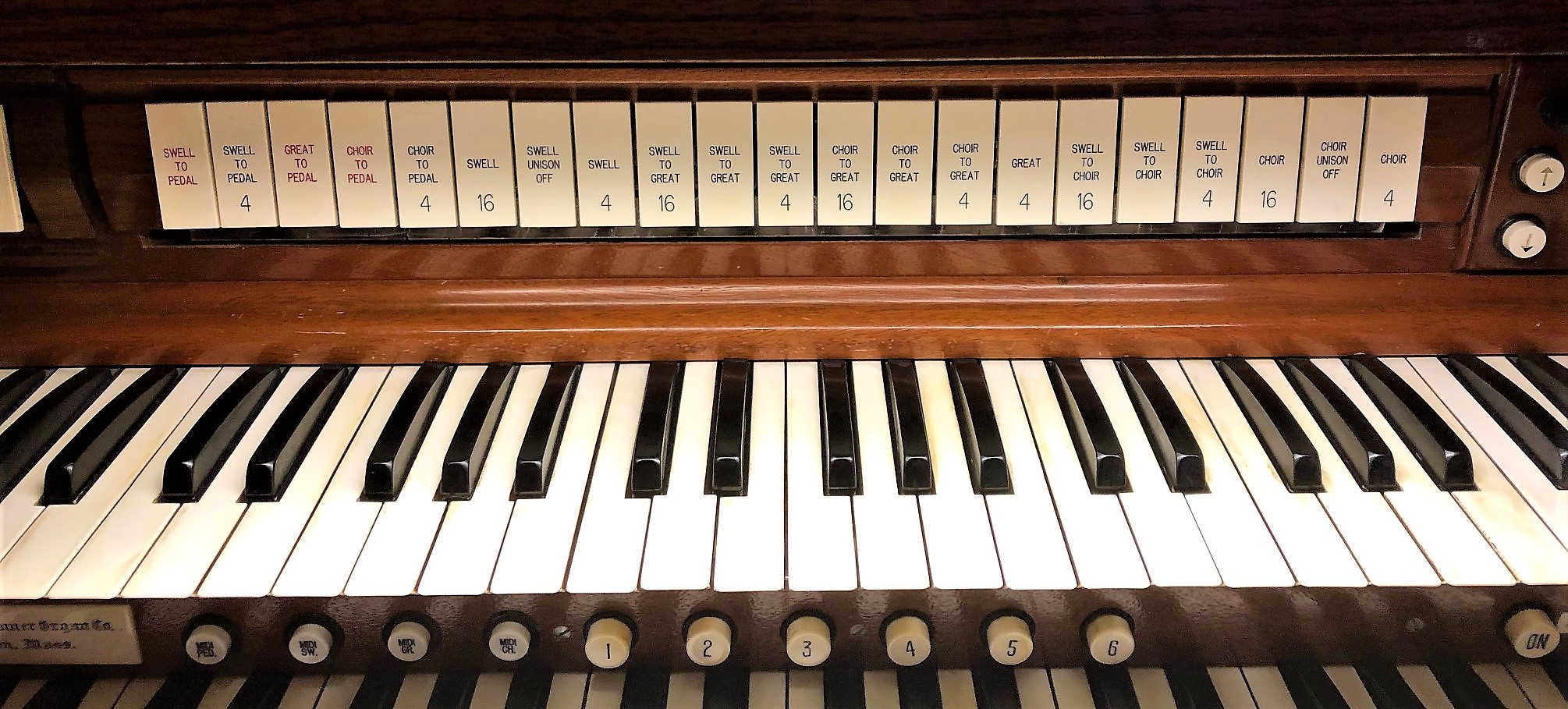

2021-09-28 - Couplers (Photograph by Jeff Scofield/Jeff Scofield)

2021-09-28 - Miscellaneous stops (Photograph by Jeff Scofield/Jeff Scofield)

2021-09-28 - Right stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

2021-09-28 - Left stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

2021-09-28 - Console (Photograph by Jeff Scofield/Jeff Scofield)

2021-09-28 - Organ chamber and exposed pipes (Photograph by Jeff Scofield/Jeff Scofield)

2021-09-28 - Chancel and pipework (Photograph by Jeff Scofield/Jeff Scofield)

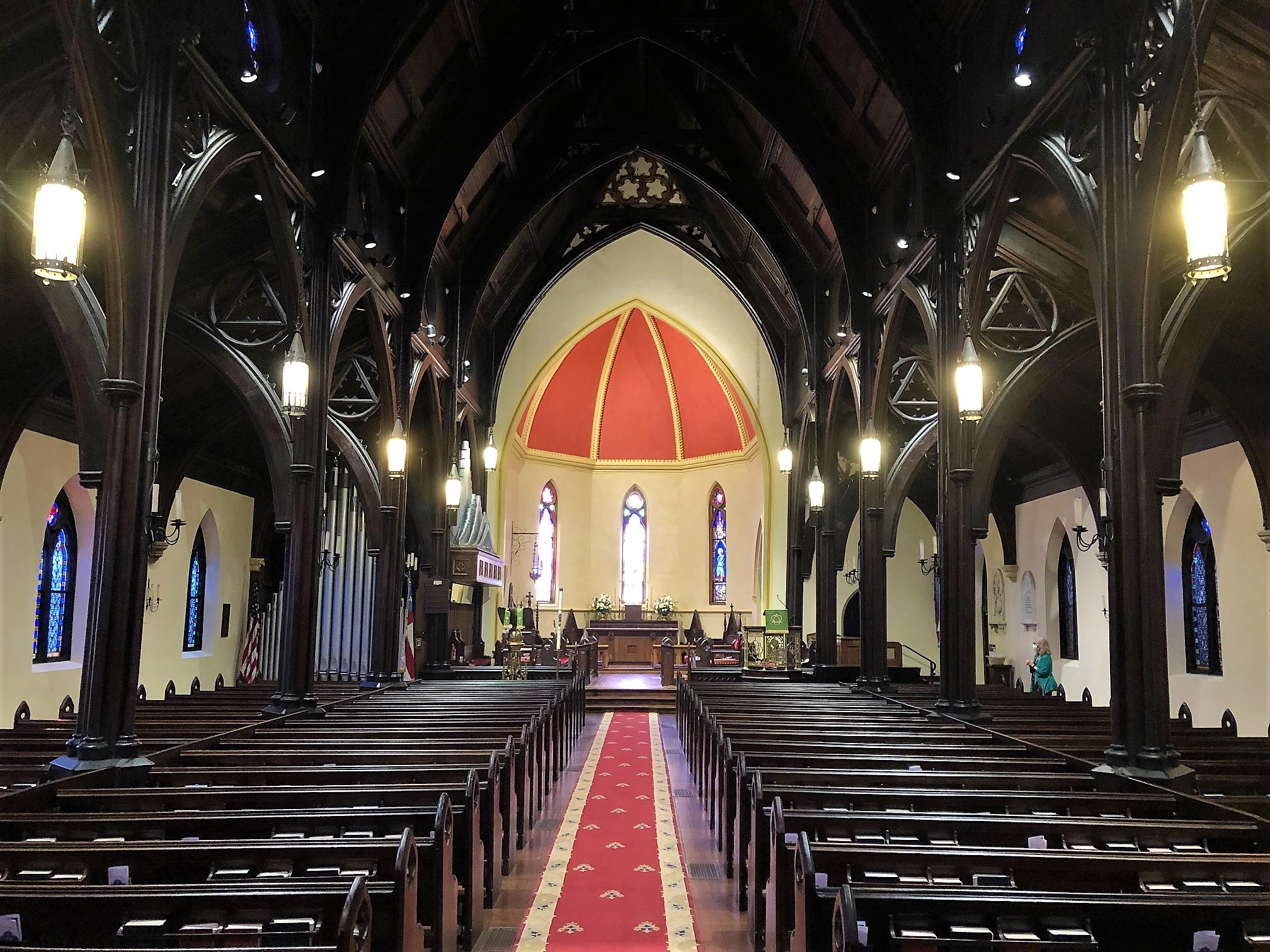

2021-09-28 - Church interior (Photograph by Jeff Scofield/Jeff Scofield)

2018-09-09 - Console (Photograph by Tommy Malcolm Quinn/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
41 stops
30 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-12-29 - Identified through on-line information from Jeff Scofield. -Database Manager

2013-02-27 - Updated through online information from Randy Terry. -- Since the pipe organ expansion and refurbishment in 1992, significant digital additions by Walker Technical have been added to expand the versatility of this instrument. Milnar Organ Co., LLC, completed the digital additions. -Database Manager

Stoplist

Source: Taken from the console September 28, 2021

       Huntsville, Alabama
       Church of the Nativity, Episcopal

       Aeolian-Skinner   Op. 1041   1942   3/25
       Milnar Organ Co.             1992   3/39
       __________________________________________

       GREAT                     SWELL
   16' Flute Conique          8' Geigen
   16' Quintaton              8' Stopped Diapason
    8' Principal              8' Viola de Gamba
    8' Flute Harmonique       8' Viola Celeste
    8' Gedeckt                4' Principal
    4' Octave                 4' Flute ⌂
    4' Hohl Flute             2' Weit Principal
2 2/3' Twelfth               IV  Mixture   2/3'
    2' Principal             16' Basson
   IV  Mixture 1 1/3'         8' Oboe
    8' Trumpet                4' Hautbois
       Super                     Tremulant
       Zimbelstern               Sub
                                 Unison Off
       MISCELLANEOUS *           Super
   16' Rohrbass
   16' Contra Trompete           CHOIR
    8' Trompette              8' Flute Harmonique
    8' Vox Humana             8' Dulciana
    4' Clairon                8' Unda Maris
                              4' Gemshorn
       PEDAL                  4' Nachthorn
   32' Bourdon            2 2/3' Nazard
   16' Contre Basse           2' Block Flute
   16' Bourdon            1 3/5' Tierce
   16' Flute Conique GT     III  Mixture  1'
    8' Octave                 8' Clarinet
    8' Flute                  8' Cor Anglais
    4' Hohl Flute    GT          Tremulant
   16' Posaune                   Sub
   16' Bassoon       SW          Unison Off
    8' Trumpet                   Super
    8' Oboe          SW
    4' Clarion

    *  Stop controls located at the left end of
       the coupler rail, with no indication as
       to division(s) assigned

   [Received from Jeff Scofield October 2, 2021]

Related Pipe Organ Database Entries

#18169 - Aeolian-Skinner Organ Co. Opus 1041 (1942)
