Grace Episcopal Church
431 Washington St NE
Gainesville, GA
Images

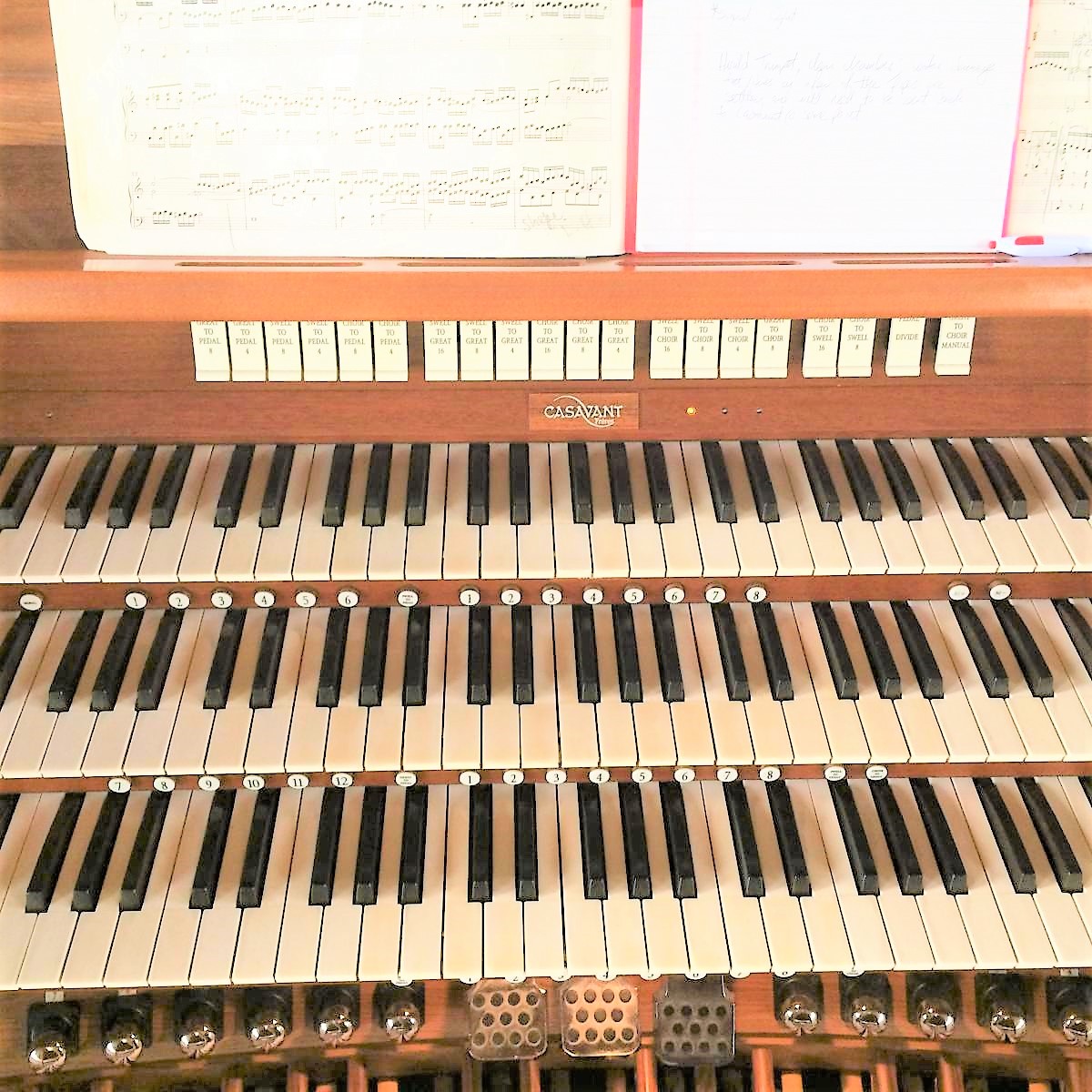

2016-08-04 - Console interior (Photograph by Keith Williamson, submitted by Jeff Scofield/Jeff Scofield)

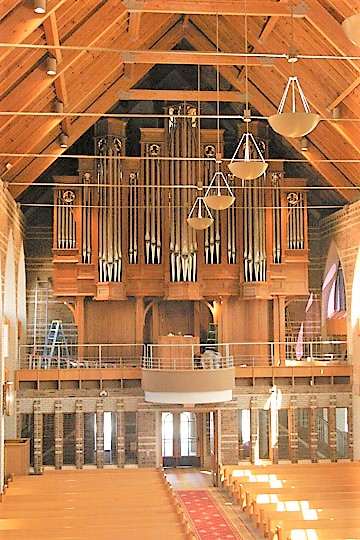

2007-11-11 - Church interior and organ case (Photograph by Courtesy of the Casavant Frères Archives, submitted by Jeff Scofield/Jeff Scofield)

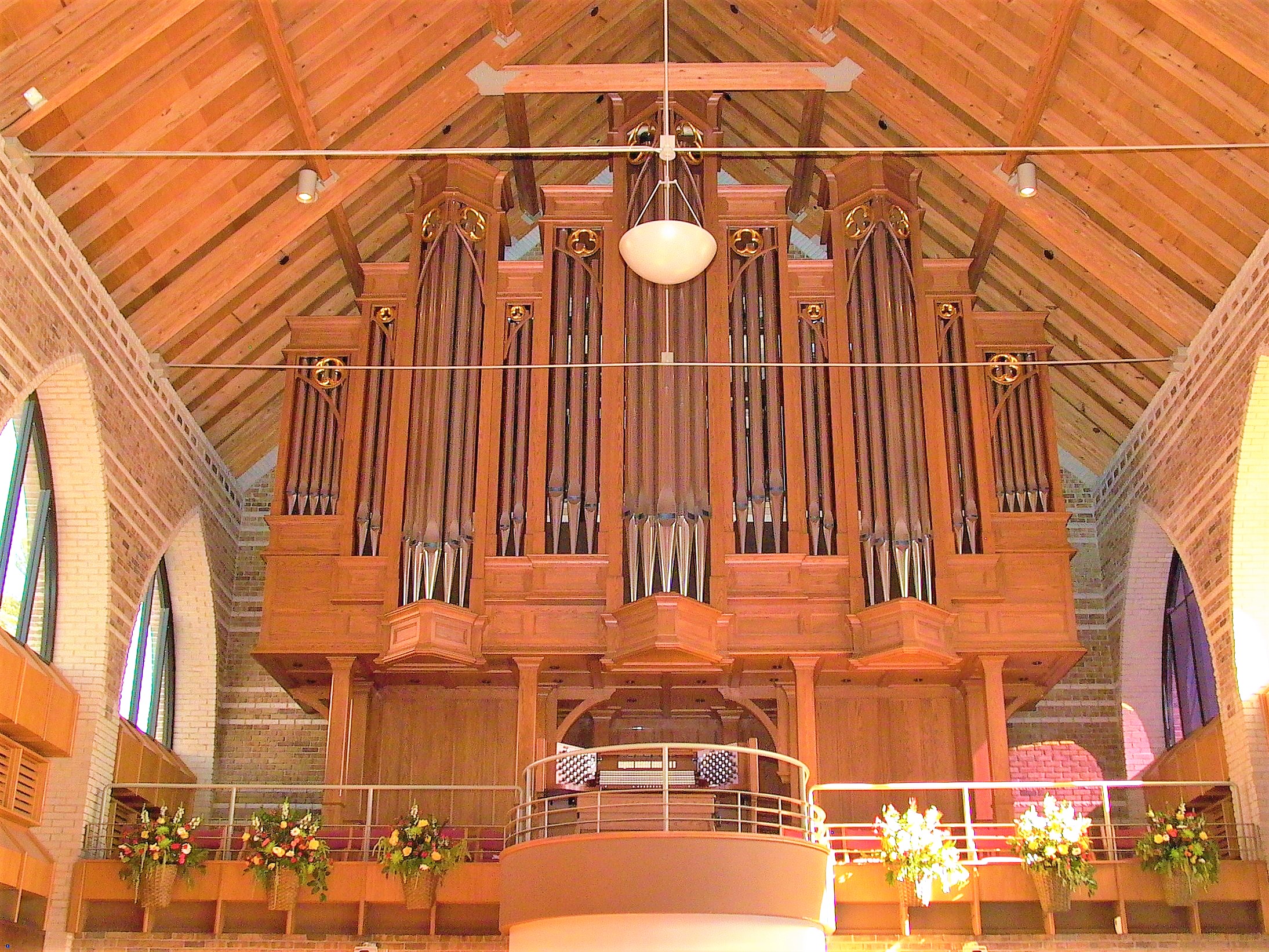

2008-01-31 - Gallery, organ case and console (Photograph by Courtesy of the Casavant Frères Archives, submitted by Jeff Scofield/Jeff Scofield)

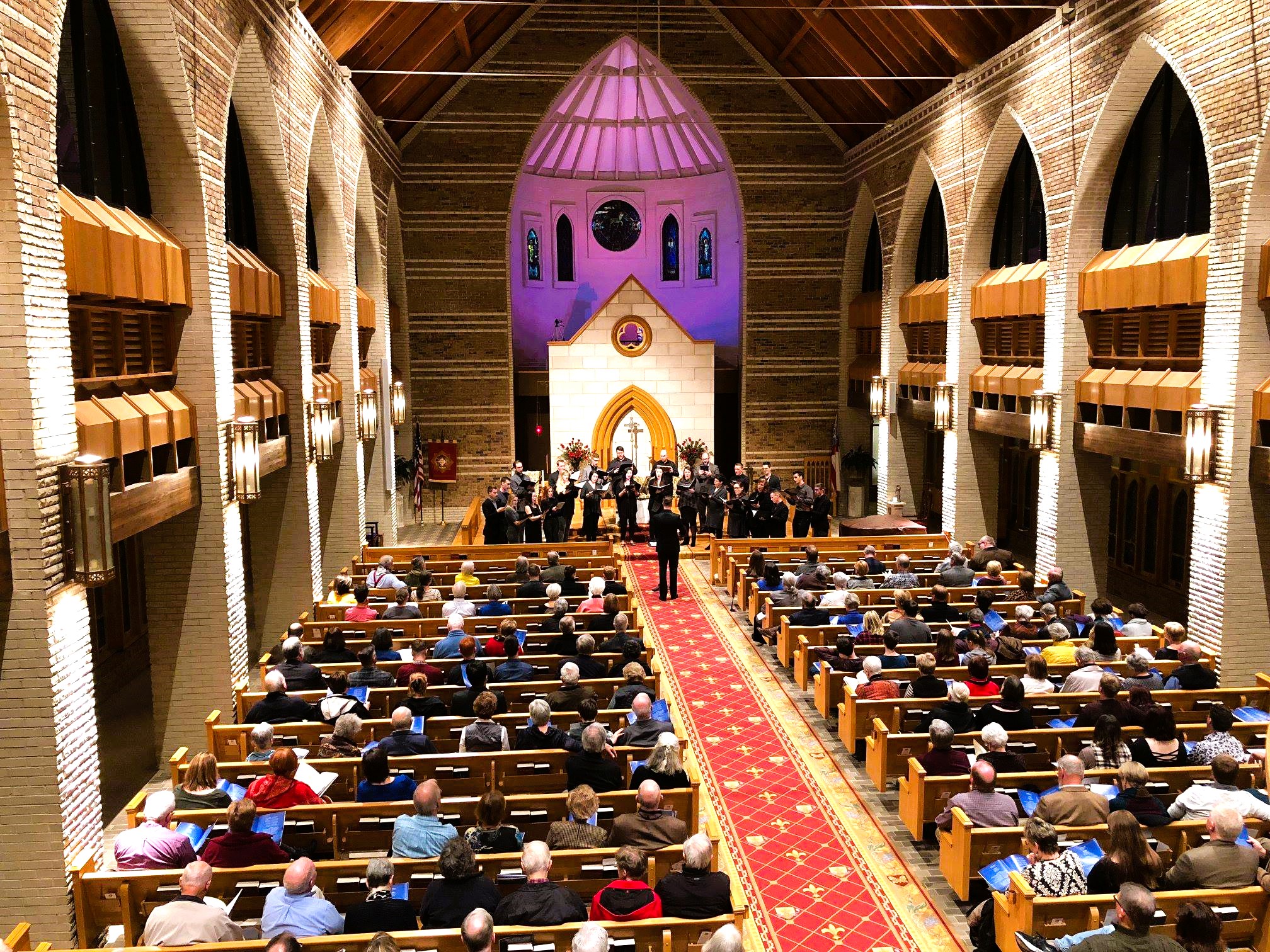

2018-01-22 - Church interior to front (Church Facebook via Jeff Scofield/Jeff Scofield)

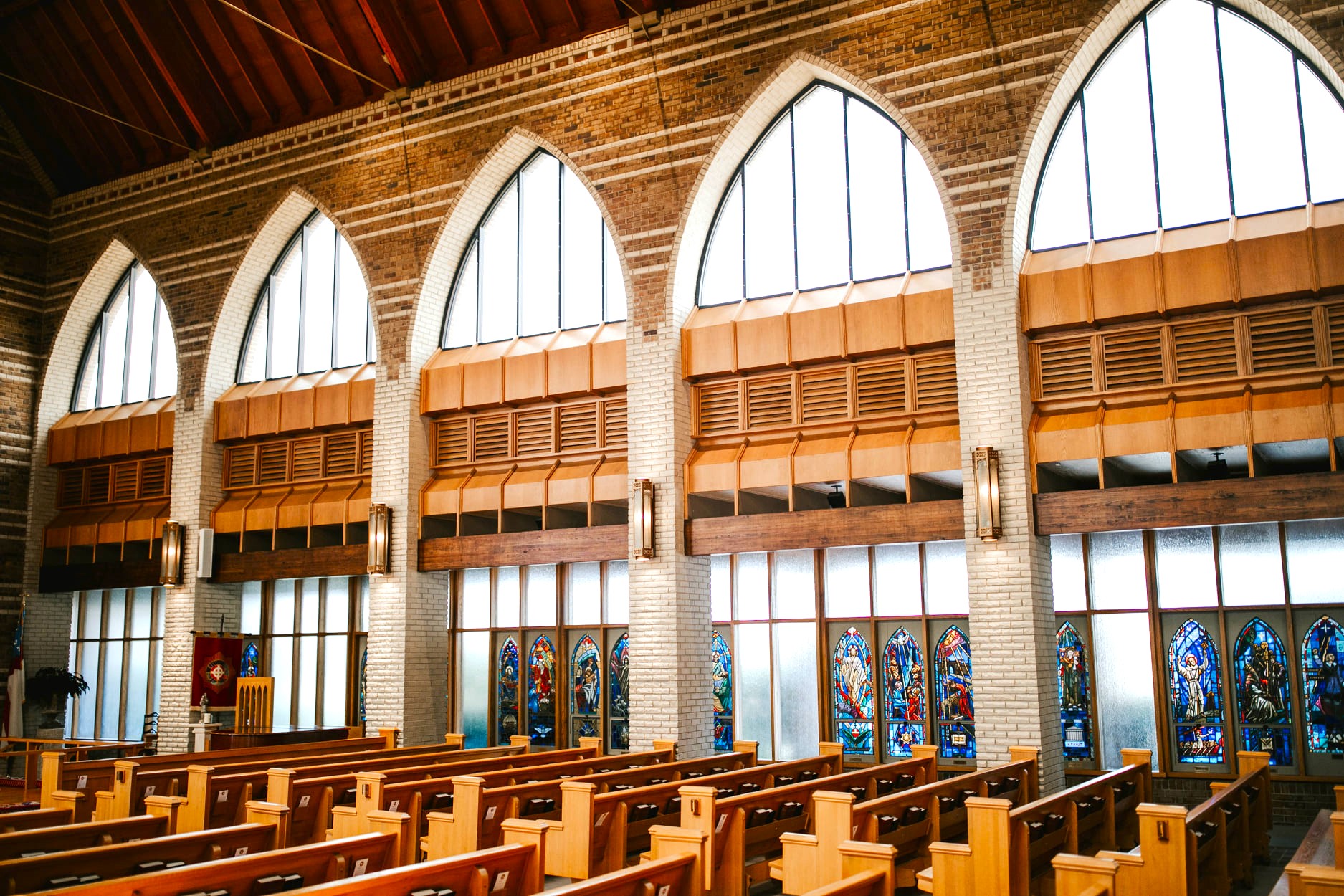

2020-07-08 - Windows (Church Facebook via Jeff Scofield/Jeff Scofield)

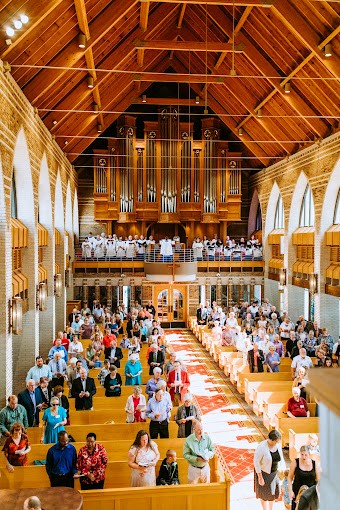

2021 - Church interior to rear and organ (Church Facebook via Jeff Scofield/Jeff Scofield)

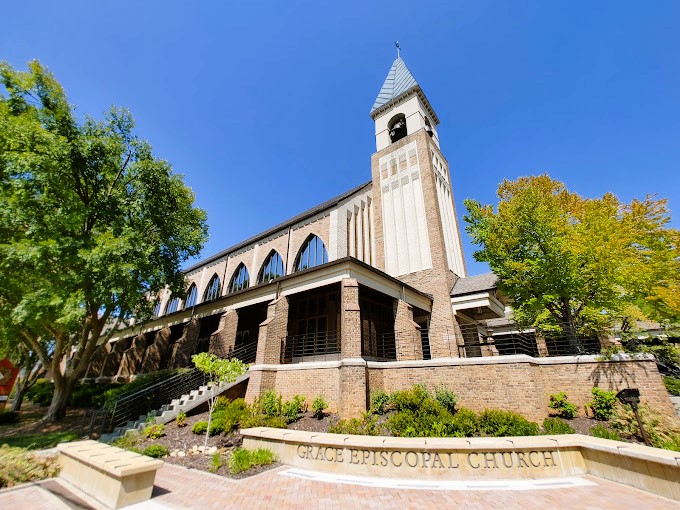

2022 - Church exterior (Nick Berdeguez/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 3 manuals
- 39 stops
- 60 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
- Has hitchdown couplers
Notes
2008-01-24 - Identified through online information from Stephen Hall. -- Organ was installed and voiced in late 2007, dedicated January 2008. -Database Manager
Stoplist
Stoplist copied from the factory specifications Source: Source not recorded Date not recorded
Gainesville, Georgia
Grace Episcopal Church
Casavant Op. 3865 2007 3/47
Courtesy of the Casavant Frère Archives
St. Hyacinthe, Québec, Canada
___________________________________________________
GREAT CHOIR
16' Violone 12 8' Violin Diapason 61
8' Open Diapason 61 8' Violin Celeste tc 49
8' Violin 61 8' Bourdon 61 a
8' Chimney Flute 61 a 4' Octave 61
8' Harmonic Flute 49 b 4' Spindle Flute 61
4' Octave 61 2 2/3' Nazard 61
4' Spire Flute 61 2' Flute 61
2 2/3' Twelfth 61 1 3/5' Tierce 61
2' Fifteenth 61 1 1/3' Larigot 61
1 3/5' Seventeenth 61 III Mixture 183
IV Mixture 244 8' Clarinet 61
16' Bassoon SW Tremulant
8' Trumpet 61 Sub
Tremulant Unison Off
Sub Super
Unison Off 16' Tuba Magna tc
Super 8' Tuba Mirabilis 61
8' Tuba Mirabilis CH 4' Tuba Clarion --
8' Herald Trumpet 61 c 8' Herald Trumpet GT
MIDI MIDI
SWELL PEDAL
8' Open Diapason 61 32' Contra Bourdon 12 d
8' Stopped Diapason 61 16' Open Diapason 12 e
8' Viole de gambe 61 16' Subbass 32 f
8' Voix céleste GG 54 16' Violone GT
4' Principal 61 8' Octave 32
4' Harmonic Flute 61 8' Stopped Flute 12
2' Piccolo 61 8' Violin GT
III-IV Plein Jeu 232 4' Choral Bass 32
16' Bassoon F/l 12 Theorbo -- g
8' Cornopean 61 16' Trombone F/L 32
8' Oboe 61 16' Bassoon SW
4' Clarion 61 8' Trumpet 12
Tremulant 4' Oboe SW
Sub 8' Tuba Mirabilis CH
Unison Off 8' Herald Trumpet GT
Super MIDI
8' Tuba Mirabilis CH
16' Herald Trumpet tc
8' Herald Trumpet GT
MIDI
a 1-12 stopped wood, 13-61 22% tin
b 1-12 common with Chimney Flute
c first pipes mitered, with two windchests, along with separate
reservoir and blower contained in a sound-abslorbing enclosure;
to be installed in the Apse, above the sacristy
d resultant, with independent quints
e open metal, extension of 8' Octave
f 1-24 stopped wood, 25-44 22% tin
g derived from Pedal Subbass and Great Violone
[Received on line from Jeff Scofield June 03, 2010.]
