Better Pipe Organ Database


Daniel Jaeckel Inc. Opus 50 (2006)

Episcopal Church of the Advent
118 North Walnut
Cynthiana, KY

Images


2021-07-07 - Organ case (Photograph by Scott Bailey/Scott Bailey)

2021-07-07 - Right stop jamb (Photograph by Scott Bailey/Scott Bailey)

2021-07-07 - Left stop jamb (Photograph by Scott Bailey/Scott Bailey)

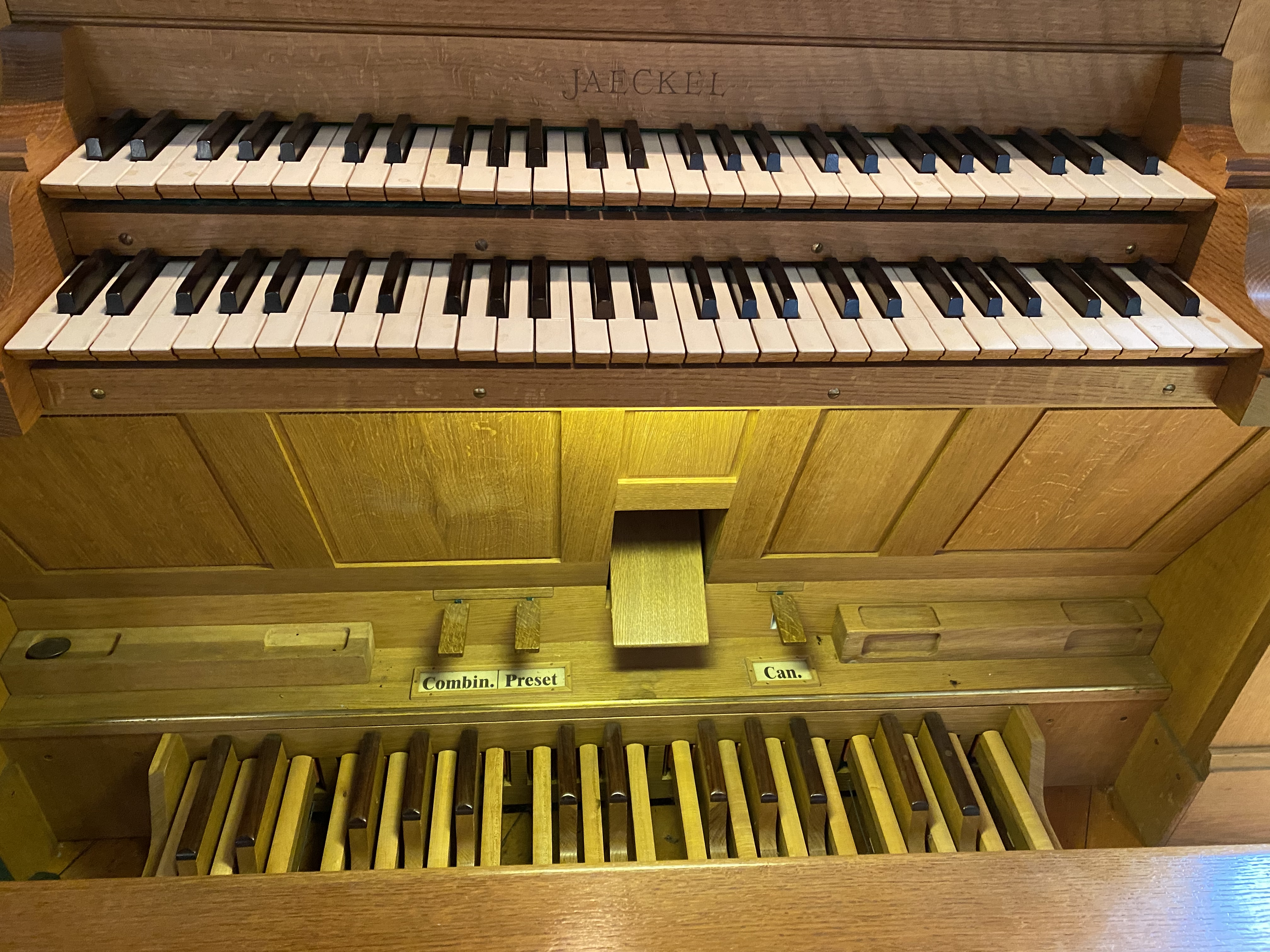

2021-07-07 - Manuals and pedalboard (Photograph by Scott Bailey/Scott Bailey)

Consoles

Main


Notes

2008-02-28 - Identified through on-line information from Matt McGarvey. -Database Manager


Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

Manual I, 56 keys, expressive, excepting front pipes

Open Diapason     8’        56 pipes of 26% tin
Rohr Flute        8’        18 pipes of wood, 38 of 26% tin
Octave            4’        56 pipes of 26% tin
Traverse Flute    4’        19 pipes from #3, 37 of 26% tin
II Sesquialter    2 2/3’    74 pipes of 26% tin
Super Octave      2’        From #7
II-III Mixture    2’        144 pipes of 40% tin


Manual II, 56 keys, expressive

8.  Stop’t Diapason   8’        12 pipes of wood, 44 of 26% tin
9.  Dulciana          8’        12 pipes from #8, 44 of 40% tin
10. Unda Maris        8’        44 pipes of 50% tin
11. Gemshorn          4’        56 pipes of 50% tin
12. Trumpet           8’        56 pipes with 26% tin resonators


Pedal, 30 keys, unenclosed

13.  Sub-bass           16’        30 pipes of wood
14.  Open Diapason      8’        12-16 pipes from #1; rest of 50% tin
15.  Trumpet            8’        From #12



16 ranks, 676 pipes

 [Received from Bill 2014-05-28.]
