M. P. Möller Opus 6842 (1940)

St. Isidore's Catholic Church: Church
628 Diamond Ave. NE
Grand Rapids, MI

Images

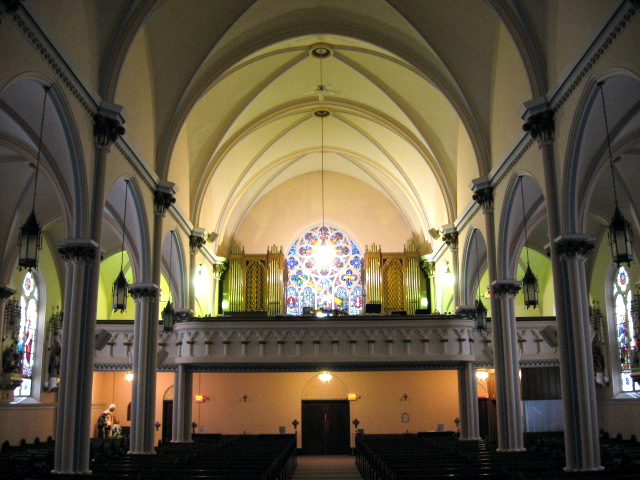

2009-12-21 - Nave, Balcony, and Organ Cases (Photograph by Chad Boorsma/Database Manager)

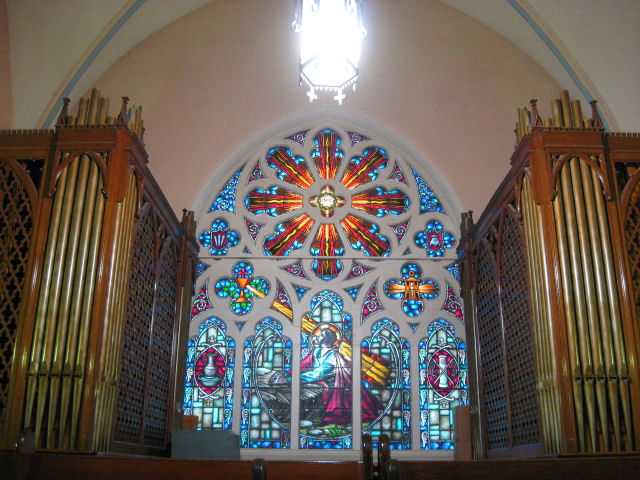

2009-12-21 - Twin Organ Cases (Photograph by Chad Boorsma/Database Manager)

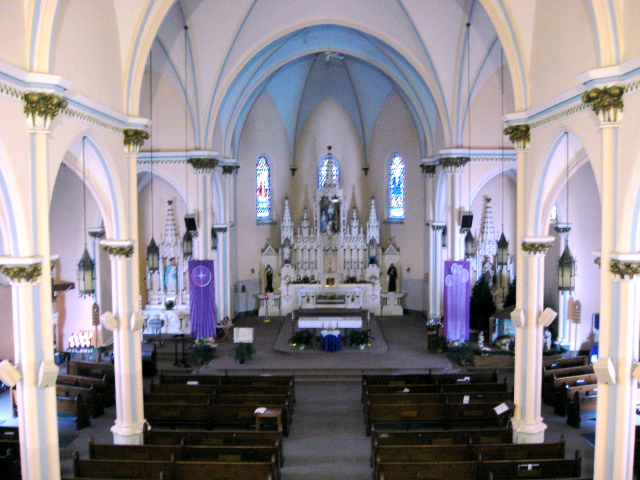

2009-12-21 - Church Interior and Altar (Photograph by Chad Boorsma/Database Manager)

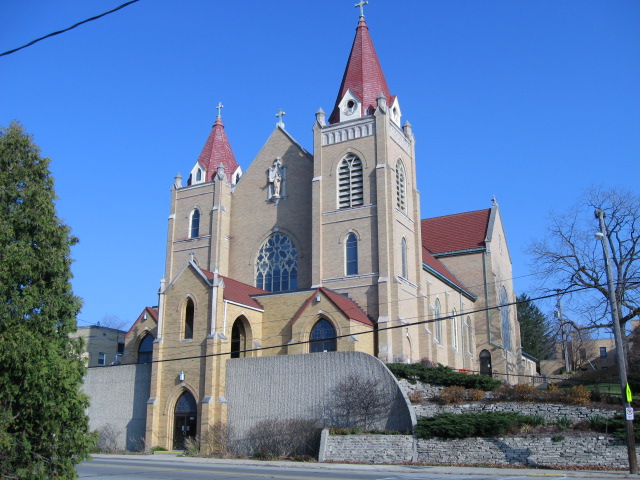

2009-11-22 - Church Exterior (Photograph by Chad Boorsma/Database Manager)

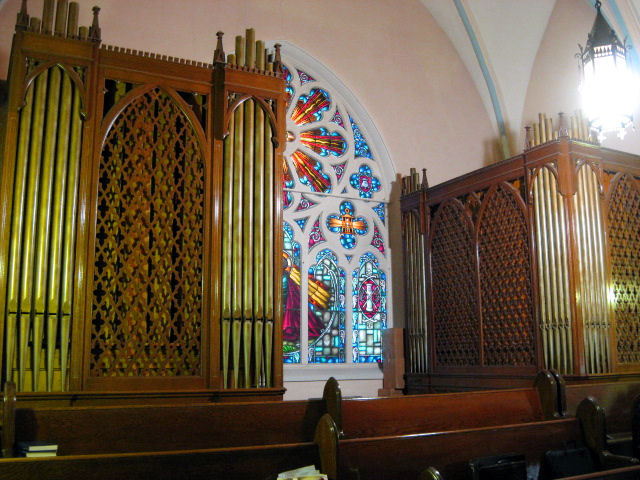

2009-12-21 - Organ Cases (Photograph by Chad Boorsma/Database Manager)

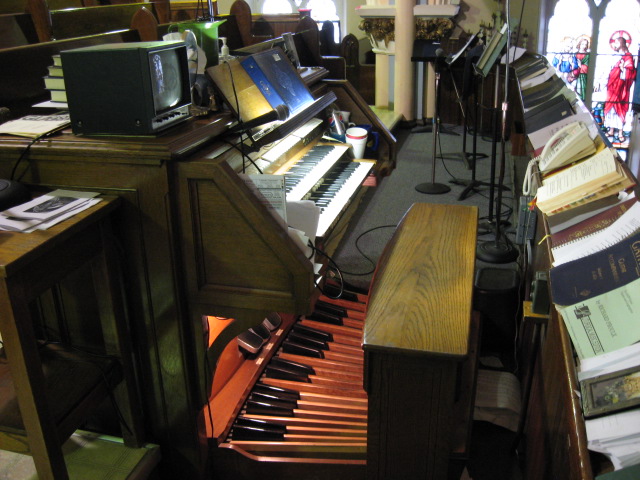

2009-12-21 - Console (Photograph by Chad Boorsma/Database Manager)

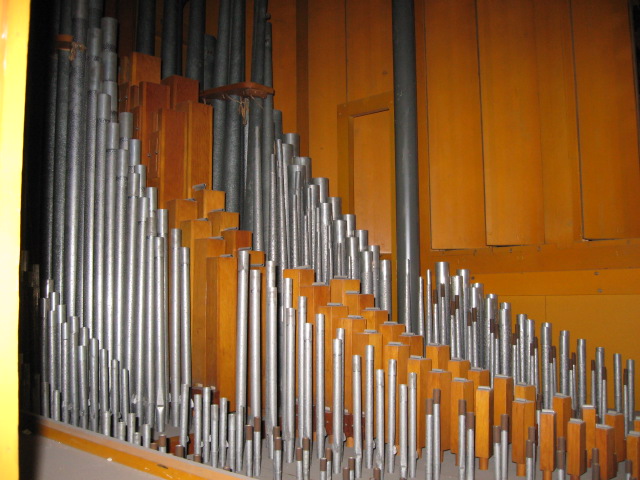

2009-12-21 - Great Pipework (Photograph by Chad Boorsma/Database Manager)

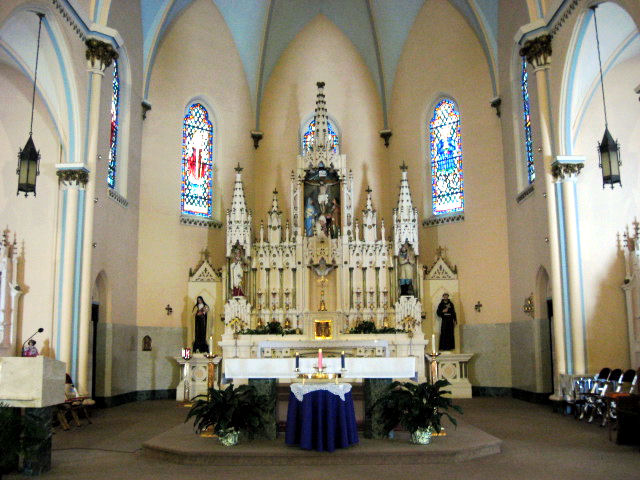

2009-12-21 - Altar (Photograph by Chad Boorsma/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
2 manuals
15 stops
24 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2008-02-28 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-12-22 - Updated through online information from Chad Boorsma. -- The organ is housed in a room with excellent acoustics. The instrument's Great division is under expression in the left chamber, while the Swell is under expression in the left chamber. The gold facade pipes on the outside of both chambers are fake and do not speak. The original cost of the organ was $5,675. -Database Manager

Stoplist

Stoplist taken from church's organ history Source: Source not recorded Date not recorded

Grand Rapids, Michigan
SAINT ISIDORE'S CATHOLIC CHURCH

M. P. Möller    Opus 6842    1940     17 ranks
___________________________________________________________________________

GREAT:                    SWELL:                     PEDAL:
    8' Open Diapason 61    16' Bourdon 97             16' Open Diapason 12
    8' Clarabella 73        8' Geigen Diapason 85     16' Bourdon 44
    8' Dulciana 73          8' Stopped Diapason       16' Lieblich Gedeckt
    8' Gemshorn 73          8' Salicional 73           8' Flute Major
    4' Octave 73            8' Vox Celeste 73          8' Dolce Flute
2 2/3' Twelfth 61           4' Principal              16' Trumpet 12
    2' Fifteenth 61         4' Orchestral Flute
       Tremulant            2' Piccolo
                          III  Mixture 183
                            8' Trumpet 73
                            8' Oboe 73
                               Tremulant

5 General Thumb Pistons
5 Swell Thumb Pistons
4 Great Thumb Pistons
4 Pedal Thumb Pistons

[Received on line from Chad Boorsma December 22, 2009.]
