M. P. Möller Opus 7082 (1942)

Burton Heights Christian Reformed Church / Grace Korean Christian Reformed Church: Sanctuary
1970 Jefferson Ave. SE
Grand Rapids, MI

Images

2010-04-09 - Church Exterior (Photograph by Chad Boorsma/Database Manager)

2010-04-09 - Console (Photograph by Chad Boorsma/Database Manager)

2010-04-09 - Fake Facade Pipes and Chamber Grille (Photograph by Chad Boorsma/Database Manager)

2010-04-09 - Great and Pedal Pipework (Photograph by Chad Boorsma/Database Manager)

2010-04-09 - Chancel and Chamber Grille (Photograph by Chad Boorsma/Database Manager)

2010-04-09 - Sanctuary Interior (Photograph by Chad Boorsma/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
24 stops
46 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has combination toe pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2008-03-05 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2010-04-10 - Updated through online information from Chad Boorsma. -- Burton Heights Christian Reformed Church disbanded ca. 2005. Koren Grace Christian Reformed Church has occupied the building since that time. The pipes are in a center chamber with some exposed, fake pipes. The Great and Pedal divisions are in front. The Choir and Swell divisions are under separate expression behind the front divisions. The console has been altered. At some point, the music rack, drawknobs, coupler rocking tablets, pistons, and nameplate were replaced. The toe studs are original but do not work. -Database Manager

Stoplist

Stoplist taken from the console (April 9, 2010). Source: Source not recorded Date not recorded

Grand Rapids, Michigan
BURTON HEIGHTS CHRISTIAN REFORMED CHURCH (former congregation)
KOREAN GRACE CHRISTIAN REFORMED CHURCH (current congregation)

M. P. Möller    Opus 7082    1942     27 ranks
__________________________________________________________________

GREAT:                             SWELL:
    16' Gemshorn 12                   16' Flute Conique 97
     8' First Open Diapason 61         8' Geigen Diapason 73
     8' Second Open Diapason 61        8' Flauto Dolce [unit]
     8' Hohlfloete 61                  8' Chimney Flute 73
     8' Gemshorn 61                    8' Salicional 73
     4' Octave 61                      8' Voix Celeste 61
     4' Flute Harmonique 61            4' Geigen Octave 73
     4' Gemshorn 12                    4' Flute [unit]
    II  Grave Mixture 122              4' Flute Triangulaire 73
     8' Tuba (Eng) 61              2 2/3' Nazard [unit]
                                       2' Piccolo [unit]
PEDAL:                               III  Mixture 183
    16' Open Diapason 12 [GT]          8' Trompette 73
    16' Bourdon 32                     8' Oboe 73
    16' Flute Conique 12 [SW]          4' Clarion 12
    16' Gemshorn [GT]                     Tremolo
10 2/3' Quint
     8' Principal 32               CHOIR:
     8' Flute 12                       8' Prestant 73
     8' Flauto Dolce [SW]              8' Concert Flute 73
     8' Gemshorn [GT]                  8' Dulciana 73
     4' Octave 12                      8' Unda Maris 61
     4' Hohlfloete [GT]                4' Flute 12
     4' Gemshorn [GT]                  4' Dulciana 12
    16' Tuba 12 [GT]               2 2/3' Dulciana Twelfth 7
                                       2' Dulciana Fifteenth 5
                                          Tremolo

[Received on line from Chad Boorsma April 10, 2010.]

Documents

(1941-10-31) Factory specifications, via the OHS Archives Stoplist and accessories -Jeff Scofield

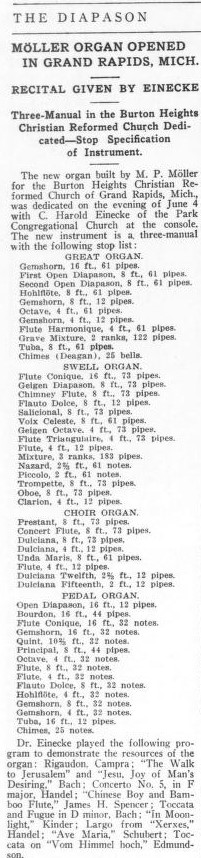

Write-up from THE DIAPASON August 1942 Stoplist and description -Jeff Scofield
Moller ad from THE DIAPASON April 1942 featuring this organ Moller ad from THE DIAPASON April 1942 featuring this organ -Jeff Scofield
