St. John's Lutheran Church: Sanctuary; front
218 N Jefferson St.
Kittanning, PA
Images
2021-08-21 - Right stop jamb (Photograph by Michael Kearney/Michael Kearney)
2021-08-21 - Left stop jamb (Photograph by Michael Kearney/Michael Kearney)

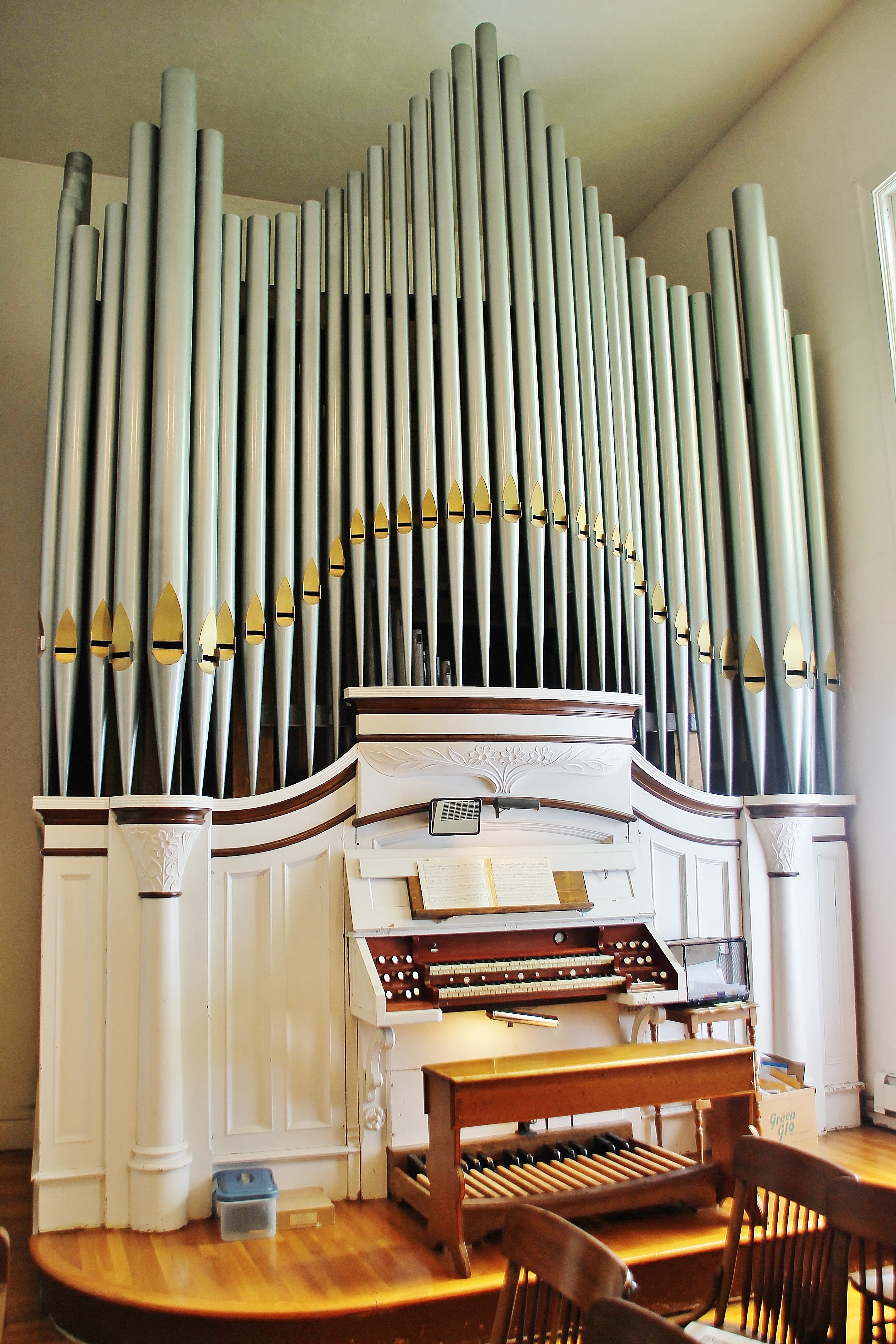

2021-08-21 - Organ case at front of room (Photograph by Michael Kearney/Michael Kearney)
ca. 1970 - Organ case with keydesk (Photograph from an archival source: Builder's ad in the 1970 OHS Convention Handbook, submitted by Jim Stettner/Jim Stettner)
Consoles
Main
- Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
- Console position: Keydesk Attached
- 2 manuals
- 14 stops
- 14 registers
- 3 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Mechanical
- Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
- Manual compass: 61 notes
- Pedal compass: 30 notes
- Pedal Type: Flat Straight
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Combination action: Fixed Mechanical
- Has coupler thumb pistons
- Has combination trundles
Notes
2008-03-06 - Identified through on-line information from Leek Pipe Organ Company. -- The winding system has been altered by another builder. They replaced the original large bellow with three (one per division) and added a Mixture III to the Great division. The Traverse Flute 4' on the Swell division was more recently replaced by another individual with an Oboe 4'. Previous to those items, a number of restoration items were completed in the original style of the instrument by our firm under John G.P. Leek. -Database Manager
Stoplist
Source: Taken from console
SWELL (Expressive) Gedeckt 8, Viole de Gamba 8, Principal 4, Traverse Flöte 4 (Pipes have been replaced with 4' Oboe), Blockflöte 2, Larigot 1⅓, Tremolo
GREAT (Unenclosed) Principal 8, Hohl Flöte 8, Dulciana 8, Octave 4, Rohr Flöte 4, Super Octave 2, Mixture III
PEDAL Bourdon 16 (No pipes), Lieblich Gedeckt 16
