Knox Presbyterian Church
806 West Knox Avenue
Spokane, WA
Images

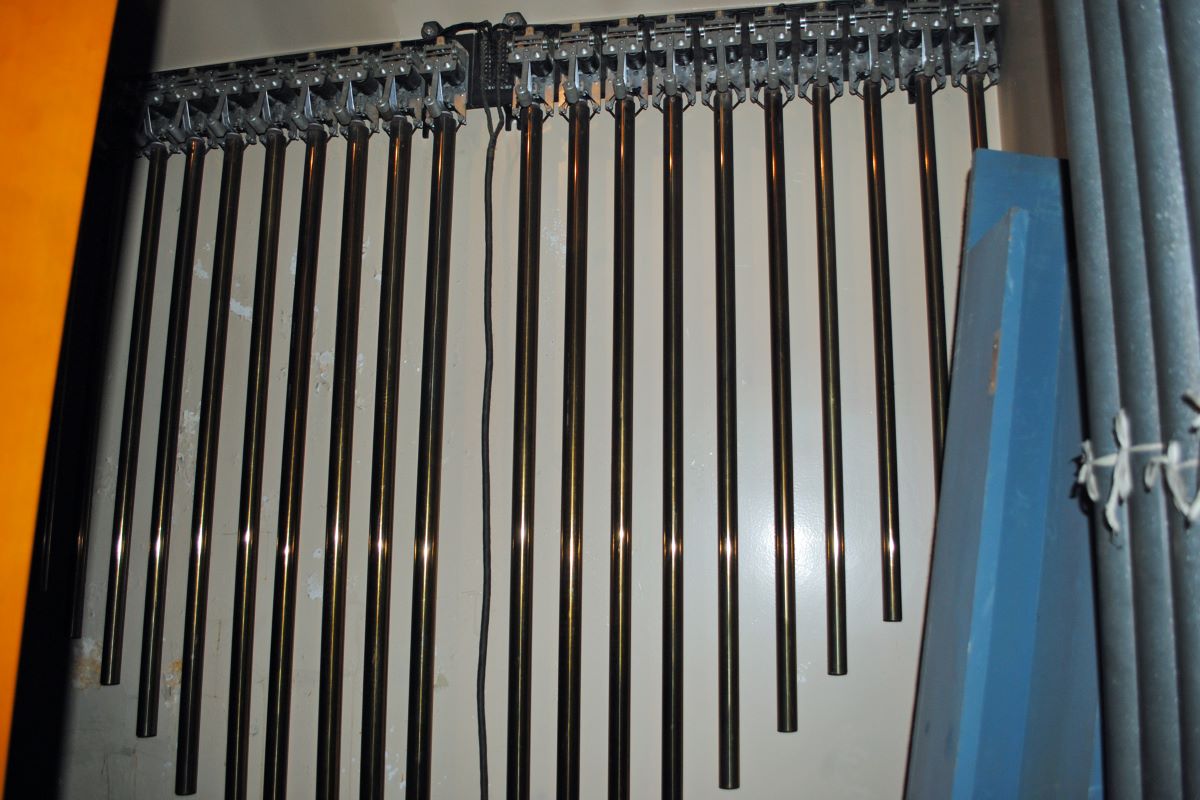

2018-01-23 - Chimes (Photograph by James M. Wallrabenstein, submitted by Jim Stettner/Jim Stettner)

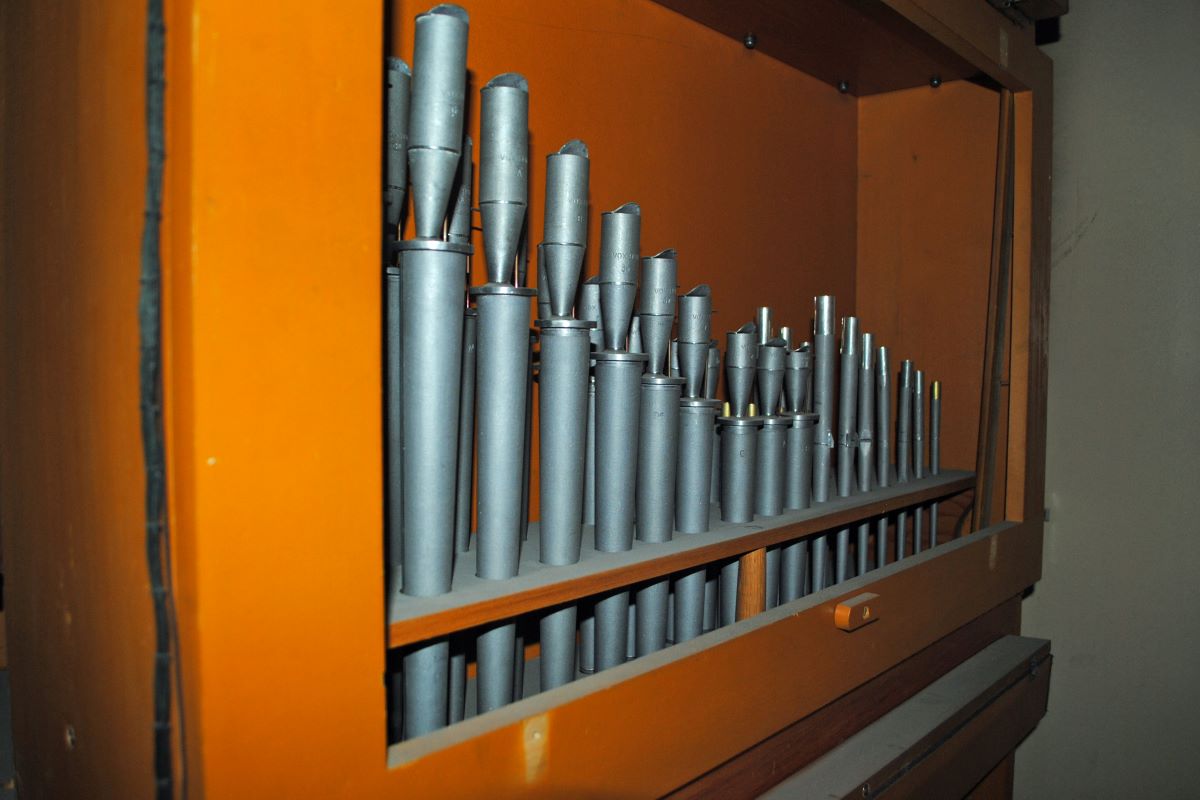

2018-01-23 - Added 8' Vox Humana (Photograph by James M. Wallrabenstein, submitted by Jim Stettner/Jim Stettner)

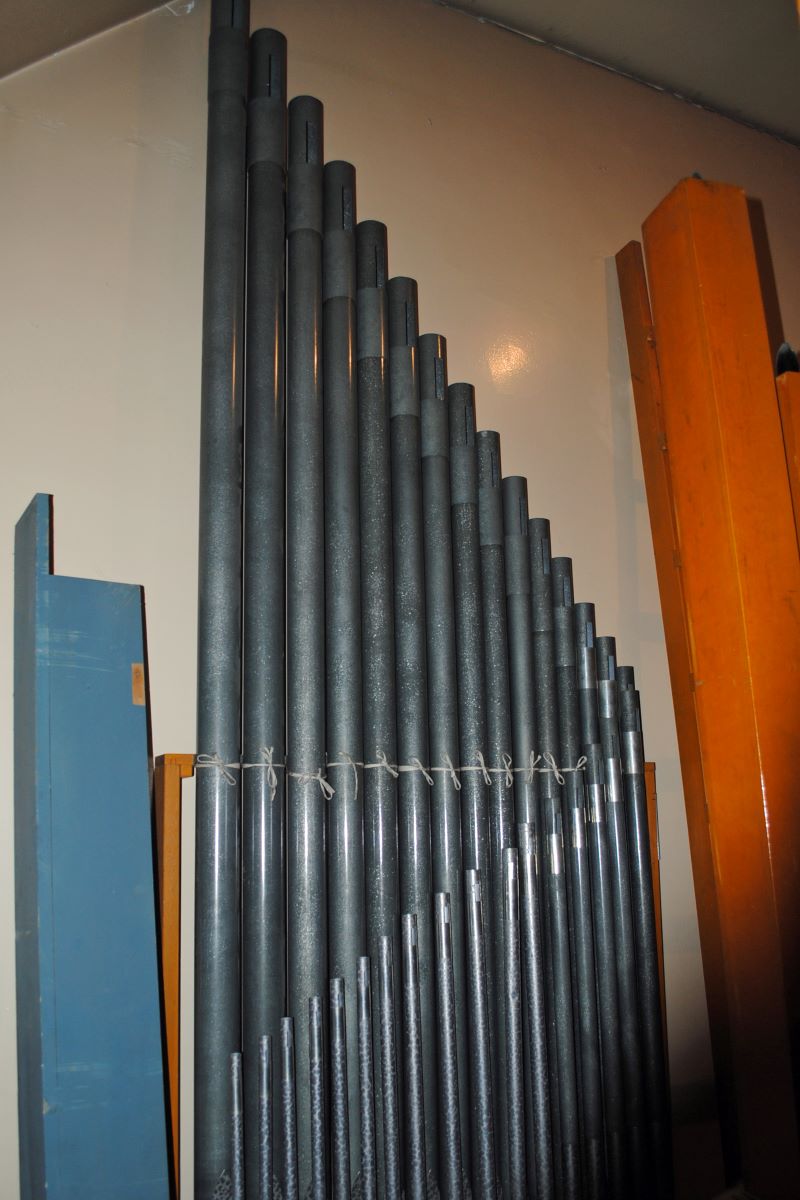

2018-01-23 - Added 8' Aeoline: 1-32 offset (Photograph by James M. Wallrabenstein, submitted by Jim Stettner/Jim Stettner)
2018-01-23 - Looking over added 8' Aeoline at main chest pipework (Photograph by James M. Wallrabenstein, submitted by Jim Stettner/Jim Stettner)

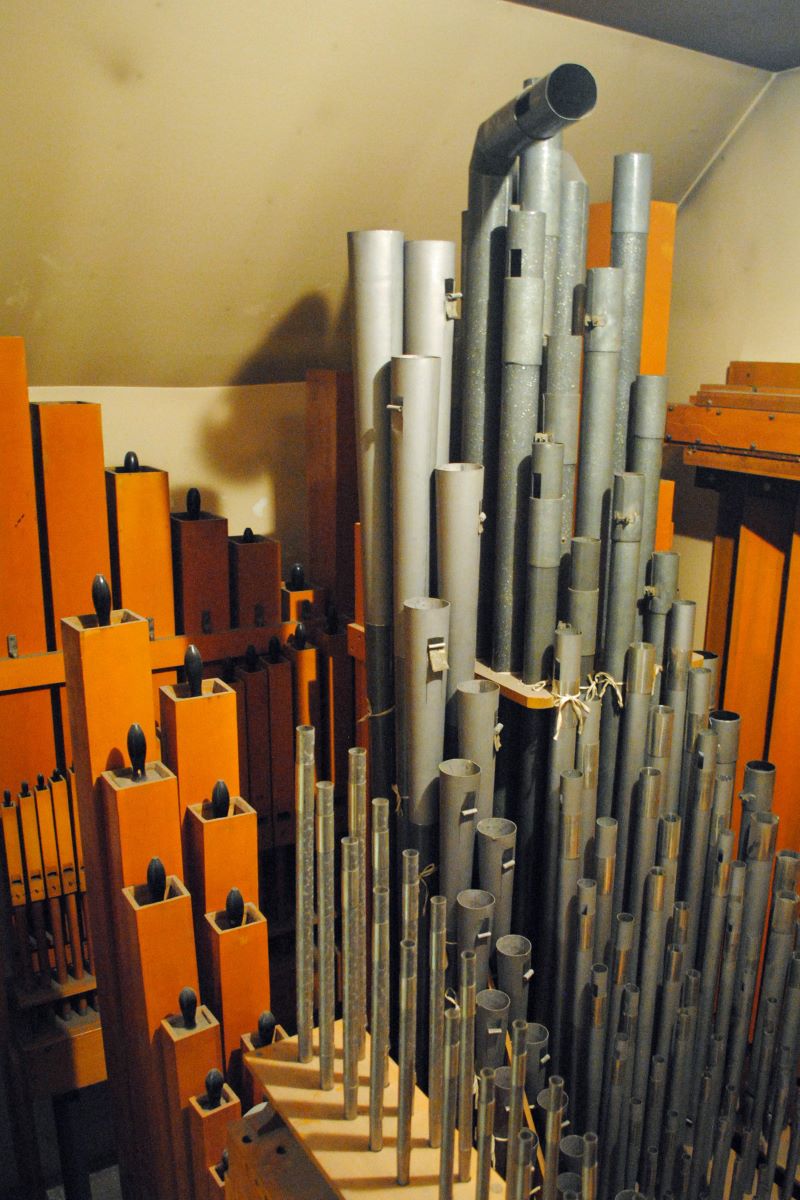

2018-01-23 - Pipework. Added 8' Aeoline elevated above Lieblich Gedeckt (Photograph by James M. Wallrabenstein, submitted by Jim Stettner/Jim Stettner)

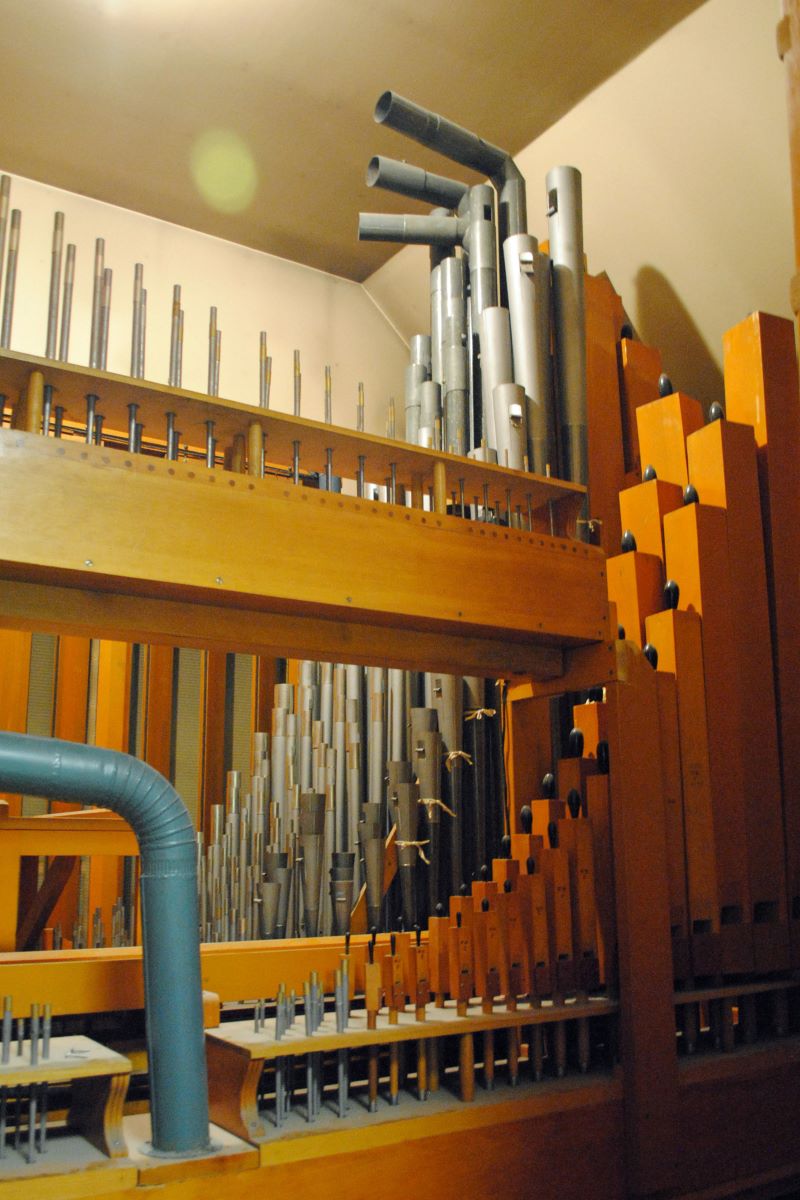

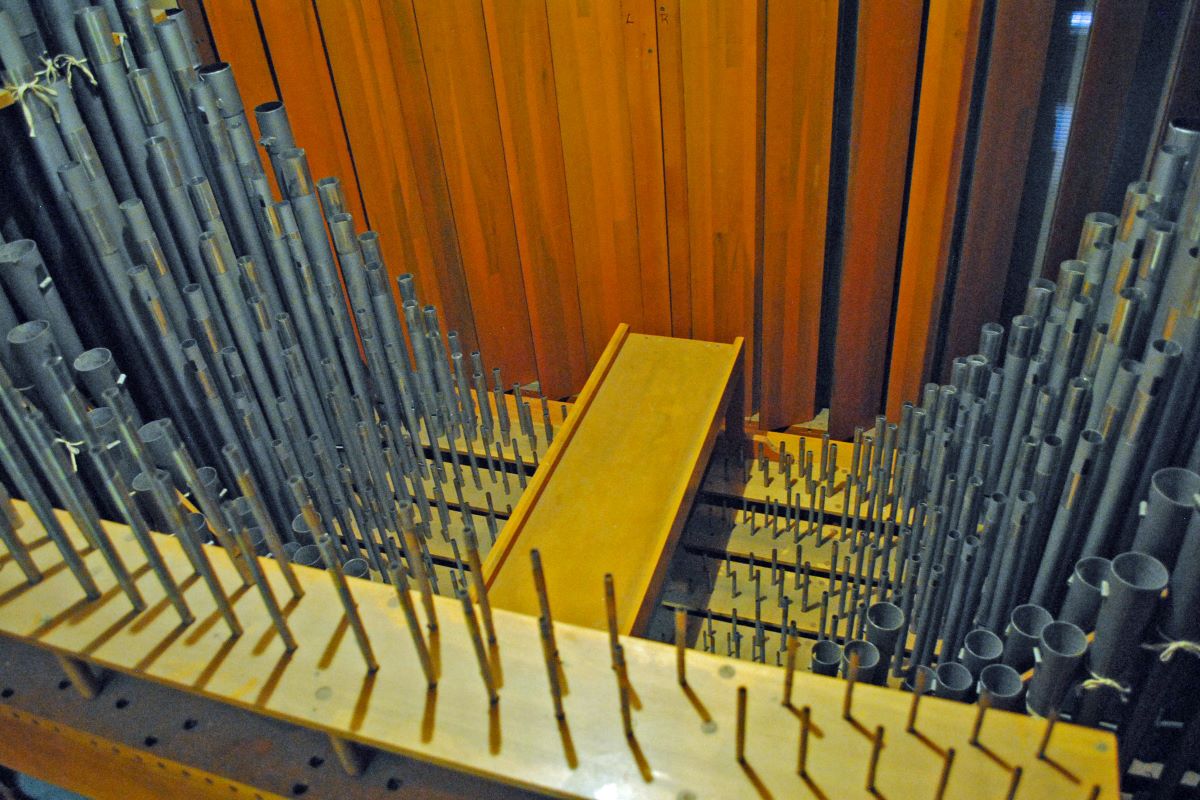

2018-01-23 - Pipework on main chest (Photograph by James M. Wallrabenstein, submitted by Jim Stettner/Jim Stettner)

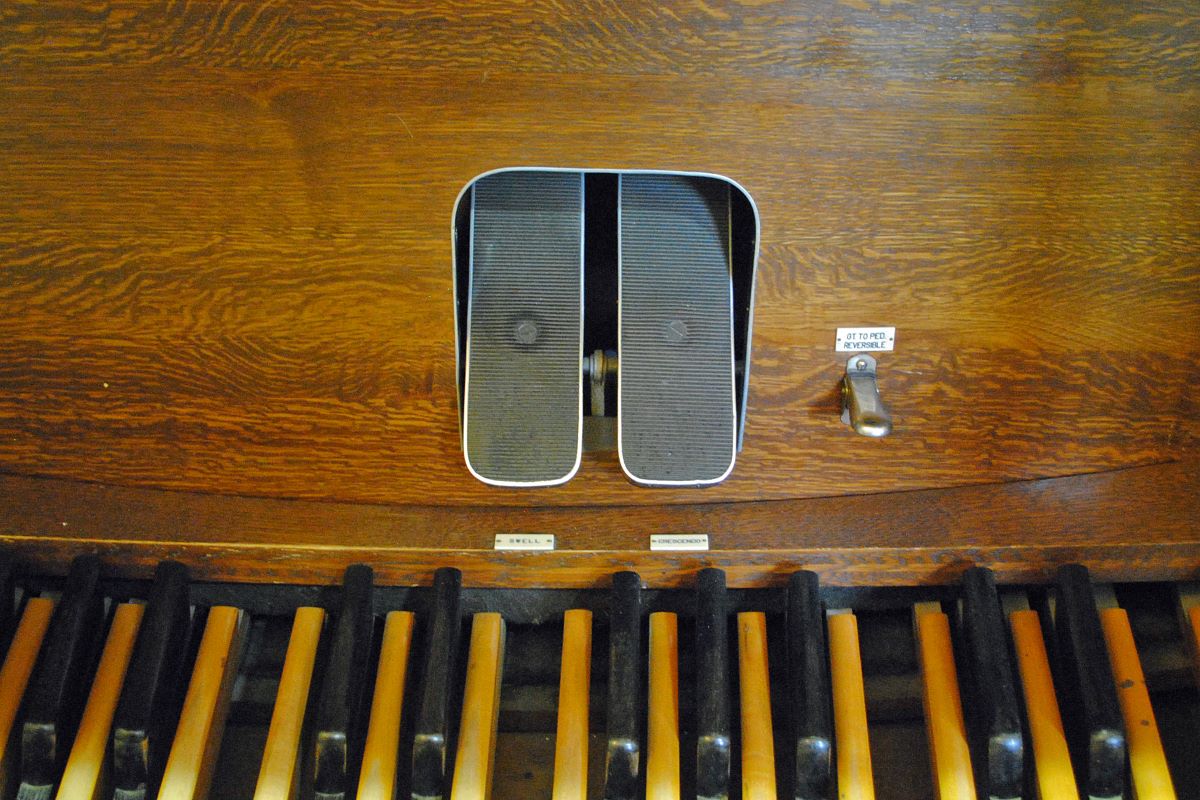

2018-01-23 - Swell & crescendo pedals; Gr. to Ped. toe spoon (Photograph by James M. Wallrabenstein, submitted by Jim Stettner/Jim Stettner)

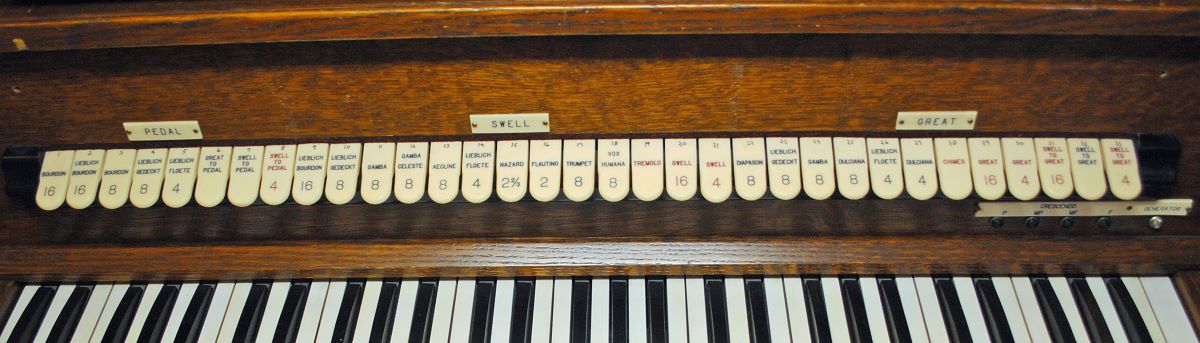

2018-01-23 - Console: stoprail (Photograph by James M. Wallrabenstein, submitted by Jim Stettner/Jim Stettner)

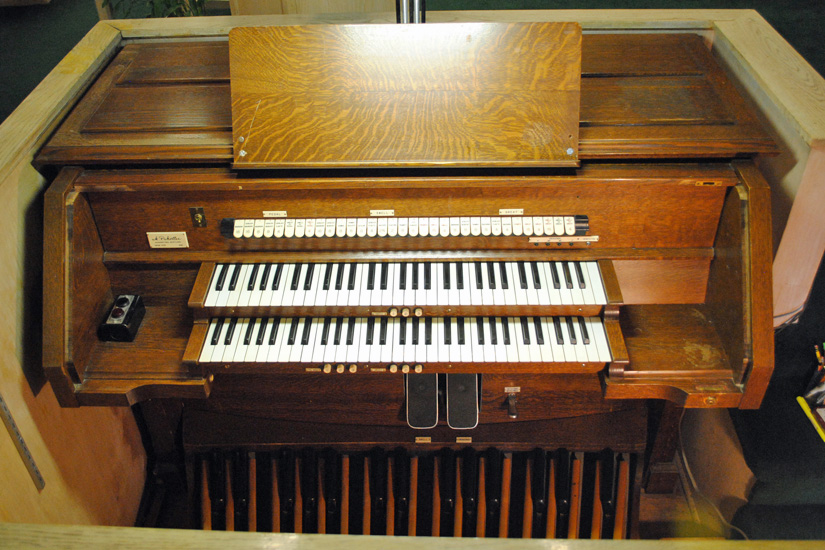

2018-01-23 - Console (Photograph by James M. Wallrabenstein, submitted by Jim Stettner/Jim Stettner)

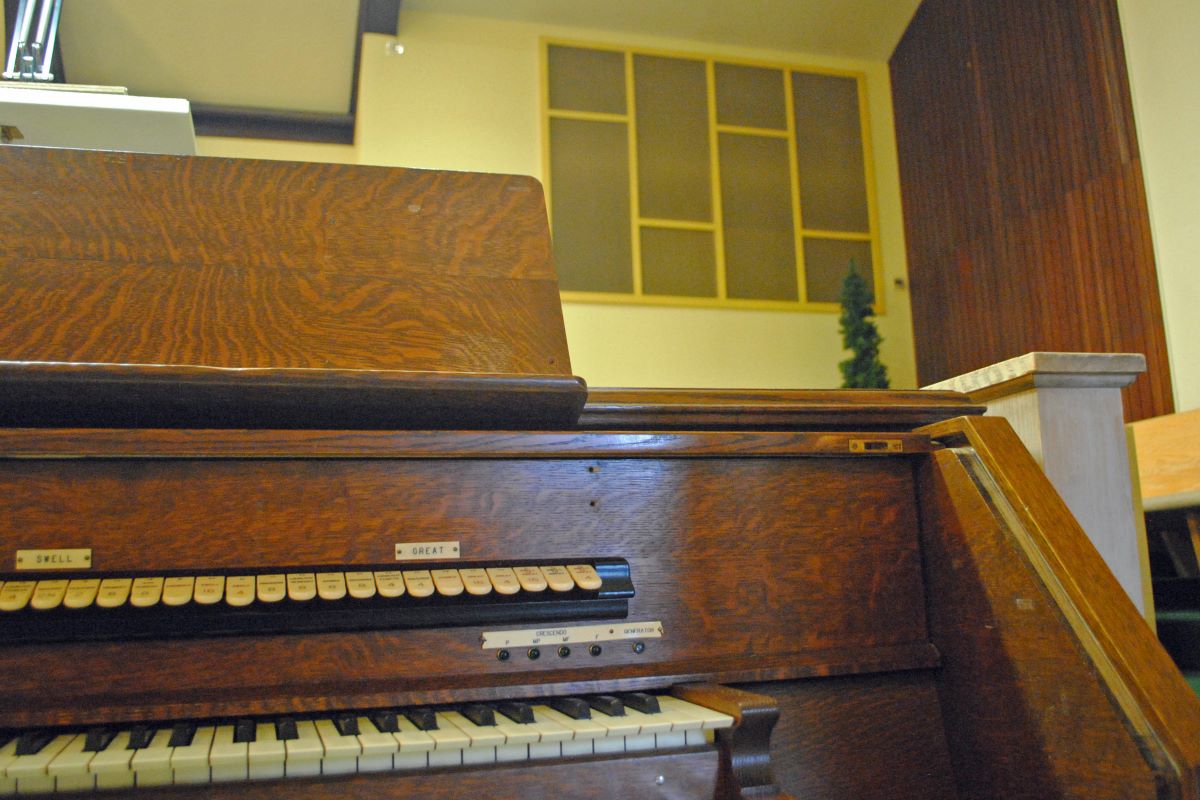

2018-01-23 - Chamber grille from console (Photograph by James M. Wallrabenstein, submitted by Jim Stettner/Jim Stettner)

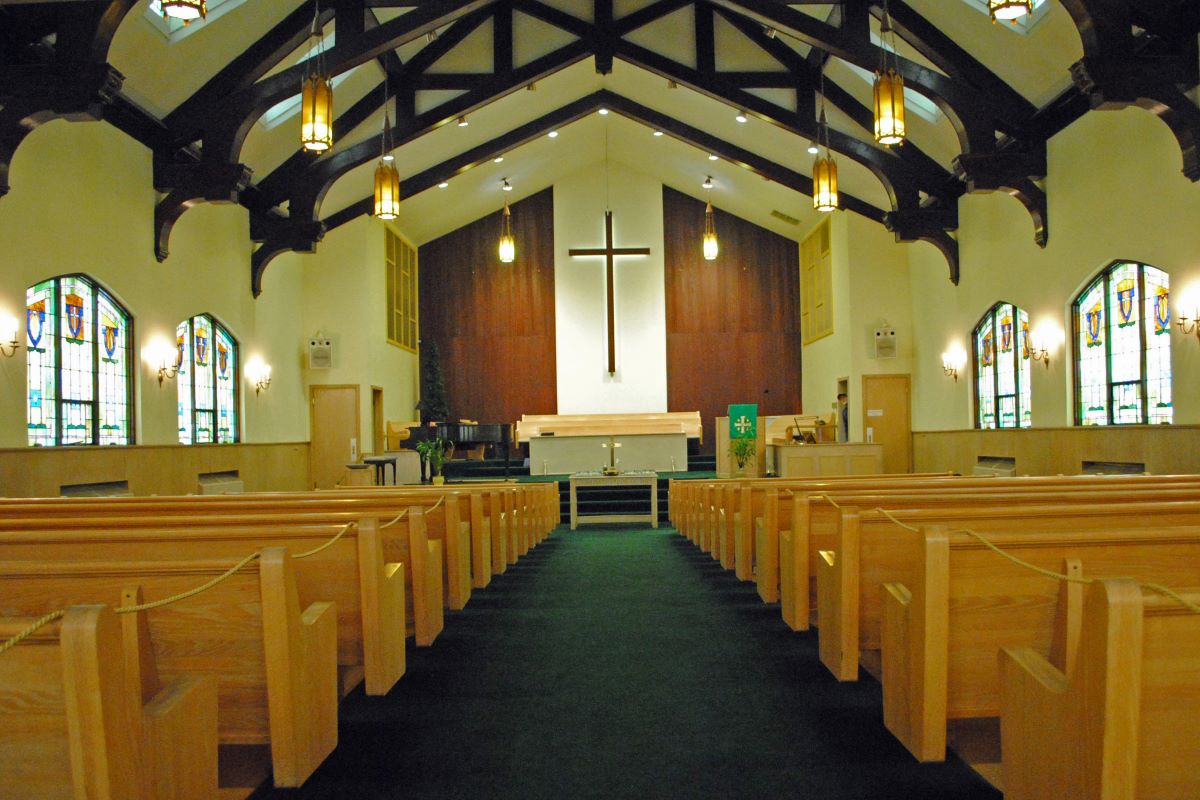

2018-01-23 - Sanctuary interior. Pipe chamber on left wall at front. Console on the right. (Photograph by James M. Wallrabenstein, submitted by Jim Stettner/Jim Stettner)

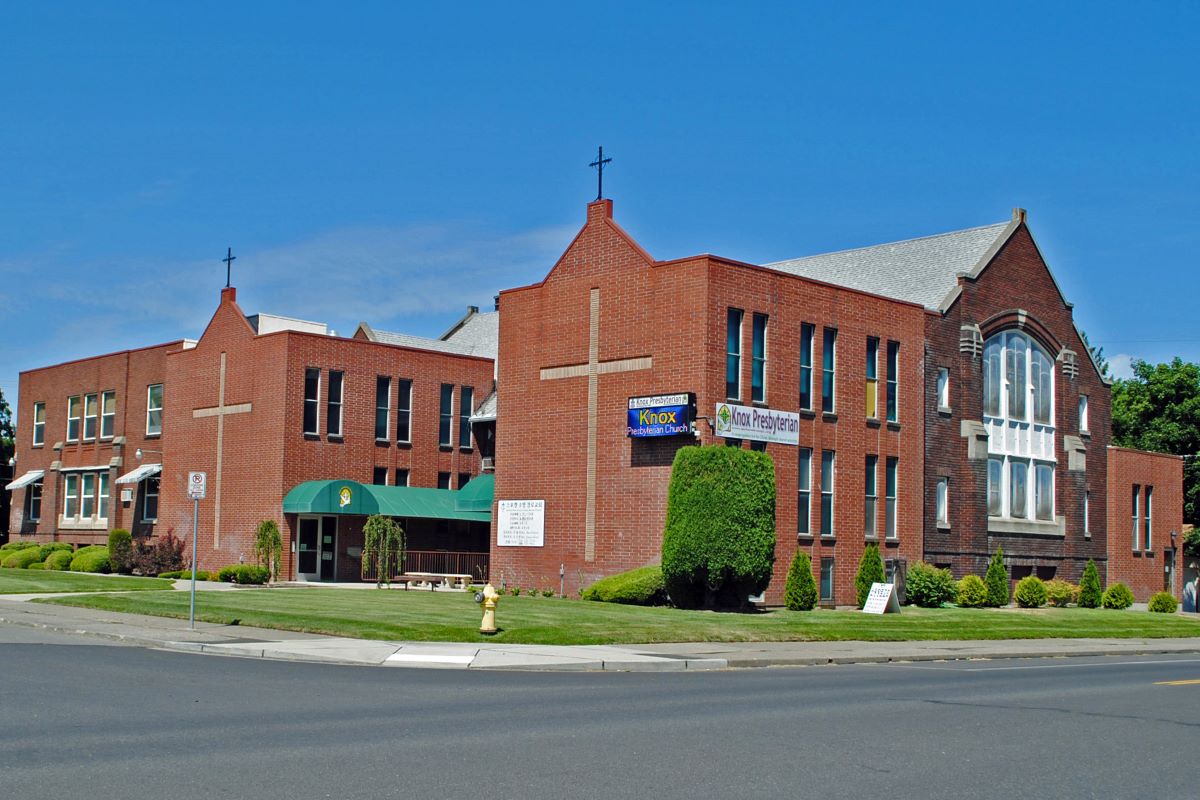

2017-07-21 - Church exterior (Photograph by James M. Wallrabenstein, submitted by Jim Stettner/Jim Stettner)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Right
- 2 manuals
- 22 stops
- 9 registers
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Stop Keys Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: 'Hold and Set' Pneumatic/Mechanical
- Has combination thumb pistons
- Has coupler toe pistons
Notes
2008-03-07 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager
2012-06-07 - Updated through online information from James R. Stettner. -Database Manager
Stoplist
Source: Stoplist copied from the console December, 1995
Spokane, Washington
Knox Presbyterian Church
M.P. MÖLLER, Opus 7179, 1946 - Original Specifications
GREAT (Expressive) COUPLERS
8 Diapason 73 Swell to Pedal [8],4
8 Lieblich Gedeckt (Sw) -- Great to Pedal [8]
8 Gamba (Sw) --
8 Dulciana 73 Swell to Great 16,[8],4
4 Lieblich Floete (Sw) --
4 Dulciana 12
Chimes ( ) FINGER PISTONS
General 1 – 3
Great 16 Swell & Pedal 1 – 3
Great 4 Great & Pedal 1 - 3
SWELL (Expressive) FOOT LEVERS
16 Lieblich Bourdon 12 Gt. to Ped. Reversible (rev)
8 Lieblich Gedeckt 61
8 Gamba 73
8 Gamba Celeste (tc) 61 PEDAL MOVEMENTS
8 Aeoline 73 Expression (bal.)
4 Lieblich Floete 12 Crescendo (bal.)
2-2/3 Nazard 7
2 Flautino 5
8 Trumpet 73
8 Vox Humana 73
Tremolo
Swell 16
Swell 4 ACTION: E-P primary/unit
VOICES: 9
PEDAL (Expressive)
16 Bourdon 32 STOPS: 22; inc. chimes
16 Lieblich Bourdon (Sw) --
8 Bourdon 12 RANKS: 9
8 Lieblich Gedeckt (Sw) --
4 Lieblich Floete (Sw) -- PIPES: 652
NOTES
The organ is placed in a recessed chamber on the left side of the sanctuary
at the front. The console is placed opposite the chamber with the organist
facing the chamber across the chancel - the congregation to the left.
The Swell 8' Vox Humana and 8' Aeoline appear to have been added as an
afterthought, but before the organ was delivered to the church. Ventil
switching for the stops is placed in unusual places in the chamber, and
the Aeoline in particular is on a unit chest. Had it been planned origi-
nally, it would have been on the primary action chest. The Swell 8' Trumpet
is harmonic, and the top seven pipes of the 2' Flautino extension break
back to 4' pitch.
Sources: Möller opus list; Eugene M Nye compilation; JRS; extant organ
[Received from James R. Stettner 2012-06-07.]
